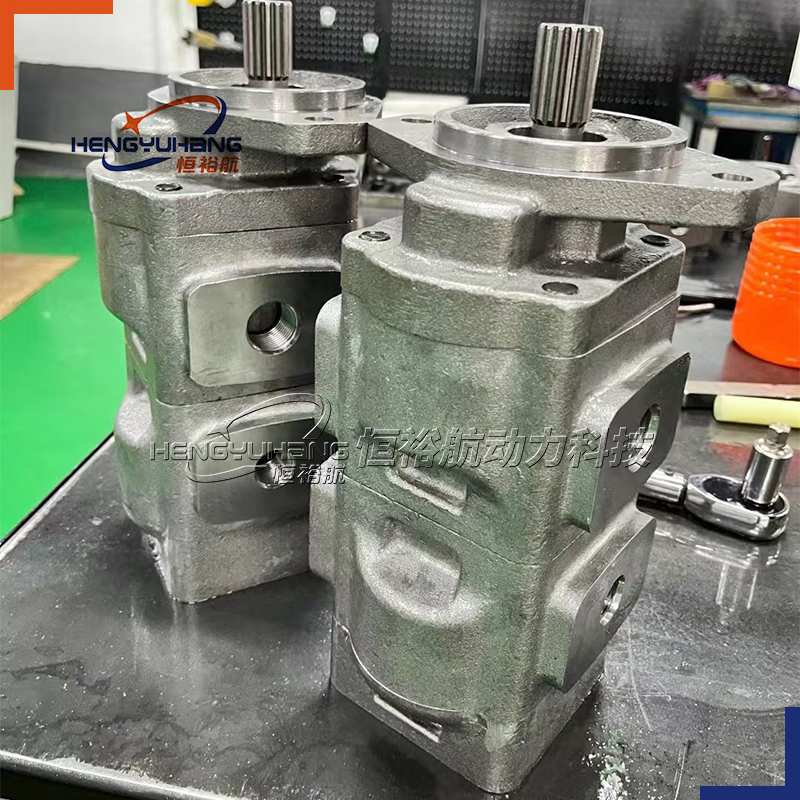

Parker 20/925586 JCB Hydraulic Pump 29 + 23 CC

Parker JCB Hydraulic Pump 20/925586 for JCB Loader 3CX 4CX 215S 215  7029121181 High-pressure oil pump


Rotation: Clockwise (looking from shaft end)

1” Diameter 15 tooth SAE splined shaft 16/32 Pitch

SAE B 2 hole mounting flange

Front pump displacement: 29 cc/rev (29L/Min per 1000 rpm)

Rear pump displacement: 23 cc/rev (23L/Min per 1000 rpm)

Single 2” SAE flange inlet

Front pump outlet: 1 1/16”-12 UNF threaded

Rear pump outlet: 7/8”-14 UNF threaded

Maximum working pressure on front pump: 275 bar

Maximum working pressure on rear pump: 275 bar

Max. Input shaft torque: 460 Nm


Description

Hydraulic Pump 20/925586 for JCB Loader 3CX 4CX 215S 215

Replace Part Number:20/925586, 20925586, 20-925586, 7029120022

Application:
Fit for JCB Loader:
214/3CX 14, 214/3CX 14-PC, 214e, 214e/3C 14, 214e/3C 14-B, 214e/3C 14-T2, 214e/3C PLUS-B, 214e/3C PLUS-T2, 214e/3C-LL, 214e-LE, 214e-LE TURBO, 214e-LL, 214e-LL TURBO, 214e-Turbo, 214S/4CX 14, 214S/4CX 14-PC, 215/3CX 15, 215/3CX 15-PC, 215S/4CX 15, 215S/4CX 15-PC, 217/3CX 17, 217/3CX 17-PC, 217S/4CX 17, 217S/4CX 17-PC, 3C, 3C 14 (84HP), 3C PLUS (91HP), 3CX, 3CXS, 3CXS-PC, 3CX-T, 3CX-T-PC, 4CX, 4CX-PC


HENGYUHANG Company  is a set design, production, sales in one of the hydraulic components production company, the company has advanced hydraulic components manufacturing technology and technology, the use of high-precision equipment CNC machining center, gear hot processing automatic production line, , automatic heat treatment multi-purpose furnace, single-piece flow assembly line, automatic hydraulic pump performance test bench. Intelligent equipment adopts automatic unmanned production, and realizes online measurement to ensure product consistency and reliability, intelligent system uses ERP, MES management software, improve production efficiency, and achieve product traceability.

Hengyuhang Power Technology produces and sells external gear pumps, hydraulic synchronous motors, multi-pump units, gear pumps with built-in valves, and custom valve blocks. Meanwhile, according to the specific needs of customers, we provide a variety of products with special specifications.And it can also be used as a substitute for other products (such as Rexlex, Danfoss, MARZOCCHI, Parker, RONZIO, Atos, Buchet, ECKERLE, CONCENTRIC, HYADC, JIHOSTROJ, Hydraulic, SDH, VIVOLO, ARGO-HYTOS, HESPER,   HPLPA, HPI, DUPLOMATIC, ROQUET, BODEN,PERMCOP, Caproni, DUPLOMATIC, HIDRAULICA, SETTIMA, SALAMI, HONOR, SHIMADZU, GRH, Brevini, Galtech, BONDIOLI, REXROTH-SIGMA, BLUEASCEND, RISUNY, SUMITOMO, HYDROMAX, SCENERY, REXPOWER, CML, HOERBIGER, SUNNY, HYTEK, Hydro-pack, )

HENGYUHANG also sells a wide range of other international brands of hydraulic pumps, hydraulic valves, hydraulic motors, hydraulic cylinders, hydraulic oil seals, hydraulic equipment and accessories, and has high-quality overseas ordering channels

HENGYUHANG products are mainly used in the supporting services of industries such as automobiles, construction machinery, agricultural machinery, aerial work platforms, hydraulic systems, logistics handling vehicles, new energy vehicles, metallurgical machinery, petroleum machinery, machine tools, and wind powe
