Caterpillar pump

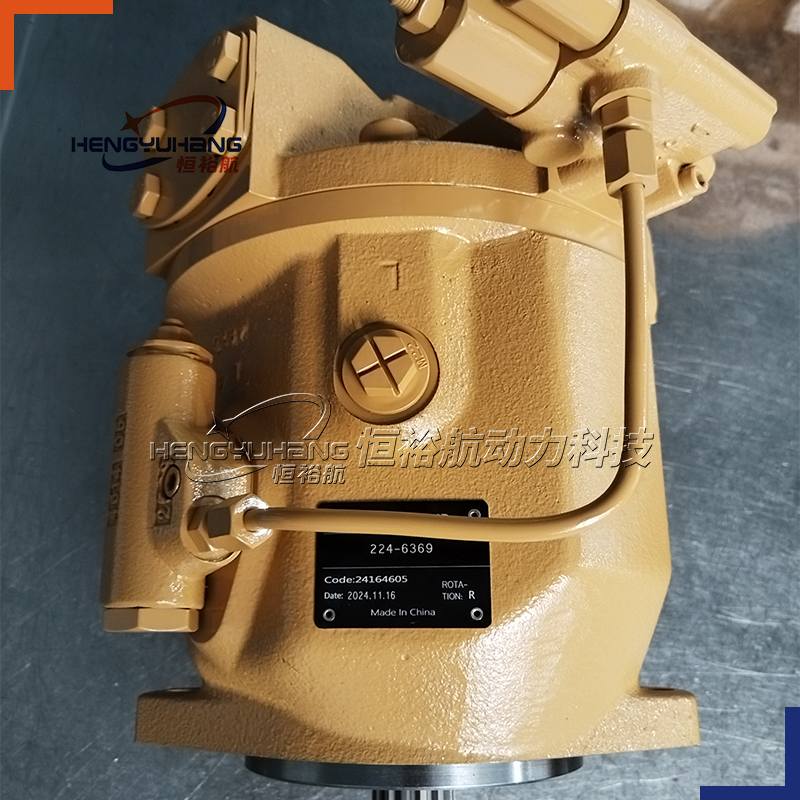

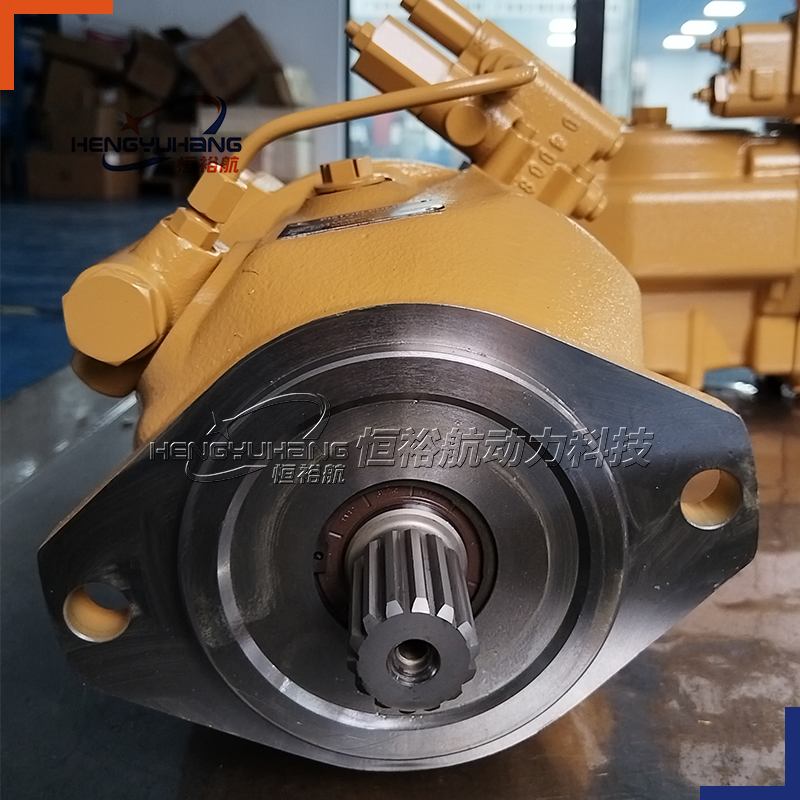

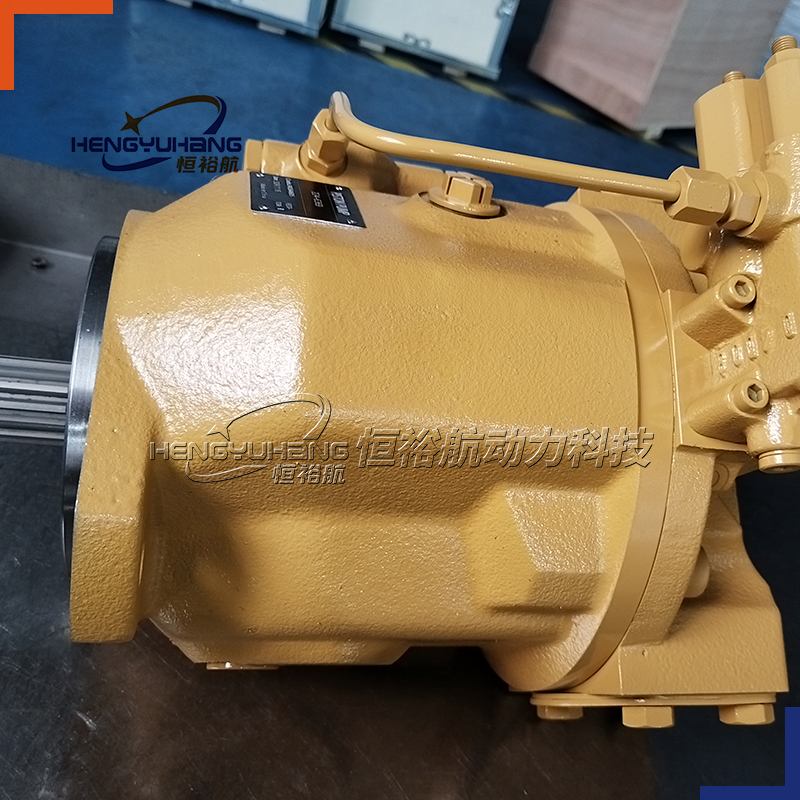

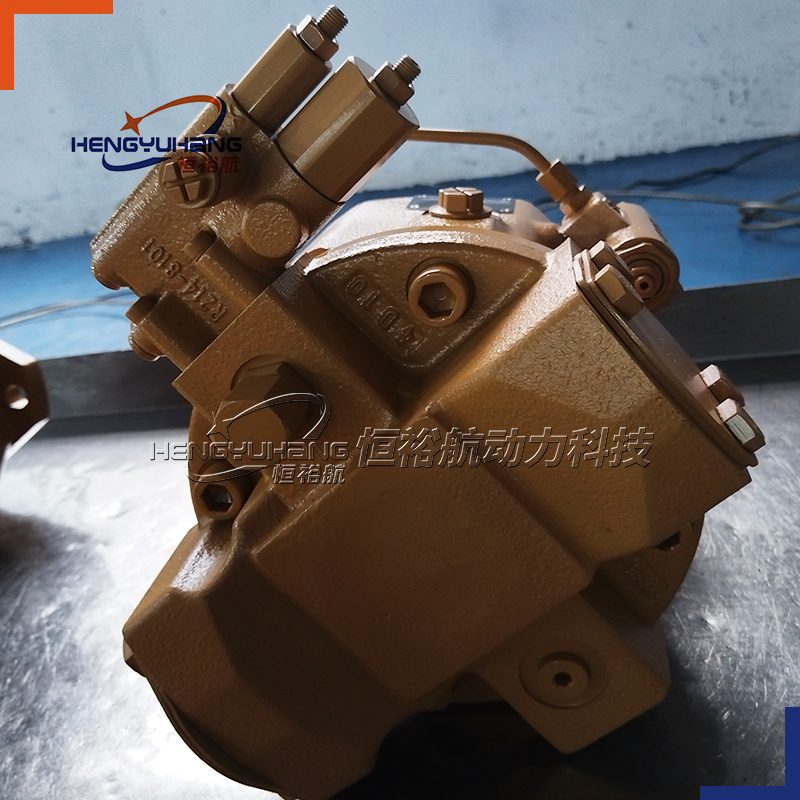

224-6369 2246369 Caterpillar CAT piston pump

Hydraulic Pump 224-6369 for Caterpillar CAT 420D 430D 432D 442D Backhoe Loader

Replace Part Number:224-6369, 2246369, CA2246369

Applications:Fit for Caterpillar CAT Backhoe Loader: 420D, 430D, 432D, 442D


Description

Caterpillar CAT piston pump 224-6369 taqbel għal Caterpillar CAT 420D 430D 432D 442D 420D Backhoe
Magna Loader 3054

Numru tal-Parti: 224-6369, 2246369, CA2246369

Applikazzjonijiet: Backhoe Loader: Fits għal Caterpillar Cat 420d, 430d, 432d, 442d, 420d 420d Backhoe Loader BMC 00001-00610 (magna) mħaddma minn 3054 Magna 420D Backhoe Loader FDP 07199-18399} (magna) mħaddma minn 3054 magna 430d Backhoe Loader BML 02281-04799 (magna) mħaddma minn 3054 magna 432D Backhoe Loader Bld 01595-03844 (magna) mħaddma minn 3054 magna 442D Backhoe Loader BRG 00828-01122 (magna) imħaddma minn 3054 Magna 420d 420d Loader bkc 00502- up (magna) mħaddma minn 3054 magna 420d backhoe loader bmc 00611- up (magna) mħaddma minn 3054 magna


Desplazamiento Geométrico por revolución: 71 cc/rev

Revoluciones máximas nominales: 2200 RPM

Revoluciones máximas permitidas: 2600 RPM

Flujo máximo: 156 l/min

Flujo @1500rpm: 107 l/min

Potencia máxima: 73 kW

Potencia @1500rpm: 50 kW

Torque @280bar: 316 Nm

Torque @100bar: 113Nm

Fuerza de la flecha (1.250″Ø 14T): 71884 Nm/rad

Momento de inercia del grupo rotatorio: 0.0083Kgm2

Aceleración angular máxima: 2900 rad/s2

Volumen de la carcasa: 1.6 L

Peso sin tapa trasera para acoplamiento: 35.2Kg


HENGYUHANG Company  is a set design, production, sales in one of the hydraulic components production company, the company has advanced hydraulic components manufacturing technology and technology, the use of high-precision equipment CNC machining center, gear hot processing automatic production line, , automatic heat treatment multi-purpose furnace, single-piece flow assembly line, automatic hydraulic pump performance test bench. Intelligent equipment adopts automatic unmanned production, and realizes online measurement to ensure product consistency and reliability, intelligent system uses ERP, MES management software, improve production efficiency, and achieve product traceability.

Hengyuhang Power Technology produces and sells external gear pumps, hydraulic synchronous motors, multi-pump units, gear pumps with built-in valves, and custom valve blocks. Meanwhile, according to the specific needs of customers, we provide a variety of products with special specifications.And it can also be used as a substitute for other products (such as Rexlex, Danfoss, MARZOCCHI, Parker, RONZIO, Atos, Buchet, ECKERLE, CONCENTRIC, HYADC, JIHOSTROJ, Hydraulic, SDH, VIVOLO, ARGO-HYTOS, HESPER,   HPLPA, HPI, DUPLOMATIC, ROQUET, BODEN,PERMCOP, Caproni, DUPLOMATIC, HIDRAULICA, SETTIMA, SALAMI, HONOR, SHIMADZU, GRH, Brevini, Galtech, BONDIOLI, REXROTH-SIGMA, BLUEASCEND, RISUNY, SUMITOMO, HYDROMAX, SCENERY, REXPOWER, CML, HOERBIGER, SUNNY, HYTEK, Hydro-pack, )

HENGYUHANG also sells a wide range of other international brands of hydraulic pumps, hydraulic valves, hydraulic motors, hydraulic cylinders, hydraulic oil seals, hydraulic equipment and accessories, and has high-quality overseas ordering channels

HENGYUHANG products are mainly used in the supporting services of industries such as automobiles, construction machinery, agricultural machinery, aerial work platforms, hydraulic systems, logistics handling vehicles, new energy vehicles, metallurgical machinery, petroleum machinery, machine tools, and wind powe
