Professional Industrial Hydraulic Pumps | Engineering, Replacement & OEM Solutions

Product Overview

A Hydraulic Pump is a high-precision positive displacement mechanical device designed to convert mechanical energy (supplied by an electric motor or internal combustion engine) into hydraulic fluid energy. Rather than creating pressure directly, the pump generates fluid flow with sufficient volume and velocity to overcome the resistance and load created by the system's actuators (cylinders, hydraulic motors, and control valves).

Engineered for continuous duty in demanding environments, our hydraulic pumps deliver consistent volumetric efficiency, precise flow modulation, and exceptional structural endurance across open-loop and closed-loop hydraulic circuits.

Detailed Classification & Operating Principles

Hydraulic pumps are categorized into three primary mechanical architectures, each engineered to fulfill specific pressure, flow, acoustic, and duty-cycle requirements:

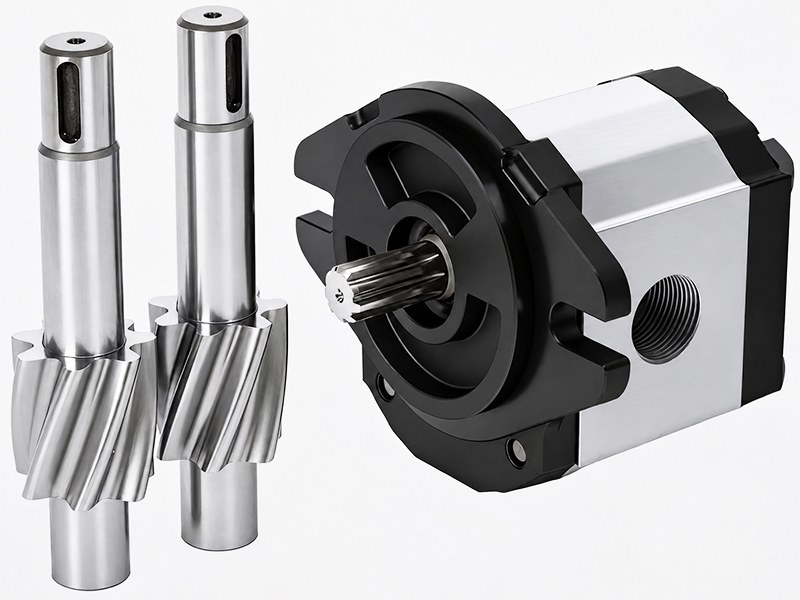

1. External & Internal Gear Pumps (Cost-Effective & Rugged)

Operating Principle: Fluid is drawn into the suction chamber between the unmeshing gear teeth, carried around the outer periphery of the pump housing, and forced out through the discharge port as the teeth re-mesh.

Performance Characteristics: Nominal pressure ratings from 160 bar to 280 bar (2,300 to 4,000 PSI); displacement range from 0.5 mL/rev up to 100+ mL/rev.

Key Strengths: Simple, highly durable construction with fewer moving parts; high tolerance to fluid contamination; compact power-to-weight ratio; low initial and maintenance costs.

Best Suited For: Mobile auxiliary circuits, agricultural tractors, log splitters, material handling forklifts, and low-to-medium pressure industrial power units.

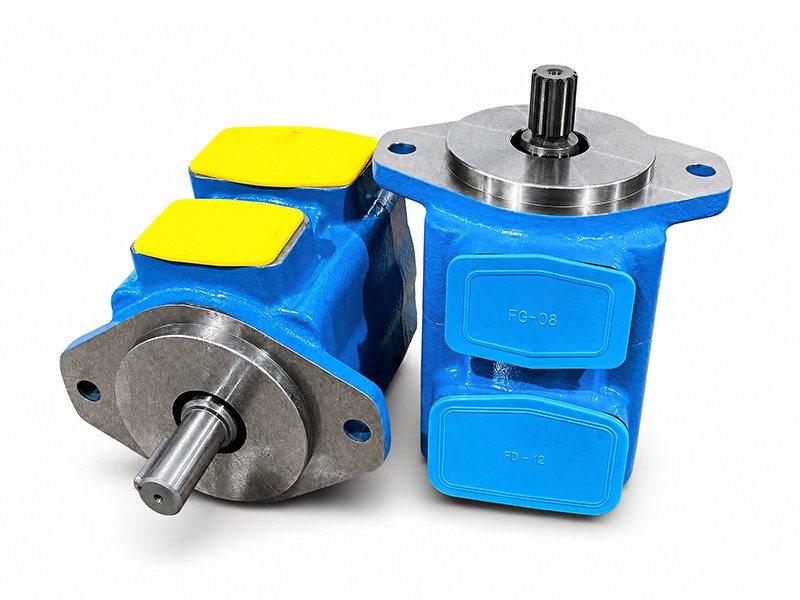

2. Vane Pumps (Low Noise & Smooth Flow Output)

Operating Principle: Uses a slotted rotor with sliding vanes that extend outward against a cam ring via centrifugal force and hydraulic pressure. As the rotor turns, fluid expands into increasing volume chambers and is discharged through decreasing volume chambers.

Performance Characteristics: Fixed and variable displacement designs; operating pressures up to 210 bar (3,000 PSI); displacement up to 150 mL/rev; acoustic levels as low as 62 to 68 dBA.

Key Strengths: Negligible flow pulsation; exceptionally quiet acoustic profile; hydraulically balanced design minimizes bearing loads for extended operating life.

Best Suited For: Indoor manufacturing facilities, plastic injection molding machinery, CNC machine tool feeds, die-casting equipment, and noise-sensitive mobile platforms.

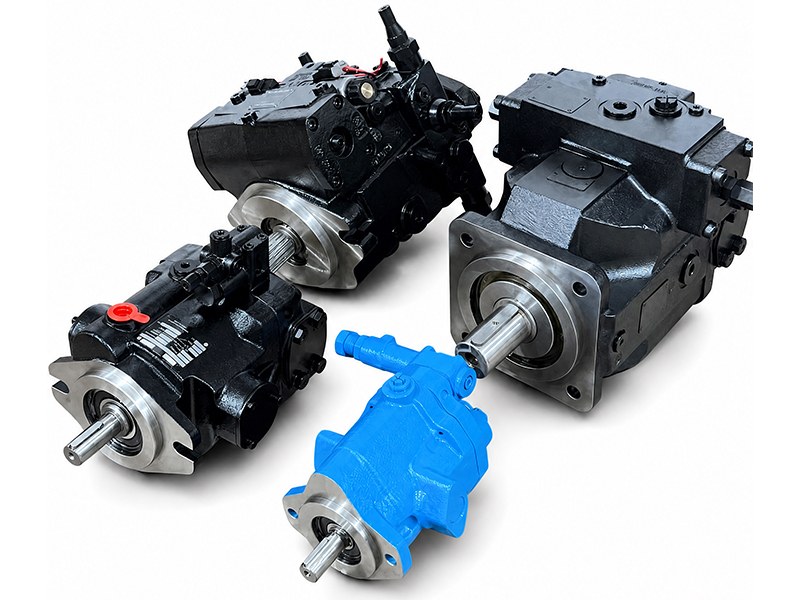

3. Axial & Radial Piston Pumps (High Pressure & Advanced Control)

Operating Principle: Utilizing multiple reciprocating pistons arranged parallel (axial) or perpendicular (radial) to the drive axis within a cylinder barrel. Swashplate or bent-axis designs convert rotary motion into high-pressure reciprocating strokes.

Performance Characteristics: Continuous working pressures up to 350 bar (5,075 PSI) with intermittent peak ratings up to 420 bar (6,000 PSI); displacements from 10 mL/rev to 500+ mL/rev.

Key Strengths: Highest overall volumetric efficiency (exceeding 95%); capable of variable displacement configurations with advanced control options (pressure cut-off, load sensing, constant power, proportional electric control).

Best Suited For: Heavy-duty earthmoving machinery (excavators, mobile cranes), mining haulers, large hydraulic forging presses, and offshore winch systems.

Comprehensive Industrial Applications

Our hydraulic pumps operate as the central hydraulic heart across diverse global industries:

Mobile Heavy Machinery & Construction: Powers main boom elevation, arm curl, swing drives, track drives, and hydrostatic transmissions in excavators, backhoe loaders, articulated dump trucks, motor graders, and wheel loaders.

Agricultural & Forestry Equipment: Drives electro-hydraulic steering, three-point hitch positioners, combine harvester threshing systems, balers, forestry timber harvesters, and boom sprayers under severe dust, shock, and temperature variations.

Industrial Manufacturing & Metallurgy: Supplies stable hydraulic power to high-tonnage metal stamping presses, automated extrusion lines, plastic blow-molding equipment, scrap metal shears, and foundry ladle-tilt cylinders.

Marine, Offshore & Subsea Engineering: Installed in mooring and anchor winches, hydraulic steering gearboxes, deck cranes, watertight hatch covers, offshore drilling rigs, and oceanographic research winches designed with corrosion-resistant coatings.

Material Handling & Logistics: Powers mast lifting, carriage tilt, and side-shifting attachments in counterbalance forklifts, automated guided vehicles (AGVs), telehandlers, and harbor container reach stackers.

Key Engineering Features & Structural Advantages

Superior Volumetric & Mechanical Efficiency: Precision-ground gear profiles, micro-lapped valve plates, and micro-honed piston chambers maintain internal clearances within microns, minimizing internal fluid slippage (bypass) and preserving >93–96% volumetric efficiency across the full thermal envelope.

Heavy-Duty Metallurgical Integrity: Manufactured using high-strength ductile cast iron (GGG40/50), one-piece forged alloy steel drive shafts, and aerospace-grade extruded aluminum gear housings. Built to absorb continuous pressure spikes, fluid cavitation shocks, and external mechanical vibrations.

Acoustic Optimization & Low Pulsation: Internal timing grooves, relief slots, and optimized porting geometries minimize pressure wave shock and flow turbulence, reducing ambient operational noise by 3 to 6 dBA compared to standard commercial designs.

Modular Mounting & Porting Standardization: Conforms to universal SAE (J744), ISO 3019, and DIN standards. Available in multiple flange interfaces (2-bolt/4-bolt), drive shaft formats (SAE splined, keyed cylindrical, 1:8 tapered), and fluid connection types (BSPP, SAE O-ring boss, Code 61/62 split flanges).

Multi-Stage & Tandem Versatility: Supports multi-pump configurations (double, triple, or piggyback tandem pumps) utilizing common or isolated suction ports to drive multiple independent circuits from a single prime mover.

Technical Specifications & Performance Parameters

1:1 Direct-Fit Aftermarket Replacement Guarantee

Hengyuhang Hydraulics specializes in precision-engineered direct-fit replacement pumps that match the exact mounting geometry, shaft extension, port locations, and hydraulic performance curves of legacy units from the world's leading fluid power manufacturers:

Rexroth: A10VSO, A4VSO, A10VG, AZPF, AZPN, AZPB series.

Parker Hannifin / Denison: PGP500, PGP300, PV/PVplus, T6/T7 vane series.

Eaton / Vickers: 20V/25V/35V/45V single/double vane pumps, PVH, PVE series.

Casappa: Polaris (PLP), Kappa (KP), Whisper (WSP), Magnum (HD) series.

Shimadzu, Danfoss, Marzocchi, Salami, and Commercial Hydraulics.

Seamless Drop-In Advantage: No hydraulic line repiping, no mounting bracket alteration, and no control circuit recalibration required. Simply remove the worn unit and install our replacement for immediate system restoration.

Hydraulic Pump Engineering Selection Guide

To determine the ideal hydraulic pump configuration for your equipment, evaluate the following four technical dimensions:

1. Calculating Required Flow Rate (Q)

Determine the required speed of all connected hydraulic actuators (cylinders and hydraulic motors) to establish the maximum required flow rate:

Flow Rate Q (L/min) = Displacement Vg (cm³/rev) × Speed n (RPM) × ηv ÷ 1000

(Where ηv represents the pump's volumetric efficiency, typically 0.92 to 0.98).

2. Determining Operating & Relief Pressures

• Identify the maximum static load and dynamic acceleration force required by the actuators.

• Ensure the pump's continuous pressure rating exceeds normal system operating pressure by at least 15–20% to account for pressure spikes and fluid friction in lengthy pipe runs.

3. Calculating Prime Mover Drive Power (P)

Ensure your electric motor or diesel engine provides sufficient mechanical input power:

Drive Power P (kW) = Flow Rate Q (L/min) × Δp (bar) ÷ (600 × ηt)

(Where ηt represents the total overall efficiency: ηt = ηv × ηm, typically 0.85 to 0.92).

4. Mechanical Interface & Rotation Verification

Rotation Direction: Observe the drive shaft face-on. Identify whether rotation is Clockwise (Right-Hand / D) or Counter-Clockwise (Left-Hand / S). Note: Installing a pump with reverse rotation will destroy shaft seals and cause catastrophic failure.

Mounting & Porting: Verify pilot diameter, bolt hole pitch, drive shaft dimensions (spline pitch, tooth count, or keyway size), and port thread standards (BSPP, Metric, or SAE).

OEM & ODM Custom Manufacturing Services

Hengyuhang Hydraulics provides comprehensive OEM and private-label customization services for equipment builders, distributors, and aftermarket parts brands:

Custom Hydraulic Design & Prototyping: Custom displacements, specialized mounting brackets, integrated dual-inlet ports, and customer-specific manifold block integration.

Integrated Valve Blocks: Rear end-covers integrated with pressure relief valves (VLP), anti-cavitation check valves (VNR), or load-sensing priority flow control valves.

Private Label & Branding: Laser engraving of client brand logos, custom-coded part numbers, branded nameplates, and tailored retail/export packaging.

Scalable Production Capacities: Flexible order scheduling supporting rapid small-batch replacement runs as well as high-volume recurring OEM container shipments.

About Hengyuhang Hydraulics – Quality Manufacturer & Global Supplier

Hengyuhang Hydraulics is an ISO-certified manufacturer dedicated to the precision engineering and worldwide supply of high-grade hydraulic gear pumps, piston pumps, vane pumps, and replacement components.

Advanced Manufacturing Facility: Equipped with multi-axis CNC machining centers, automated high-speed gear hobbing and grinding lines, vacuum heat-treatment furnaces, and coordinate measuring machines (CMM).

100% Quality Testing Protocol: Every manufactured pump undergoes strict computerized bench testing, including no-load break-in, maximum continuous pressure holding, internal leakage testing, and volumetric efficiency certification.

Global Logistics & Technical Support: We supply machinery manufacturers, hydraulic service centers, and replacement parts distributors across North America, Europe, Southeast Asia, South America, and the Middle East with rapid delivery and comprehensive technical matching support.

Frequently Asked Questions (FAQ)

Q1: What is the primary difference between a gear pump, vane pump, and piston pump?

• Gear pumps are the most economical and rugged solution, ideal for low-to-medium pressure applications (<250 bar) with high contamination tolerance.

• Vane pumps offer exceptionally low noise levels and minimal flow pulsation, making them ideal for indoor industrial factory machinery (<210 bar).

• Piston pumps are built for demanding high-pressure (350+ bar) and heavy-duty applications where variable displacement and precise electronic/hydraulic controls are required.

Q2: Can a single hydraulic pump supply fluid to multiple independent circuits?

Yes. We manufacture multi-stage tandem pumps (double, triple, or quadruple pump combinations) connected via internal intermediate coupling shafts. Each section can have different displacements and independent pressure ratings, powered by a single prime mover.

Q3: How do I identify the rotation direction of an unmarked replacement pump?

Look directly at the drive shaft end with the ports facing left and right. Identify the suction (inlet) port and discharge (outlet) port—the suction port is always significantly larger in diameter than the pressure port:

• If the large suction port is on your left, the pump rotates Clockwise (Right-Hand / CW).

• If the large suction port is on your right, the pump rotates Counter-Clockwise (Left-Hand / CCW).

Q4: Are Hengyuhang replacement pumps genuine OEM parts from brands like Rexroth or Parker?

No, our products are high-precision aftermarket replacement units manufactured by Hengyuhang Hydraulics. All trade names, trademarks, and model numbers are used strictly for reference and interchangeability identification. Our replacement pumps are built to identical dimensional and functional specifications, delivering OEM-equivalent performance and service life at substantial cost savings.

Q5: What information is needed to obtain a fast quotation for a replacement pump?

Please provide:

• A clear photograph of the existing pump nameplate showing model and serial numbers.

• The brand and model of the machinery or power unit it is installed on.

• If the nameplate is missing: provide photos of the mounting flange, drive shaft, and port layout along with outer dimensions (flange pilot diameter and housing length).
