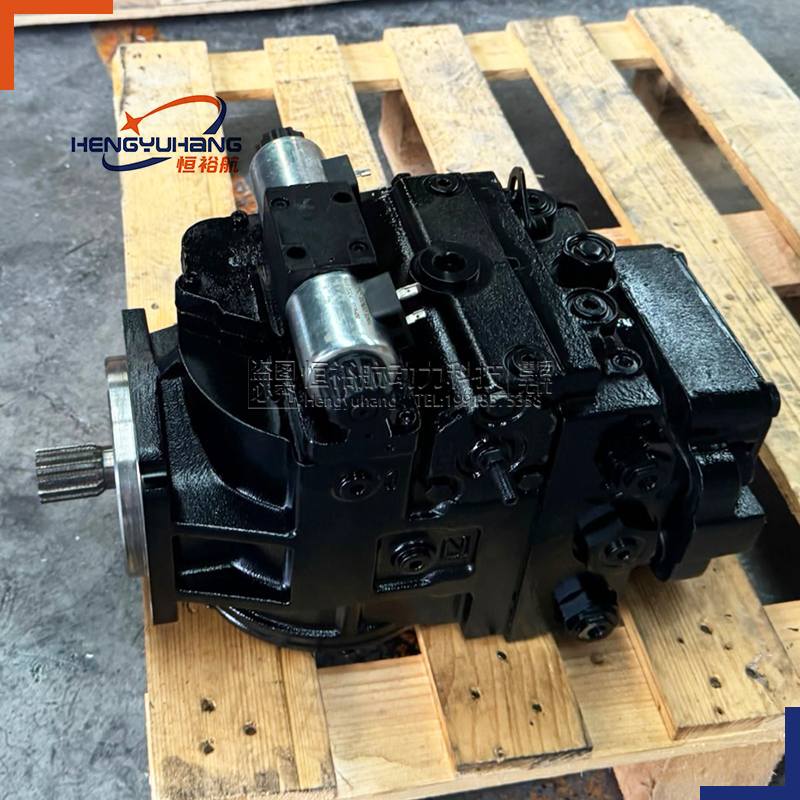

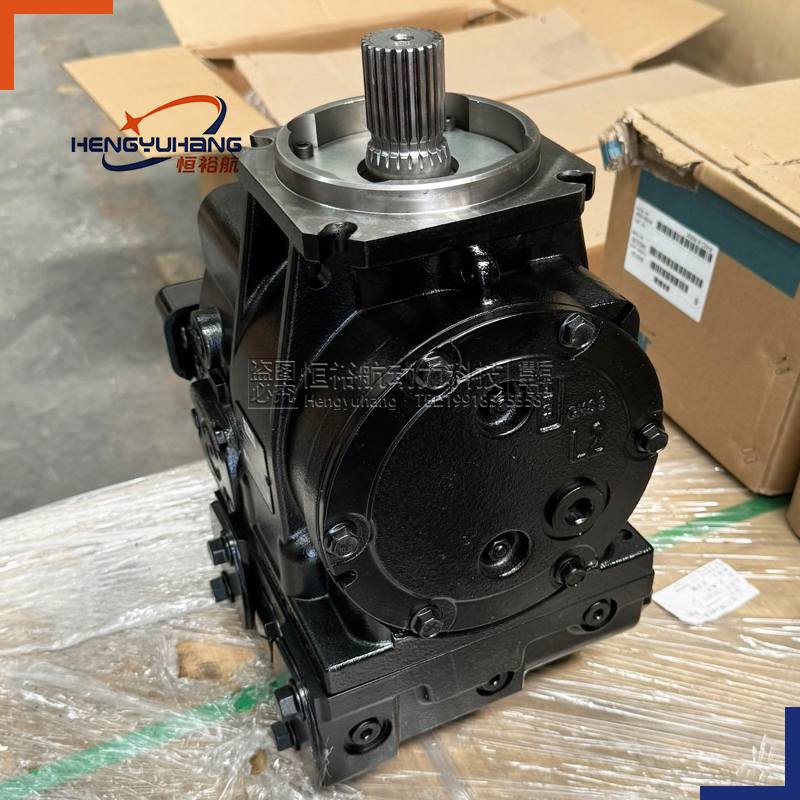

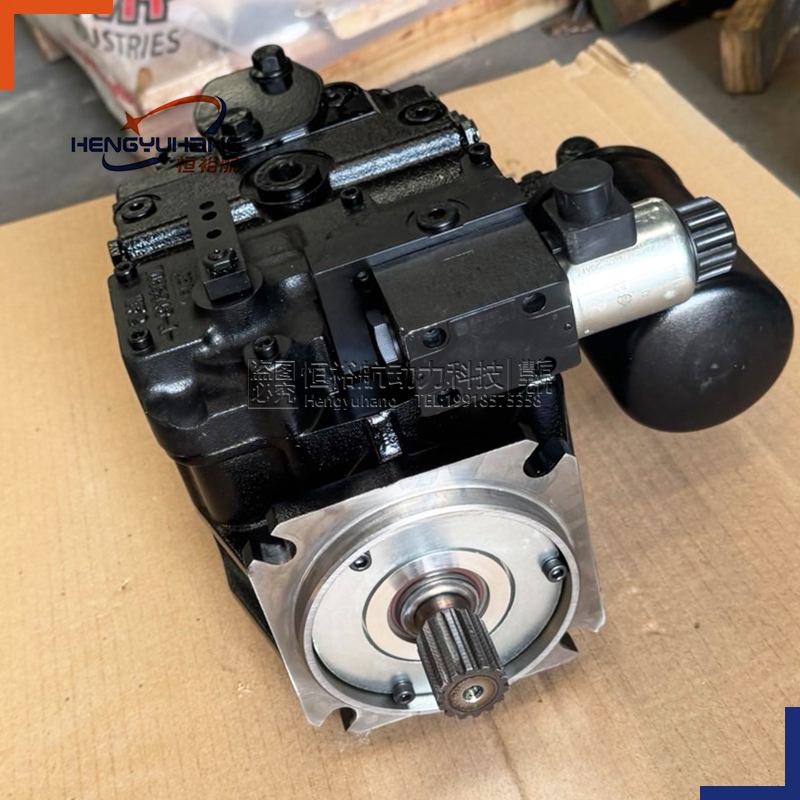

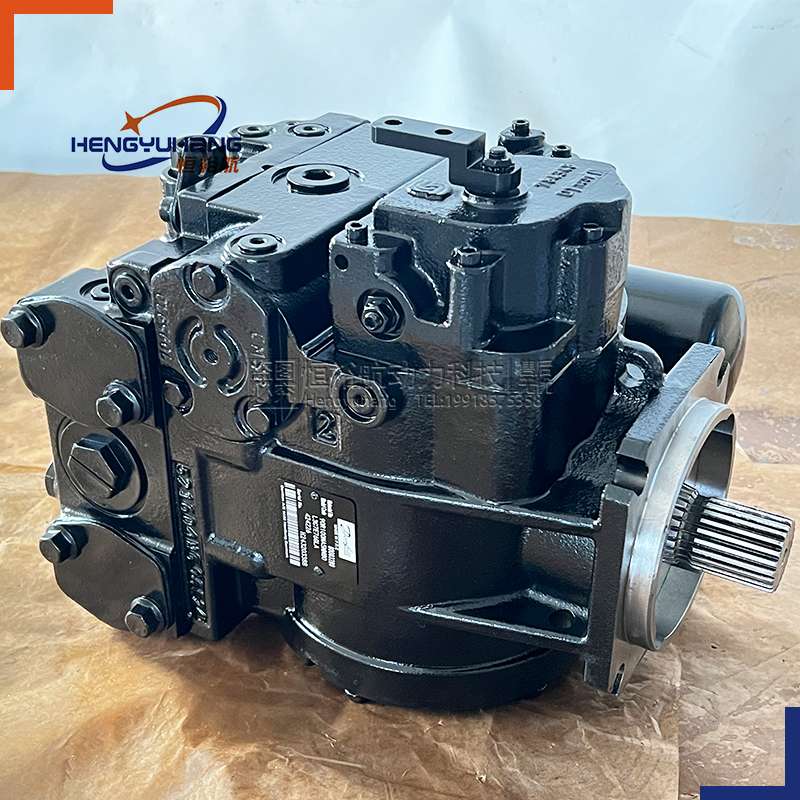

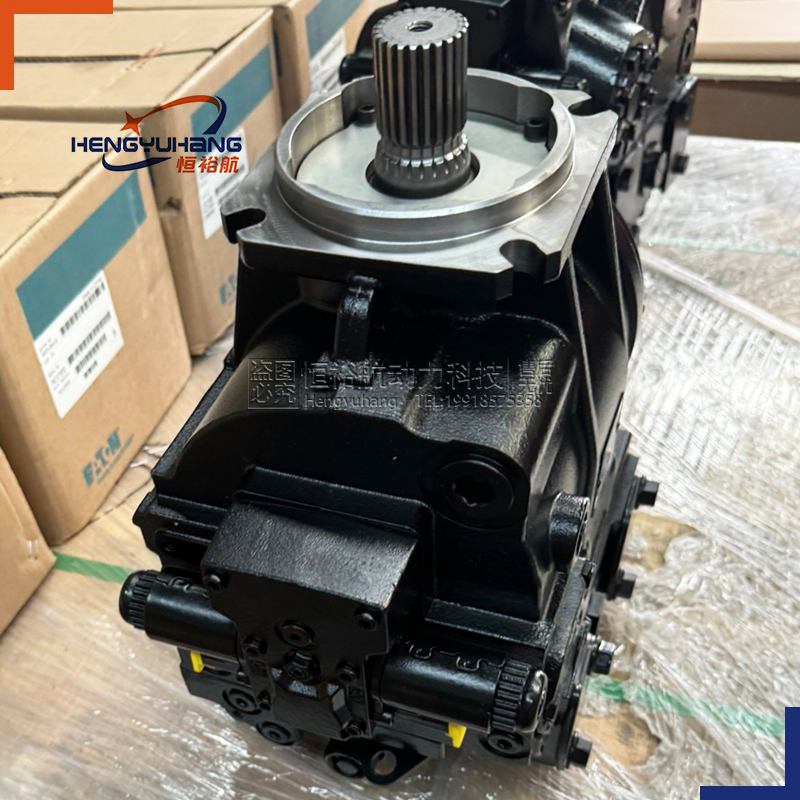

Sauer Danfoss 90 pump
Hydraulic pump Sauer Sundstrand 90R series 90R030, 90R042, 90R055, 90R075, 90R100, 90R130, 90R180, 90R250
90L series 90L030, 90L042, 90L055, 90L075, 90L100, 90L130, 90L180, 90L250
Max Displacement: 30 cc/rev
Max Working Pressure: 28.0 Mpa
Shaft Speed Range: 1800 r/min
Rotation: Right from shaft end
Control Type: Pressure Compensator Control
Product Type: Hydraulic Pump
Material: Cast iron
| Sauer 90 | Dimension | 90R030 90L030 | 90R042 90L042 | 90R055 90L055 | 90R075 90L075 | 90R100 90L100 | 90R130 90L130 | 90R180 90L180 | 90R250 90L250 | |
| Displacement | cm3 | 30 | 42 | 55 | 75 | 100 | 130 | 180 | 250 | |
| in3 | 1.83 | 2.56 | 3.35 | 4.57 | 6.1 | 7.93 | 10.98 | 15.25 | ||
| Input speed | Minimum | min-1 (rpm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Rated | min-1 (rpm) | 4 200 | 4 200 | 3 900 | 3 600 | 3 300 | 3 100 | 2 600 | 2 300 | |
| Maximum | min-1 (rpm) | 4 600 | 4 600 | 4 250 | 3 950 | 3 650 | 3 400 | 2 850 | 2 500 | |
| Max. Attainable | min-1 (rpm) | 5 000 | 5 000 | 4 700 | 4 300 | 4 000 | 3 700 | 3 150 | 2 750 | |
| Theoretical | Nm/bar | 0.48 | 0.67 | 0.88 | 1.19 | 1.59 | 2.07 | 2.87 | 3.97 | |
| Torque | in lb/1000 psi | 290 | 410 | 530 | 730 | 970 | 1 260 | 1 750 | 2 433 | |
| Mass moment of inertia of the int. rotating parts | kg m2 | 0.0023 | 0.0039 | 0.006 | 0.0096 | 0.015 | 0.023 | 0.038 | 0.065 | |
| lb • ft2 | 0.0546 | 0.0926 | 0.1424 | 0.228 | 0.356 | 0.546 | 0.902 | 1.543 | ||
| Weight (with MA Control) | kg | 28 | 34 | 40 | 49 | 68 | 88 | 136 | 154 | |
| lb | 62 | 75 | 88 | 108 | 150 | 195 | 300 | 340 | ||
Key Features of Danfoss 90R 90L Series Hydraulic Pump:
High Efficiency: The Danfoss 90R 90L series hydraulic pumps feature advanced design and engineering, resulting in exceptional efficiency and optimized performance.
Precise Control: These pumps offer precise control over flow rates, pressure, and speed, allowing for accurate and responsive operation in a variety of hydraulic systems.
Robust Construction: Danfoss 90R 90L pumps are built with durable materials and a robust design, ensuring reliability and long service life even in harsh operating conditions.
Versatile Configurations: The Danfoss 90R 90L series offers a range of configurations, including displacement options and mounting styles, catering to diverse application requirements.
Quiet Operation: These pumps incorporate noise reduction technology, providing quiet and comfortable operation in various working environments.
| 90R055KA5NN60S3C6D03GBA424224 | 90R055KN5NN60S3C6D03GBA292924 |
| 90R055KA5NN80S4C6C03GBA323224 | 90R055KA5AB60S3C6C03GBA262620 |
| 90R055KA5NN80S3C6C03GBA262624 | 90R055KA5NN80S3C6C03GBA383820 |
| 90R055DD1AB60P4S1DG4GBA353520 | 90R055KA5NN60S3C6C03GBA323220 |
| 90R055DD1NN60P4S1CGBGBA424224 | 90R055MB5AB60S3C6CC5GBA424224 |
| 90R055DD1NN60P4S1DG4GBA353520 | 90R055MA5BC60S3C6CC5GBA424224 |
| 90R055DD1AB60S4S1DG4GBA353520 | 90R055HF5CD60S3C6C03GBA424224 |
| 90R055DD1NN60S4S1DG4GBA353520 | 90R055HF5BG80S3C6C03GBA424224 |
| 90R055KA1CD60P4S1C03GBA383824 | 90R055KA5NN80S3S1C03GBA424224 |
| 90R055MA1NN80S3C6D03GBA353524 | 90R055HF5NN80R4C6C03GBA232324 |
| 90R055KA1NN80S3C6D03GBA353524 | 90R055KA5AB80S4C6C03GBA202024 |
| 90R055KA1NN80S4S1C03GBA262624 | 90R055KN5NN80S3C6C03GBA292924 |
| 90R055KA1NN80S4S1C03GBA323224 | 90R055HS5BK80P3S1C03GBA454524 |
| 90R055KA2NN80S3C6C03GBA424224 | 90R055KA5BG80S3S1D03GBA262624 |
| 90R055HF1NN60S3C6D03GBA353524 | 90R055KA5CD80S3C6D03GBA323222 |
| 90R055HF1CD60R4S1C03GBA242424 | 90R055KA1NN80R4S1C03GBA323224 |
| 90R055HF1AB60P4S1C02GBA212120 | 90R055HF5CD80R3S1D03GBA383824 |
| 90R055KA1CD80P3S1C00GBA404024 | 90R055CA2AD80P3S1C00GBA353524 |
| 90R055KA1AB80S4S1D33GBA202024 | 90R055KA5NN80P3S1D03GBA353524 |
| 90R055MHFBN62S3C6T48FBE404020P020 | 90R055KP1CD80P4C6C03GBA292924 |
| 90R055CA5NN60S7C6C00EEG424232 | 90R055KP1NN80P4S1C03GBA262624 |
| 90R055KA1BC60S4C6C03GBA353524 | 90R055KA5CD80L3S1C03GBA383824 |
| 90R055MA5NN60P4C6C05GBA323224 | 90R055KA5BG80L3S1C03GBA383824 |
| 90R055KA5BC60S3C6C03GBA424224 | 90R055DC5NN80DNS1LZ1GBA404024 |
| 90R055HF5CD80S3S1C03GBA424224 | 90R055KA5NN60R3S1D04GBA424224 |
| 90R055KA5CD80S3C6C03GBA353524 | 90R055KA5AB60L3C6C03GBA353524 |
| 90R055KA5NN60S3C6C03GBA202024 | 90R055KA5BG80P3S1D03GBA323224 |
| 90R055KA5NN80S3C6D03GBA262624 | 90R055MB1BC60S3S1C03GBA353524 |
| 90R055KA5AB60P3S1C03GBA353524 |
