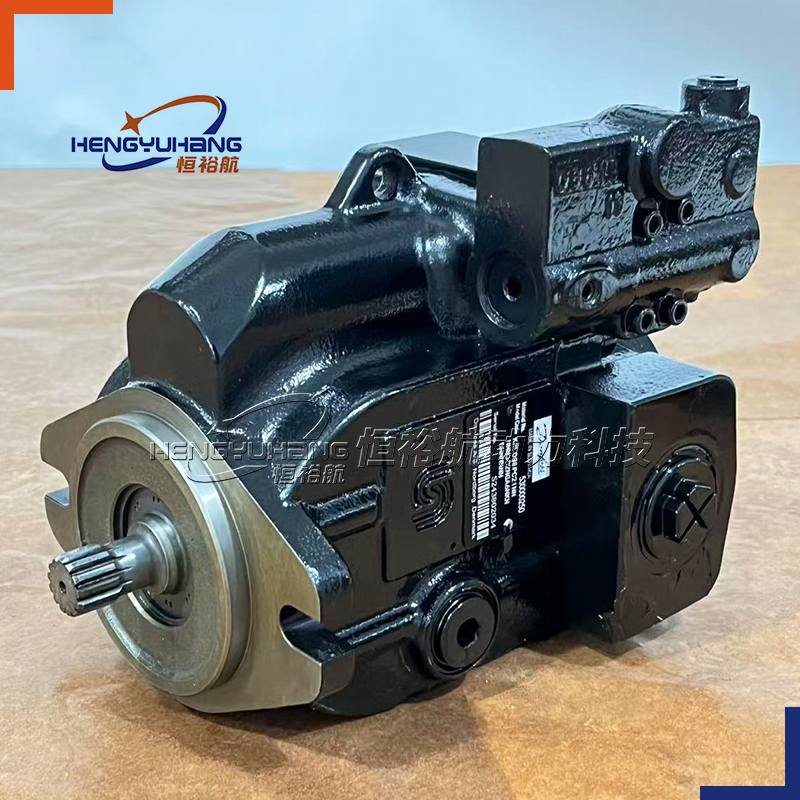

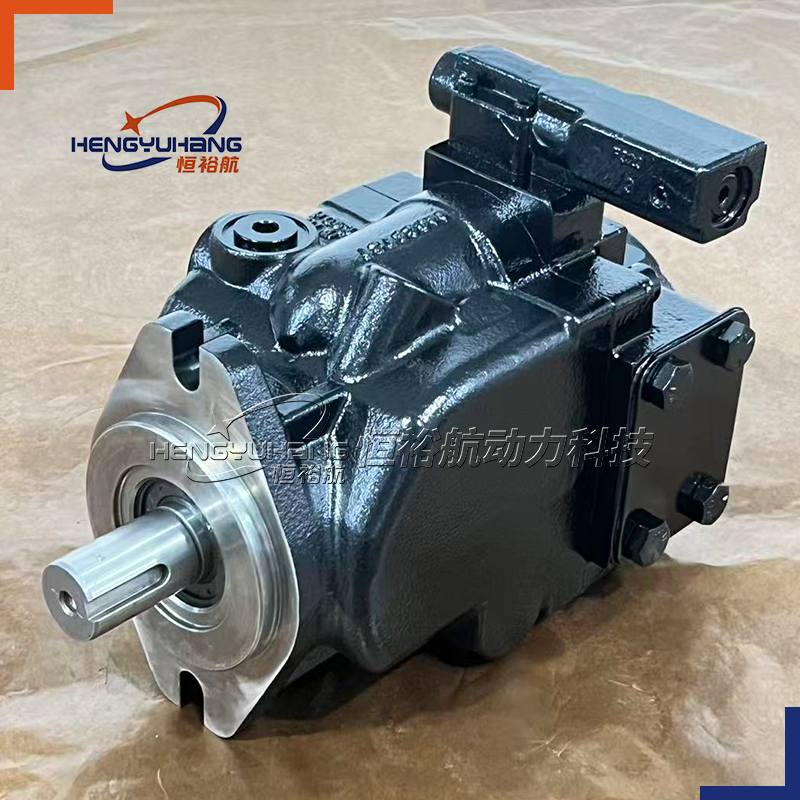

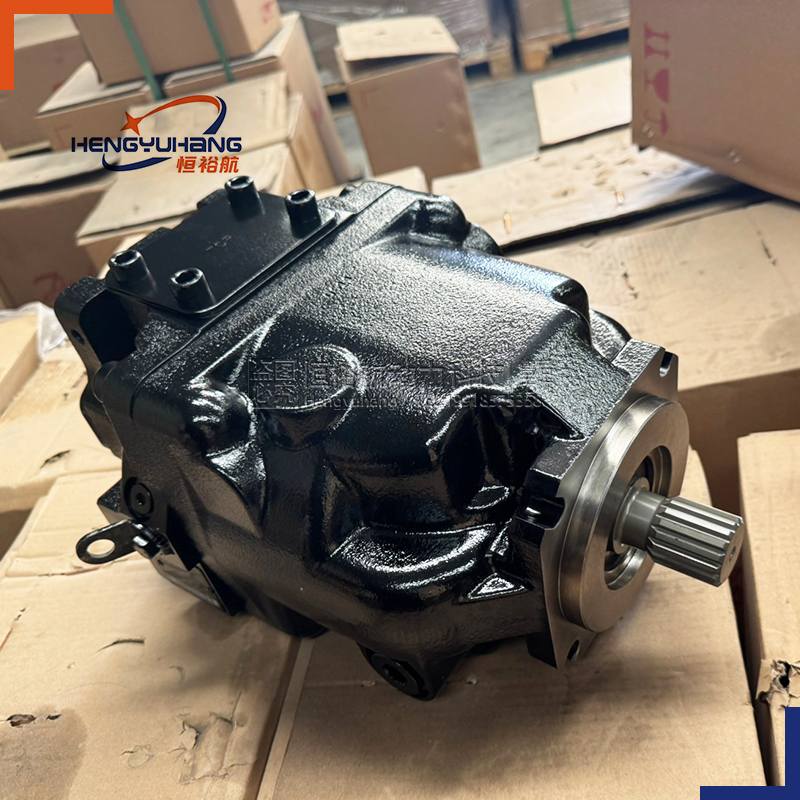

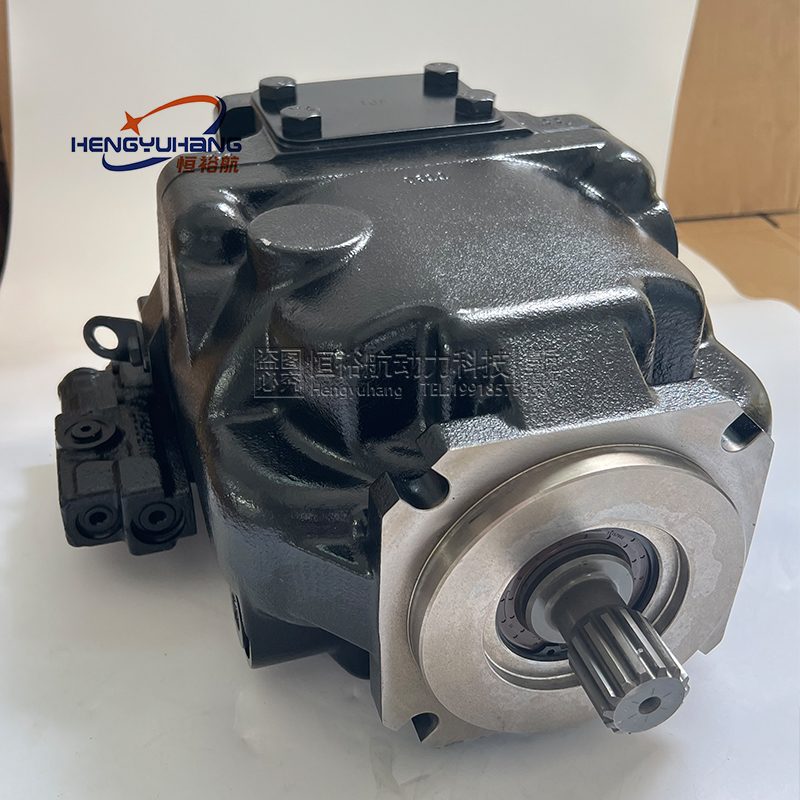

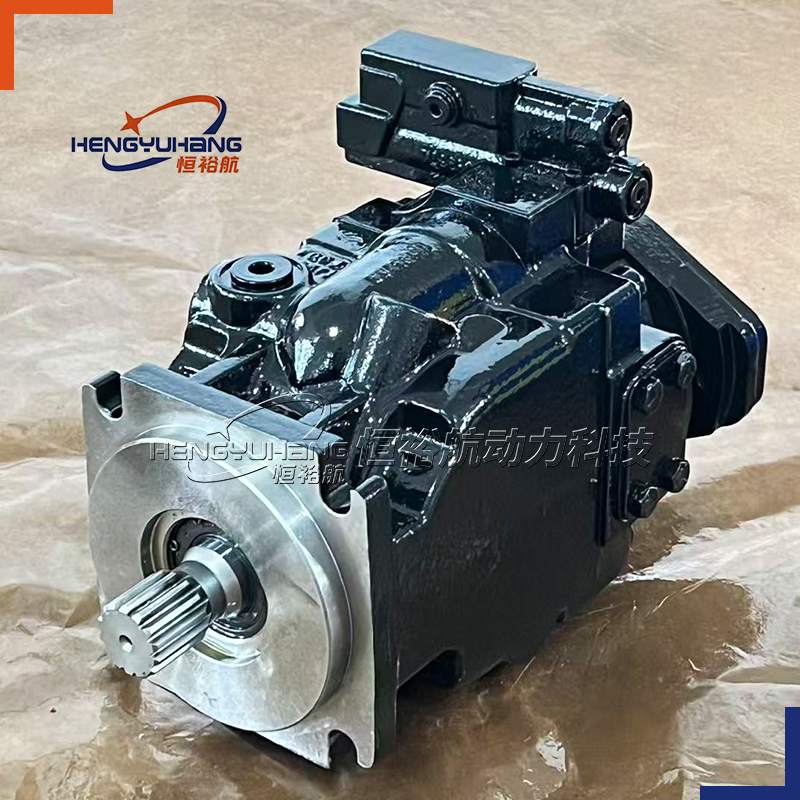

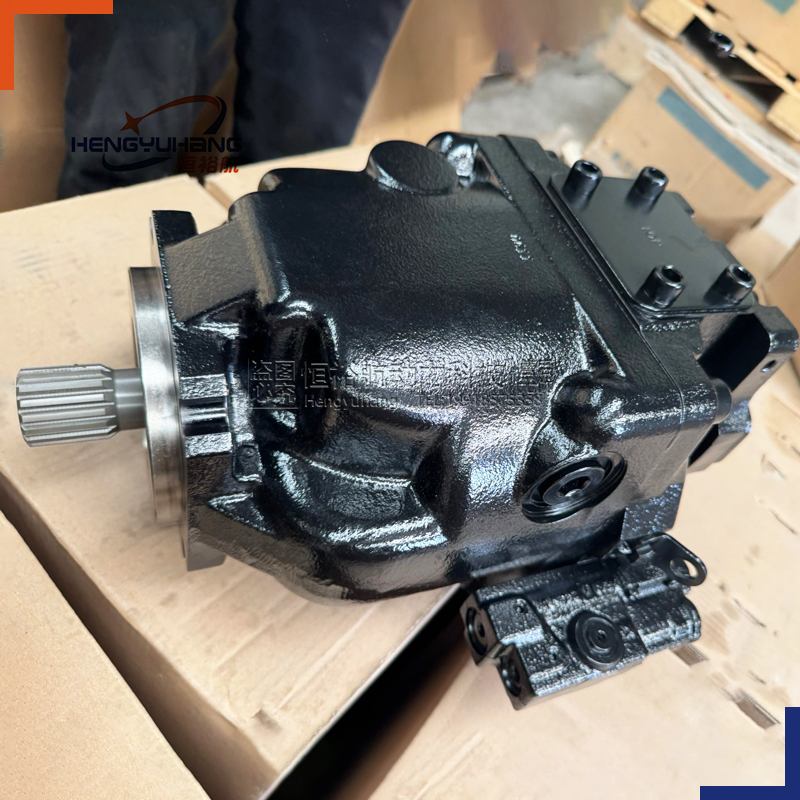

Danfoss Series 45 Pump KRR ERR JRR JRL hydraulic piston pumpLRR030 KRR038 KRR045 LRL025 LRL030 KRL038 KRL045 LRR025C LRR030D KRR038C KRR045D LRL025C KRR LRR
ERR100 ERR130 ERR147 ERL100 ERL130 ERL147 ERR100B ERR130B ERR147C ERL100B ERL130B ERL147C ERL Sauer danfoss ERR Pump
High performance • Displacements from 25 cm³ - 147 cm³ [1.53 - 8.97 in3 /rev] • Speeds up to 3600 rpm • Pressures up to 310 bar [4495 psi] continuous, and 400 bar [5800 psi] peak • Variety of control system options including load sensing and pressure compensated • Through-drive capability for multi-circuit systems • Range of mounting flanges, shafts, and porting options for ease of installation
Max Displacement: 25 cc/rev
Max Working Pressure: 28.0 Mpa
Shaft Speed Range: 1500-3000 r/min
Rotation: Right from shaft end
Control Type: /
Product Type: Hydraulic Pump
Material: Cast iron
| Size | LRR | KRR | ERR | |||||||||
125C | 130D | K38C | K45D | E100B | E130B | E147C | ||||||
| Displacement geometric, per revolution | Vg max | cm³ | 25 | 30 | 38 | 45 | 100 | 130 | 147 | |||
| Nominal pressure | pnom | bar | 260 | 210 | 260 | 210 | 310 | 310 | 260 | |||
| Maximum pressure | pmax | bar | 350 | 300 | 350 | 300 | 400 | 400 | 350 | |||
| Maximum speed 1) | at Vg max | nnom | rpm | 3600 | 3600 | 2800 | 2800 | 2880 | 2200 | 2100 | ||
| Flow | US gal/min | l/min | 21 | 25.4 | 26.6 | 31.5 | 64.7 | 75.5 | 81.5 | |||
| l/min | l/min | 80 | 96 | 100.7 | 119.3 | 245 | 286 | 308.7 | ||||
The Sauer Danfoss ERR series piston pumps come equipped with a range of exceptional features:
Efficient Performance: These pumps are engineered to deliver outstanding performance, ensuring optimal productivity and energy efficiency in your hydraulic system.
Robust Design: The ERR series pumps are constructed with durability in mind, allowing them to withstand demanding operating conditions and provide long-lasting service.
Versatile Displacement Options: With a variety of displacement options available, the ERR series pumps offer flexibility in system design, enabling precise control of hydraulic flow and pressure.
Compact and Space-Saving: The compact design of the ERR series pumps makes them suitable for installations where space is limited, without compromising on performance
| ERR057U1B3B24NNNN | ERR130BLS2520NNN3S2RPA1NAAANNNNNN |
| ERR063U1B3B24NNNN | ERR130BLS2520NNN3S4NLA1NAAANNNNNN |
| ERR075U1B3B24NNNN | ERR130BPC25NNNNN3K5NLA1NNNNNNNNNN |
| ERR090U1B3B24NNNN | ERR130BLS2520NNN3K5NLA1NAAANNNNNN |
| ERR100U1B3B24NNNN | ERR130BLS2520NNN3S2NLA1NAAANNNNNN |
| ERR130U1B3B24NNNN | ERR130BRP10NNNNN3K5NLA1NAAANNNNNN |
| ERR160U1B3B24NNNN | ERR130BLS2528NNN3S1NPA1NNNNNNNNNN |
| ERR190U1B3B24NNNN | ERR130BPC25NNNNN3S2NPA1NAAANNNNNN |
| ERR200U1B3B24NNNN | ERR130BLS2520NNN3S2NLA1NNNNNNNNNN |
| ERR250U1B3B24NNNN | ERR130BPC25NNNNN3K5NPA1NAAANNNNNN |
| ERR280U1B3B24NNNN | ERR130BLS2825NNN3S4NPA1NNNNNNNNNN |
| ERR325U1B3B24NNNN | ERR130BLB2111NNN3S4NLA1NAAANNNNNN |
| ERR375U1B3B24NNNN | ERR130BLS2520NNN3S4WPA1NNNNNNNNNN |
| ERR432U1B3B24NNNN | ERR130BLS2120NNN3S2NPA1NNNNNNNNNN |
| ERR500U1B3B24NNNN | ERR130BPC21NNNNN3K5NPA1NAAANNNNNN |
| ERR130BLS2520NNN3S4CPA1NNNNNNNNNN | ERR130BPC25NNNNN3S1NPA1NAAANNNNNN |
| ERR130BLS2520NNN3S1NLA1NNNNNNNNNN | ERR130BBS3120NNN3S1RPA1NNNNNNNNNN |
| ERR130BLS2225NNN3S2NPA1NNNNNNNNNN | ERR130BPC25NNNNN3K5NLA1NAAANNNNNN |
| ERR130BPC13NNNNN3K5NLA1NNNNNNNNNN | ERR130BLS2120NNN3S1CPA1NNNNNNNNNN |
| ERR130BLS2120NNN3S2CPA1NAAANNNNNN | ERR130BBS3120NNN3S2NLA1NAAANNNNNN |
| ERR130BLS2820NNN3S1CPA1NAAANNNNNN | ERR130BLS2820NNN3K5RPA1NAAANNNNNN |
| ERR130BLS2820NNN3S1RPA1NAAANNNNNN | ERR130BBS3120NNN3S2NPA1NNNNNNNNNN |
| ERR130BLS2420NNN3K5RPA1NAAANNNNNN | ERR130BLS1010NNN3K5NPA1NNNNNNNNNN |
| ERR130BPC25NNNNN3S1RPA1NAAANNNNNN | ERR130BLS2120NNN3K5CPA1NNNNNNNNNN |
| ERR130BBS3020NNN3S1RPA1NAAANNNNNN | ERR130BLS1720NNN3S1NPA1NNNNNNNNNN |
| ERR130BBS3120NNN3K5RPA1NAAANNNNNN | ERR130BLS2020NNN3S1RPA1NAAANNNNNN |
| ERR130BBS3120NNN3S4RPA1NAAANNNNNN | ERR130BPC10NNNNN3K5BPA1NAAANNNNNN |
| ERR130BBS3120NNN3S2NLA1NNNNNNNNNN | ERR130BLS2125NNN3S1CPA1NNNNNNNNNN |
| ERR130BLS3120NNN3S2NPA1NNNNNNNNNN | ERR130BLS1820NNN3K5NPA1NNNNNNNNNN |
HENGYUHANG Company is a set design, production, sales in one of the hydraulic components production company, the company has advanced hydraulic components manufacturing technology and technology, the use of high-precision equipment CNC machining center, gear hot processing automatic production line, , automatic heat treatment multi-purpose furnace, single-piece flow assembly line, automatic hydraulic pump performance test bench. Intelligent equipment adopts automatic unmanned production, and realizes online measurement to ensure product consistency and reliability, intelligent system uses ERP, MES management software, improve production efficiency, and achieve product traceability.
Hengyuhang Power Technology produces and sells external gear pumps, hydraulic synchronous motors, multi-pump units, gear pumps with built-in valves, and custom valve blocks. Meanwhile, according to the specific needs of customers, we provide a variety of products with special specifications.And it can also be used as a substitute for other products (such as Rexlex, Danfoss, MARZOCCHI, Parker, RONZIO, Atos, Buchet, ECKERLE, CONCENTRIC, HYADC, JIHOSTROJ, Hydraulic, SDH, VIVOLO, ARGO-HYTOS, HESPER, HPLPA, HPI, DUPLOMATIC, ROQUET, BODEN,PERMCOP, Caproni, DUPLOMATIC, HIDRAULICA, SETTIMA, SALAMI, HONOR, SHIMADZU, GRH, Brevini, Galtech, BONDIOLI, REXROTH-SIGMA, BLUEASCEND, RISUNY, SUMITOMO, HYDROMAX, SCENERY, REXPOWER, CML, HOERBIGER, SUNNY, HYTEK, Hydro-pack, )
HENGYUHANG also sells a wide range of other international brands of hydraulic pumps, hydraulic valves, hydraulic motors, hydraulic cylinders, hydraulic oil seals, hydraulic equipment and accessories, and has high-quality overseas ordering channels
HENGYUHANG products are mainly used in the supporting services of industries such as automobiles, construction machinery, agricultural machinery, aerial work platforms, hydraulic systems, logistics handling vehicles, new energy vehicles, metallurgical machinery, petroleum machinery, machine tools, and wind powe
