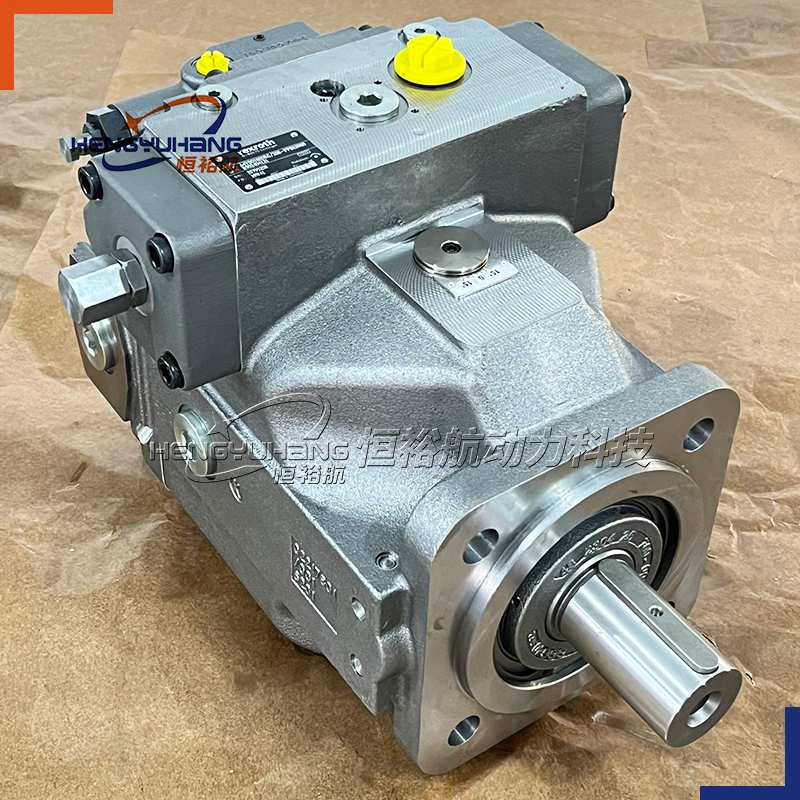

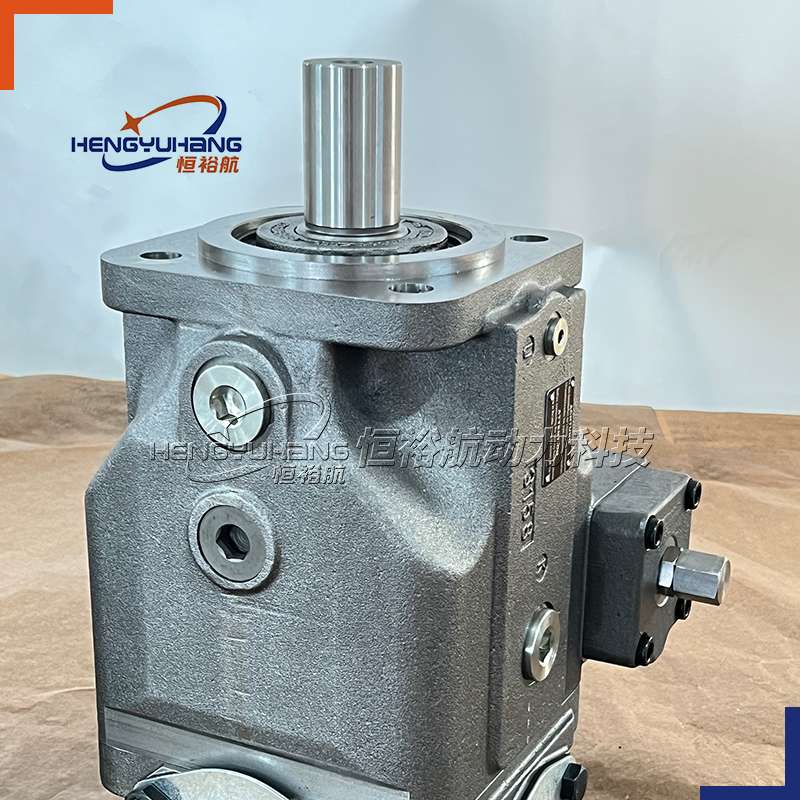

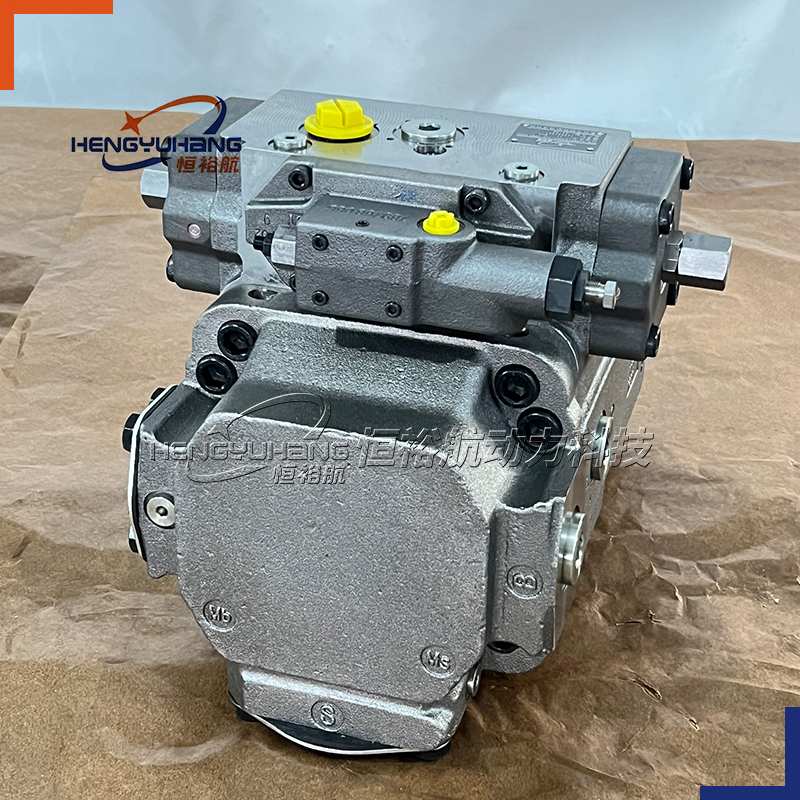

REXROTH A4VSO Axial Piston Variable Pump A4VSO40 A4VSO71 A4VSO125 A4VSO180

Series 10, 11 and 30
Size 40...1000
Nominal pressure 350 bar
Peak pressure 400 bar
Open circuit

● Axial piston pump in swash plate design for hydrostatic drives in open circuit operation.
● The fl ow is proportional to the input drive speed and displacement. By adjusting the swash plate angle it is possible to infi nitely vary the output fl ow.
● Excellent suction characteristics
● Low noise level
● Long service life
● Modular design
● Short response times
● Variable through drive options
● Visual swivel angle indicator
● Optional mounting position
● Operation on HF-fl uids under reduced operational data possible
● Robust pump with very long service life
● Low operating noise
● Controls with short response times
● Excellent suction characteristics
● Through drive for mounting of further pumps up to same nominal size
● Swashplate design

Description

Size40711251802503555007501000250355500750
VersionStandardHigh speedWith charge pump
Displacement geometric, per revolution
Vg maxcm³40711251802503555007501000250355500750
Nominal pressure
pnombar350350350350350350350350350350350350350
Maximum pressure
pmaxbar400400400400400400400400400400400400400
Maximum speed 1)at Vg maxnnomrpm2600220018001800150015001320120010001900170015001500
Flowat Vg max and nnomqV noml/min10415622532437553366090010004756047501125
at Vg max and n = 1500 rpmqV 1500l/min60107186270375533581 2)770 2)
3755335811125
Powerat qV nom and pnomPkW6191131189219311385525583277352437656
at qV 1500 and pnomP 1500kW3562109158219311339449
219311339656
Torqueat Vg max and pnomMNm2233956961002139119762783417455651391197627834174
R902406503A10VSO45DFR1/31R+A10VSO45DR/31R
R902411475A10VSO45DFR1/31R+A10VSO18DFR1/31R
R902419134A10VSO45DR/31R+A10VSO18DR/31R
R902419521A10VSO45DFR1/31R+A10VSO45DFR1/31R
R902426793A10VSO45DFR1/31R+A10VSO18DFR1/31R
R902427872A10VSO45DFR1/31R+A10VSO28DFR1/31R
R902433713A10VSO45DFR1/31R+A10VSO28DFLR/31R
R902433714A10VSO45DFLR/31R+A10VSO18DFR/31R
R902449001A10VSO45DFR1/31R-PPA12N00S1439 BR-BEIJ-1
R902449004A10VSO45DFR1/31R-PPA12N00SO 32 BR-BEIJ-1
R902449016A10VSO45DFR1/31R-PPA12N00 BR-BEIJ-1
R902449019A10VSO45DFR1/31R-PPA12N00S1439 BR-BEIJ-3
R902449021A10VSO45DFR1/31R-PPA12N00SO 32 BR-BEIJ-3
R902449034A10VSO45DFR1/31R-PPA12N00 BR-BEIJ-3
R902449061A10VSO45DFR1/32R-VPB12N00-S2655BR-BEIJ-1
R902449085A10VSO45DFR/31R-PPA12N00 BR-BEIJ-1
R902449086A10VSO45DFR/31R-PPA12N00 BR-BEIJ-3
R902449091A10VSO45DFR1/31R-VPA12N00 BR-BEIJ-3
R902449098A10VSO45DR/31R-PPA12N00 BR-BEIJ-1
R902449111A10VSO45DFR1/31R-PPA12K01 BR-BEIJ-1
R902449113A10VSO45DFR1/31R-PPA12N00S1648 BR-BEIJ-1
R902449121A10VSO45DFR/31R-PPA12K01 BR-BEIJ-1
R902449128A10VSO45DR/31L-PPA12N00 BR-BEIJ-3
R902460393A10VSO45DFEH/31R+A10VSO45DFEH/31R
R902460942A10VSO45DFEH/31R+A10VSO45DFEH/31R
R902461020A10VSO45DFR/31R-PPA12K68 BR-BEIJ-1
R902461029A10VSO45DR/31R-PPA12K01 BR-BEIJ-1
R902461035A10VSO45DFR1/31R-PPA12N00S1648 BR-BEIJ-3
R902461040A10VSO45DR/31R-PPA12N00 BR-BEIJ-3
R902461088A10VSO45DFLR/31R-PPA12N00 BR-BEIJ-3
R902461089A10VSO45DFR1/31L-PPA12N00 BR-BEIJ-3
R902462777A10VSO45DRG/31R-PPA12N00 BR-BEIJ-3
R902462867A10VSO45DFLR/31R-PPA12N00 BR-BEIJ-3
R902463033A10VSO45DFR1/32R-VPB12N00-S2655BR-BEIJ-3
R902463128A10VSO45DR/31R-VPA12N00 BR-BEIJ-3
R902463129A10VSO45DFR1/31R-PSA12N00 BR-BEIJ-1
R902463503A10VSO45DR/31R+A10VSO28DR/31R
R902463941A10VSO45DFR/31R-PPA12KB3 BR-BEIJ-1
R902464497A10VSO45DFR1/31R-PPA12K01 BR-BEIJ-3
R902465500A10VSO45DR/31R+A10VSO28DRG/31R
R902467034A10VSO45DR/31R-PPA12KB4 BR-BEIJ-3
R902467036A10VSO45DR/31R-PSA12N00 BR-BEIJ-3
R902467475A10VSO45DRG/31R-PPA12K01 BR-BEIJ-3
R902468157A10VSO45DFR/31R-PPA12K02-SO155 BR-BEIJ-1
R902468401A10VSO45DR/31R+A10VSO45DFLR/31R
R902470524A10VSO45DFR1/31R-PPA12N00 BR-BEIJ-4
R902470533A10VSO45DFR1/31R-PPA12N00S1648 BR-BEIJ-4
R902470536A10VSO45DFR1/32R-VPB12N00-S2655BR-BEIJ-4
R902470839A10VSO45DFLR/31R-PPA12N00 BR-BEIJ-1
R902470923A10VSO45DFR/31R-PPA12K01 BR-BEIJ-3
R902471043A10VSO45DR1/31R+A10VSO10DR/52R
R902471073A10VSO45DR/31R-PPA12K26 BR-BEIJ-1
R902471083A10VSO45DFR1/31R-PPA12K68-SO32 BR-BEIJ-1
R902471086A10VSO45DFR/31R-VPA12K01 BR-BEIJ-1
R902471301A10VSO45DFR/31R-VPA12N00 BR-BEIJ-3
R902471315A10VSO45DFR1/31R-PPA12K26 BR-BEIJ-1
R902471744A10VSO45DRG/31R-VPA12N00 BR-BEIJ-3
R902471888A10VSO45DFR1/31R+A10VSO45DFR1/31R
R902473138A10VSO45DR/31R-VSA12K01 BR-BEIJ-3
R902473619A10VSO45DFR1/31R+A10VSO45DFR1/31R
R902473716A10VSO45DFR/31R-PPA12K02 BR-BEIJ-1
R902474192A10VSO45DFLR/31R-VPA12N00 BR-BEIJ-3
R902474237A10VSO45DFR1/31R-PPA12N00-SO20 BR-BEIJ-3
R902474411A10VSO45DR/31R-PPA12N00 BR-BEIJ-4
R902475675A10VSO45DFR/31R-VPA12K01 BR-BEIJ-4
R902476601A10VSO45DFR /31R+A10VSO45DFR /31R
R902477093A10VSO45DRG/31L-VSA12N00 BR-BEIJ-4
R902477177A10VSO45DR /31R+A10VSO45DR /31R
R902477185A10VSO45DR /31R+A10VSO45DR /31R
R902477554A10VSO45DFR1/31R-VSA12K01 BR-BEIJ-4
R902478416A10VSO45DFR/31R-VSA12KB3 BR-BEIJ-4
R902480157A10VSO45DFLR/31R+A10VSO18DFR/31R
R902480603A10VSO45DRG/31R+A10VSO45DRG/31R
R902480751A10VSO45DFLR/31R+A10VSO45DFLR/31R
R902482837A10VSO45DFR1/31R+A10VSO45DFR1/31R
R902483197A10VSO45DFR1/31R+A10VSO45DFR1/31R
R902485467A10VSO45ER2/31R+A10VSO18ER2/31R
R902485470A10VSO45ER2/31R+A10VSO18ER2/31R
R902485473A10VSO45ER2/31R+A10VSO18ER2/31R
R902487053A10VSO45DFR/31R+A10VSO28DFR/31R
R902487309A10VSO45DFR/31R+A10VSO28DFR/31R
R902487389A10VSO45DFR1/31R+A10VSO18DFR1/31R
R902488090A10VSO45DFR1/31R+A10VSO18DRG/31R
R902488489A10VSO45DFR/31R+A10VSO45DFR/31R
R902491037A10VSO45DFR1/31R+A10VSO18DFR1/31R
R902491268A10VSO45DR/31R+A10VSO28DR/31R
R902495676A10VSO45DRG/31R+A10VSO28DRG/31R
R902496314A10VSO45DFR1/31R+A10VSO45DFR1/31R
R902497232A10VSO45DFR1/31R+A10VSO45DFR1/31R
R902501777A10VSO45DFR1/31R+A10VSO28DFR1/31R
R902501818A10VSO45DFR1/31R+A10VSO18DFR1/31R
R902501837A10VSO45DFR1/31R+A10VSO45DFR1/31R
R902501921A10VSO45DRG/31R+A10VSO28DG/31R
R902506378A10VSO45DRG/31R+A A10VSO28DRG/31R
R902511714A10VSO45DFR1/31R+A10VSO18DFR1/31R
R902512940A10VSO45DR/31R+A10VSO28DR/31R
R902514882A10VSO45DFLR/31R+A10VSO45DFLR/31R
R902516390A10VSO45DR/31R+A10VSO18DR/31R
R902516592A10VSO45DFR1/31R+A10VSO28DFR1/31R
R902519246A10VSO45DFLR/31R+A10VSO18DFR/31R
