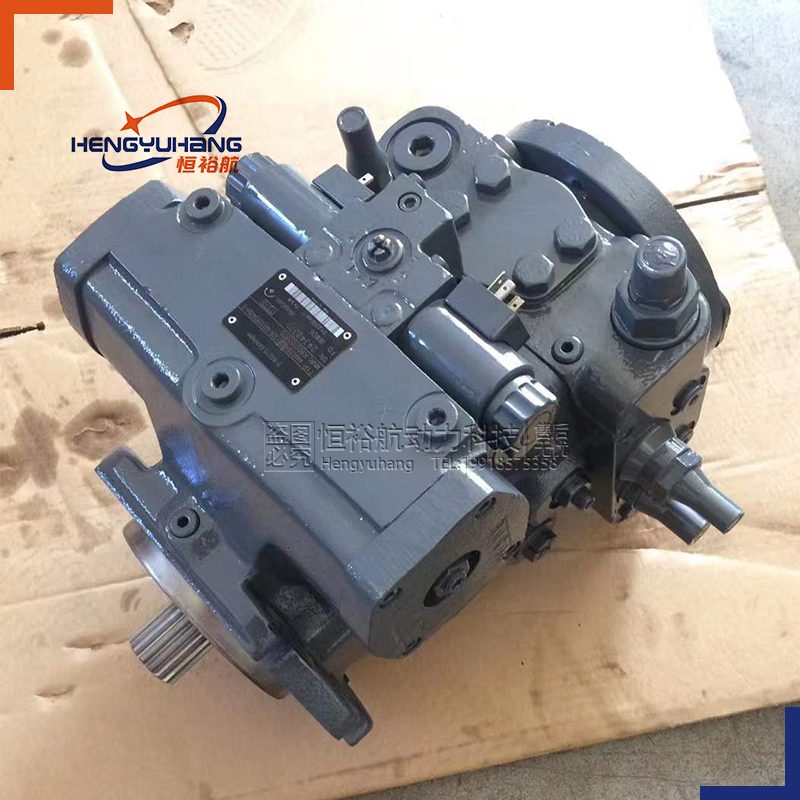

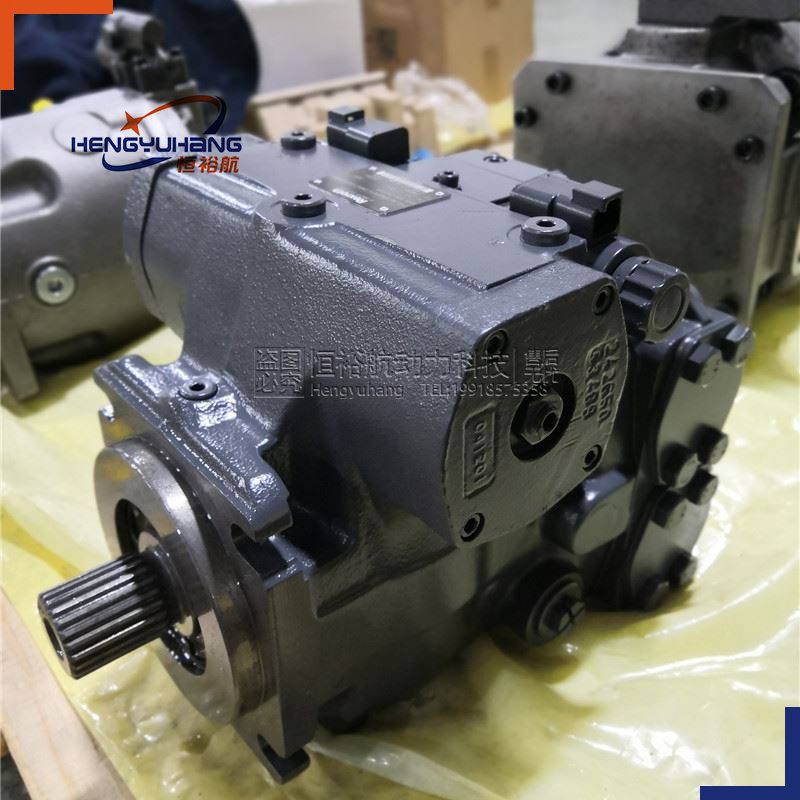

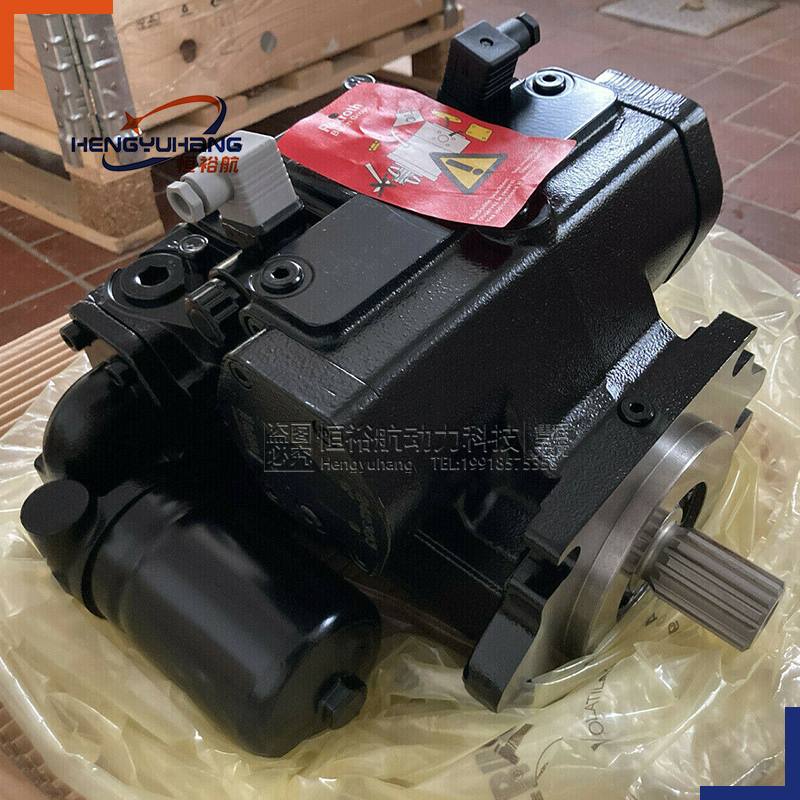

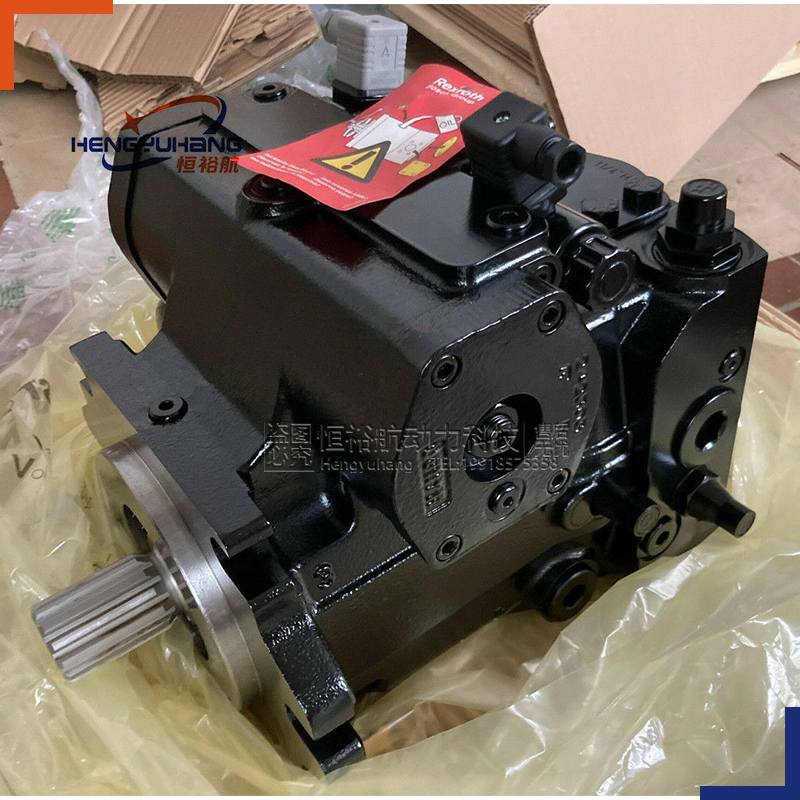

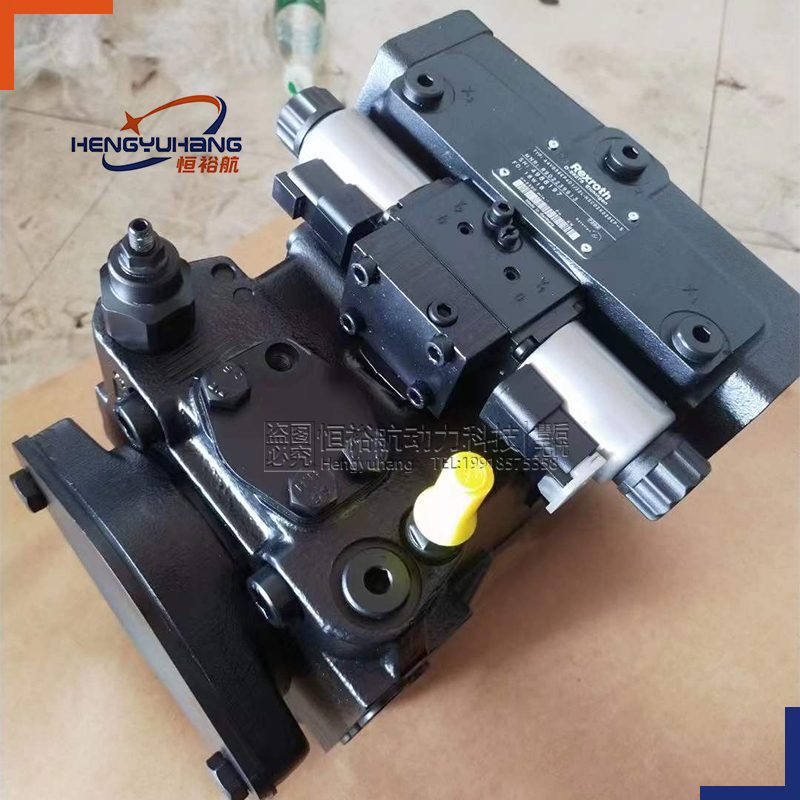

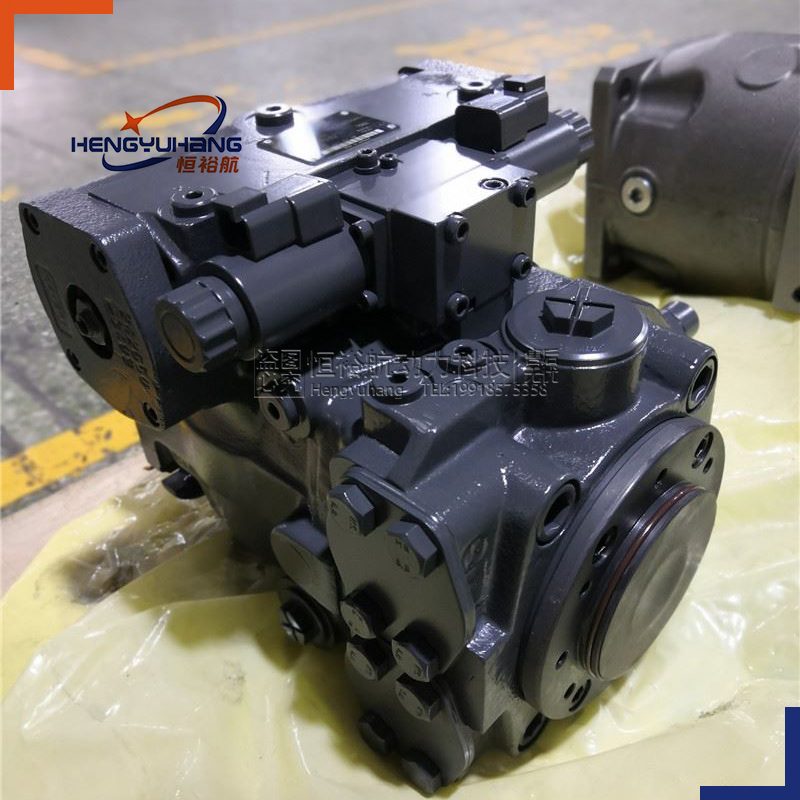

Rexroth Axial Piston Variable Pump Hydraulic Pump Motor A10VG AA10VG Series

Rexroth A10VG seri A10VG28 A10VG45 A4VG56 Kualitas A10VG63 a10vg90 A10VG28HW1/10R-NSC10N005E-S pompa piston hidrolik

Hydrostatic closed circuit transmissions benefit from the A10VG's infinitely variable drive speed and displacement proportions.

Variable axial piston pump of swash plate design for hydrostatic closed circuit transmission

Flow is proportional to drive speed and displacement and is infinitely variable

Output flow increases with the swivel angle of the swash plate from 0 to its maximum value

Flow direction changes smoothly when the swash plate is moved through the neutral position

A wide range of highly adaptable control devices is available for different control and regulating functions

The pump is equipped with two pressure-relief valves on the high pressure ports to protect the hydrostatic transmission (pump and motor) from overload

The high-pressure relief valves also function as boost valves – The integrated boost pump acts as a feed and control oil pump

The maximum boost pressure is limited by a built-in boost pressure relief valve

Description

Short Description:

*Nominal pressure 300bar , Max pressure 350bar

* Control method: DR, DRG, EO, FR, LR, MA, EO, EM,HW, HD,HS,DS

* Displacement : 18, 28, 45, 63 (ml/r)

* Standard rated operating pressure: 30 MPa

* Peak pressure : 35 MPa

SizeA10VG18A10VG28A10VG45A10VG63
Displacement geometric, per revolution
Vg maxcm³18284663
Nominal pressure
pnombar300300300300
Maximum pressure
pmaxbar350350350350
Maximum speedat Vg maxnnomrpm4000390033003000
Intermittent 1)nmaxrpm5200450038003500
Flowat Vg max and nnomqV noml/min72109152189
Powerat qV nom and Δpnom 2)PkW3654.675.994.5
Torqueat Vg max and ΔpnomMNm86134220301
Weight (approx.)
mkg18252739
