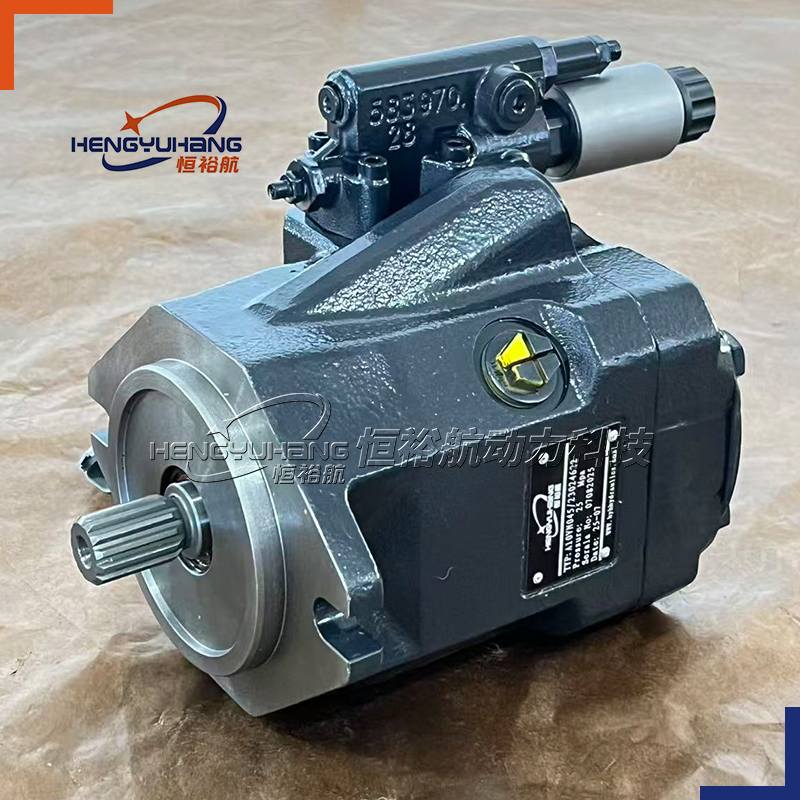

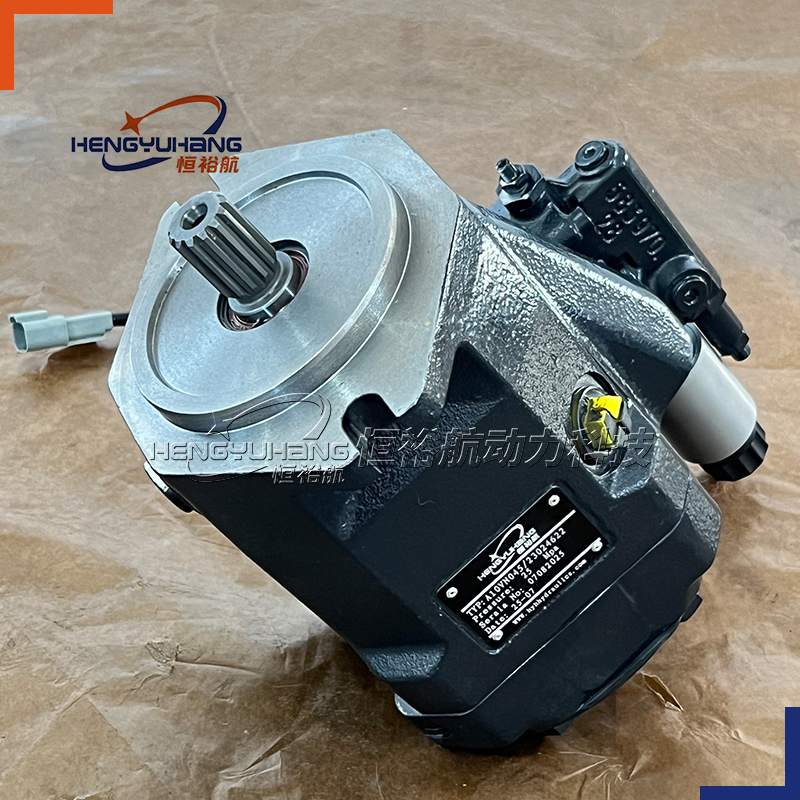

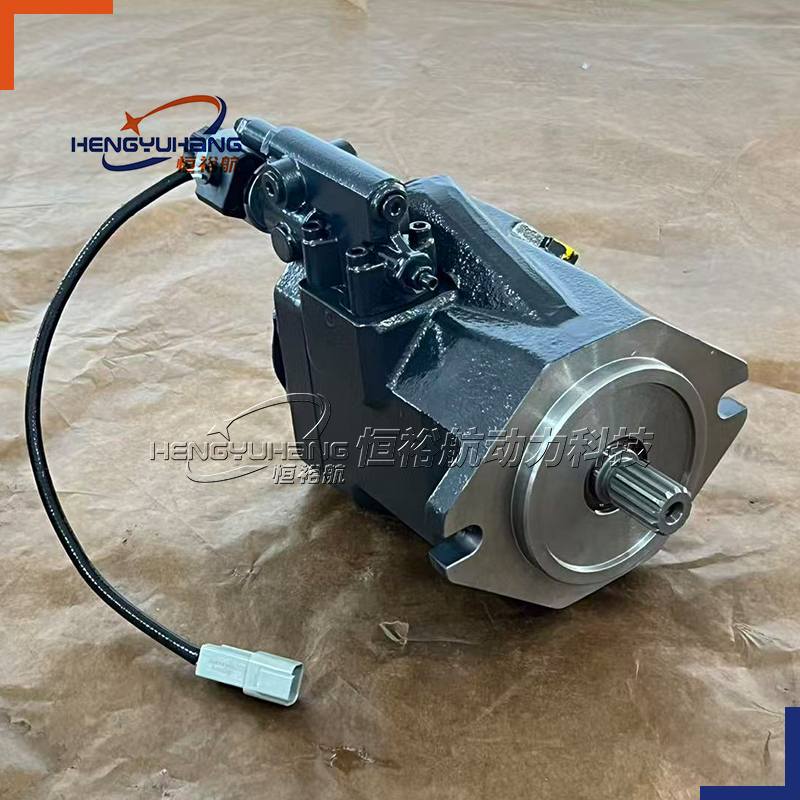

Uchida Rexroth Axial Piston A10VNO A10 A10VNO63 A10VNO63DRS A10VNO63DRS/52R-VRC12N00-S3516 A10VN045/23024622 Pompa Hidrolik Rexroth
For low pressure applications such as in tractors or for fan drives
Size 28 … 85
Nominal pressure 3050 psi
Maximum pressure 3600 psi
Open circuit
Size A10VNO28 A10VNO45 A10VNO63 A10VNO85 Nominal pressure 210 barPeak pressure 250 barOpen circuit Features - Axial piston variable pump in swashplate design for hydrostatic drives in open circuits - Flow is proportional to drive speed and displacement. it canbe infinitely varied by adjustment of the swashplate. - High power to weight ratio-small dimensions - Low noise level - Permissible continuous pressure 210 bar - Axial and radial loading of drive shaft possible - Pressure and flow control Short response times Well proven A10-technology Extreme small mounting dimensions Cost effective alternative to fixed displacement pumps Costs optimized design
| Size | 28 | 45 | 63 | 85 | |||
| Displacement geometric, per revolution | Vg max | in³ | 1.71 | 2.75 | 3.84 | 5.19 | |
| Nominal pressure | pnom | psi | 3050 | 3050 | 3050 | 3050 | |
| Maximum pressure | pmax | psi | 3600 | 3600 | 3600 | 3600 | |
| Maximum speed 1) | at Vg max | nnom | rpm | 3200 | 2900 | 2700 | 2700 |
| Flow | at Vg max and nnom | qV nom | gpm | 23.8 | 34.6 | 44.9 | 60.8 |
| Power | at qV nom and pnom | P | HP | 42 | 62 | 79 | 107 |
| Torque | at Vg max and pnom | M | lb-ft | 69 | 111 | 155 | 209 |
| Weight (approx.) | m | lbs | 25 | 31 | 40 | 49 | |
| R902536462 | AA10VNO85DRS/53L-VRC12K04-S4319 | R902464373 | AA10VNO28DRS/53L-VTC09N00-S3465 |
| R902455949 | AA10VNO28DR/52R-VRC40N00-S2241 | R902472772 | AA10VNO28DRS/53L-VTE12G50-S2690 |
| R902573042 | AA10VNO28DR/53L-PSC11N00-S5779 | R902517735 | AA10VNO28DRS/53L-VTE12K52-S3775 |
| R902564361 | AA10VNO28DR/53L-VRC11N00-SO97 | R902518684 | AA10VNO28DRS/53L-VTE12K52-S3848 |
| R902512965 | AA10VNO28DR/53L-VTE11N00-S3456 | R902459861 | AA10VNO28DRS/53L-VTE12N00 |
| R902466555 | AA10VNO28DR/53R-VTE12N00-S2517 | R902540880 | AA10VNO28DRS/53R-VRC12N00 |
| R902530913 | AA10VNO28DR/53L-VRC11N00-S2274 | R902502061 | AA10VNO28DRS/53R-VSC09N00-S2729 |
| R902514545 | AA10VNO28DR/53L-VTE12N00-SO275 | R902535372 | AA10VNO28DRS/53R-VSC12N00 |
| R902511759 | AA10VNO28DR/53R-VSC12N00 | R902504135 | AA10VNO28DRS/53R-VSC12N00-S4162 |
| R902493595 | AA10VNO28DR/53R-VTE11N00-S3456 | R902467739 | AA10VNO28DRS/53R-VSC12N00-SO97 |
| R902512626 | AA10VNO28DR/53R-VTE12N00 | R902503185 | AA10VNO28DRS/53R-VSC64N00-S2431 |
| R902510045 | AA10VNO28DR/53R-VTE12N00-SO275 | R902503358 | AA10VNO28DRS/53R-VSC64N00-S3257 |
| R902472718 | AA10VNO28DRF/53L-VCE12N00-S1086 | R902501880 | AA10VNO28DRS/53R-VTC09N00-S2729 |
| R902483327 | AA10VNO28DRF/53L-VRC11N00 | R902473597 | AA10VNO28DRS/53R-VXC11N00-S2720 |
| R902569550 | AA10VNO28DRF/53L-VRC12K52 | R902475868 | AA10VNO28DRS/53L-VRC11N00 |
| R902489295 | AA10VNO28DRF/53L-VRC12K52 | R902540838 | AA10VNO28DRS/53L-VRC11N00 |
| R902497013 | AA10VNO28DRF/53L-VSC11N00-S1238 | R902515082 | AA10VNO28DRS/53L-VRC11N00-S3848 |
| R902511741 | AA10VNO28DRF/53L-VSC11N00-S3647 | R902503251 | AA10VNO28DRS/53L-VRC12N00-S3186 |
| R902513004 | AA10VNO28DRF/53L-VSC11N00-S3767 | R902502603 | AA10VNO28DRS/53L-VRC19N00-S3181 |
| R902497016 | AA10VNO28DRF/53L-VSC12K52-S1238 | R902484900 | AA10VNO28DRS/53L-VTE12G50-S3102 |
| R902511743 | AA10VNO28DRF/53L-VSC12K52-S3691 | R902518677 | AA10VNO28DRS/53L-VTE12G70-S2690 |
| R902513005 | AA10VNO28DRF/53L-VSC12K52-S3772 | R902515040 | AA10VNO28DRS/53L-VTE12G80-S2690 |
| R902480373 | AA10VNO28DRF/53R-VCE12N00-S1086 | R902515845 | AA10VNO28DRS/53L-VTE12H00-S2690 |
| R902569560 | AA10VNO28DRF/53R-VSC12K01 | R902481021 | AA10VNO28DRS/53L-VXC40N00-S2984 |
| R902503587 | AA10VNO28DRF/53L-VRC12N00-S3338 | R902502618 | AA10VNO28DRS/53R-VRC11N00-S2931 |
| R902503664 | AA10VNO28DRF/53R-VRC61N00-S3391 | R902502779 | AA10VNO28DRS/53R-VRC11N00-S3000 |
| R902503930 | AA10VNO28DRF/53R-VRC61N00-S3451 | R902502615 | AA10VNO28DRS/53R-VRC11N00-S3002 |
| R902471860 | AA10VNO28DRF/53R-VTC12N00-S2672 | R902502860 | AA10VNO28DRS/53R-VRC11N00-S3020 |
| R902488947 | AA10VNO28DRG/53R-VSC16K52-S3307 | R902467798 | AA10VNO28DRS/53R-VRC11N00-SO547 |
| R902471859 | AA10VNO28DRS/53L-VTC09N00-S2673 | R902496213 | AA10VNO28DRS/53R-VSC62N00 |
| R902546522 | AA10VNO28DRS/53L-VTC09N00-S4664 | R902502389 | AA10VNO28DRS/53R-VTE11N00 |
| R902436422 | AA10VNO28DRS/52R-VRC40N00-S2290 | R902470571 | AA10VNO28DRS/53R-VTE12N00 |
| R902511110 | AA10VNO28DRS/53L-VRC11N00-S3650 | R902555757 | AA10VNO28EP2D/53L-VRC11N00P-S5226 |
| R902502064 | AA10VNO28DRS/53L-VSC09N00-S2729 | R902530557 | AA10VNO28DRS/53R-VRC12K52 |
| R902515660 | AA10VNO28DRS/53L-VSC11N00-S3895 | R902502333 | AA10VNO28DRS/53R-VTC12K01 |
| R902495330 | AA10VNO28DRS/53L-VSC12N00 |
