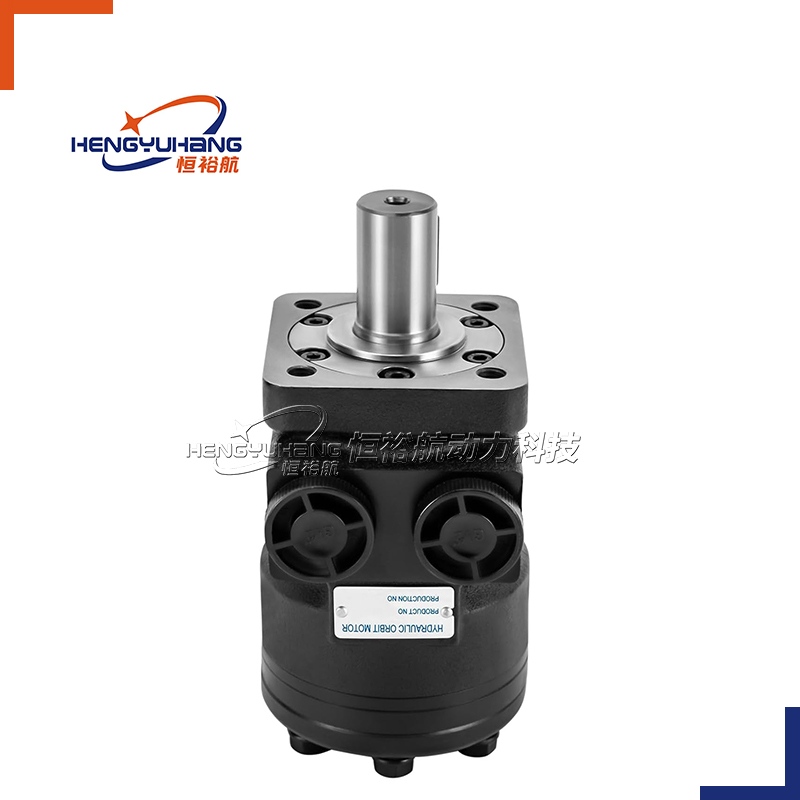

Danfoss Eaton Char-Lynn 101-1002-009 hydraulic motor

Product Overview

The 101-1002-009 gerotor orbit hydraulic motor is a universal light-duty aftermarket replacement part for original Eaton Char-Lynn 101 series hydraulic drive assemblies, cross-compatible with Danfoss MH0045BA01AB0000000000000AA00J equivalent hydraulic motors, widely applied on mini lawn maintenance, small agricultural spraying and light compact hydraulic auxiliary machinery.

It adopts mature spool valve gerotor distribution design, converting low-pressure hydraulic oil into smooth low-speed steady torque rotary power. All internal core transmission components are precision machined from wear-resistant alloy, supported by double-sided journal plain bearings and multi-layer NBR integrated sealing structure. The whole motor strictly follows OEM engineering drawings for 4-bolt square mounting flange, straight woodruff keyed drive shaft, aligned parallel NPTF side port arrangement, realizing true plug-and-play replacement without pipeline reworking or bracket adjustment.

Unpainted compact cast iron outer housing delivers anti-rust, anti-debris and anti-corrosion protection in lawn mowing and farm spraying working environments. This model does not integrate built-in anti-reverse check valve; customers need to install an external one-way valve if anti-runaway protection for cutter heads and spray pumps is required. All finished motors pass comprehensive hydraulic bench testing to verify torque stability, rotation smoothness and zero-leakage performance under rated light-duty working pressure.

Key Features

✅ 1:1 Full OEM Interchangeability Direct drop-in replacement for Eaton Char-Lynn 101-1002-009 and Danfoss MH0045BA01AB, fully consistent with original 4-bolt square flange, straight woodruff keyed shaft and aligned parallel NPTF side port layout, no machining modification required.

✅ Stable Spool Valve Gerotor Distribution System Standard precision alloy gerotor gear set with spool valve distribution provides even smooth torque output, low vibration and silent variable-speed operation under light medium flow pressure.

✅ Mini Compact Anti-Corrosion Cast Iron Housing Small-size low-gloss black primed cast iron shell resists grass debris, pesticide residue, dust and ambient temperature fluctuation, perfectly fit narrow chassis of compact lawn and spraying machinery.

✅ Dual Integrated Anti-Leak Sealing Structure Standard NBR high-pressure shaft seal plus external dust seal double protection blocks internal & external oil seepage, maintaining stable output pressure under long continuous light load cycles.

✅ Dual Front & Rear Journal Plain Bearings Double journal sliding bearing design with ultra-low friction loss, simple economical maintenance, stable rotation under frequent start-stop cycles of small lawn and spraying equipment.

✅ No Built-In Anti-Reverse Check Valve Reminder This model is not equipped with integrated one-way anti-reverse valve; customers can install external check valve separately to prevent runaway of mower blades and spray pump when hydraulic power cuts off, improving operation safety.

✅ Strict Factory Hydraulic Quality Inspection All finished motors pass full flow, working pressure and leakage bench testing before shipment to screen defective products and ensure consistent stable light-duty performance.

Applications

• Construction Machinery：Excavators, skid steer loaders, backhoe loaders, road rollers, and compact construction equipment.

• Agricultural Equipment：Tractors, harvesters, sprayers, hay balers, agricultural winches, and general farm machinery.

• Material Handling：Forklifts, belt conveyors, lift tables, sweepers, and aerial work platforms.

• Industrial Machinery：Hydraulic winches, drilling rigs, hydraulic power units, industrial automation systems, and conveyor systems.

• Mobile Equipment：Refuse trucks, snow plows, utility vehicles, and marine hydraulic systems.

Other model specifications

Technical Specifications:

Specifications：
