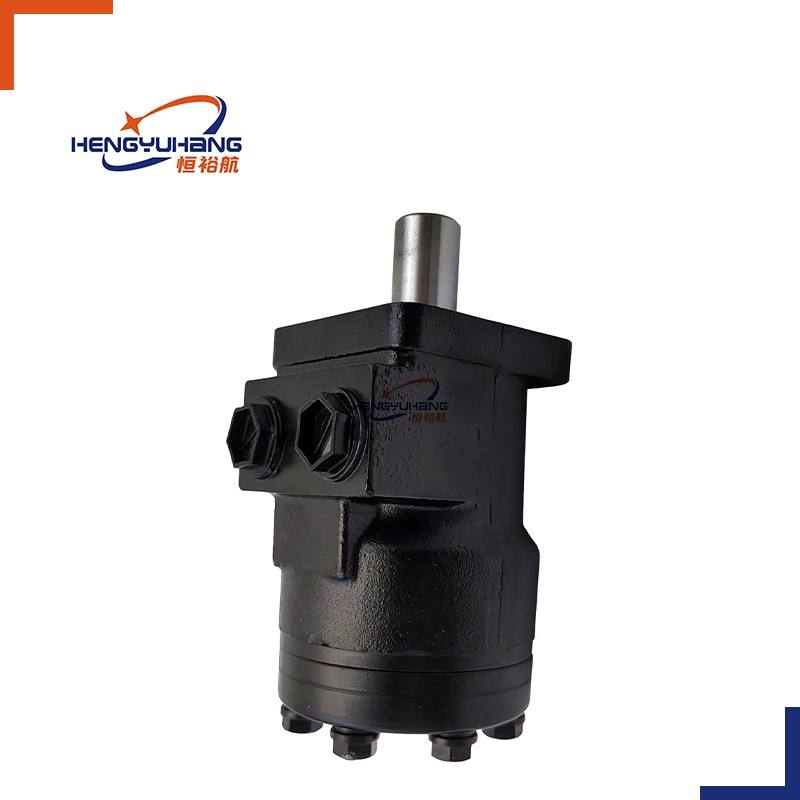

Danfoss Eaton Char-Lynn 101-1015-009 hydraulic motor

Product Overview

The 101-1015-009 gerotor orbit hydraulic motor is a universal light-medium duty aftermarket replacement part for original Eaton Char-Lynn 101 series hydraulic drive assemblies, cross-compatible with Danfoss MH0179BA01AA0000000000000AJ00J equivalent hydraulic motors, widely applied on agricultural harvesting, light construction trenching and small wood processing hydraulic machinery.

It adopts mature spool valve gerotor distribution design, converting medium-low pressure hydraulic oil into smooth low-speed steady torque rotary power. All internal core transmission components are precision machined from wear-resistant alloy, supported by double-sided journal plain bearings and multi-layer NBR integrated sealing structure. The whole motor strictly follows OEM engineering drawings for 4-bolt square mounting flange, straight woodruff keyed drive shaft, aligned parallel UNF SAE O-ring side port arrangement, realizing true plug-and-play replacement without pipeline reworking or bracket adjustment.

Compact low-gloss black primed cast iron outer housing delivers anti-rust, anti-debris and anti-corrosion protection in crop harvesting and trenching working environments. This model does not integrate built-in anti-reverse check valve; customers need to install an external one-way valve if anti-runaway protection for cutter reels and auger bits is required. All finished motors pass comprehensive hydraulic bench testing to verify torque stability, rotation smoothness and zero-leakage performance under rated light-medium working pressure.

Key Features

✅ 1:1 Full OEM Interchangeability Direct drop-in replacement for Eaton Char-Lynn 101-1015-009 and Danfoss MH0179BA01AA, fully consistent with original 4-bolt square flange, straight woodruff keyed shaft and aligned UNF side port layout, no machining modification required.

✅ Stable Spool Valve Gerotor Distribution System Standard precision alloy gerotor gear set with spool valve distribution provides even smooth torque output, low vibration and silent variable-speed operation under medium flow pressure.

✅ Compact Anti-Corrosion Cast Iron Housing Small-size low-gloss black primed cast iron shell resists crop debris, mud, sawdust and ambient temperature fluctuation, perfectly fit compact agricultural and light construction equipment chassis.

✅ Dual Integrated Anti-Leak Sealing Structure Standard NBR high-pressure shaft seal plus external dust seal double protection blocks internal & external oil seepage, maintaining stable output pressure under long continuous light-medium load cycles.

✅ Dual Front & Rear Journal Plain Bearings Double journal sliding bearing design with ultra-low friction loss, simple economical maintenance, stable rotation under frequent start-stop cycles of farm and trenching equipment.

✅ No Built-In Anti-Reverse Check Valve Reminder This model is not equipped with integrated one-way anti-reverse valve; customers can install external check valve separately to prevent reel/auger runaway when hydraulic power cuts off, improving operation safety.

✅ Strict Factory Hydraulic Quality Inspection All finished motors pass full flow, working pressure and leakage bench testing before shipment to screen defective products and ensure consistent stable light-medium duty performance.

Applications

• Construction Machinery：Excavators, skid steer loaders, backhoe loaders, road rollers, and compact construction equipment.

• Agricultural Equipment：Tractors, harvesters, sprayers, hay balers, agricultural winches, and general farm machinery.

• Material Handling：Forklifts, belt conveyors, lift tables, sweepers, and aerial work platforms.

• Industrial Machinery：Hydraulic winches, drilling rigs, hydraulic power units, industrial automation systems, and conveyor systems.

• Mobile Equipment：Refuse trucks, snow plows, utility vehicles, and marine hydraulic systems.

Other model specifications

Technical Specifications:

Specifications：
