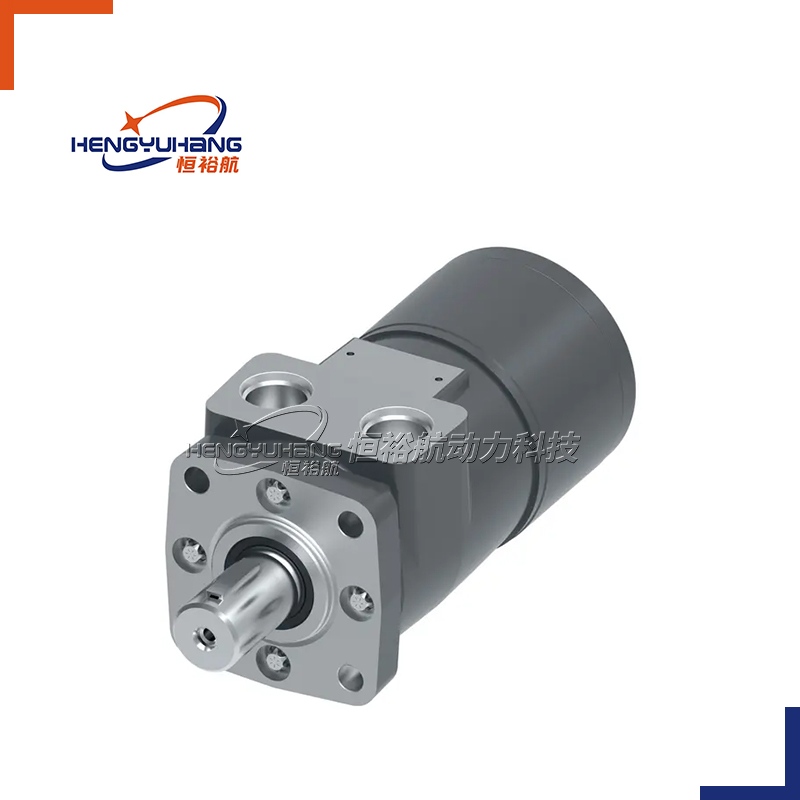

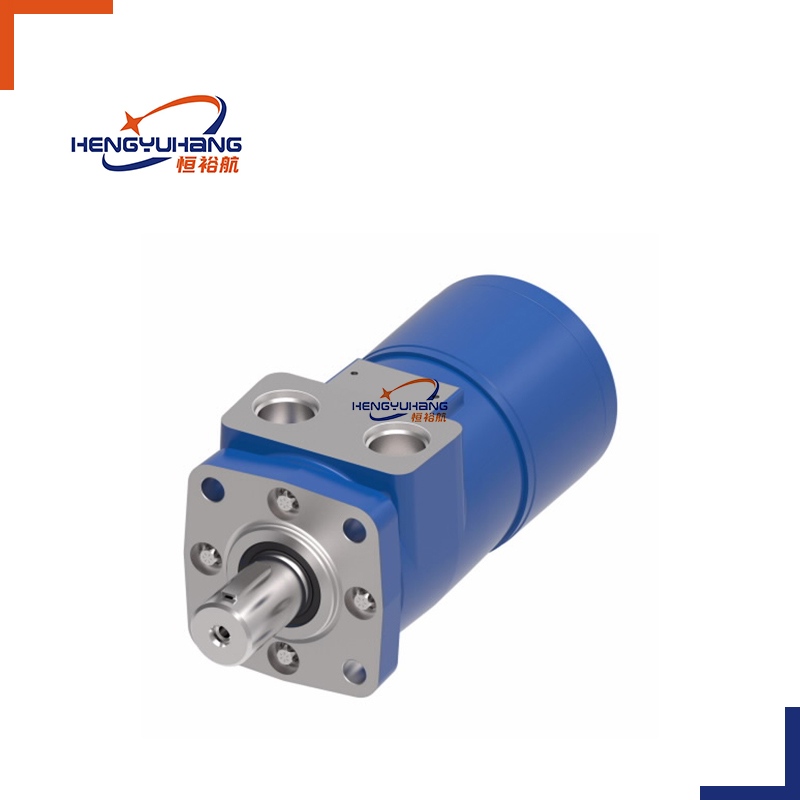

Danfoss Eaton Char-Lynn 101-1016-009 hydraulic motor

Product Overview

The 101-1016-009 gerotor orbit hydraulic motor is a universal medium-duty aftermarket replacement part for original Eaton Char-Lynn 101 series hydraulic drive assemblies, cross-compatible with Danfoss MH0226BA01AA0000000000000AA00J equivalent hydraulic motors, widely applied on agricultural harvesting, medium construction trenching and wood processing hydraulic machinery.

It adopts mature spool valve gerotor distribution design, converting medium-pressure hydraulic oil into smooth low-speed moderate torque rotary power. All internal core transmission components are precision machined from wear-resistant alloy, supported by double-sided journal plain bearings and multi-layer NBR integrated sealing structure. The whole motor strictly follows OEM engineering drawings for 4-bolt square mounting flange, straight woodruff keyed drive shaft, aligned parallel UNF SAE O-ring side port arrangement, realizing true plug-and-play replacement without pipeline reworking or bracket adjustment.

Compact low-gloss black primed cast iron outer housing delivers anti-rust, anti-debris and anti-corrosion protection in crop harvesting and trenching working environments. This model does not integrate built-in anti-reverse check valve; customers need to install an external one-way valve if anti-runaway protection for cutter reels and auger bits is required. All finished motors pass comprehensive hydraulic bench testing to verify torque stability, rotation smoothness and zero-leakage performance under rated medium working pressure.

Key Features

✅ 1:1 Full OEM Interchangeability Direct drop-in replacement for Eaton Char-Lynn 101-1016-009 and Danfoss MH0226BA01AA, fully consistent with original 4-bolt square flange, straight woodruff keyed shaft and aligned UNF side port layout, no machining modification required.

✅ Stable Spool Valve Gerotor Distribution System Standard precision alloy gerotor gear set with spool valve distribution provides even smooth torque output, low vibration and silent variable-speed operation under medium flow pressure.

✅ Compact Anti-Corrosion Cast Iron Housing Small-size low-gloss black primed cast iron shell resists crop debris, mud, sawdust and ambient temperature fluctuation, perfectly fit compact agricultural and light construction equipment chassis.

✅ Dual Integrated Anti-Leak Sealing Structure Standard NBR high-pressure shaft seal plus external dust seal double protection blocks internal & external oil seepage, maintaining stable output pressure under long continuous medium load cycles.

✅ Dual Front & Rear Journal Plain Bearings Double journal sliding bearing design with ultra-low friction loss, simple economical maintenance, stable rotation under frequent start-stop cycles of farm and trenching equipment.

✅ No Built-In Anti-Reverse Check Valve Reminder This model is not equipped with integrated one-way anti-reverse valve; customers can install external check valve separately to prevent reel/auger runaway when hydraulic power cuts off, improving operation safety.

✅ Strict Factory Hydraulic Quality Inspection All finished motors pass full flow, working pressure and leakage bench testing before shipment to screen defective products and ensure consistent stable medium-duty performance.

Applications

• Construction Machinery：Excavators, skid steer loaders, backhoe loaders, road rollers, and compact construction equipment.

• Agricultural Equipment：Tractors, harvesters, sprayers, hay balers, agricultural winches, and general farm machinery.

• Material Handling：Forklifts, belt conveyors, lift tables, sweepers, and aerial work platforms.

• Industrial Machinery：Hydraulic winches, drilling rigs, hydraulic power units, industrial automation systems, and conveyor systems.

• Mobile Equipment：Refuse trucks, snow plows, utility vehicles, and marine hydraulic systems.

Other model specifications

Technical Specifications:

Specifications：
