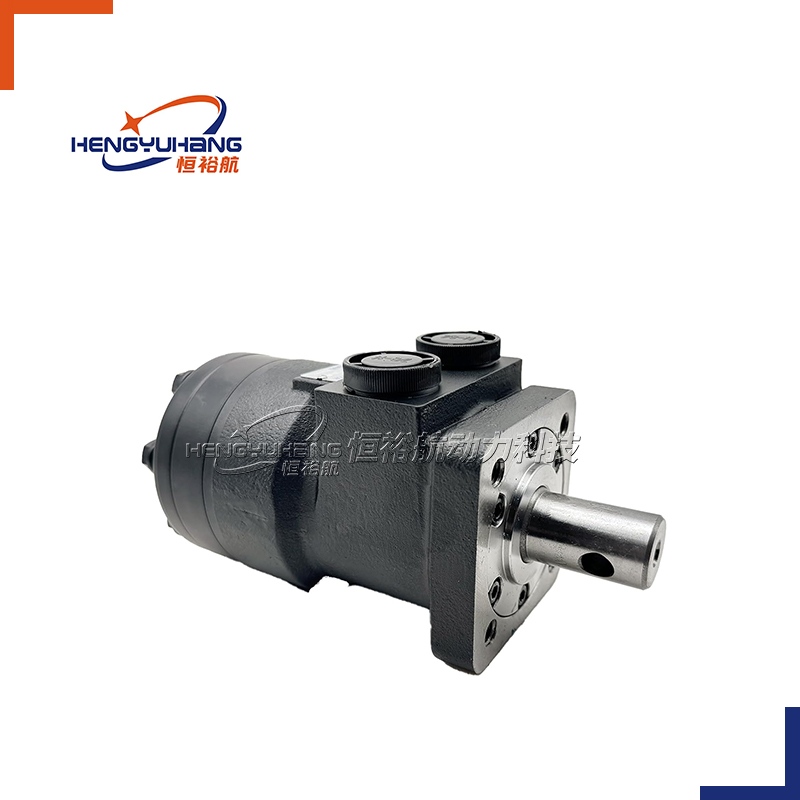

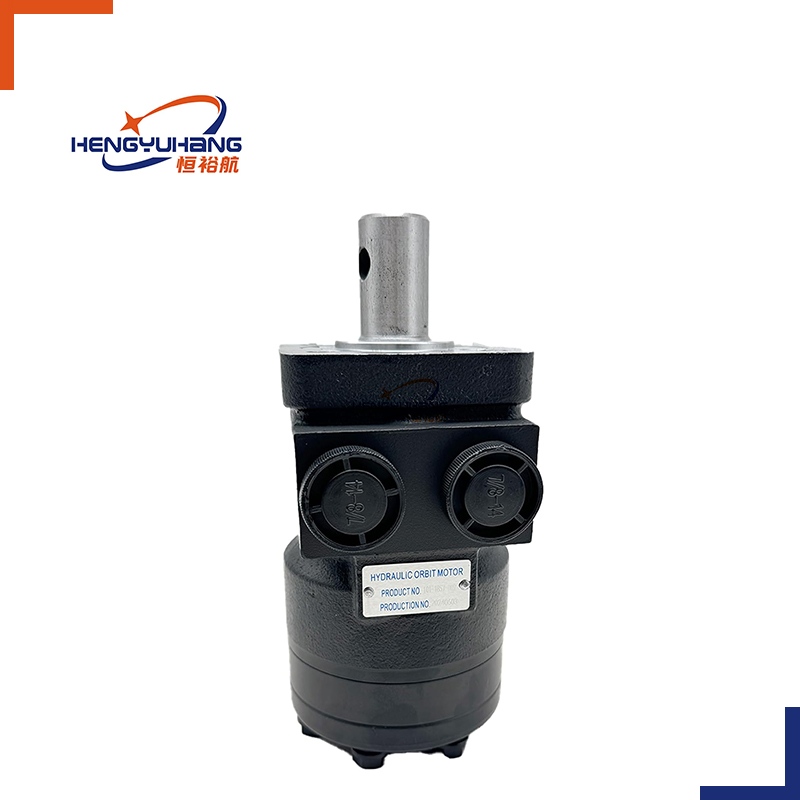

Danfoss Eaton Char-Lynn 101-1017-009 hydraulic motor

Product Overview

The 101-1017-007 gerotor orbit hydraulic motor is a universal medium-heavy duty aftermarket replacement part for original Eaton Char-Lynn 101 series hydraulic drive assemblies, cross-compatible with Danfoss MH0028BA01AC0000000000000AA00J equivalent hydraulic motors, widely applied on large agricultural harvesting, medium construction trenching and wood splitting processing hydraulic machinery.

It adopts mature heavy-duty spool valve gerotor distribution design, converting medium-high pressure hydraulic oil into smooth low-speed powerful moderate torque rotary power. All internal core transmission components are thickened precision machined from wear-resistant alloy, supported by double-sided reinforced journal plain bearings and multi-layer reinforced NBR integrated sealing structure. The whole motor strictly follows OEM engineering drawings for 4-bolt square mounting flange, straight woodruff keyed drive shaft, aligned parallel UNF SAE O-ring side port arrangement, realizing true plug-and-play replacement without pipeline reworking or bracket adjustment.

Thickened low-gloss black primed cast iron outer housing delivers outstanding anti-rust, anti-debris and anti-corrosion protection in heavy crop harvesting and long-time trenching working environments. This model does not integrate built-in anti-reverse check valve; customers need to install an external high-flow one-way valve if anti-runaway protection for heavy cutter reels and auger bits is required. All finished motors pass comprehensive long-cycle hydraulic bench testing to verify torque stability, rotation smoothness and zero-leakage performance under rated medium-heavy working pressure.

Key Features

✅ 1:1 Full OEM Interchangeability Direct drop-in replacement for Eaton Char-Lynn 101-1017-009 and Danfoss MH0028BA01AC, fully consistent with original 4-bolt square flange, straight woodruff keyed shaft and aligned UNF SAE O-ring side port layout, no machining modification required.

✅ Heavy-Duty Spool Valve Gerotor Distribution System Thickened precision alloy gerotor gear set with spool valve distribution provides even powerful smooth torque output, low vibration and silent variable-speed operation under high medium flow pressure.

✅ Reinforced Anti-Corrosion Cast Iron Housing Thickened low-gloss black primed cast iron shell resists heavy crop debris, mud, sawdust and extreme ambient temperature fluctuation, perfectly fit heavy compact agricultural and light industrial equipment chassis.

✅ Reinforced Dual Integrated Anti-Leak Sealing Structure Reinforced thick NBR high-pressure shaft seal plus oversized external dust seal double heavy protection blocks internal & external oil seepage, maintaining ultra-stable output pressure under long continuous medium-heavy load cycles.

✅ Dual Reinforced Front & Rear Journal Plain Bearings Double thick journal sliding bearing design with ultra-low friction loss, simple economical maintenance, stable rotation under frequent heavy start-stop cycles of farm and wood processing equipment.

✅ No Built-In Anti-Reverse Check Valve Reminder This model is not equipped with integrated one-way anti-reverse valve; customers can install external high-flow check valve separately to prevent reel/auger runaway when hydraulic power cuts off, improving heavy-load operation safety.

✅ Strict Factory Hydraulic Quality Inspection All finished motors pass full high-pressure flow, working pressure and long-time leakage bench testing before shipment to screen defective products and ensure consistent stable medium-heavy duty performance.

Applications

• Construction Machinery：Excavators, skid steer loaders, backhoe loaders, road rollers, and compact construction equipment.

• Agricultural Equipment：Tractors, harvesters, sprayers, hay balers, agricultural winches, and general farm machinery.

• Material Handling：Forklifts, belt conveyors, lift tables, sweepers, and aerial work platforms.

• Industrial Machinery：Hydraulic winches, drilling rigs, hydraulic power units, industrial automation systems, and conveyor systems.

• Mobile Equipment：Refuse trucks, snow plows, utility vehicles, and marine hydraulic systems.

Other model specifications

Technical Specifications:

Specifications：
