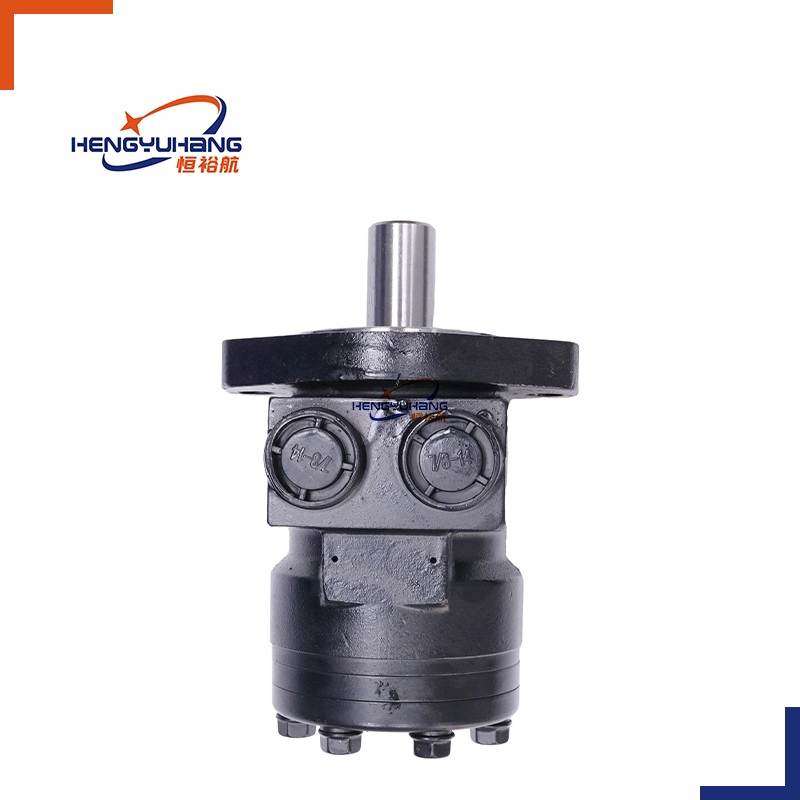

Danfoss Eaton Char-Lynn 101-1033-009 hydraulic motor_复制

Product Overview

The 101-1033-009 gerotor orbit hydraulic motor is a universal light-duty aftermarket replacement part for original Eaton Char-Lynn 101 series hydraulic drive assemblies, cross-compatible with Danfoss MH0028AA01AA0000000000000AA00J equivalent hydraulic motors, widely applied on residential lawn equipment, small garden tractors and light compact auxiliary hydraulic machinery.

It adopts mature light-duty spool valve gerotor distribution design, converting low-pressure hydraulic oil into smooth low-speed soft steady torque rotary power. All internal core transmission components are mini precision machined from wear-resistant alloy, supported by double-sided compact journal plain bearings and multi-layer NBR integrated sealing structure. The whole motor strictly follows OEM engineering drawings for standard mounting flange, straight woodruff keyed drive shaft, aligned parallel side port arrangement, realizing true plug-and-play replacement without pipeline reworking or bracket adjustment.

Slim low-gloss black primed cast iron outer housing delivers anti-rust, anti-fine debris and anti-corrosion protection in lawn trimming and small garden working environments. This model does not integrate built-in anti-reverse check valve; customers need to install an external miniature one-way valve if anti-runaway protection for small cutter heads and auxiliary wheels is required. All finished motors pass comprehensive low-cycle hydraulic bench testing to verify torque stability, rotation smoothness and zero-leakage performance under rated light working pressure.

Key Features

✅ 1:1 Full OEM Interchangeability Direct drop-in replacement for Eaton Char-Lynn 101-1033-009 and Danfoss MH0028AA01AA, fully consistent with original 2-bolt Type A flange, straight woodruff keyed shaft and aligned side port layout, no machining modification required.

✅ Light-Duty Compact Spool Valve Gerotor Distribution System Mini precision alloy gerotor gear set with spool valve distribution provides even smooth micro torque output, ultra-low vibration and silent variable-speed operation under low flow pressure.

✅ Slim Compact Anti-Corrosion Cast Iron Housing Small slim low-gloss black primed cast iron shell resists lawn grass debris, light mud and mild temperature fluctuation, perfectly fit compact lawn and mini garden equipment chassis.

✅ Standard Dual Integrated Anti-Leak Sealing Structure Standard NBR low-pressure shaft seal plus regular external dust seal double protection blocks minor internal & external oil seepage, maintaining stable output pressure under long continuous light load cycles.

✅ Dual Lightweight Front & Rear Journal Plain Bearings Light thin journal sliding bearing design with ultra-low friction loss, simple low-cost maintenance, stable rotation under frequent light start-stop cycles of lawn and small garden equipment.

✅ No Built-In Anti-Reverse Check Valve Reminder This model is not equipped with integrated one-way anti-reverse valve; customers can install external mini check valve separately to prevent small cutter head runaway when hydraulic power cuts off, improving light-load operation safety.

✅ Strict Low-Pressure Factory Hydraulic Quality Inspection All finished motors pass full low-pressure flow, working pressure and short-cycle leakage bench testing before shipment to screen defective products and ensure consistent stable light-duty performance.

Applications

• Construction Machinery：Excavators, skid steer loaders, backhoe loaders, road rollers, and compact construction equipment.

• Agricultural Equipment：Tractors, harvesters, sprayers, hay balers, agricultural winches, and general farm machinery.

• Material Handling：Forklifts, belt conveyors, lift tables, sweepers, and aerial work platforms.

• Industrial Machinery：Hydraulic winches, drilling rigs, hydraulic power units, industrial automation systems, and conveyor systems.

• Mobile Equipment：Refuse trucks, snow plows, utility vehicles, and marine hydraulic systems.

Other model specifications

Technical Specifications:

Specifications：
