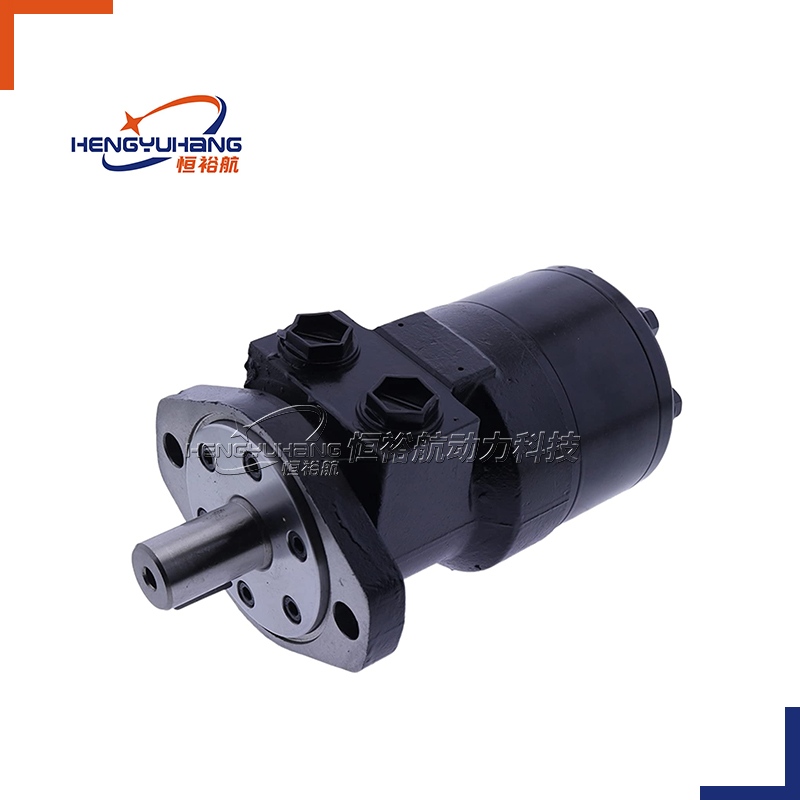

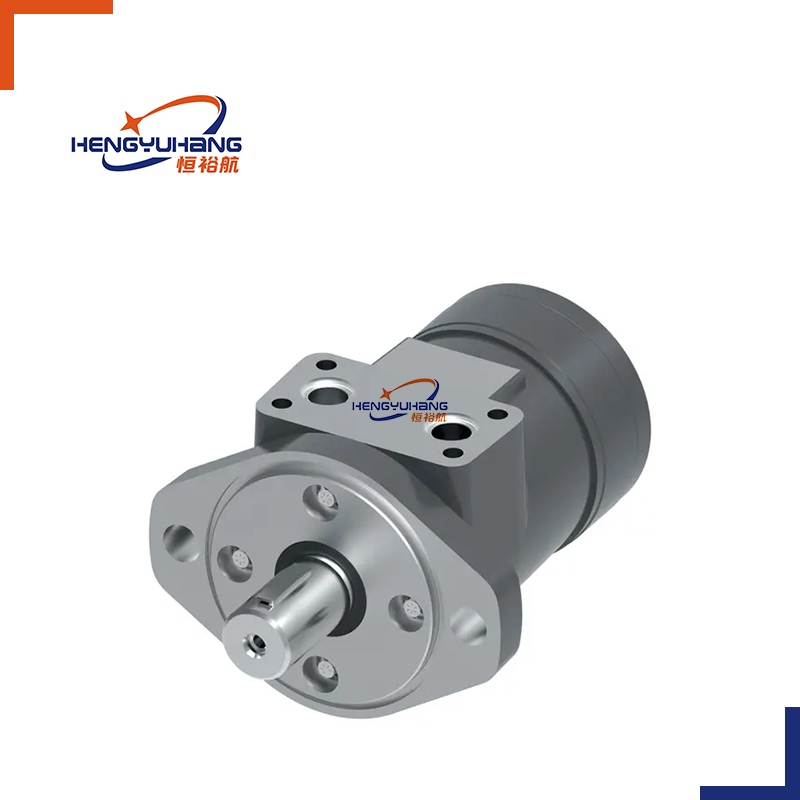

Danfoss Eaton Char-Lynn 101-1044-009 hydraulic motor

Product Overview

The 101-1044-009 gerotor orbit hydraulic motor is a universal medium-duty aftermarket replacement part for original Eaton Char-Lynn 101 series hydraulic drive assemblies, cross-compatible with Danfoss MH0097AA01AC0000000000000AA00J equivalent hydraulic motors, widely applied on agricultural augers, harvesters, seeders, industrial sweepers and floor polishers.

It adopts mature medium-duty reinforced spool valve gerotor distribution design, converting medium-high pressure hydraulic oil into smooth low-speed powerful moderate-high torque rotary power. All internal core transmission components are thickened precision machined from high-strength wear-resistant alloy, supported by double-sided reinforced journal plain bearings and multi-layer reinforced NBR integrated sealing structure. The whole motor strictly follows OEM engineering drawings for 2-bolt Type A mounting flange, straight woodruff keyed drive shaft, aligned parallel manifold port arrangement, realizing true plug-and-play replacement without pipeline reworking or bracket adjustment.

Thickened low-gloss black primed cast iron outer housing delivers outstanding anti-rust, anti-abrasion crop debris and anti-corrosion protection in farm field harvesting and heavy industrial cleaning working environments. This motor is fitted with hydraulic brake, but does not integrate built-in anti-reverse check valve; customers need to install an external medium-high flow one-way valve if anti-runaway protection for heavy harvester augers and large floor polishing brush rollers is required. All finished motors pass comprehensive long-cycle hydraulic bench testing to verify torque stability, rotation smoothness and zero-leakage performance under rated medium working pressure.

Key Features

✅ 1:1 Full OEM Interchangeability Direct drop-in replacement for Eaton Char-Lynn 101-1044-009 and Danfoss MH0097AA01AC, fully consistent with original 2-bolt Type A flange, straight woodruff keyed shaft and aligned manifold side port layout, no machining modification required.

✅ Medium-Heavy Reinforced Spool Valve Gerotor Distribution System Thickened high-strength alloy gerotor gear set with spool valve distribution provides even powerful smooth torque output, low vibration and silent variable-speed operation under continuous medium-high flow pressure.

✅ Thickened Anti-Corrosion Cast Iron Housing Mid-thick low-gloss black primed cast iron shell resists heavy farm mud, crop residues, abrasive workshop dust and wide ambient temperature fluctuation, perfectly fit medium heavy agricultural and industrial cleaning equipment chassis.

✅ Double Reinforced Integrated Anti-Leak Sealing Structure Reinforced thick NBR medium-high pressure shaft seal plus oversized heavy-duty external dust seal double protection blocks internal & external oil seepage, maintaining ultra-stable output pressure under long continuous medium load cycles.

✅ Dual Reinforced Front & Rear Journal Plain Bearings Double thickened journal sliding bearing design with ultra-low friction loss, economical medium-load maintenance, stable rotation under frequent heavy start-stop cycles of farm harvesters and industrial sweepers.

✅ Hydraulic Brake Equipped, No Built-In Anti-Reverse Check Valve Reminder This model comes with hydraulic brake function but without integrated one-way anti-reverse valve; customers can install external medium-high flow check valve separately to prevent auger/cleaning brush runaway when hydraulic power cuts off, improving medium-load operation safety.

✅ Strict Medium-High Pressure Factory Hydraulic Quality Inspection All finished motors pass full medium-high pressure flow, working pressure and long-cycle leakage bench testing before shipment to screen defective products and ensure consistent stable medium-duty performance.

Application Equipment

• Construction Machinery：Excavators, skid steer loaders, backhoe loaders, road rollers, and compact construction equipment.

• Agricultural Equipment：Tractors, harvesters, sprayers, hay balers, agricultural winches, and general farm machinery.

• Material Handling：Forklifts, belt conveyors, lift tables, sweepers, and aerial work platforms.

• Industrial Machinery：Hydraulic winches, drilling rigs, hydraulic power units, industrial automation systems, and conveyor systems.

• Mobile Equipment：Refuse trucks, snow plows, utility vehicles, and marine hydraulic systems.

Other model specifications

Technical Specifications:

Specifications：
