Product Overview

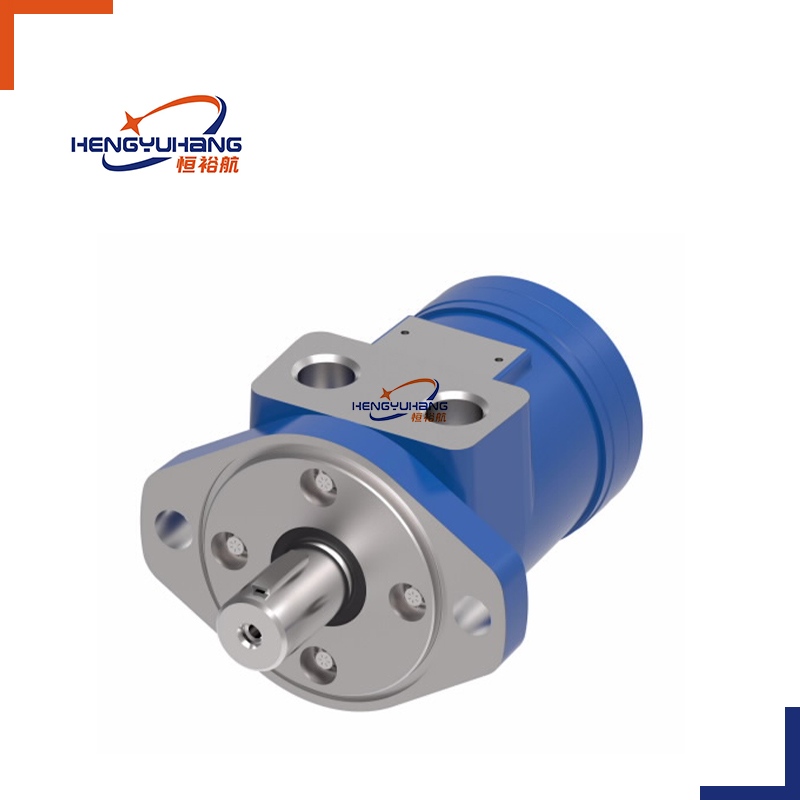

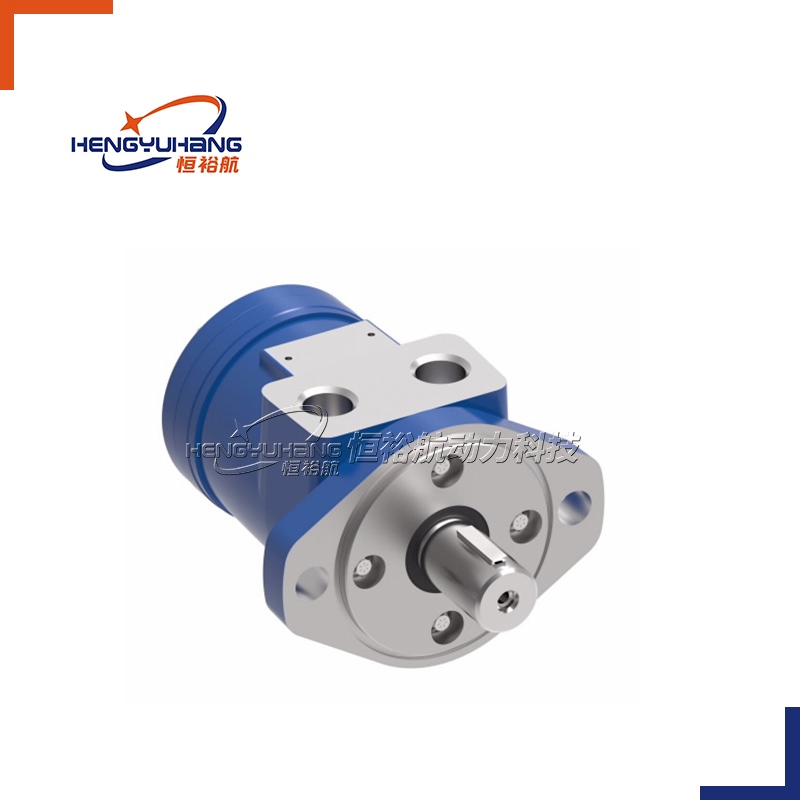

101-1705-009 hydraulic orbit motor serves as a drop-in replacement for the original Eaton Char-Lynn 101-series H Series motor, with cross compatibility matching Danfoss MH0035AA01AB00A gerotor hydraulic motor. Featuring mature spool valve gerotor construction, this orbital motor delivers steady torque output under low rotational speeds, and is widely deployed as power drive for agricultural augers, harvesters, seeders, industrial sweepers as well as floor polishers.

All mounting flange dimensions of the 2-bolt A standard layout, straight output shaft specs, NPTF threaded main ports and internal gerotor geometry comply with OEM dimensional benchmarks, which means installers can swap out worn original motors without reworking mounting brackets or rerouting hydraulic pipelines. The internal carburized gerotor rotor-stator pair delivers outstanding wear resistance, while dual NBR shaft seals and external dust barriers mitigate hydraulic leakage and block farm dirt, road grit and other harsh contaminants to lengthen operational lifespan.

Key Features

✅ Perfect Cross-Brand Interchangeability

101-1705-009 strictly matches the installation dimensions and internal specs of Eaton Char-Lynn 101-1705-009, and is fully interchangeable with Danfoss MH0035AA01AB00A0000000000AA00J. Standard 2-bolt A mounting flange and industry-standard port threading allow seamless plug-and-play mounting.

✅ Optimized Gerotor Power Performance

Classic spool valve flow distribution structure ensures smooth torque delivery at low rotation rates, cutting vibration and shaft stall risks under heavy intermittent workloads.

✅ Wear-Resistant Internal Gear Assembly

Heat-treated gerotor rotor and stator resist abrasion and fatigue damage, coping well with frequent forward and reverse rotation cycles on field and municipal equipment.

✅ Reliable Dual Sealing Layout

Standard NBR shaft seals paired with dedicated dust seals stop internal and external oil leaks; the replaceable 60540-000 seal kit simplifies later on-site maintenance work.

✅ Rigorous Factory Quality Inspection

Each completed motor undergoes hydraulic leak testing, continuous rotation aging testing and torque performance verification, holding a low field fault rate.

✅ Flexible Wholesale Solutions

Direct factory sourcing removes intermediate markups; both sample testing and mass order quantities are supported with adjustable lead times.

Applications

• Construction Machinery：Excavators, skid steer loaders, backhoe loaders, road rollers, and compact construction equipment.

• Agricultural Equipment：Tractors, harvesters, sprayers, hay balers, agricultural winches, and general farm machinery.

• Material Handling：Forklifts, belt conveyors, lift tables, sweepers, and aerial work platforms.

• Industrial Machinery：Hydraulic winches, drilling rigs, hydraulic power units, industrial automation systems, and conveyor systems.

• Mobile Equipment：Refuse trucks, snow plows, utility vehicles, and marine hydraulic systems.

Other model specifications

Technical Specifications：

Specifications：
