Product Overview

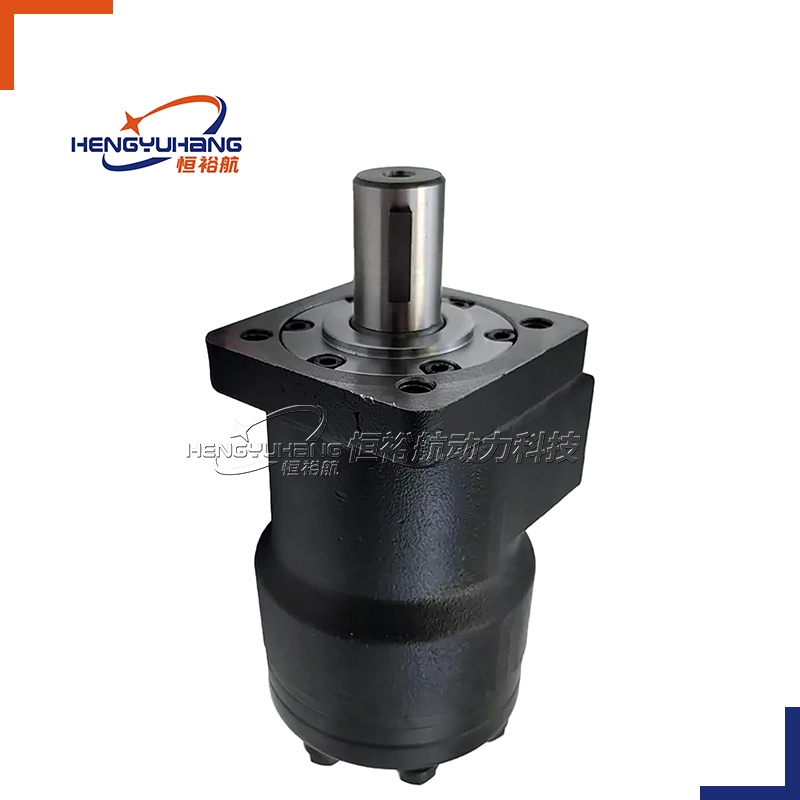

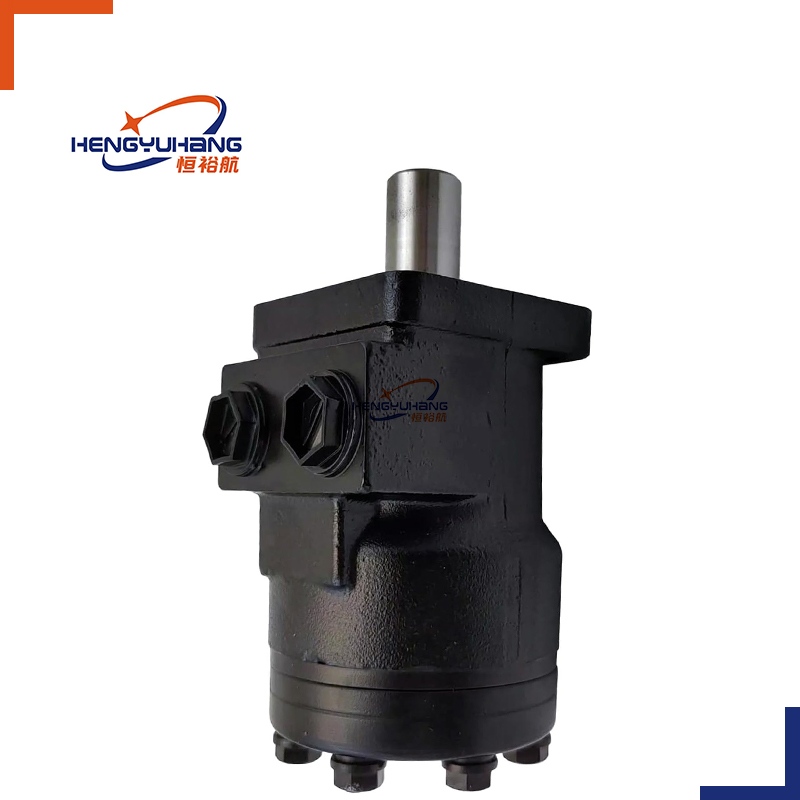

The Eaton Char-Lynn 101-1767-009 is a medium-displacement orbital hydraulic motor engineered for applications demanding reliable low-speed, high-torque performance in compact packaging. Rated at 8.9 CID with a continuous pressure capacity of 1,800 PSI and intermittent bursts to 2,400 PSI, it delivers steady torque output up to 385 RPM at full 15 GPM flow. The H Series spool valve design integrates valving and hydrodynamic journal bearings directly into the shaft, eliminating the need for external drain lines in most setups. Built on a 4-bolt standard mount with a 1" 6B spline shaft, it is a direct replacement across a wide range of OEM equipment — from skid steer attachments and salt/sand spreaders to car wash brushes, auger drives, and industrial sweepers. Equal torque in both directions and consistent low-speed control make it equally suited for precision feed systems and continuous-duty conveying.

Key Features

✅ 8.9 CID gerotor displacement for heavy-duty low-speed torque — delivers up to 300 N·m continuous torque without a gearbox, ideal for augers, spreaders, sweepers, and conveyor drives that demand steady power at low RPM.

✅ Direct OEM interchangeability — exact drop-in replacement for Eaton Char-Lynn 101-1767-009 / 101-1767 and cross-compatible with BMPH-160-H4SP; mounting flange, spline shaft, and port locations fully match OEM dimensions, no drilling or plumbing modification required.

✅ Three-zone pressure design (inlet / return / case) — isolates high-pressure circuits from the case cavity, reducing internal leakage and extending shaft seal and bearing service life under continuous-duty cycles.

✅ Integrated spool valve with hydrodynamic journal bearings — only three moving components (gerotor star, drive, and output shaft) for exceptional mechanical reliability and smooth low-speed control even under fluctuating inlet pressure.

✅ Heavy-duty cast iron housing — high-strength iron shell with anti-corrosion finish delivers superior shock resistance and fouling tolerance for farm, construction, and industrial environments.

✅ High-grade nitrile sealing system — heat-resistant, oil-proof seals minimize external leakage across a wide hydraulic oil temperature range, reducing maintenance frequency and fluid loss.

✅ Bidirectional with equal torque in both directions — instant forward/reverse switching by simply reversing flow direction, no additional directional valving required for winch, wheel drive, and sweep/retract applications.

✅ Optimized internal flow path — reduced hydraulic power loss and heat accumulation lowers overall energy consumption of the host hydraulic system, improving system-level efficiency.

✅ Complete factory performance testing — every motor undergoes pressure cycling, continuous rotation, and leakage verification before shipment, ensuring consistent quality for export bulk orders.

✅ Flexible procurement options — support sample trial orders and full-container bulk supply; compatible with repair workshops, OEM assembly lines, and overseas hydraulic parts distributors across agricultural, construction, sanitation, and industrial conveying sectors.

Applications

• Construction Machinery：Excavators, skid steer loaders, backhoe loaders, road rollers, and compact construction equipment.

• Agricultural Equipment：Tractors, harvesters, sprayers, hay balers, agricultural winches, and general farm machinery.

• Material Handling：Forklifts, belt conveyors, lift tables, sweepers, and aerial work platforms.

• Industrial Machinery：Hydraulic winches, drilling rigs, hydraulic power units, industrial automation systems, and conveyor systems.

• Mobile Equipment：Refuse trucks, snow plows, utility vehicles, and marine hydraulic systems.
