Product Overview

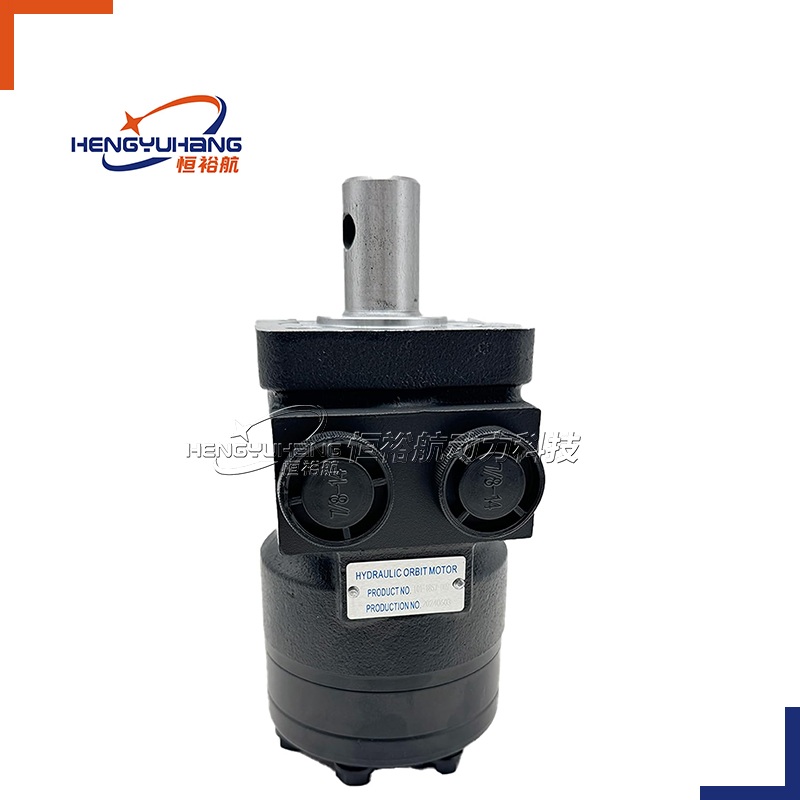

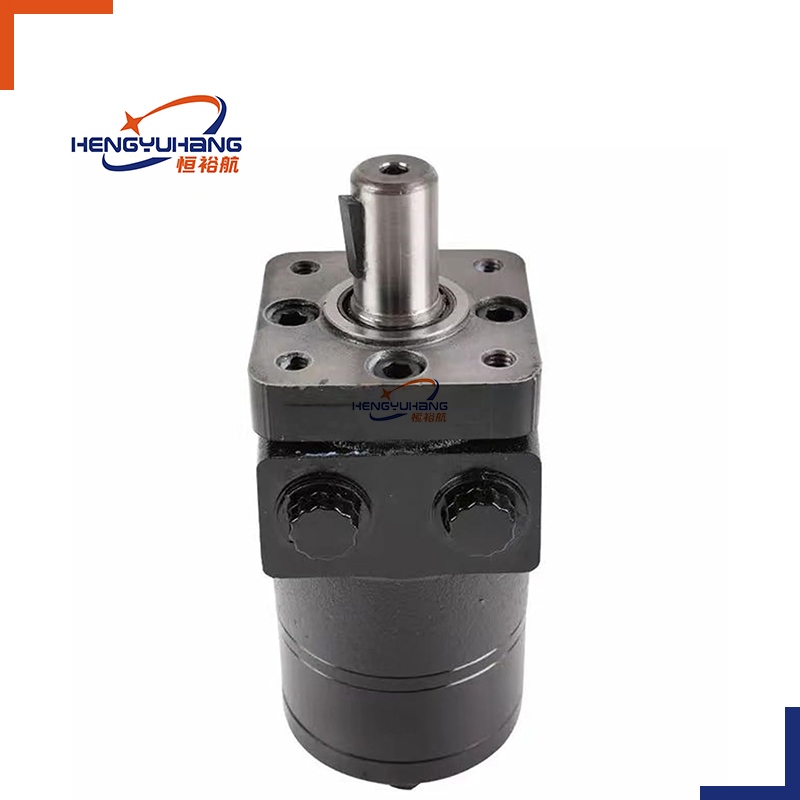

The Char-Lynn 101-1768-009 is the entry-point displacement in Eaton's H Series orbital motor family, delivering 2.2 CID in a lightweight cast iron package. Unlike its larger siblings built for low-speed grinding torque, this motor runs comfortably at speeds approaching 1,000 RPM on just 10 GPM of flow — making it the go-to choice when a hydraulic rotary actuator is needed in a space- and flow-constrained circuit. Manifold-mount porting simplifies plumbing in tight installations, while the same three-component gerotor/spool valve architecture shared across the H Series means parts interchangeability and predictable service life. Common in reel drives, small augers, turf equipment, and machine tool feed systems, the 101-1768-009 bridges the gap between a compact hydraulic motor and a practical, cost-effective rotary power source.

Key Features

✅ Dual-brand interchangeabilityDirect replacement for original Eaton Char-Lynn 101-1768-009 and Danfoss MH0022BA02AC00A000000000AA00J, reduce inventory SKU types effectively.

✅ Plug-and-play installationMounting holes, shaft and oil ports are fully consistent with OEM dimensions, no drilling or pipe modification needed; cut maintenance duration by more than 50%.

✅ Precision gerotor internal assemblyCNC machined stator and rotor achieve tiny internal leakage, stable torque and rotational speed even when inlet hydraulic pressure fluctuates.

✅ Heavy-duty cast iron housingHigh-strength cast iron shell with anti-corrosion finish, great anti-shock and anti-fouling performance for farm and construction site scenarios.

✅ High-grade sealing systemHeat-resistant oil-proof nitrile seals minimize external oil leakage, adapt to wide hydraulic oil temperature range.

✅ Low speed high torque outputPerfect for scenarios that require large driving torque at low rotation speed, such as winches, conveyors and wheel drives.

✅ Optimized internal flow pathReduce hydraulic power loss and heat accumulation, lower energy consumption of host hydraulic system.

✅ Complete factory performance testingEach motor undergoes pressure fatigue, continuous rotation and leakage testing before shipment, stable quality for export bulk orders.

✅ Wide application coverageFit agricultural machinery, light construction equipment, sanitation vehicles, industrial conveying equipment and other hydraulic machinery.

✅ Flexible procurement optionsSupport sample trial purchase and full container bulk supply, cooperate with repair workshops, OEM factories and overseas hydraulic part distributors.

Applications

• Construction Machinery：Excavators, skid steer loaders, backhoe loaders, road rollers, and compact construction equipment.

• Agricultural Equipment：Tractors, harvesters, sprayers, hay balers, agricultural winches, and general farm machinery.

• Material Handling：Forklifts, belt conveyors, lift tables, sweepers, and aerial work platforms.

• Industrial Machinery：Hydraulic winches, drilling rigs, hydraulic power units, industrial automation systems, and conveyor systems.

• Mobile Equipment：Refuse trucks, snow plows, utility vehicles, and marine hydraulic systems.

Other model specifications

Technical Specifications：

Specifications：
