Product Overview

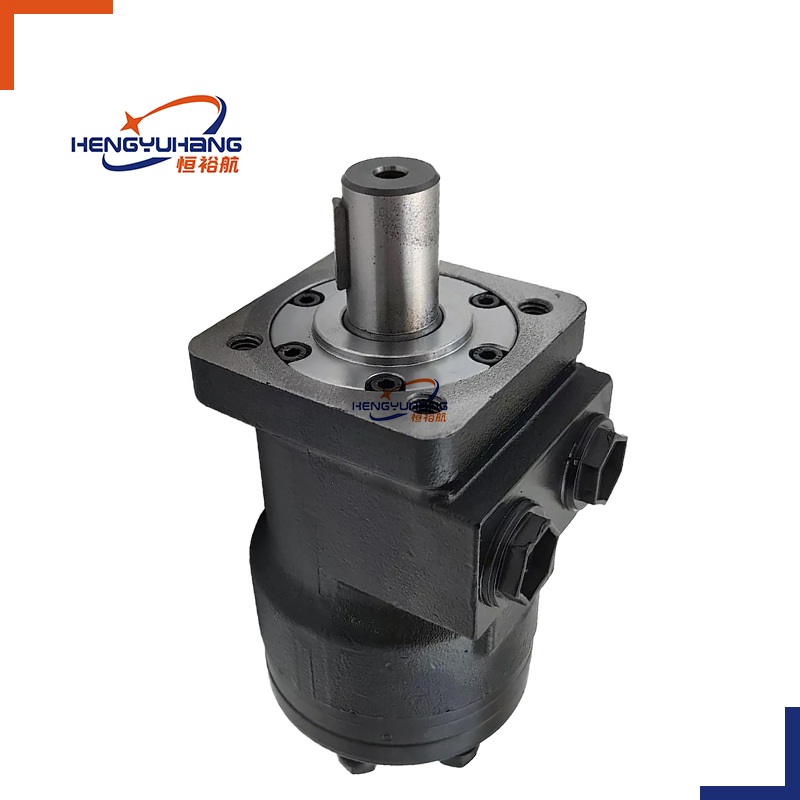

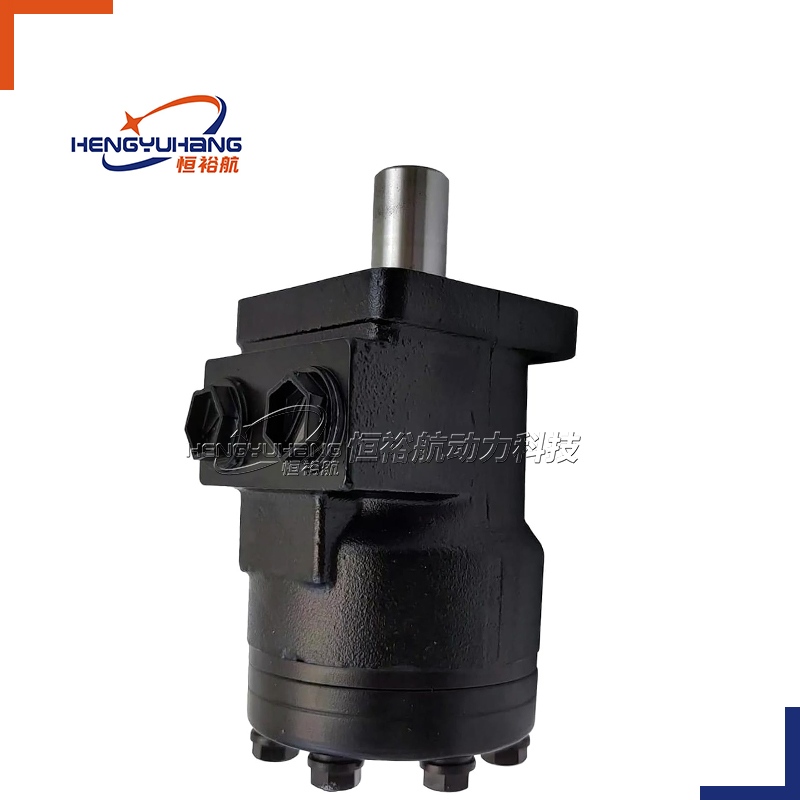

The 101-1769-009 occupies the 2.8 CID displacement slot within Eaton's H Series orbital motor portfolio, positioned between the high-speed 2.2 CID entry model and the torque-oriented mid-range displacements. Its 46 cc/rev gerotor element, combined with the H Series spool valve architecture, delivers a balanced output profile: 59 N·m continuous torque at 1,800 PSI with a top shaft speed approaching 970 RPM — making it a versatile choice for equipment that requires both meaningful driving force and responsive speed control. The standard 4-bolt flange and 1-inch keyed shaft ensure direct interchangeability with all H Series mounts, while the three-component rotating group and three-zone pressure design provide the same field-proven durability and seal integrity as every motor in the 101 family. Typical deployments include small-diameter augers, broadcast spreaders, rotary brush drives, light-duty conveyors, and auxiliary hydraulic circuits on agricultural and municipal equipment where a compact, self-contained rotary actuator eliminates the cost and complexity of chain or belt reduction drives.

Key Features

✅ Dual-brand interchangeability — Direct replacement for original Eaton Char-Lynn 101-1769-009 and White 145060F3702AAAAA, reduce inventory SKU types effectively.

✅ Plug-and-play installation — Mounting holes, shaft and oil ports are fully consistent with OEM dimensions, no drilling or pipe modification needed; cut maintenance duration by more than 50%.

✅ Precision gerotor internal assembly — CNC machined stator and rotor achieve tiny internal leakage, stable torque and rotational speed even when inlet hydraulic pressure fluctuates.

✅ Heavy-duty cast iron housing — High-strength cast iron shell with anti-corrosion finish, great anti-shock and anti-fouling performance for farm and construction site scenarios.

✅ High-grade sealing system — Heat-resistant oil-proof nitrile seals minimize external oil leakage, adapt to wide hydraulic oil temperature range.

✅ Balanced torque-to-speed output — 2.8 CID displacement delivers 59 N·m continuous torque at 1,800 PSI with 969 RPM top speed, ideal for augers, spreaders, brush drives, and compact conveyor systems.

✅ Optimized internal flow path — Reduce hydraulic power loss and heat accumulation, lower energy consumption of host hydraulic system.

✅ Complete factory performance testing — Each motor undergoes pressure fatigue, continuous rotation and leakage testing before shipment, stable quality for export bulk orders.

✅ Wide application coverage — Fit agricultural machinery, turf care equipment, municipal sanitation vehicles, industrial conveying equipment, and other medium-duty hydraulic machinery.

✅ Flexible procurement options — Support sample trial purchase and full container bulk supply, cooperate with repair workshops, OEM factories and overseas hydraulic part distributors.

Applications

• Construction Machinery：Excavators, skid steer loaders, backhoe loaders, road rollers, and compact construction equipment.

• Agricultural Equipment：Tractors, harvesters, sprayers, hay balers, agricultural winches, and general farm machinery.

• Material Handling：Forklifts, belt conveyors, lift tables, sweepers, and aerial work platforms.

• Industrial Machinery：Hydraulic winches, drilling rigs, hydraulic power units, industrial automation systems, and conveyor systems.

• Mobile Equipment：Refuse trucks, snow plows, utility vehicles, and marine hydraulic systems.
