Product Overview

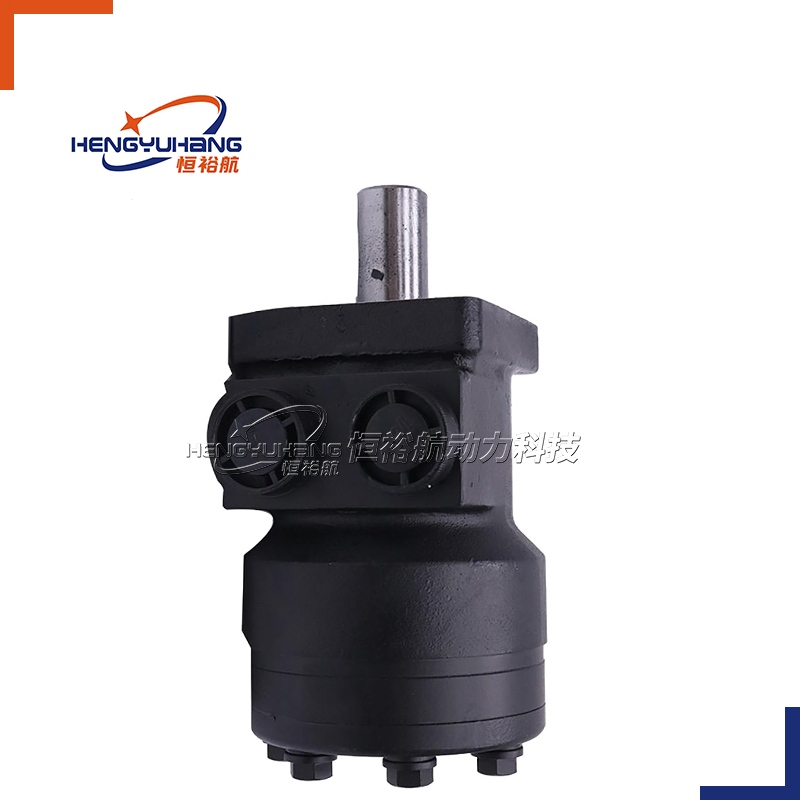

The Eaton Char-Lynn 103-1010-012 is a premium fixed-displacement geroler orbital hydraulic motor engineered for medium-duty mobile machinery and industrial hydraulic systems. Blending mature Eaton fluid power technology with optimized compact structure, this LSHT motor delivers steady, efficient hydraulic-to-mechanical energy conversion with outstanding running stability and environmental adaptability. It balances high torque output, low-speed smooth operation and cost-effectiveness, solving common pain points of conventional motors such as bulky structure, unstable startup and easy wear. With standardized installation dimensions and excellent part interchangeability, it serves as a reliable, versatile and easy-to-replace core drive component for diversified working scenarios, ensuring long-term stable operation of equipment while lowering overall operating and maintenance costs.

Key Features

• Universal Series Interchangeability Perfectly compatible with mainstream orbital motor series in the market, supporting cross-model direct replacement without system redesign, effectively simplifying equipment upgrading and part replacement work.

• OEM Standard Dimensional Consistency Strictly follows industry standard mounting flange, key shaft and oil port parameters, achieving complete dimensional consistency with original equipment, realizing fast on-site assembly and replacement.

• High-Precision Cycloidal Transmission Adopts finely machined geroler rotor and stator pair, ensuring accurate meshing fit, effectively stabilizing output speed and torque under variable hydraulic pressure conditions.

• Rugged Integrated Body Structure Adopts one-piece heavy-duty cast iron housing with enhanced structural rigidity, resisting mechanical impact and external abrasion, adapting to long-term harsh field operation.

• Multi-Layer Enhanced Sealing Performance Equipped with high-temperature and oil-resistant composite sealing components, effectively preventing internal pressure loss and external oil leakage, greatly improving operational reliability.

• Stable LSHT Power Output Features excellent low-speed high-torque mechanical properties, delivering powerful and steady driving force at low rotation speed, suitable for low-speed heavy-load working conditions.

• Low Energy Loss Hydraulic Design Optimized internal flow channel structure reduces fluid resistance and hydraulic heat loss, improving overall hydraulic transmission efficiency and saving long-term operating energy consumption.

• Full-Factory Inspection Standards Every finished motor undergoes strict no-load operation, pressure endurance and tightness testing to eliminate defective products and ensure consistent batch quality.

• Multi-Scenario Environmental Adaptability Tolerates wide temperature variation and dusty, humid working environments, reliably serving agricultural, construction, sanitation and general industrial equipment.

• Cost-Effective Supply & Service Balances industrial-grade durability and competitive pricing, supporting flexible procurement modes for after-sales maintenance, equipment supporting and bulk export supply.

Applications

• Construction Machinery：Excavators, skid steer loaders, backhoe loaders, road rollers, and compact construction equipment.

• Agricultural Equipment：Tractors, harvesters, sprayers, hay balers, agricultural winches, and general farm machinery.

• Material Handling：Forklifts, belt conveyors, lift tables, sweepers, and aerial work platforms.

• Industrial Machinery：Hydraulic winches, drilling rigs, hydraulic power units, industrial automation systems, and conveyor systems.

• Mobile Equipment：Refuse trucks, snow plows, utility vehicles, and marine hydraulic systems.

Other model specifications

Technical Specifications：

Specifications：
