Product Overview

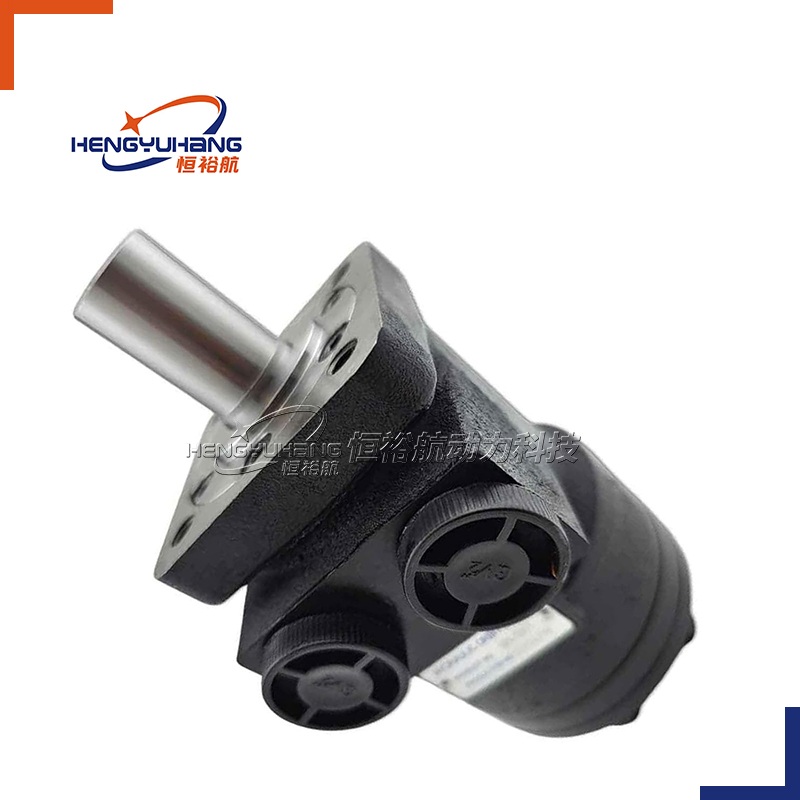

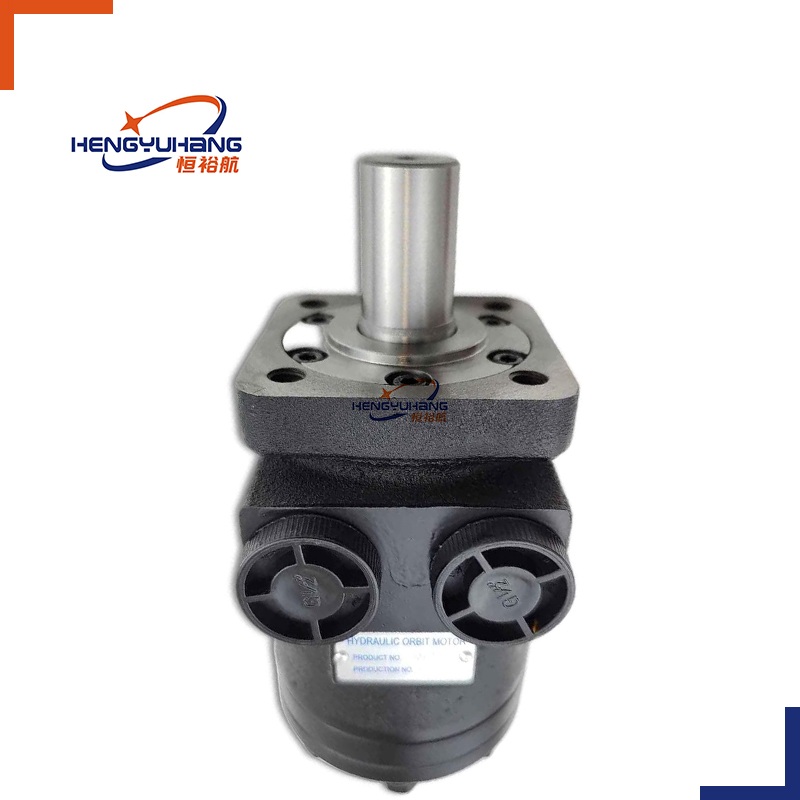

The Eaton Char-Lynn 103-1018-012 is a high-performance S-series orbital geroler hydraulic motor, specially engineered for medium-duty low-speed high-torque (LSHT) hydraulic drive scenarios. Inheriting Eaton’s mature fluid power manufacturing technology, this motor adopts an optimized large-displacement internal structure and reinforced mechanical design, delivering stable, high-efficiency and high-precision power output under complex and variable working conditions. Featuring a compact integrated structure, standardized OEM installation size and ultra-high part interchangeability, it can directly replace original Eaton and mainstream Danfoss equivalent motors without any system modification. With excellent pressure resistance, low leakage performance and harsh environment adaptability, this hydraulic motor is widely applied in agricultural machinery, light construction equipment, sanitation vehicles and general industrial conveying and driving equipment. It effectively enhances equipment operating stability, reduces system energy consumption and cuts long-term maintenance and replacement costs, serving as an ideal cost-effective drive solution for medium-load hydraulic systems.

Key Features

• Dual-brand interchangeability Directly replaces original Eaton Char-Lynn 103-1018-012 and Danfoss MS series equivalent orbital motors, unifying spare part specifications and effectively reducing enterprise SKU inventory pressure and stocking costs.

• Plug-and-play installation Equipped with standard 2-bolt flange, precision key output shaft and standardized oil port layout, fully consistent with OEM mounting dimensions. No drilling, cutting or hydraulic pipeline adjustment is required, greatly shortening equipment maintenance and replacement cycle.

• Precision gerotor assembly Adopts high-precision CNC integrally machined stator and rotor pairing structure, with ultra-tight fit tolerance. It minimizes internal hydraulic leakage and maintains stable torque and constant rotational speed even under fluctuating oil pressure and variable load conditions.

• Heavy-duty cast iron housing Built with thickened high-strength ductile cast iron housing and professional anti-corrosion and anti-rust surface treatment. It resists mechanical impact, abrasion, dust and humid environments, adapting to long-term continuous operation in outdoor construction and farm working sites.

• Premium sealing system Equipped with imported heat-resistant and oil-resistant nitrile rubber composite seals. It effectively avoids external oil seepage and internal pressure loss, improves overall sealing stability, and extends the motor’s overall service life with lower maintenance frequency.

• Excellent low speed high torque output Optimized large-displacement internal structure achieves strong and stable torque output at low rotational speeds, perfectly matching the working demands of wheel drive, material conveyor, small winch, stirring and feeding hydraulic equipment.

• Low-loss internal flow path Refined and streamlined internal hydraulic flow path structure reduces fluid resistance, hydraulic power loss and heat accumulation during operation. It significantly improves hydraulic transmission efficiency and reduces the overall energy consumption of the complete machine system.

• Strict factory performance testing Every finished motor undergoes full-process factory inspections including pressure fatigue testing, continuous rotation aging testing and full sealing leakage detection, ensuring stable quality, consistent performance and high reliability for global batch export.

• Wide application scope It is universally applicable to various medium-duty hydraulic equipment, including agricultural tillage and harvesting machinery, aerial work platforms, road sweeping sanitation vehicles, industrial roller conveyors and light engineering drive devices.

• Flexible procurement solutions Supports diversified procurement modes including sample trial purchase, small-batch customized orders and full-container bulk supply, fully meeting the procurement demands of maintenance factories, equipment OEM manufacturers and overseas hydraulic part distributors.

Applications

• Construction Machinery：Excavators, skid steer loaders, backhoe loaders, road rollers, and compact construction equipment.

• Agricultural Equipment：Tractors, harvesters, sprayers, hay balers, agricultural winches, and general farm machinery.

• Material Handling：Forklifts, belt conveyors, lift tables, sweepers, and aerial work platforms.

• Industrial Machinery：Hydraulic winches, drilling rigs, hydraulic power units, industrial automation systems, and conveyor systems.

• Mobile Equipment：Refuse trucks, snow plows, utility vehicles, and marine hydraulic systems.

Other model specifications

Technical Specifications：

Specifications：
