Product Overview

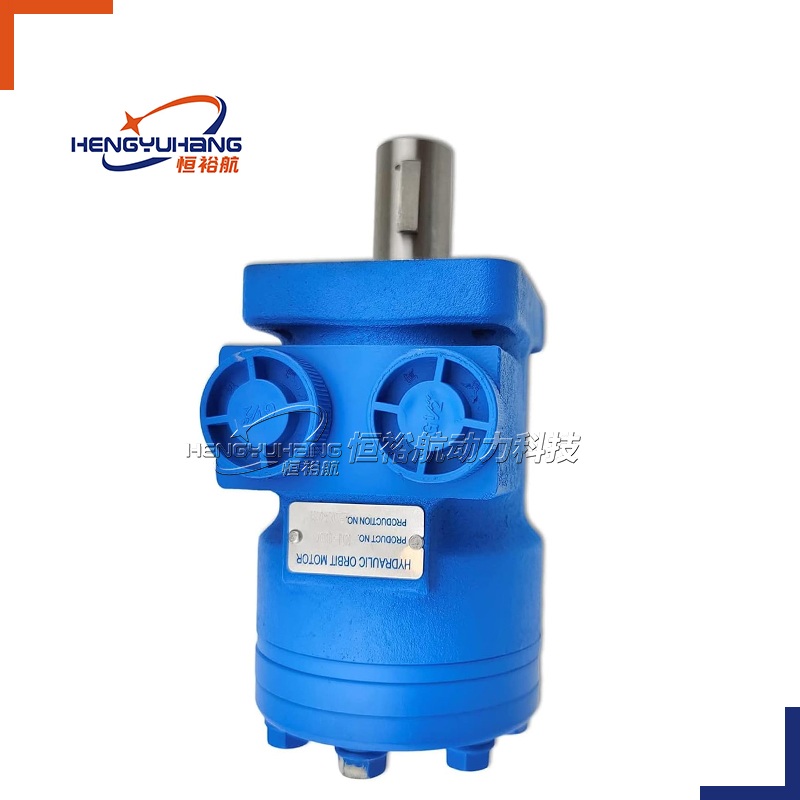

The Eaton Char-Lynn 103-1022-012 is a versatile industrial-grade orbital hydraulic motor designed to deliver dependable low-speed high-torque performance for general and medium-duty hydraulic applications. Integrating optimized gerotor geometry and precision flow control technology, this motor minimizes torque fluctuation and operational friction to ensure smooth, consistent rotation throughout varied working cycles. Its robust compact build is engineered to withstand daily mechanical stress, frequent operation and unpreferred field conditions, greatly reducing operational failures. Featuring great installation compatibility, stable energy output and long operational life, it is a highly practical replacement drive unit for agricultural, municipal, construction and general industrial hydraulic machinery.

Key Features

• Wide Cross-Brand Interchangeability Fully compatible with original Eaton 103-1022-012 and mainstream international orbital motor models, achieving zero-difference replacement and simplifying aftermarket part matching.

• Accurate OEM Mounting Standard Adopts standard two-bolt mounting flange, precise key shaft and regular oil port arrangement with fully consistent OEM dimensions, enabling quick replacement without on-site processing.

• High-Precision Rotor Matching Adopts ultra-precision CNC machined stator and rotor assembly with optimized clearance control, effectively reducing speed jitter and ensuring uniform torque output under dynamic loads.

• Anti-Fatigue Heavy-Duty Housing Integrally cast high-strength shell enhances overall structural stability, effectively resisting long-term vibration, mechanical impact and surface wear in harsh working sites.

• Enhanced Industrial Sealing System Equipped with multi-functional composite sealing accessories with excellent oil resistance and aging resistance, effectively eliminating external leakage and internal pressure loss for long-term stable operation.

• Consistent Low-Speed Torque Performance Professionally calibrated internal displacement structure provides stable and sufficient low-speed high-torque output, adapting to various heavy-load low-speed driving and transmission scenarios.

• Low-Heat Hydraulic Optimization Upgraded streamlined internal flow path reduces fluid resistance and turbulent loss, lowering operating temperature rise and improving the overall working efficiency of the hydraulic system.

• Full-Cycle Factory Testing Every motor completes strict tightness detection, pressure endurance test and long-time aging operation before delivery, ensuring reliable and stable batch performance.

• Strong Environmental Resistance Capable of stable operation in dusty, wet and temperature-changing environments, widely applicable to agricultural machinery, light construction equipment and municipal sanitation vehicles.

• Diversified Global Supply Service Supports sample inspection, small-batch trial orders and large-volume bulk shipments, fully meeting the procurement demands of repair workshops, equipment manufacturers and overseas hydraulic component distributors.

Applications

• Construction Machinery：Excavators, skid steer loaders, backhoe loaders, road rollers, and compact construction equipment.

• Agricultural Equipment：Tractors, harvesters, sprayers, hay balers, agricultural winches, and general farm machinery.

• Material Handling：Forklifts, belt conveyors, lift tables, sweepers, and aerial work platforms.

• Industrial Machinery：Hydraulic winches, drilling rigs, hydraulic power units, industrial automation systems, and conveyor systems.

• Mobile Equipment：Refuse trucks, snow plows, utility vehicles, and marine hydraulic systems.

Other model specifications

Technical Specifications：

Specifications：
