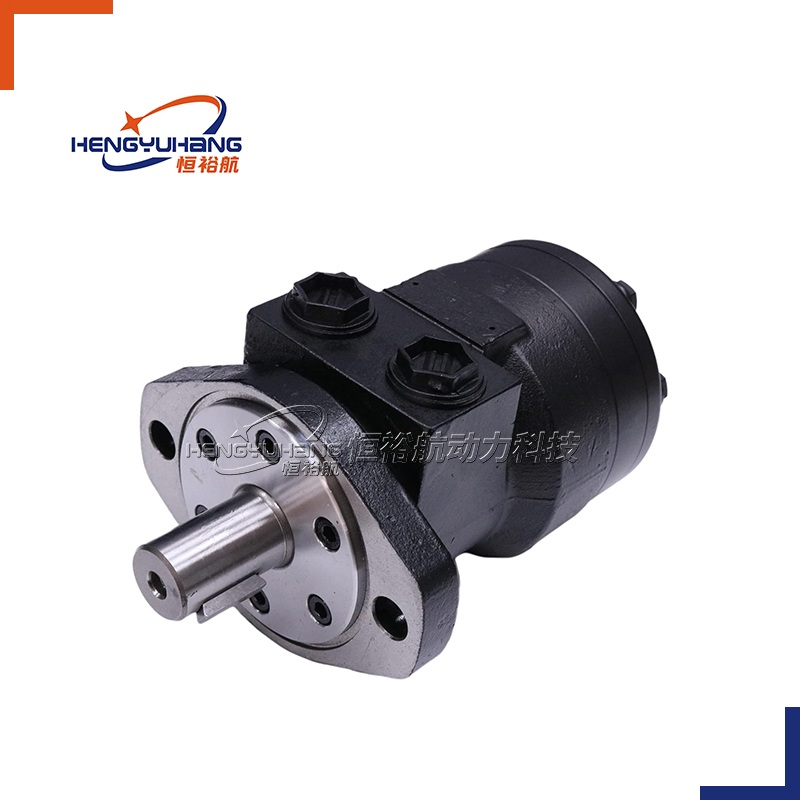

Danfoss Eaton Char-Lynn 103-1027-012 hydraulic motor

Product Overview

The 103-1027-012 geroler orbit hydraulic motor is a universal light-medium duty aftermarket replacement part for original Eaton Char-Lynn 103 series hydraulic drive assemblies, cross-compatible with Danfoss MS0057AA01AB0000000000000AA00M equivalent hydraulic motors, widely applied on lawn maintenance, agricultural spraying and light compact construction hydraulic machinery.

It adopts mature spool valve geroler distribution design, converting medium-low pressure hydraulic oil into smooth low-speed moderate torque rotary power. All internal core transmission components are precision machined from wear-resistant alloy, supported by double-sided journal plain bearings and multi-layer NBR integrated sealing structure. The whole motor strictly follows OEM engineering drawings for 2-bolt SAE A mounting flange, straight keyed drive shaft, aligned parallel BSP side port arrangement, realizing true plug-and-play replacement without pipeline reworking or bracket adjustment.

Compact low-gloss black primed cast iron outer housing delivers anti-rust, anti-debris and anti-corrosion protection in lawn mowing and farm spraying working environments. This model does not integrate built-in anti-reverse check valve; customers need to install an external one-way valve if anti-runaway protection for cutter heads and spray pumps is required. All finished motors pass comprehensive hydraulic bench testing to verify torque stability, rotation smoothness and zero-leakage performance under rated light-medium working pressure.

Key Features

✅ 1:1 Full OEM Interchangeability Direct drop-in replacement for Eaton Char-Lynn 103-1027-012 and Danfoss MS0057AA01AB, fully consistent with original 2-bolt SAE A flange, straight keyed shaft and aligned BSP side port layout, no machining modification required.

✅ Spool Valve Geroler Distribution System Standard precision geroler gear set paired with spool valve provides even smooth torque output, low vibration and quiet variable-speed operation under medium flow pressure.

✅ Compact Anti-Corrosion Cast Iron Housing Small-size low-gloss black primed cast iron shell offers good resistance to grass debris, pesticide residue, dust and wide ambient temperature changes, ideal for compact lawn and spray equipment chassis.

✅ Integrated Dual Anti-Leak Sealing Package Standard NBR high-pressure shaft seal + external dust seal dual sealing structure blocks internal & external oil seepage, maintaining stable output pressure under continuous light-medium load cycles.

✅ Dual Front & Rear Journal Plain Bearings Dual journal sliding bearing structure with low friction loss, simple economical maintenance, stable rotation under frequent start-stop lawn mower and sprayer working conditions.

✅ Safety Anti-Reverse Protection Reminder Without built-in check valve; external one-way valve can be configured separately to prevent blade/spray pump runaway when hydraulic power cuts off, improving equipment operation safety.

✅ Complete Factory Hydraulic Quality Inspection Every finished unit passes full flow, working pressure and leakage bench testing before shipment to screen defective goods and ensure consistent stable light-medium load performance.

Applications

• Construction Machinery：Excavators, skid steer loaders, backhoe loaders, road rollers, and compact construction equipment.

• Agricultural Equipment：Tractors, harvesters, sprayers, hay balers, agricultural winches, and general farm machinery.

• Material Handling：Forklifts, belt conveyors, lift tables, sweepers, and aerial work platforms.

• Industrial Machinery：Hydraulic winches, drilling rigs, hydraulic power units, industrial automation systems, and conveyor systems.

• Mobile Equipment：Refuse trucks, snow plows, utility vehicles, and marine hydraulic systems.

Other model specifications

Technical Specifications:

Specifications：
