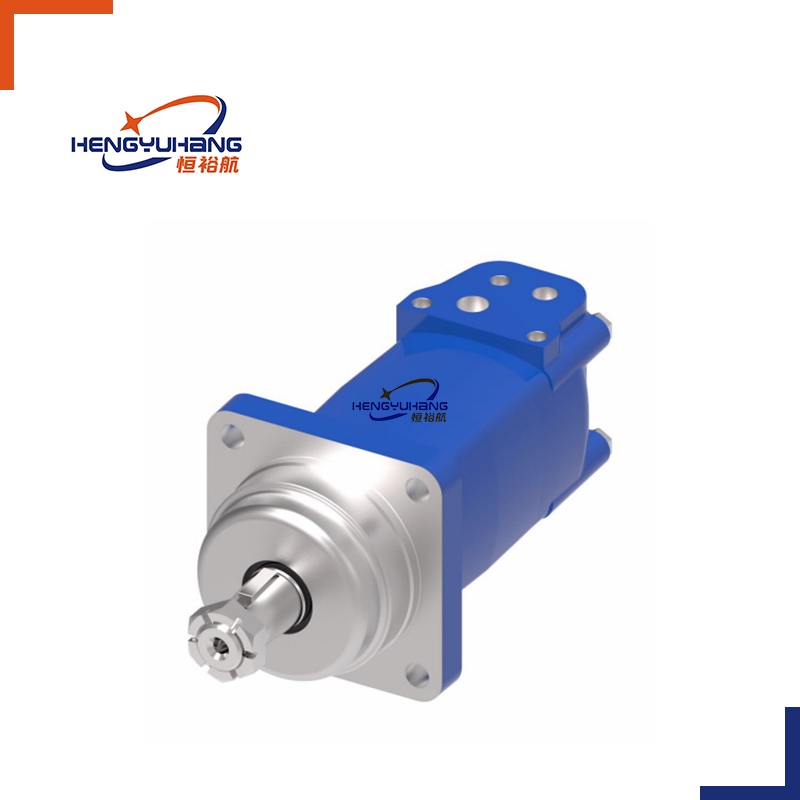

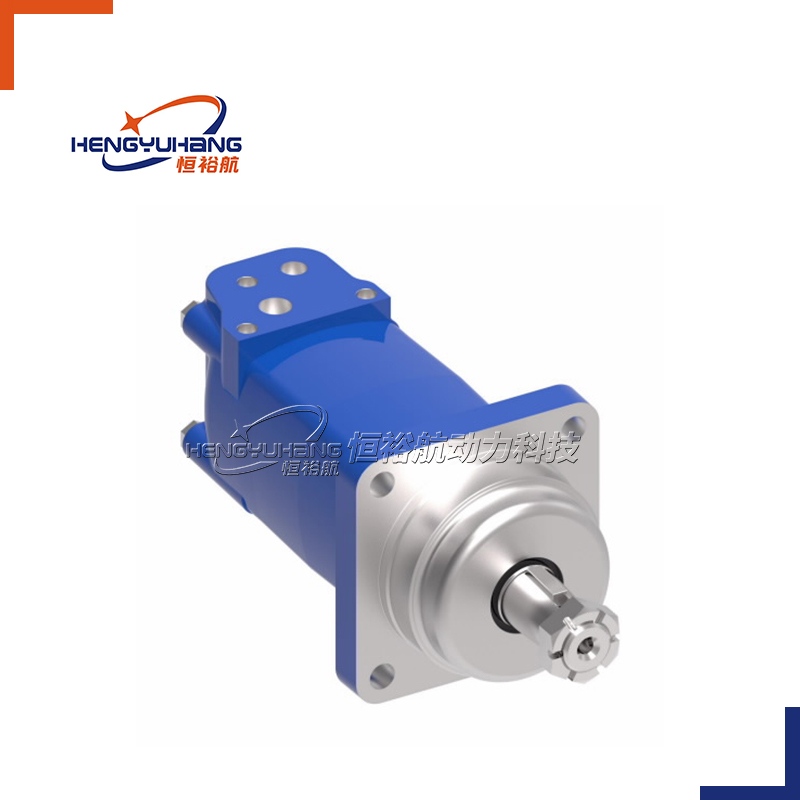

Danfoss Eaton Char-Lynn 105-1283-006 hydraulic motor Hydraulic Torque Motor0 M02240AB03AB0100010000000AAAAF

The 105-1283-006 hydraulic geroler motor is fully cross-compatible with the original Eaton Char-Lynn 105 series and Danfoss M02240 series units. The precision roller geroler plus built-in disc flow distribution valve enables stable low-speed high-torque output with low vibration and smooth operation. Its compact cast iron housing makes it widely suitable for light agricultural and construction drive equipment.

◆PLACE OF ORIGIN

CHINA

◆BRAND NAME

HYH

◆MODEL NUMBER

105-1283-006   M02240AB03AB0100010000000AAAAF

◆MINIMUM ORDER QUANTITY

1SET

◆PACKAGING DETAILS

PAPER AND WOODEN PACKING

◆DELIVERY TIME

1-4WORKING DAYS

◆PAYMENT TERMS

T/T, WESTERN UNION, L/C

Description

Product Overview

The 105-1283-006 belongs to the Eaton Char-Lynn/Danfoss 105 series low-speed high-torque geroler orbit hydraulic motor. Our aftermarket replacement strictly copies the original OEM structural and performance standards for universal repair replacement.

Adopting the mature roller geroler rotor-stator and precision disc distribution valve technology, this hydraulic motor features excellent anti-overload and anti-stall capabilities, capable of delivering steady high torque at low rotational speeds. All installation specifications are fully consistent with the original drawing, eliminating the need for secondary machining during equipment overhaul. It is widely used in light harvesters, small auger drives, utility vehicle attachments, and various industrial auxiliary hydraulic drive systems.

Key Features

100% OEM Drop-in Compatibility: Identical mounting, shaft, and port dimensions as the original 105-1283-006 for no-modification installation.

High-Efficiency Roller Geroler & Disc Valve Core: Stable torque output, minimal flow pulsation, and high volumetric efficiency.

Compact Cast Iron Housing: High-strength cast iron shell resists impact and harsh working environments.

Premium Sealing Options: Standard NBR nitrile seals, with optional FKM high-temperature seals for extreme conditions.

Reinforced Dual Bearing Configuration: Strong radial and axial load resistance to extend the service lifespan.

Economical Aftermarket Alternative: OEM-grade performance at a much more competitive cost than original brand parts.

Full Factory Hydraulic Pre-Test: All motors undergo pressure, flow, and leakage testing before shipment.

    Applications
  • Construction Machinery:Excavators, skid steer loaders, backhoe loaders, road rollers, and compact construction equipment.

  • Agricultural Equipment:Tractors, harvesters, sprayers, hay balers, agricultural winches, and general farm machinery.

  • Material Handling:Forklifts, belt conveyors, lift tables, sweepers, and aerial work platforms.

  • Industrial Machinery:Hydraulic winches, drilling rigs, hydraulic power units, industrial automation systems, and conveyor systems.

  • Mobile Equipment:Refuse trucks, snow plows, utility vehicles, and marine hydraulic systems.

Other model specifications

104-1001-006104-1002-006104-1003-006104-1004-006104-1005-006
104-1006-006104-1007-006104-1008-006104-1009-006104-1010-006
104-1011-006104-1012-006104-1013-006104-1014-006104-1015-006
104-1016-006104-1017-006104-1018-006104-1019-006104-1020-006
104-1021-006104-1022-006104-1023-006104-1024-006104-1025-006
104-1026-006104-1027-006104-1028-006104-1029-006104-1030-006
104-1031-006104-1032-006104-1033-006104-1034-006104-1035-006
104-1201-006104-1202-006104-1203-006104-1204-006104-1205-006
104-1206-006104-1207-006104-1208-006104-1209-006104-1210-006
104-1211-006104-1212-006104-1213-006104-1214-006104-1215-006
104-1216-006104-1301-006104-1302-006104-1303-006104-1304-006
104-1305-006104-1306-006104-1307-006104-1308-006104-1309-006
104-1310-006104-1386-006104-1860-006104-3001-006104-3002-006
104-3003-006104-3004-006104-3005-006104-3006-006104-3007-006
104-3008-006104-3009-006104-3010-006104-3095-006104-3100-006
104-3101-006104-3102-006104-3103-006104-3104-006104-3105-006
104-3106-006104-3107-006104-3108-006104-3109-006104-3110-006
104-3111-006104-3112-006104-3113-006104-3114-006104-3115-006
104-3116-006104-3117-006104-3118-006104-3119-006104-3120-006
104-3121-006104-3122-006104-3123-006104-3124-006104-3125-006
104-3126-006104-3127-006104-3128-006104-3129-006104-3130-006
104-3131-006104-3132-006104-3133-006104-3134-006104-3135-006

109-1001-006109-1002-006109-1003-006109-1004-006109-1005-006
109-1006-006109-1007-006109-1008-006109-1009-006109-1010-006
109-1101-006109-1102-006109-1103-006109-1104-006109-1105-006
109-1106-006109-1107-006109-1108-006109-1109-006109-1110-006
109-1116-006109-1117-006109-1173-006109-1182-006109-1201-006
109-1202-006109-1203-006109-1204-006109-1205-006109-1206-006
109-1207-006109-1208-006109-1209-006109-1210-006109-1211-006
109-1212-006109-1213-006109-1214-006109-1215-006109-1216-006
109-1217-006109-1218-006109-1219-006109-1220-006109-1221-006
109-1222-006109-1223-006109-1224-006109-1225-006


114-1001-006114-1002-006114-1003-006114-1004-006114-1005-006
114-1006-006114-1007-006114-1008-006114-1009-006114-1010-006
114-1032-006114-1033-006114-1034-006114-1035-006114-1036-006
114-1037-006114-1038-006114-1039-006114-1040-006114-1041-006
114-1042-006114-1043-006114-1044-006114-1045-006114-1046-006
114-1047-006114-1048-006114-1049-006114-1050-006114-1051-006
114-1052-006114-1053-006114-1054-006114-1055-006
129-0001-002129-0002-002129-0003-002129-0004-002129-0005-002
129-0006-002129-0007-002129-0008-002129-0009-002129-0010-002
129-0320-002129-0522-002129-0612-002129-0712-002129-0812-002
129-0912-002129-1012-002129-1112-002129-1212-002129-1312-002
129-1412-002129-1512-002129-1612-002129-1712-002129-1812-002
129-1912-002129-2012-002


112-1001-006112-1002-006112-1003-006112-1004-006112-1005-006
112-1006-006112-1007-006112-1008-006112-1009-006112-1010-006
112-1098-006112-1254-006112-1331-006112-1344-006112-1362-006
112-1371-006112-1380-006112-1389-006112-1398-006112-1407-006
112-1416-006112-1425-006112-1434-006112-1443-006112-1452-006
101-1001-009101-1002-009101-1003-009101-1004-009101-1005-009
101-1006-009101-1007-009101-1008-009101-1009-009101-1010-009
101-1013-009101-1023-009101-1033-009101-1043-009101-1053-009
101-1063-009101-1073-009101-1083-009101-1093-009101-1103-009


103-1001-012103-1002-012103-1003-012103-1004-012103-1005-012
103-1006-012103-1007-012103-1008-012103-1009-012103-1010-012
103-1011-012103-1012-012103-1013-012103-1014-012103-1015-012
130-1001-003130-1002-003130-1003-003130-1004-003130-1005-003
130-1006-003130-1007-003130-1008-003130-1009-003130-1010-003
130-1024-003130-1025-003130-1026-003130-1027-003130-1028-003
130-1029-003130-1030-003130-1031-003130-1032-003130-1033-003

Technical Specifications:

SpecificationsParameterRemark
Model Number105-1283-006 / M02240AB03AB105 Series Geroler Hydraulic Motor
Displacement240 cm³/r (14.6 cu.in/r)Theoretical displacement
Continuous Pressure140 bar (2030 PSI)Intermittent:175 bar, Peak:210 bar
Speed Range25 ~ 420 RPMBest efficiency:60~250 RPM
Mounting Flange2-Bolt SAE A FlangePilot Ø50.8mm, Bolt Circle Ø63.5mm
Shaft SizeØ25.4mm Keyed ShaftSpline shaft available on request
Main Port3/8" NPTF / G3/8" BSP optionalSide inlet & outlet
Drain Port1/8" NPTFCase drain connection
Seal MaterialNBR standard / FKM optional-20℃ ~ +85℃ working range
Internal StructureRoller Geroler + Disc Valve + Built-in Check ValveAnti-backflow protection design
Housing MaterialHigh-strength Cast IronBlack electrophoretic anti-rust coating
Overall Dimension125×70×70 mmL × W × H
Net Weight4.5 KG

Specifications:

SpecificationsParameterRemark
Model Number105-1283-006 / M02240AB03AB105 Series Geroler Hydraulic Motor
Displacement240 cm³/r (14.6 cu.in/r)Theoretical displacement
Continuous Pressure140 bar (2030 PSI)Intermittent:175 bar, Peak:210 bar
Speed Range25 ~ 420 RPMBest efficiency:60~250 RPM
Mounting Flange2-Bolt SAE A FlangePilot Ø50.8mm, Bolt Circle Ø63.5mm
Shaft SizeØ25.4mm Keyed ShaftSpline shaft available on request
Main Port3/8" NPTF / G3/8" BSP optionalSide inlet & outlet
Drain Port1/8" NPTFCase drain connection
Seal MaterialNBR standard / FKM optional-20℃ ~ +85℃ working range
Internal StructureRoller Geroler + Disc Valve + Built-in Check ValveAnti-backflow protection design
Housing MaterialHigh-strength Cast IronBlack electrophoretic anti-rust coating
Overall Dimension125×70×70 mmL × W × H
Net Weight4.5 KG
