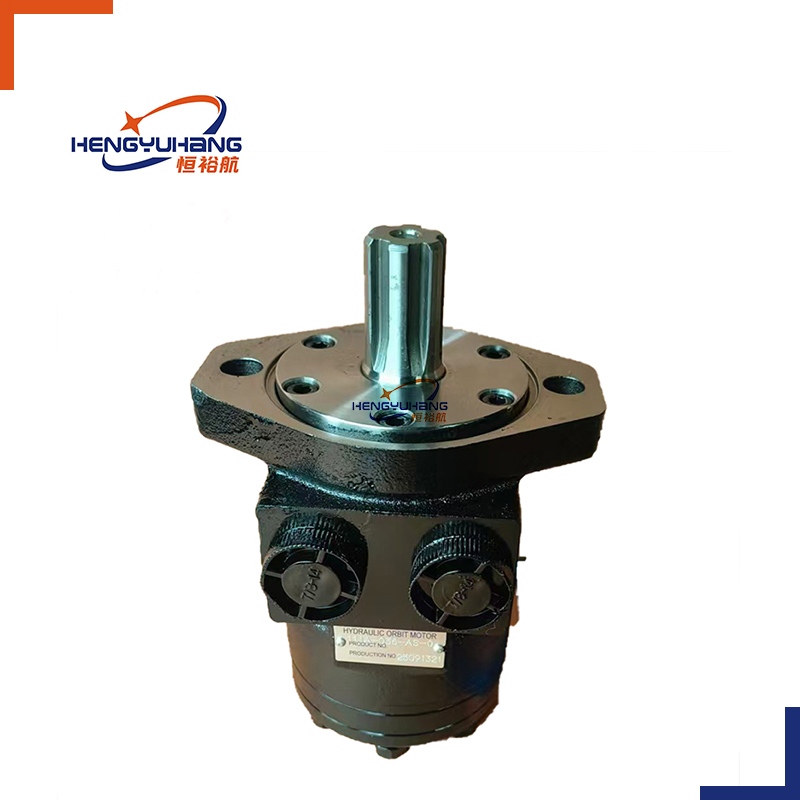

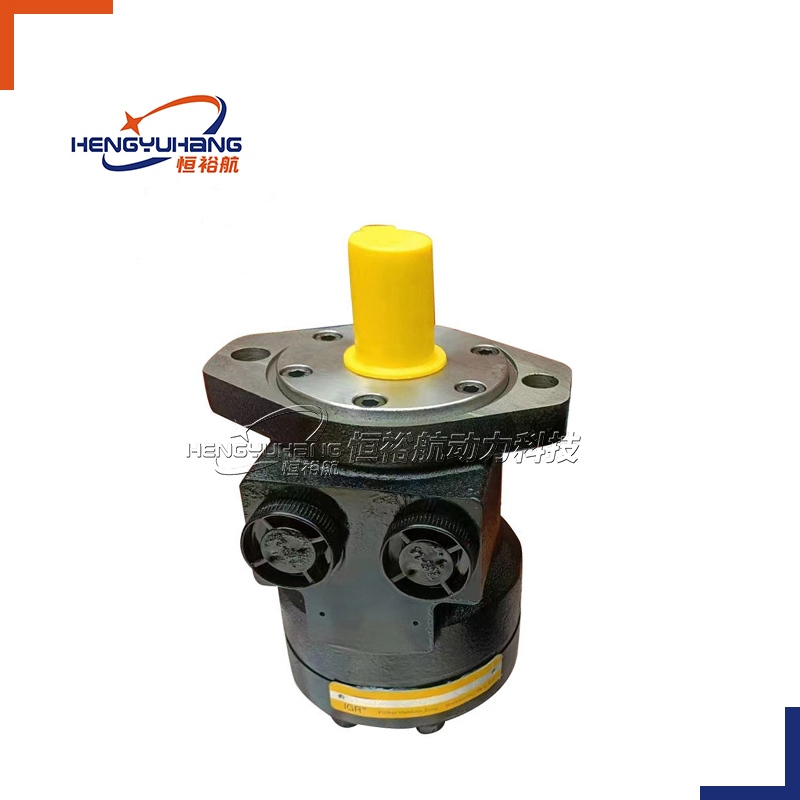

Danfoss Eaton Char-Lynn 110A-054-A-S-0 hydraulic motor Hydraulic Torque Motor0 110A-054-A-S-0

The 110A-054-A-S-0 hydraulic geroler motor is fully interchangeable with original Eaton Char-Lynn and Danfoss 110A series unit. Precision roller geroler plus disc distribution valve enables smooth rotation, low vibration and stable torque output across full speed range. Rugged cast iron housing fits various agricultural and compact construction drive equipment perfectly.

◆PLACE OF ORIGIN

CHINA

◆BRAND NAME

HYH

◆MODEL NUMBER

110A-054-A-S-0   110A-054-A-S-0

◆MINIMUM ORDER QUANTITY

1SET

◆PACKAGING DETAILS

PAPER AND WOODEN PACKING

◆DELIVERY TIME

1-4WORKING DAYS

◆PAYMENT TERMS

T/T, WESTERN UNION, L/C

Description

Product Overview

110A-054-A-S-0 belongs to Eaton Char-Lynn/Danfoss 110A series low-speed high-torque geroler orbit hydraulic motor, our aftermarket replacement complies completely with original OEM design and performance parameters for repair substitution.

Adopting mature roller geroler rotor-stator + built-in disc flow distribution structure, this hydraulic motor features outstanding anti-overload and anti-stall capacity, output stable high torque at low rotating speed. All installation dimension strictly follows original drawing to realize direct swap during equipment overhaul without extra processing. Widely used on lawn mowers, small harvesters, earth augers, mini sweepers and auxiliary hydraulic drive systems.

Key Features

1:1 OEM Full Compatibility: Same flange, shaft and port layout as original part for drop-in replacement without machining.

Precision Geroler & Disc Valve Core: High-efficiency orbital set ensures steady torque, low noise and small flow pulsation.

Heavy-Duty Cast Iron Body: High-strength cast iron shell resists impact, dirt and muddy field environment.

Premium Sealing Option: Standard NBR shaft seals, optional FKM high-temperature seal for extreme working condition.

Dual Reinforced Bearings: Front & rear heavy-duty bearings withstand large radial & axial load to prolong service life.

Economical Aftermarket Option: OEM-level performance at competitive price vs original brand spare.

100% Factory Hydraulic Pre-test: All finished motors pass pressure, flow and leak inspection before shipment.


    Applications
  • Construction Machinery:Excavators, skid steer loaders, backhoe loaders, road rollers, and compact construction equipment.

  • Agricultural Equipment:Tractors, harvesters, sprayers, hay balers, agricultural winches, and general farm machinery.

  • Material Handling:Forklifts, belt conveyors, lift tables, sweepers, and aerial work platforms.

  • Industrial Machinery:Hydraulic winches, drilling rigs, hydraulic power units, industrial automation systems, and conveyor systems.

  • Mobile Equipment:Refuse trucks, snow plows, utility vehicles, and marine hydraulic systems.

Other model specifications

104-1001-006104-1002-006104-1003-006104-1004-006104-1005-006
104-1006-006104-1007-006104-1008-006104-1009-006104-1010-006
104-1011-006104-1012-006104-1013-006104-1014-006104-1015-006
104-1016-006104-1017-006104-1018-006104-1019-006104-1020-006
104-1021-006104-1022-006104-1023-006104-1024-006104-1025-006
104-1026-006104-1027-006104-1028-006104-1029-006104-1030-006
104-1031-006104-1032-006104-1033-006104-1034-006104-1035-006
104-1201-006104-1202-006104-1203-006104-1204-006104-1205-006
104-1206-006104-1207-006104-1208-006104-1209-006104-1210-006
104-1211-006104-1212-006104-1213-006104-1214-006104-1215-006
104-1216-006104-1301-006104-1302-006104-1303-006104-1304-006
104-1305-006104-1306-006104-1307-006104-1308-006104-1309-006
104-1310-006104-1386-006104-1860-006104-3001-006104-3002-006
104-3003-006104-3004-006104-3005-006104-3006-006104-3007-006
104-3008-006104-3009-006104-3010-006104-3095-006104-3100-006
104-3101-006104-3102-006104-3103-006104-3104-006104-3105-006
104-3106-006104-3107-006104-3108-006104-3109-006104-3110-006
104-3111-006104-3112-006104-3113-006104-3114-006104-3115-006
104-3116-006104-3117-006104-3118-006104-3119-006104-3120-006
104-3121-006104-3122-006104-3123-006104-3124-006104-3125-006
104-3126-006104-3127-006104-3128-006104-3129-006104-3130-006
104-3131-006104-3132-006104-3133-006104-3134-006104-3135-006

109-1001-006109-1002-006109-1003-006109-1004-006109-1005-006
109-1006-006109-1007-006109-1008-006109-1009-006109-1010-006
109-1101-006109-1102-006109-1103-006109-1104-006109-1105-006
109-1106-006109-1107-006109-1108-006109-1109-006109-1110-006
109-1116-006109-1117-006109-1173-006109-1182-006109-1201-006
109-1202-006109-1203-006109-1204-006109-1205-006109-1206-006
109-1207-006109-1208-006109-1209-006109-1210-006109-1211-006
109-1212-006109-1213-006109-1214-006109-1215-006109-1216-006
109-1217-006109-1218-006109-1219-006109-1220-006109-1221-006
109-1222-006109-1223-006109-1224-006109-1225-006


114-1001-006114-1002-006114-1003-006114-1004-006114-1005-006
114-1006-006114-1007-006114-1008-006114-1009-006114-1010-006
114-1032-006114-1033-006114-1034-006114-1035-006114-1036-006
114-1037-006114-1038-006114-1039-006114-1040-006114-1041-006
114-1042-006114-1043-006114-1044-006114-1045-006114-1046-006
114-1047-006114-1048-006114-1049-006114-1050-006114-1051-006
114-1052-006114-1053-006114-1054-006114-1055-006
129-0001-002129-0002-002129-0003-002129-0004-002129-0005-002
129-0006-002129-0007-002129-0008-002129-0009-002129-0010-002
129-0320-002129-0522-002129-0612-002129-0712-002129-0812-002
129-0912-002129-1012-002129-1112-002129-1212-002129-1312-002
129-1412-002129-1512-002129-1612-002129-1712-002129-1812-002
129-1912-002129-2012-002


112-1001-006112-1002-006112-1003-006112-1004-006112-1005-006
112-1006-006112-1007-006112-1008-006112-1009-006112-1010-006
112-1098-006112-1254-006112-1331-006112-1344-006112-1362-006
112-1371-006112-1380-006112-1389-006112-1398-006112-1407-006
112-1416-006112-1425-006112-1434-006112-1443-006112-1452-006
101-1001-009101-1002-009101-1003-009101-1004-009101-1005-009
101-1006-009101-1007-009101-1008-009101-1009-009101-1010-009
101-1013-009101-1023-009101-1033-009101-1043-009101-1053-009
101-1063-009101-1073-009101-1083-009101-1093-009101-1103-009


103-1001-012103-1002-012103-1003-012103-1004-012103-1005-012
103-1006-012103-1007-012103-1008-012103-1009-012103-1010-012
103-1011-012103-1012-012103-1013-012103-1014-012103-1015-012
130-1001-003130-1002-003130-1003-003130-1004-003130-1005-003
130-1006-003130-1007-003130-1008-003130-1009-003130-1010-003
130-1024-003130-1025-003130-1026-003130-1027-003130-1028-003
130-1029-003130-1030-003130-1031-003130-1032-003130-1033-003

Technical Specifications:

SpecificationsParameterRemark
Model Number110A-054-A-S-0110A Series Geroler LSHT Hydraulic Motor
Displacement54 cm³/r (3.30 cu.in/r)Theoretical displacement
Continuous Working Pressure172 bar (2500 PSI)Intermittent:207bar, Instant peak:230bar
Working Speed Range20~720 RPMOptimal efficiency:50~220RPM
Mounting Flange2-Bolt SAE A Standard FlangePilot Ø50.8mm, Bolt circle Ø63.5mm
Shaft SpecØ25.4mm Straight Key ShaftStandard flat key, spline customizable
Main Port Thread7/8-14 SAE Side PortInlet & Outlet port layout same as OEM
Drain Port1/8" NPTFCase drain connection
Seal MaterialNBR Standard / FKM optionalWorking temp:-20℃~+82℃
Internal StructureRoller Geroler + Built-in Disc Valve + Integral Check ValvePrevent hydraulic reverse backflow
Housing MaterialHigh Strength Cast IronBlack electrophoretic anti-rust coating
Overall Dimension(L×W×H)90×63×63 mmOuter overall size
Net Weight3.1 KG

Specifications:

SpecificationsParameterRemark
Model Number110A-054-A-S-0110A Series Geroler Hydraulic Motor
Displacement54 cm³/r (3.30 cu.in/r)Theoretical displacement
Continuous Pressure172 bar (2500 PSI)Intermittent:207 bar, Peak:230 bar
Speed Range20 ~ 720 RPMBest efficiency:50~220 RPM
Mounting Flange2-Bolt SAE A FlangePilot Ø50.8mm, Bolt Circle Ø63.5mm
Shaft SizeØ25.4mm Keyed ShaftSpline shaft available on request
Main Port7/8-14 SAESide inlet & outlet ports
Drain Port1/8" NPTFCase drain connection
Seal MaterialNBR standard / FKM optional-20℃ ~ +82℃ working range
Internal StructureRoller Geroler + Disc Valve + Built-in Check ValveAnti-backflow protection design
Housing MaterialHigh-strength Cast IronBlack electrophoretic anti-rust coating
Overall Dimension90×63×63 mmL × W × H
Net Weight3.1 KG
