CHINA
◆BRAND NAME
HYH
◆MODEL NUMBER
110A-071-AS-0 110A-071-AS-0
◆MINIMUM ORDER QUANTITY
1SET
◆PACKAGING DETAILS
PAPER AND WOODEN PACKING
◆DELIVERY TIME
1-4WORKING DAYS
◆PAYMENT TERMS
T/T, WESTERN UNION, L/C
Product Overview

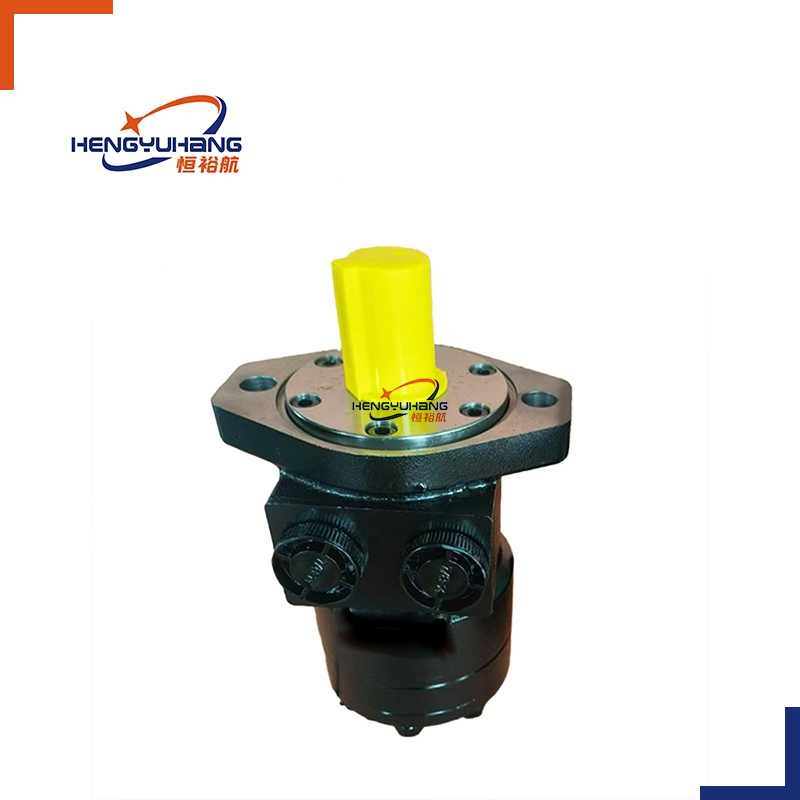

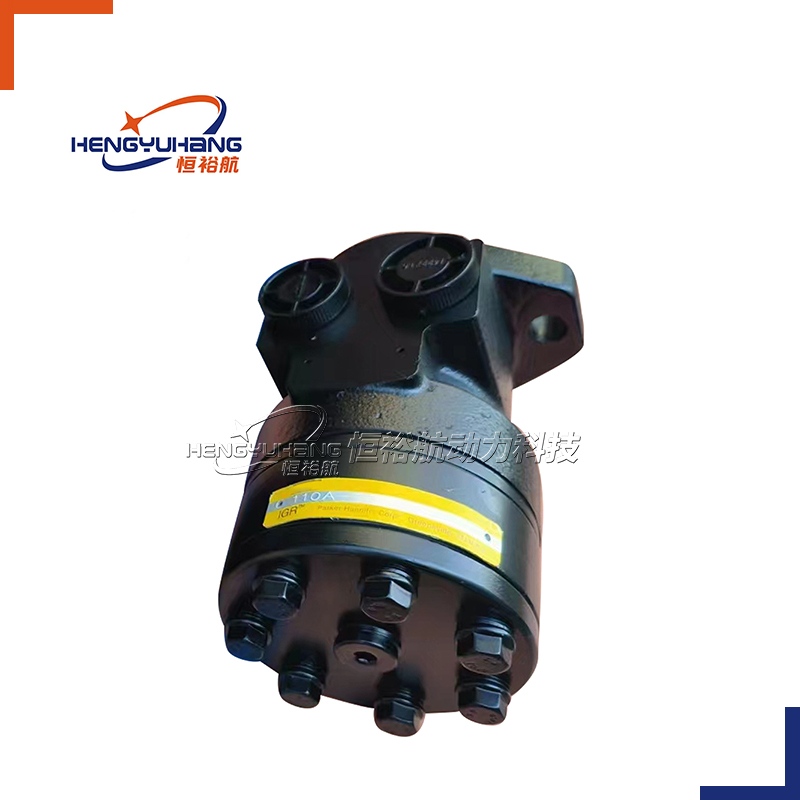

110A-071-AS-0 belongs to Eaton Char-Lynn/Danfoss 110A series low-speed high-torque geroler orbit hydraulic motor, our aftermarket replacement part completely copies original structure and performance standard for universal repair replacement.
Relying on mature roller geroler rotor-stator + precision disc valve distribution design, this hydraulic motor can output stable high torque at low rotating speed, with outstanding anti-overload and anti-stall capability. All installation dimension, shaft specification and oil port position strictly follow original OEM drawing, no extra machining needed during equipment overhaul. It’s widely matched for small harvesters, lawn mowers, auger drives, mini sweepers and various auxiliary hydraulic drive systems.
Key Features
✅ 1:1 OEM Full Compatibility: Matches original 110A-071-AS-0 mounting flange, shaft, port layout for drop-in replacement.
✅ Precision Geroler & Disc Valve Core: High-efficiency orbital gear set ensures steady torque, low noise and small flow pulsation.
✅ Heavy-Duty Cast Iron Housing: High-strength cast iron shell resists impact, dirt and harsh field working environment.
✅ Premium Leakproof Sealing System: Standard NBR shaft & body seals, optional FKM high-temperature seals for extreme working condition.
✅ Dual Heavy-Duty Bearings: Front & rear reinforced bearings withstand big radial & axial load to extend service lifespan.
✅ Economical Aftermarket Option: Same OEM-grade performance with much more competitive cost than original brand unit.
✅ 100% Factory Hydraulic Testing: All finished motors pass pressure, flow and leakage inspection before outbound.
Construction Machinery:Excavators, skid steer loaders, backhoe loaders, road rollers, and compact construction equipment.
Agricultural Equipment:Tractors, harvesters, sprayers, hay balers, agricultural winches, and general farm machinery.
Material Handling:Forklifts, belt conveyors, lift tables, sweepers, and aerial work platforms.
Industrial Machinery:Hydraulic winches, drilling rigs, hydraulic power units, industrial automation systems, and conveyor systems.
Mobile Equipment:Refuse trucks, snow plows, utility vehicles, and marine hydraulic systems.
Other model specifications
| 104-1001-006 | 104-1002-006 | 104-1003-006 | 104-1004-006 | 104-1005-006 |
| 104-1006-006 | 104-1007-006 | 104-1008-006 | 104-1009-006 | 104-1010-006 |
| 104-1011-006 | 104-1012-006 | 104-1013-006 | 104-1014-006 | 104-1015-006 |
| 104-1016-006 | 104-1017-006 | 104-1018-006 | 104-1019-006 | 104-1020-006 |
| 104-1021-006 | 104-1022-006 | 104-1023-006 | 104-1024-006 | 104-1025-006 |
| 104-1026-006 | 104-1027-006 | 104-1028-006 | 104-1029-006 | 104-1030-006 |
| 104-1031-006 | 104-1032-006 | 104-1033-006 | 104-1034-006 | 104-1035-006 |
| 104-1201-006 | 104-1202-006 | 104-1203-006 | 104-1204-006 | 104-1205-006 |
| 104-1206-006 | 104-1207-006 | 104-1208-006 | 104-1209-006 | 104-1210-006 |
| 104-1211-006 | 104-1212-006 | 104-1213-006 | 104-1214-006 | 104-1215-006 |
| 104-1216-006 | 104-1301-006 | 104-1302-006 | 104-1303-006 | 104-1304-006 |
| 104-1305-006 | 104-1306-006 | 104-1307-006 | 104-1308-006 | 104-1309-006 |
| 104-1310-006 | 104-1386-006 | 104-1860-006 | 104-3001-006 | 104-3002-006 |
| 104-3003-006 | 104-3004-006 | 104-3005-006 | 104-3006-006 | 104-3007-006 |
| 104-3008-006 | 104-3009-006 | 104-3010-006 | 104-3095-006 | 104-3100-006 |
| 104-3101-006 | 104-3102-006 | 104-3103-006 | 104-3104-006 | 104-3105-006 |
| 104-3106-006 | 104-3107-006 | 104-3108-006 | 104-3109-006 | 104-3110-006 |
| 104-3111-006 | 104-3112-006 | 104-3113-006 | 104-3114-006 | 104-3115-006 |
| 104-3116-006 | 104-3117-006 | 104-3118-006 | 104-3119-006 | 104-3120-006 |
| 104-3121-006 | 104-3122-006 | 104-3123-006 | 104-3124-006 | 104-3125-006 |
| 104-3126-006 | 104-3127-006 | 104-3128-006 | 104-3129-006 | 104-3130-006 |
| 104-3131-006 | 104-3132-006 | 104-3133-006 | 104-3134-006 | 104-3135-006 |
| 109-1001-006 | 109-1002-006 | 109-1003-006 | 109-1004-006 | 109-1005-006 |
| 109-1006-006 | 109-1007-006 | 109-1008-006 | 109-1009-006 | 109-1010-006 |
| 109-1101-006 | 109-1102-006 | 109-1103-006 | 109-1104-006 | 109-1105-006 |
| 109-1106-006 | 109-1107-006 | 109-1108-006 | 109-1109-006 | 109-1110-006 |
| 109-1116-006 | 109-1117-006 | 109-1173-006 | 109-1182-006 | 109-1201-006 |
| 109-1202-006 | 109-1203-006 | 109-1204-006 | 109-1205-006 | 109-1206-006 |
| 109-1207-006 | 109-1208-006 | 109-1209-006 | 109-1210-006 | 109-1211-006 |
| 109-1212-006 | 109-1213-006 | 109-1214-006 | 109-1215-006 | 109-1216-006 |
| 109-1217-006 | 109-1218-006 | 109-1219-006 | 109-1220-006 | 109-1221-006 |
| 109-1222-006 | 109-1223-006 | 109-1224-006 | 109-1225-006 |
| 114-1001-006 | 114-1002-006 | 114-1003-006 | 114-1004-006 | 114-1005-006 |
| 114-1006-006 | 114-1007-006 | 114-1008-006 | 114-1009-006 | 114-1010-006 |
| 114-1032-006 | 114-1033-006 | 114-1034-006 | 114-1035-006 | 114-1036-006 |
| 114-1037-006 | 114-1038-006 | 114-1039-006 | 114-1040-006 | 114-1041-006 |
| 114-1042-006 | 114-1043-006 | 114-1044-006 | 114-1045-006 | 114-1046-006 |
| 114-1047-006 | 114-1048-006 | 114-1049-006 | 114-1050-006 | 114-1051-006 |
| 114-1052-006 | 114-1053-006 | 114-1054-006 | 114-1055-006 |
| 129-0001-002 | 129-0002-002 | 129-0003-002 | 129-0004-002 | 129-0005-002 |
| 129-0006-002 | 129-0007-002 | 129-0008-002 | 129-0009-002 | 129-0010-002 |
| 129-0320-002 | 129-0522-002 | 129-0612-002 | 129-0712-002 | 129-0812-002 |
| 129-0912-002 | 129-1012-002 | 129-1112-002 | 129-1212-002 | 129-1312-002 |
| 129-1412-002 | 129-1512-002 | 129-1612-002 | 129-1712-002 | 129-1812-002 |
| 129-1912-002 | 129-2012-002 |
| 112-1001-006 | 112-1002-006 | 112-1003-006 | 112-1004-006 | 112-1005-006 |
| 112-1006-006 | 112-1007-006 | 112-1008-006 | 112-1009-006 | 112-1010-006 |
| 112-1098-006 | 112-1254-006 | 112-1331-006 | 112-1344-006 | 112-1362-006 |
| 112-1371-006 | 112-1380-006 | 112-1389-006 | 112-1398-006 | 112-1407-006 |
| 112-1416-006 | 112-1425-006 | 112-1434-006 | 112-1443-006 | 112-1452-006 |
| 101-1001-009 | 101-1002-009 | 101-1003-009 | 101-1004-009 | 101-1005-009 |
| 101-1006-009 | 101-1007-009 | 101-1008-009 | 101-1009-009 | 101-1010-009 |
| 101-1013-009 | 101-1023-009 | 101-1033-009 | 101-1043-009 | 101-1053-009 |
| 101-1063-009 | 101-1073-009 | 101-1083-009 | 101-1093-009 | 101-1103-009 |
| 103-1001-012 | 103-1002-012 | 103-1003-012 | 103-1004-012 | 103-1005-012 |
| 103-1006-012 | 103-1007-012 | 103-1008-012 | 103-1009-012 | 103-1010-012 |
| 103-1011-012 | 103-1012-012 | 103-1013-012 | 103-1014-012 | 103-1015-012 |
| 130-1001-003 | 130-1002-003 | 130-1003-003 | 130-1004-003 | 130-1005-003 |
| 130-1006-003 | 130-1007-003 | 130-1008-003 | 130-1009-003 | 130-1010-003 |
| 130-1024-003 | 130-1025-003 | 130-1026-003 | 130-1027-003 | 130-1028-003 |
| 130-1029-003 | 130-1030-003 | 130-1031-003 | 130-1032-003 | 130-1033-003 |
| Characteristic | Value | Remark |
|---|---|---|
| Model Code | 110A-071-AS-0 | Eaton Char-Lynn / Danfoss OEM part |
| Motor Series | 110A Geroler Orbit Series | Low Speed High Torque Hydraulic Motor |
| Valve System | Built-in Disc Distribution Valve | Precision flow control structure |
| Orbital Gear Type | Roller Geroler | Roller-stator orbital assembly |
| Geometric Displacement | 71 cm³/r (4.33 cu.in/r) | Theoretical displacement |
| Rated Continuous Pressure | 145 bar | Intermittent peak:190bar, Max instant 230bar |
| Working Speed Range | 15~350 RPM | High efficiency range:50~220RPM |
| Mounting Flange | 2-Bolt SAE A Standard Flange | Pilot Ø50.8mm, bolt circle Ø63.5mm |
| Shaft Specification | Ø25.4mm straight key shaft, 3/32" flat key | Spline shaft available for customization |
| Main Oil Port | 1/4" NPTF side port | Inlet & outlet on motor side |
| Drain Port | 1/8" NPTF | Case drain connection |
| Shaft Seal Material | NBR Standard / FKM optional | -20℃~+85℃ working temperature |
| Repair Seal Kit PN | 110A-071-AS-0-SEAL | Full set service spare seal parts |
| Front/Rear Bearing | Precision Ball Bearing | Dual bearing layout for heavy load |
| Integrated Check Valve | Yes | Prevent hydraulic oil reverse backflow |
| Housing Material | High Strength Cast Iron | Black electrophoretic anti-rust coating |
| Overall Dimension(L×W×H) | 92×64×64 mm | Outer overall size |
| Net Weight | 3.2 KG | |
| Compatible Hydraulic Oil | ISO VG32 / VG46 mineral hydraulic oil |
Specifications:
| Specifications | Parameter | Remark |
|---|---|---|
| Model Number | 110A-071-AS-0 | 110A Series Geroler Hydraulic Motor |
| Displacement | 71 cm³/r (4.33 cu.in/r) | Theoretical displacement |
| Continuous Working Pressure | 172 bar (2500 PSI) | Intermittent:207 bar, Peak:230 bar |
| Speed Range | 15 ~ 716 RPM | Optimal efficiency:50~220 RPM |
| Mounting Flange | 2-Bolt SAE A | Pilot Ø50.8mm, Bolt Circle Ø63.5mm |
| Shaft Size | Ø25.4mm Straight Key Shaft | Standard flat key structure |
| Main Port | 7/8-14 SAE | Side inlet & outlet |
| Drain Port | 1/8" NPTF | Case drain port |
| Seal Material | NBR standard / FKM optional | Working temp: -20℃ ~ +82℃ |
| Internal Structure | Roller Geroler + Disc Valve | Built-in check valve included |
| Housing Material | High strength cast iron | Black electrophoretic coating |
| Overall Dimension | 121.6×130.3×117.1 mm | L×W×H |
| Net Weight | 3.3 KG |
