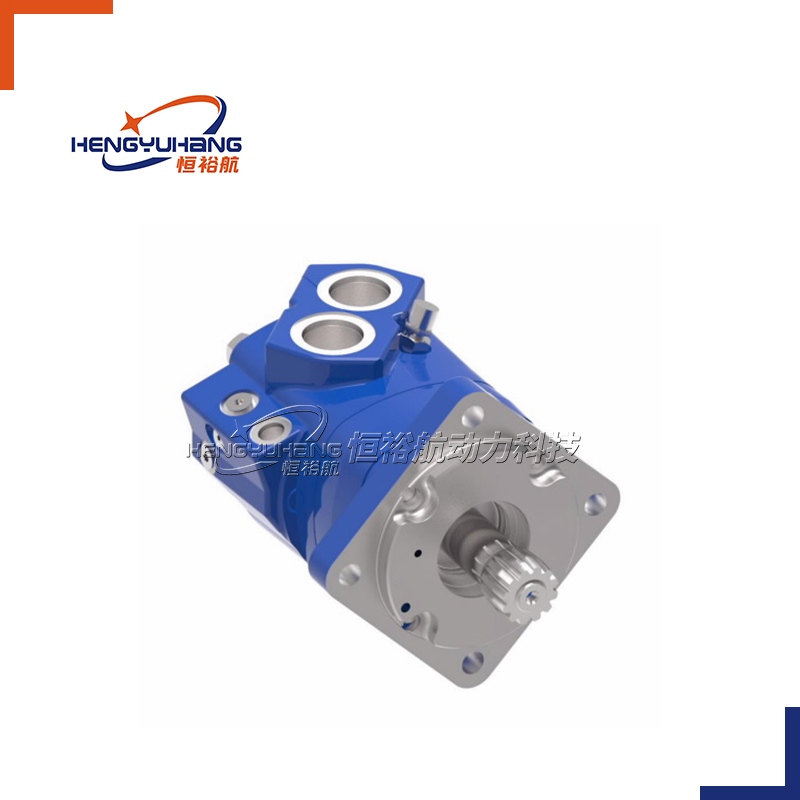

Danfoss Eaton Char-Lynn 114-1131-006 hydraulic motor Hydraulic Torque Motor0 M06120AA00AA0600001003000AP00F

Product Overview

The 114-1131-006 geroler orbit hydraulic motor is a universal medium-heavy duty aftermarket replacement unit for original Eaton Char-Lynn 114 series hydraulic drive assemblies, cross-compatible with Danfoss M06120AA00AA0600001003000AP00F equivalent hydraulic motors, widely applied on agricultural harvesting, skid steer loader attachments and medium construction hydraulic machinery.

It adopts mature integrated balanced geroler disc valve design, which converts medium-high pressure hydraulic oil into smooth low-speed high-torque rotary power. All internal core transmission parts are precision machined from high wear-resistant alloy, supported by double-sided tapered roller bearings and multi-layer NBR integrated sealing structure. The entire motor strictly follows OEM engineering drawings for square 4-bolt mounting flange, drive shaft, main and drain oil port arrangement, realizing true plug-and-play replacement without pipeline reworking or bracket adjustment.

Thickened cast iron outer housing offers superior anti-collision and anti-dust protection in crop harvesting and construction field working conditions. The factory pre-installed built-in check valve effectively suppresses reverse hydraulic pressure surges when equipment shuts down, preventing uncontrolled sudden rotation and lifting overall operation safety. All finished motors pass complete hydraulic bench testing to verify torque stability, rotation smoothness and zero-leakage performance under rated medium-heavy working pressure.

Key Features

✅ 1:1 Full OEM Interchangeability Direct drop-in replacement for Eaton Char-Lynn 114-1131-006 and Danfoss M06120AA00AA06, fully consistent with original square 4-bolt flange, spline/straight drive shaft and staggered SAE O-ring oil port layout, no machining modification required.

✅ Precision Balanced Geroler Disc Valve System High-precision alloy geroler gear set matched with balanced disc valve delivers even torque output, low pulsation and smooth quiet variable-speed operation under medium high flow pressure.

✅ Thick Reinforced Cast Iron Housing Robust thick cast iron shell provides outstanding resistance to impact, mud, crop debris and wide temperature swings, suitable for dusty harvesting and rugged construction working environments.

✅ Integrated Full Anti-Leak Sealing Package Heat-resistant NBR shaft seal + external dust seal dual sealing structure blocks internal & external oil seepage, maintaining steady output pressure under non-stop medium-heavy load running cycles.

✅ Dual Front & Rear Tapered Roller Heavy Bearings Dual tapered roller bearing structure bears large radial and axial impact loads, reduces internal friction loss and greatly prolongs the whole motor service lifespan for frequent start-stop working conditions.

✅ Built-In Anti-Reverse Safety Check Valve Standard integrated one-way check valve stops hydraulic backflow and unexpected machine runaway during power cut-off, improving operation safety for harvesting and loader equipment operators.

✅ Complete Factory Hydraulic Quality Inspection Each finished unit passes full flow, working pressure and leakage bench testing before shipment to filter defective goods and ensure consistent stable medium-heavy load performance.

Applications

• Construction Machinery：Excavators, skid steer loaders, backhoe loaders, road rollers, and compact construction equipment.

• Agricultural Equipment：Tractors, harvesters, sprayers, hay balers, agricultural winches, and general farm machinery.

• Material Handling：Forklifts, belt conveyors, lift tables, sweepers, and aerial work platforms.

• Industrial Machinery：Hydraulic winches, drilling rigs, hydraulic power units, industrial automation systems, and conveyor systems.

• Mobile Equipment：Refuse trucks, snow plows, utility vehicles, and marine hydraulic systems.

Other model specifications

Technical Specifications:

Specifications：
