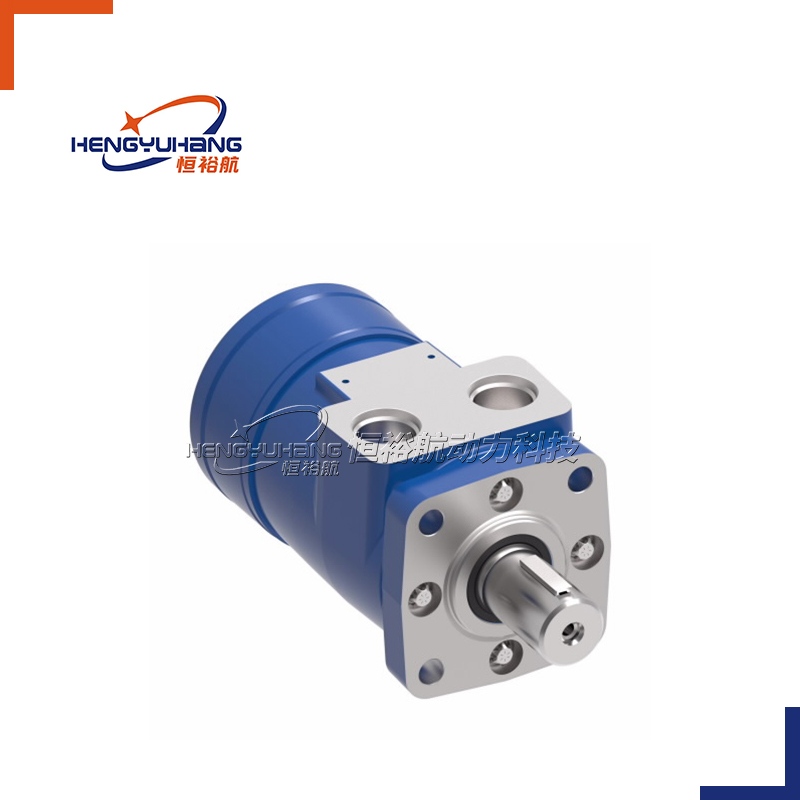

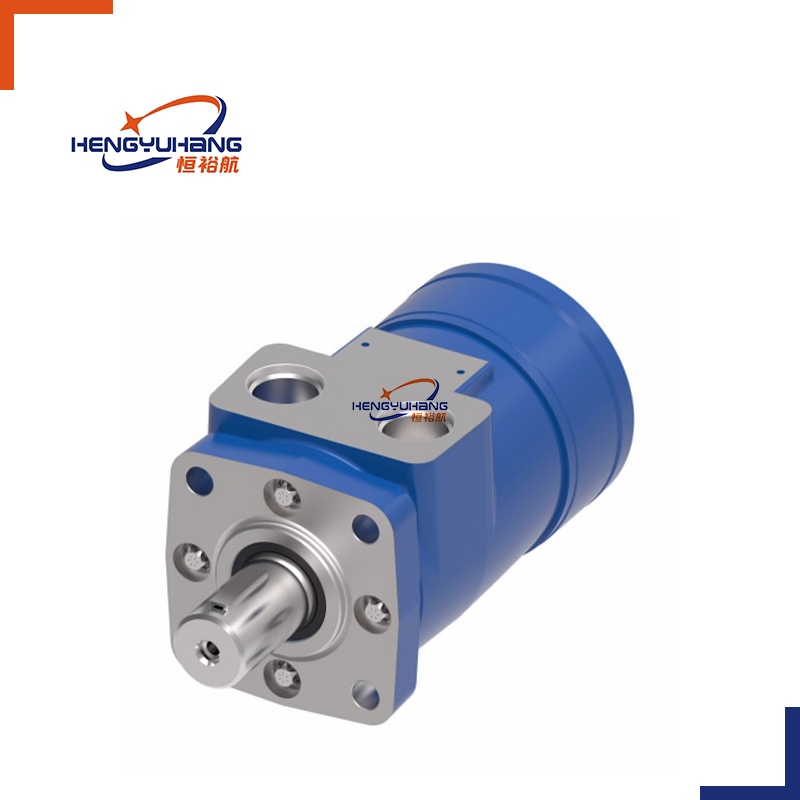

Danfoss Eaton Char-Lynn 158-3990-001 hydraulic motor Hydraulic Torque Motor0 MT0119AA11AA0000000000AB0AA00A

The 158-3990-001 hydraulic geroler motor is fully cross compatible with original Eaton Char-Lynn 158 series and Danfoss MT0119 series unit. Precision roller geroler plus built-in disc flow distribution valve enables stable low-speed high-torque output with low vibration and smooth running. Thickened cast iron housing makes it widely matched for medium-duty agricultural and compact construction drive equipment.

◆PLACE OF ORIGIN

CHINA

◆BRAND NAME

HYH

◆MODEL NUMBER

158-3990-001   MT0119AA11AA0000000000AB0AA00A

◆MINIMUM ORDER QUANTITY

1SET

◆PACKAGING DETAILS

PAPER AND WOODEN PACKING

◆DELIVERY TIME

1-4WORKING DAYS

◆PAYMENT TERMS

T/T, WESTERN UNION, L/C

Description

Product Overview

158-3990-001 belongs to Eaton Char-Lynn/Danfoss 158 series medium-duty low-speed high-torque geroler orbit hydraulic motor, our aftermarket replacement strictly copies original OEM structural and performance standard for universal repair replacement.

Adopting mature roller geroler rotor-stator + precision disc distribution valve technology, this hydraulic motor features outstanding anti-overload and anti-stall capability, capable of steady high torque output under low rotating speed. All installation specifications fully consistent with original drawing to avoid secondary machining during equipment overhaul. It’s extensively used for medium-size harvesters, large lawn cutters, skid steer auger drives, small road sweepers and various industrial auxiliary hydraulic drive systems.

Key Features

100% OEM Drop-in Compatibility: Identical mounting, shaft, port dimension as original 158-3990-001 for no-mod installation

High-efficiency Roller Geroler & Disc Valve Core: Stable torque output, small flow pulsation and high volumetric efficiency

Thickened Cast Iron Housing: High-strength cast iron shell resists impact, mud and harsh field working environment

Premium Sealing Option: Standard NBR nitrile seals, optional FKM high-temperature seal for extreme heat working condition

Heavy-duty Dual Bearing Configuration: Strong radial & axial load resistance to extend whole service lifespan

Economical Aftermarket Alternative: Same OEM-grade performance with much more competitive cost vs original brand spare parts

Full Factory Hydraulic Pre-test: All motors complete pressure, flow and leakage test before outbound delivery

    Applications
  • Construction Machinery:Excavators, skid steer loaders, backhoe loaders, road rollers, and compact construction equipment.

  • Agricultural Equipment:Tractors, harvesters, sprayers, hay balers, agricultural winches, and general farm machinery.

  • Material Handling:Forklifts, belt conveyors, lift tables, sweepers, and aerial work platforms.

  • Industrial Machinery:Hydraulic winches, drilling rigs, hydraulic power units, industrial automation systems, and conveyor systems.

  • Mobile Equipment:Refuse trucks, snow plows, utility vehicles, and marine hydraulic systems.

Other model specifications

104-1001-006104-1002-006104-1003-006104-1004-006104-1005-006
104-1006-006104-1007-006104-1008-006104-1009-006104-1010-006
104-1011-006104-1012-006104-1013-006104-1014-006104-1015-006
104-1016-006104-1017-006104-1018-006104-1019-006104-1020-006
104-1021-006104-1022-006104-1023-006104-1024-006104-1025-006
104-1026-006104-1027-006104-1028-006104-1029-006104-1030-006
104-1031-006104-1032-006104-1033-006104-1034-006104-1035-006
104-1201-006104-1202-006104-1203-006104-1204-006104-1205-006
104-1206-006104-1207-006104-1208-006104-1209-006104-1210-006
104-1211-006104-1212-006104-1213-006104-1214-006104-1215-006
104-1216-006104-1301-006104-1302-006104-1303-006104-1304-006
104-1305-006104-1306-006104-1307-006104-1308-006104-1309-006
104-1310-006104-1386-006104-1860-006104-3001-006104-3002-006
104-3003-006104-3004-006104-3005-006104-3006-006104-3007-006
104-3008-006104-3009-006104-3010-006104-3095-006104-3100-006
104-3101-006104-3102-006104-3103-006104-3104-006104-3105-006
104-3106-006104-3107-006104-3108-006104-3109-006104-3110-006
104-3111-006104-3112-006104-3113-006104-3114-006104-3115-006
104-3116-006104-3117-006104-3118-006104-3119-006104-3120-006
104-3121-006104-3122-006104-3123-006104-3124-006104-3125-006
104-3126-006104-3127-006104-3128-006104-3129-006104-3130-006
104-3131-006104-3132-006104-3133-006104-3134-006104-3135-006

109-1001-006109-1002-006109-1003-006109-1004-006109-1005-006
109-1006-006109-1007-006109-1008-006109-1009-006109-1010-006
109-1101-006109-1102-006109-1103-006109-1104-006109-1105-006
109-1106-006109-1107-006109-1108-006109-1109-006109-1110-006
109-1116-006109-1117-006109-1173-006109-1182-006109-1201-006
109-1202-006109-1203-006109-1204-006109-1205-006109-1206-006
109-1207-006109-1208-006109-1209-006109-1210-006109-1211-006
109-1212-006109-1213-006109-1214-006109-1215-006109-1216-006
109-1217-006109-1218-006109-1219-006109-1220-006109-1221-006
109-1222-006109-1223-006109-1224-006109-1225-006


114-1001-006114-1002-006114-1003-006114-1004-006114-1005-006
114-1006-006114-1007-006114-1008-006114-1009-006114-1010-006
114-1032-006114-1033-006114-1034-006114-1035-006114-1036-006
114-1037-006114-1038-006114-1039-006114-1040-006114-1041-006
114-1042-006114-1043-006114-1044-006114-1045-006114-1046-006
114-1047-006114-1048-006114-1049-006114-1050-006114-1051-006
114-1052-006114-1053-006114-1054-006114-1055-006
129-0001-002129-0002-002129-0003-002129-0004-002129-0005-002
129-0006-002129-0007-002129-0008-002129-0009-002129-0010-002
129-0320-002129-0522-002129-0612-002129-0712-002129-0812-002
129-0912-002129-1012-002129-1112-002129-1212-002129-1312-002
129-1412-002129-1512-002129-1612-002129-1712-002129-1812-002
129-1912-002129-2012-002


112-1001-006112-1002-006112-1003-006112-1004-006112-1005-006
112-1006-006112-1007-006112-1008-006112-1009-006112-1010-006
112-1098-006112-1254-006112-1331-006112-1344-006112-1362-006
112-1371-006112-1380-006112-1389-006112-1398-006112-1407-006
112-1416-006112-1425-006112-1434-006112-1443-006112-1452-006
101-1001-009101-1002-009101-1003-009101-1004-009101-1005-009
101-1006-009101-1007-009101-1008-009101-1009-009101-1010-009
101-1013-009101-1023-009101-1033-009101-1043-009101-1053-009
101-1063-009101-1073-009101-1083-009101-1093-009101-1103-009


103-1001-012103-1002-012103-1003-012103-1004-012103-1005-012
103-1006-012103-1007-012103-1008-012103-1009-012103-1010-012
103-1011-012103-1012-012103-1013-012103-1014-012103-1015-012
130-1001-003130-1002-003130-1003-003130-1004-003130-1005-003
130-1006-003130-1007-003130-1008-003130-1009-003130-1010-003
130-1024-003130-1025-003130-1026-003130-1027-003130-1028-003
130-1029-003130-1030-003130-1031-003130-1032-003130-1033-003

Technical Specifications:

SpecificationsParameterRemark
Model Number158-3990-001 / MT0119AA11AAEaton Char-Lynn 158 & Danfoss MT Series
Geometric Displacement390 cm³/r (23.8 cu.in/r)Theoretical displacement
Continuous Working Pressure165 bar (2390PSI)Intermittent:210bar | Peak Instant:250bar
Working Speed Range18~330 RPMOptimal efficiency:55~210RPM
Mounting Flange Type4-Bolt SAE C Standard FlangePilot Ø82.55mm, Bolt circle Ø106.4mm
Shaft SpecificationØ38.1mm Keyed Straight ShaftStandard flat key, spline customizable
Main Hydraulic PortG3/4" BSP / 3/4" NPTF optionalSide inlet & outlet ports
Case Drain Port1/4" NPTFExternal case drain connection
Shaft Seal MaterialNBR Standard / FKM High Temp OptionalWorking Temp:-20℃~+85℃
Repair Seal Kit PN158-3990-001-SEALFull service spare seal set
Internal StructureRoller Geroler + Built-in Disc Valve + Integral Check ValveAnti-reverse hydraulic backflow protection
Housing MaterialHigh Strength Cast IronBlack anti-rust electrophoretic coating
Overall Dimension(L×W×H)172×115×115 mmOuter overall dimension
Net Weight8.6 KG

Specifications:

SpecificationsParameterRemark
Model Number158-3990-001 / MT0119AA11AA158 Series Geroler Hydraulic Motor
Displacement390 cm³/r (23.8 cu.in/r)Theoretical displacement
Continuous Pressure165 bar (2390 PSI)Intermittent:210 bar, Peak:250 bar
Speed Range18 ~ 330 RPMBest efficiency:55~210 RPM
Mounting Flange4-Bolt SAE C FlangePilot Ø82.55mm, Bolt Circle Ø106.4mm
Shaft SizeØ38.1mm Keyed ShaftSpline shaft available on request
Main Port3/4" NPTF / G3/4" BSP optionalSide inlet & outlet
Drain Port1/4" NPTFCase drain connection
Seal MaterialNBR standard / FKM optional-20℃ ~ +85℃ working range
Internal StructureRoller Geroler + Disc Valve + Built-in Check ValveAnti-backflow protection design
Housing MaterialHigh-strength Cast IronBlack electrophoretic anti-rust coating
Overall Dimension172×115×115 mmL × W × H
Net Weight8.6 KG
