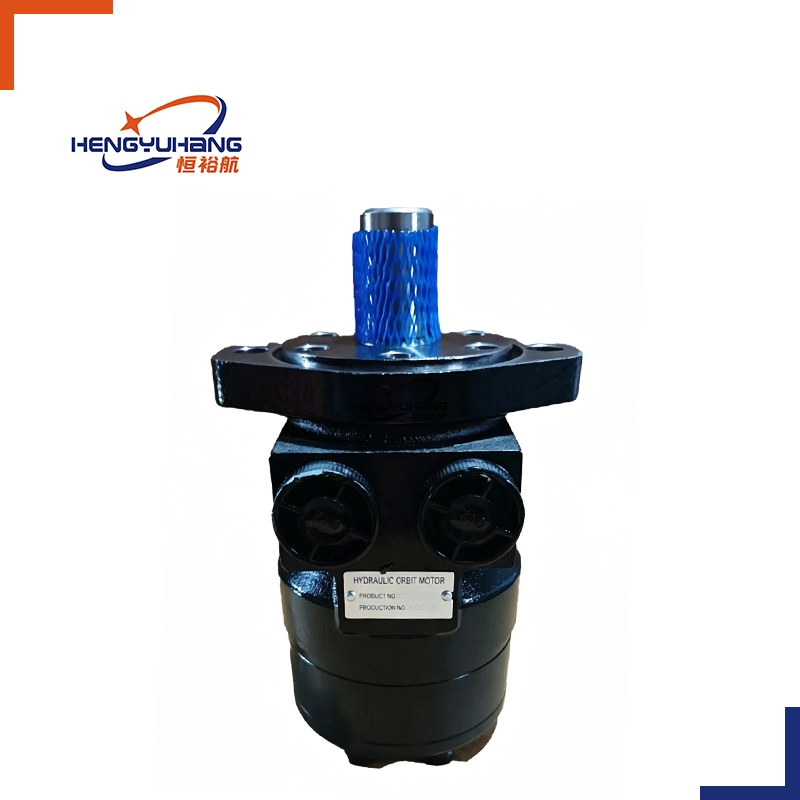

Danfoss Eaton Char-Lynn TE0195CN410AAAB hydraulic motor Hydraulic Torque Motor0 MH0045AA01AB0000000000000AA00J_复制_复制_复制

TE0195CN410AAAB hydraulic geroler motor is cross compatible with original Danfoss TE0195 and Eaton Char-Lynn equivalent unit. Designed with high-efficiency roller geroler and precision disc valve, it realizes stable torque output at low rotating speed with low noise and small vibration. Compact cast iron housing makes it widely matched for lawn mower, small auger, mini harvester and light-duty industrial drive equipment.

◆PLACE OF ORIGIN

CHINA

◆BRAND NAME

HYH

◆MODEL NUMBER

TE0195CN410AAAB   TE0195CN410AAAB

◆MINIMUM ORDER QUANTITY

1SET

◆PACKAGING DETAILS

PAPER AND WOODEN PACKING

◆DELIVERY TIME

1-4WORKING DAYS

◆PAYMENT TERMS

T/T, WESTERN UNION, L/C

Description

Product Overview

TE0195CN410AAAB belongs to Danfoss/Eaton Char-Lynn TE0195 series low-speed high-torque geroler orbit hydraulic motor, our aftermarket replacement strictly follows original OEM technical parameters for universal repair replacement.

Adopting mature roller geroler stator-rotor plus built-in disc flow distribution valve technology, this hydraulic motor features outstanding low-speed high-torque characteristic and excellent anti-stall overload capacity. Compact overall size saves installation space, and robust shell with reliable sealing effectively adapts to muddy, dusty working site of agriculture and compact construction industry. All mounting dimensions fully consistent with original specification to avoid secondary machining during equipment overhaul.

Key Features

100% OEM Drop-in Compatibility: Identical flange, shaft, port layout as original TE0195CN410AAAB for no-mod installation

Roller Geroler + Precision Disc Valve Core: Stable torque, smooth rotation, low pulsation and high volumetric efficiency

High-strength Cast Iron Housing: Anti-impact & corrosion resistant for outdoor farm/construction harsh working condition

Premium NBR Sealing System: Standard nitrile rubber seals, optional FKM high temp seal for extreme application

Dual Heavy-duty Bearing Configuration: Strong radial & axial load resistance to prolong whole service lifespan

Economical Aftermarket Alternative: Same OEM-grade performance with more competitive cost than original brand parts

Full Factory Hydraulic Pre-test: All motors complete pressure, flow and leakage test before leaving factory

    Applications
  • Construction Machinery:Excavators, skid steer loaders, backhoe loaders, road rollers, and compact construction equipment.

  • Agricultural Equipment:Tractors, harvesters, sprayers, hay balers, agricultural winches, and general farm machinery.

  • Material Handling:Forklifts, belt conveyors, lift tables, sweepers, and aerial work platforms.

  • Industrial Machinery:Hydraulic winches, drilling rigs, hydraulic power units, industrial automation systems, and conveyor systems.

  • Mobile Equipment:Refuse trucks, snow plows, utility vehicles, and marine hydraulic systems.

Other model specifications

104-1001-006104-1002-006104-1003-006104-1004-006104-1005-006
104-1006-006104-1007-006104-1008-006104-1009-006104-1010-006
104-1011-006104-1012-006104-1013-006104-1014-006104-1015-006
104-1016-006104-1017-006104-1018-006104-1019-006104-1020-006
104-1021-006104-1022-006104-1023-006104-1024-006104-1025-006
104-1026-006104-1027-006104-1028-006104-1029-006104-1030-006
104-1031-006104-1032-006104-1033-006104-1034-006104-1035-006
104-1201-006104-1202-006104-1203-006104-1204-006104-1205-006
104-1206-006104-1207-006104-1208-006104-1209-006104-1210-006
104-1211-006104-1212-006104-1213-006104-1214-006104-1215-006
104-1216-006104-1301-006104-1302-006104-1303-006104-1304-006
104-1305-006104-1306-006104-1307-006104-1308-006104-1309-006
104-1310-006104-1386-006104-1860-006104-3001-006104-3002-006
104-3003-006104-3004-006104-3005-006104-3006-006104-3007-006
104-3008-006104-3009-006104-3010-006104-3095-006104-3100-006
104-3101-006104-3102-006104-3103-006104-3104-006104-3105-006
104-3106-006104-3107-006104-3108-006104-3109-006104-3110-006
104-3111-006104-3112-006104-3113-006104-3114-006104-3115-006
104-3116-006104-3117-006104-3118-006104-3119-006104-3120-006
104-3121-006104-3122-006104-3123-006104-3124-006104-3125-006
104-3126-006104-3127-006104-3128-006104-3129-006104-3130-006
104-3131-006104-3132-006104-3133-006104-3134-006104-3135-006

109-1001-006109-1002-006109-1003-006109-1004-006109-1005-006
109-1006-006109-1007-006109-1008-006109-1009-006109-1010-006
109-1101-006109-1102-006109-1103-006109-1104-006109-1105-006
109-1106-006109-1107-006109-1108-006109-1109-006109-1110-006
109-1116-006109-1117-006109-1173-006109-1182-006109-1201-006
109-1202-006109-1203-006109-1204-006109-1205-006109-1206-006
109-1207-006109-1208-006109-1209-006109-1210-006109-1211-006
109-1212-006109-1213-006109-1214-006109-1215-006109-1216-006
109-1217-006109-1218-006109-1219-006109-1220-006109-1221-006
109-1222-006109-1223-006109-1224-006109-1225-006


114-1001-006114-1002-006114-1003-006114-1004-006114-1005-006
114-1006-006114-1007-006114-1008-006114-1009-006114-1010-006
114-1032-006114-1033-006114-1034-006114-1035-006114-1036-006
114-1037-006114-1038-006114-1039-006114-1040-006114-1041-006
114-1042-006114-1043-006114-1044-006114-1045-006114-1046-006
114-1047-006114-1048-006114-1049-006114-1050-006114-1051-006
114-1052-006114-1053-006114-1054-006114-1055-006
129-0001-002129-0002-002129-0003-002129-0004-002129-0005-002
129-0006-002129-0007-002129-0008-002129-0009-002129-0010-002
129-0320-002129-0522-002129-0612-002129-0712-002129-0812-002
129-0912-002129-1012-002129-1112-002129-1212-002129-1312-002
129-1412-002129-1512-002129-1612-002129-1712-002129-1812-002
129-1912-002129-2012-002


112-1001-006112-1002-006112-1003-006112-1004-006112-1005-006
112-1006-006112-1007-006112-1008-006112-1009-006112-1010-006
112-1098-006112-1254-006112-1331-006112-1344-006112-1362-006
112-1371-006112-1380-006112-1389-006112-1398-006112-1407-006
112-1416-006112-1425-006112-1434-006112-1443-006112-1452-006
101-1001-009101-1002-009101-1003-009101-1004-009101-1005-009
101-1006-009101-1007-009101-1008-009101-1009-009101-1010-009
101-1013-009101-1023-009101-1033-009101-1043-009101-1053-009
101-1063-009101-1073-009101-1083-009101-1093-009101-1103-009


103-1001-012103-1002-012103-1003-012103-1004-012103-1005-012
103-1006-012103-1007-012103-1008-012103-1009-012103-1010-012
103-1011-012103-1012-012103-1013-012103-1014-012103-1015-012
130-1001-003130-1002-003130-1003-003130-1004-003130-1005-003
130-1006-003130-1007-003130-1008-003130-1009-003130-1010-003
130-1024-003130-1025-003130-1026-003130-1027-003130-1028-003
130-1029-003130-1030-003130-1031-003130-1032-003130-1033-003

Technical Specifications:

SpecificationsParameter ValueRemark
Model NumberTE0195CN410AAABDanfoss/Eaton Char-Lynn TE0195 Series
Geometric Displacement195 cm³/r (11.9 cu.in/r)Theoretical displacement
Continuous Working Pressure160 bar (2320PSI)Intermittent:200bar | Peak Instant:240bar
Working Speed Range20~380 RPMOptimal efficiency:60~230RPM
Mounting Flange Type4-Bolt SAE C Standard FlangePilot Ø82.55mm, Bolt circle Ø106.4mm
Shaft SpecificationØ31.75mm Keyed Straight ShaftStandard flat key, spline customizable
Main Hydraulic PortG1/2" BSP / 1/2" NPTF optionalSide inlet & outlet ports
Case Drain Port1/4" NPTFExternal drain connection
Shaft Seal MaterialNBR Standard / FKM High Temp OptionalWorking Temp:-20℃~+85℃
Repair Seal Kit PNTE0195CN410AAAB-SEALFull service spare seal set
Internal StructureRoller Geroler + Built-in Disc Valve + Integral Check ValveAnti-reverse flow protection
Housing MaterialHigh Strength Cast IronBlack anti-rust electrophoretic coating
Overall Dimension(L×W×H)148×110×110 mmOuter overall dimension
Net Weight6.9 KG
Compatible Hydraulic OilISO VG32 / VG46 Mineral Hydraulic Oil

Specifications:

SpecificationsParameterRemark
Model NumberTE0195CN410AAABTE0195 Series Geroler Hydraulic Motor
Displacement195 cm³/r (11.9 cu.in/r)Theoretical displacement
Continuous Pressure160 bar (2320 PSI)Intermittent:200 bar, Peak:240 bar
Speed Range20 ~ 380 RPMBest efficiency:60~230 RPM
Mounting Flange4-Bolt SAE C FlangePilot Ø82.55mm, Bolt Circle Ø106.4mm
Shaft SizeØ31.75mm Keyed ShaftCustom spline available
Main Port1/2" NPTF / G1/2" BSP optionalSide inlet & outlet
Drain Port1/4" NPTFCase drain connection
Seal MaterialNBR standard / FKM optional-20℃ ~ +85℃ working range
Internal StructureRoller Geroler + Disc Valve + Built-in Check ValveAnti-backflow design
Housing MaterialHigh-strength Cast IronBlack electrophoretic anti-rust coating
Overall Dimension148×110×110 mmL × W × H
Net Weight6.9 KG
