Gear pump

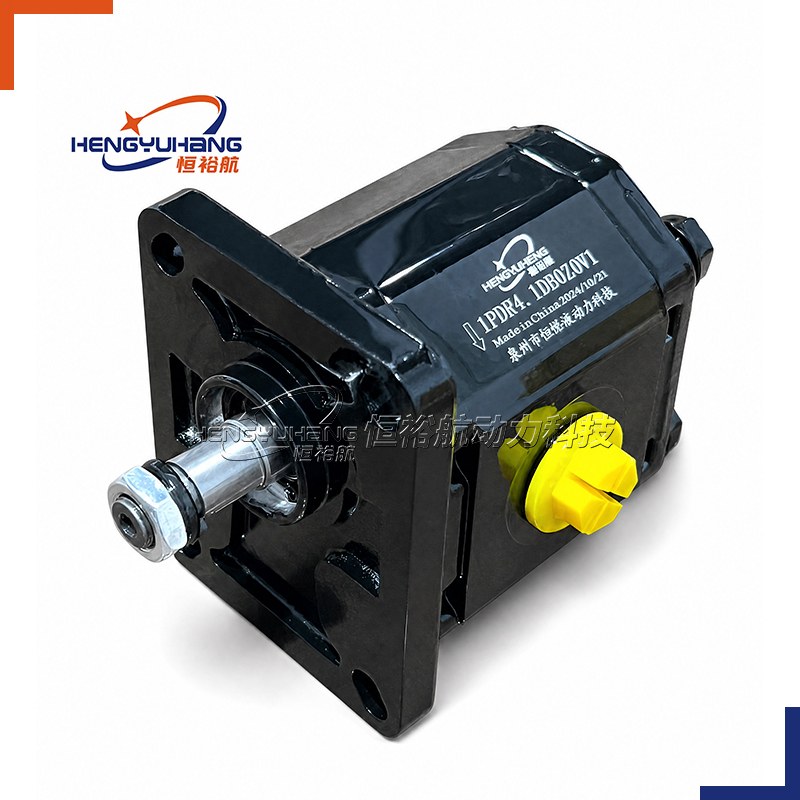

External Gear Pump . Group 1PDF 1.4CC-13.8CC
Hengyuhang External Gear Pump Group 1PDF is a robust positive displacement gear pump designed to deliver high volumetric efficiency and stable fluid power under demanding industrial and mobile operating pressures.
| Applications of Hengyuhang External Gear Pump Group 1PDF
This external gear pump is engineered for heavy-duty fluid transfer and hydraulic circuit pressurization across industrial manufacturing, agricultural machinery, and mobile hydraulic systems. It powers auxiliary functions, steering circuits, and drive mechanisms in equipment operating under continuous high loads and severe environmental conditions.
| Key Technical Specifications
Product Model: Hengyuhang External Gear Pump Group 1PDF
Brand Replacement: DUPLOMATI, CCASAPPA, Rexroth, Marzocchi, Parker OEM or as requested.
Displacement: 1.4 to 13.8 cm³/rev
Rotation Direction: Clockwise (D), counter-clockwise (S), reversible (R)
Speed Range: Min. speed 600 r/min; Max. speed 3500 to 4000 r/min
Peak Pressure: 210 to 300 bar

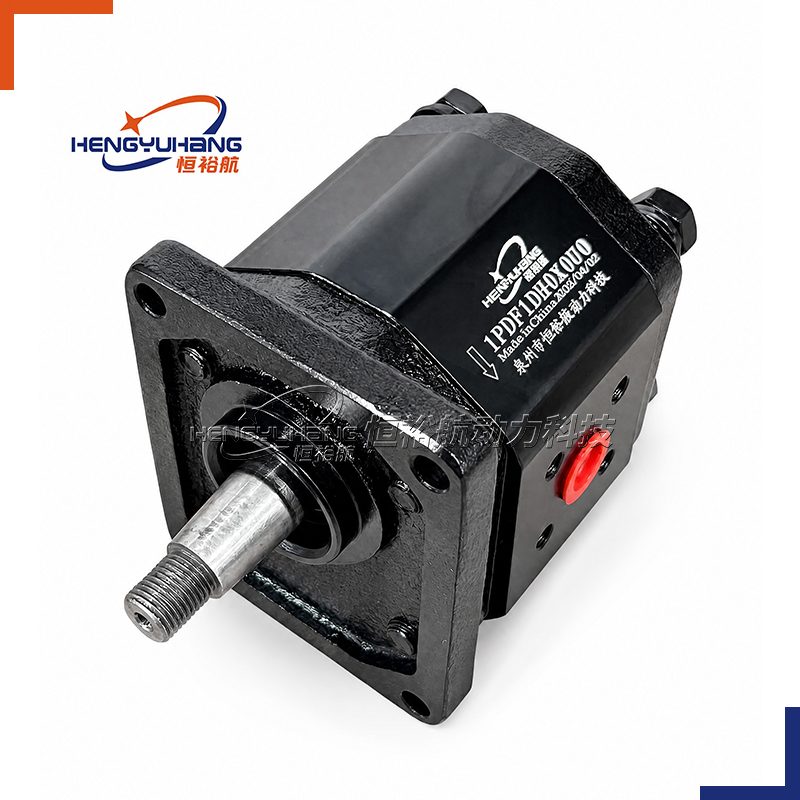

| Overview of HENGYUHANG Group 1PDF External Gear Pumps
The HENGYUHANG Group 1PDF series represents advanced external gear pump engineering, delivering high pressure capability, superior volumetric efficiency, and exceptional durability across an extended displacement spectrum from 1.4 up to 13.8 cm³/rev. Designed specifically for universal replacement and custom OEM hydraulic installations, the 1PDF series bridges compact Group 1 mounting envelopes with displacement outputs typically found in larger frame sizes, enabling substantial power density improvements in space-constrained applications.
Built with an extruded high-strength aircraft-grade aluminum alloy body paired with high-tensile spheroidal graphite ductile cast-iron or aluminum front mounting flanges and rear covers, the pump exhibits outstanding resistance to cyclic pressure fatigue and structural housing deformation. The internal rotating group consists of case-hardened alloy steel precision gears, hobbed and shaved to tight surface tolerances (Ra < 0.2 μm) to minimize mechanical friction and fluid turbulence. The drive and driven gear journals rotate inside heavy-duty PTFE-lined DU composite hydrodynamic bushings lubricated continuously by internal fluid bypass channels. Hydrostatic axial pressure balance thrust plates automatically adjust against the gear side faces under shifting system pressures, eliminating volumetric slippage, holding overall efficiency above 93%, and ensuring whisper-quiet operation across the entire rotational speed spectrum.

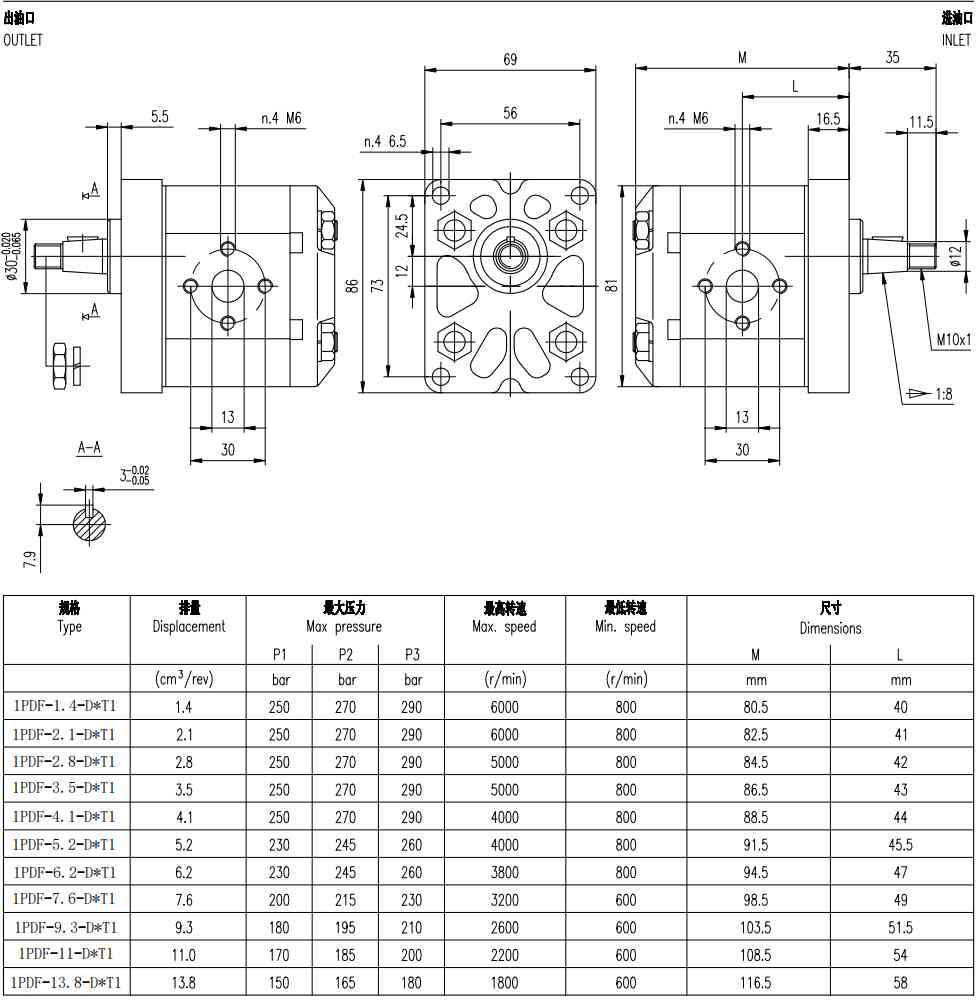

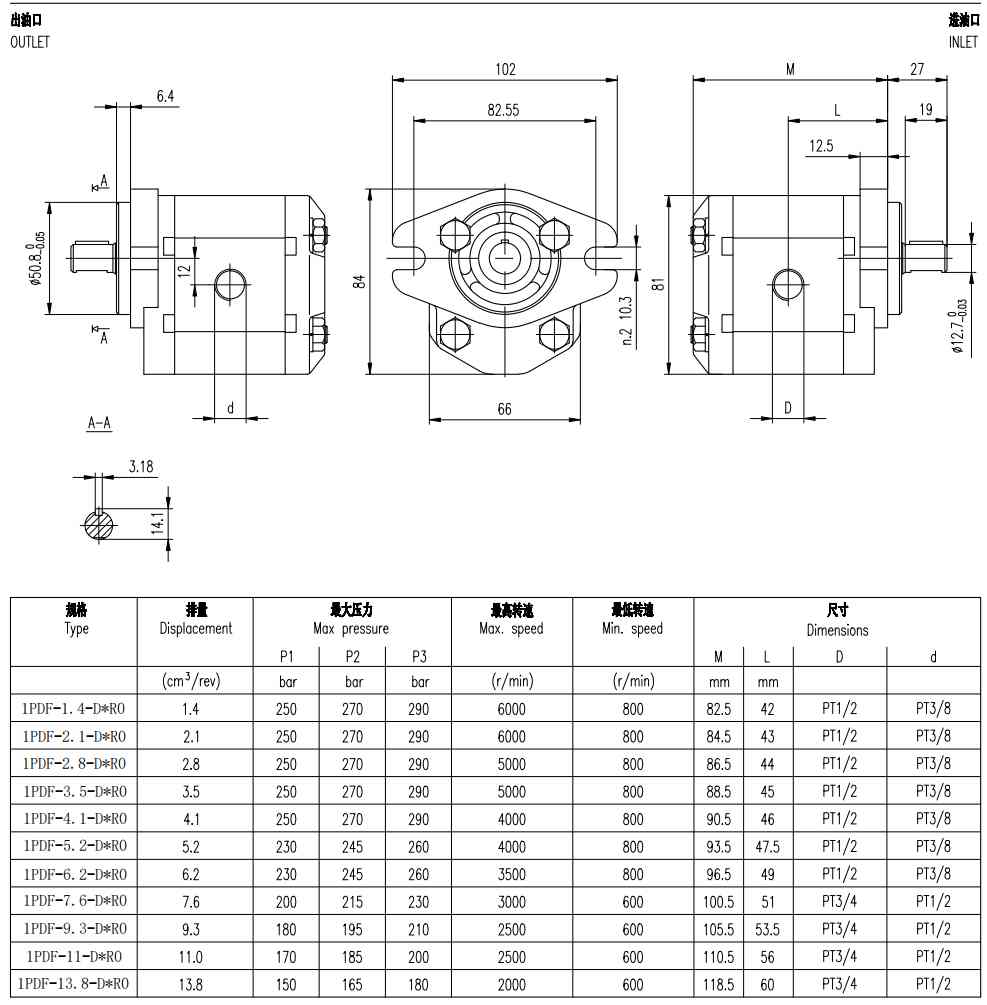

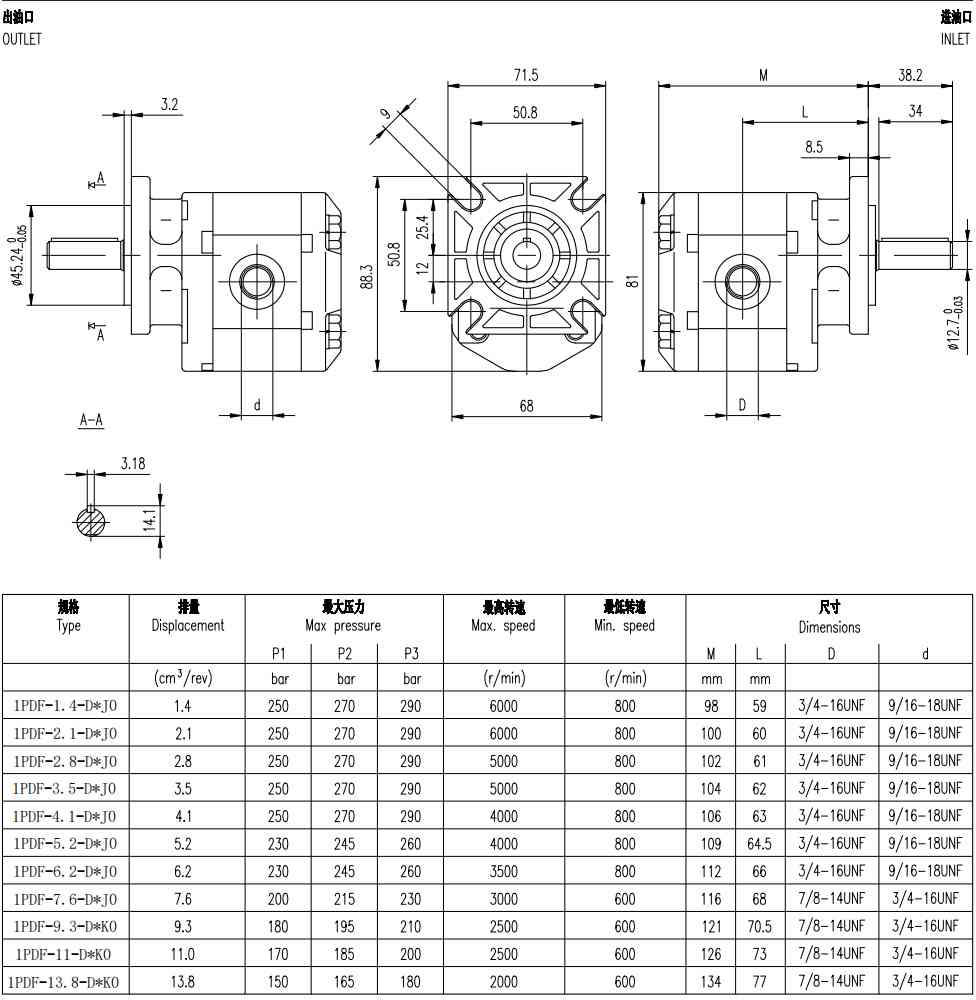

| Dimension of HENGYUHANG Group 1PDF External Gear Pumps
Interface data needed with the drawing:
| Item | Value |
|---|---|
| Mounting flange | Standard European 4-bolt rectangular flange (pilot Ø 25.4 mm / Ø 30.0 mm) / SAE "AA" 2-bolt flange (pilot Ø 50.8 mm / 2.0 in) / Italian 4-bolt flange |
| Drive shaft | 1:8 tapered shaft with woodruff key / Cylindrical keyed shaft (Ø 12.0 mm or Ø 12.7 mm) / Involute splined shaft (DIN 5482 B12x9 or SAE spline) |
| Outboard bearing | Without outboard bearing (standard direct motor coupling fit) / Optional front support bearing for high radial/axial drive belt loads |
| Rotation | Clockwise (D) or Anti-clockwise (S), looking at the drive shaft end (Bi-directional reversible rotation available upon request) |
| Ports position | Side-positioned ports (L) on body / Optional rear-cover ports (P) for compact manifold blocks |
| Inlet Port | European standard 4-bolt diamond flange (M6 bolts, Ø 13.0 mm or Ø 15.0 mm) / G 1/2" BSPP female thread / 3/4-16 UNF SAE O-ring boss |
| Outlet Port | European standard 4-bolt diamond flange (M6 bolts, Ø 13.0 mm) / G 3/8" or G 1/2" BSPP female thread / 9/16-18 UNF SAE O-ring boss |
| Seals | N — Buna-N (NBR) elastomeric seals (-20 °C to +85 °C) standard; Viton (FKM) available for high-temperature hydraulic fluids (-15 °C to +110 °C) |
| Body construction | High-tensile extruded aluminum alloy body with ductile cast-iron front mounting flange and rear cover |
| Flange bolt tightening torque | 25 ±2 Nm (221 ÷ 239 lbf in) |
| Body tie-rod clamp bolt torque | 45 ±3 Nm (372 ÷ 425 lbf in) |
| Pump Installation Specifications HENGYUHANG Group 1PDF Series
The HENGYUHANG Group 1PDF pump utilizes a structured modular ordering and specification code to ensure precise mechanical, hydraulic, and mounting interchangeability:
Code structure — reference: 1PDF — Group 1 High-Pressure External Gear Pump Series
| Segment | Meaning | Standard Options & Features |
|---|---|---|
| Series | 1PDF | Group 1 high-pressure external gear pump architecture (1.4 to 13.8 cm³/rev) |
| Displacement | 1.4 to 13.8 | Geometric displacement in cm³/rev (1.4, 2.0, 2.8, 3.5, 4.1, 5.2, 6.2, 7.6, 9.3, 11.0, 13.8) |
| Rotation | D / S / R | D: Clockwise; S: Anti-clockwise; R: Reversible / Bi-directional |
| Outboard Bearing | 0 / 1 | 0: Standard without front bearing; 1: With heavy-duty front radial/axial support bearing |
| Drive Shaft | T1 / C1 / S1 | T1: 1:8 European taper shaft with woodruff key; C1: Ø 12 mm cylindrical keyed shaft; S1: DIN 5482 B12x9 spline |
| Mounting Flange | E1 / A1 / I1 | E1: European 4-bolt rectangular spigot flange (pilot Ø 25.4 mm); A1: SAE "AA" 2-bolt flange; I1: Italian 4-bolt flange |
| Ports Code | L / P | L: Side flanged/threaded body ports; P: Rear cover threaded ports |
| Inlet / Outlet | F1 / G1 / U1 | F1: European 4-bolt diamond flange; G1: BSPP cylindrical thread; U1: SAE straight thread O-ring boss |
| Seals | N / V | N: Buna-N (NBR) standard; V: Viton (FKM) high-temperature seals |
| Special Features | RV / ST | RV: Integrated internal pressure relief valve; ST: Customized OEM body design |
| Reading your replacement code
| Your Target Brand & Model | HENGYUHANG 1PDF Drop-In Equivalent | Interchange Verification Notes |
|---|---|---|
| CASAPPA POLARIS PLP10 / 1PDF | HENGYUHANG 1PDF Series (1.4 to 13.8) | Identical European 4-bolt flange, shaft taper, and port centerline dimensions |
| Bosch Rexroth AZPF / AZPB Group 1 | HENGYUHANG 1PDF-041 / 1PDF-052 / 1PDF-080 | 100% mounting pilot, shaft woodruff key, and continuous pressure rating match |
| MARZOCCHI 1P / ALP1 / GHP1 Series | HENGYUHANG 1PDF-014 to 1PDF-138 | Direct mechanical envelope match; identical inlet/outlet flange drillings |
| PARKER PGP505 / PGP502 Series | HENGYUHANG 1PDF Series | Full hydraulic flow compatibility, SAE "AA" and European spigot interchange |
| DANFOSS / Turolla Group 1 (SNP1) | HENGYUHANG 1PDF Series | Seamless drop-in fit for tractor steering boosters and mini HPU manifolds |
| VIVOLO (Vivoil) X1P / XV-1P Series | HENGYUHANG 1PDF Series | Direct interchange on shaft, flange, and side European diamond flanged ports |
| SALAMI 1.5PB / 1.5PE Series | HENGYUHANG 1PDF Series | Identical bolt hole pattern and gear journal high-pressure ratings |
| BUCHER Hydraulics AP100 Series | HENGYUHANG 1PDF Series | Direct mounting fit for industrial machine tool clamping and lubrication loops |
Techspecs — HENGYUHANG Group 1PDF Series
Performance Data Across Displacements
| Model Code | Displacement (cm³/rev) | Displacement (in³/rev) | Continuous Pressure p1 (bar / psi) | Intermittent Pressure p2 (bar / psi) | Peak Pressure p3 (bar / psi) | Min. Speed (r/min) | Max. Speed (r/min) | Flow at 1500 r/min (l/min) |
|---|---|---|---|---|---|---|---|---|
| 1PDF-1.4 | 1.40 | 0.085 | 250 / 3,625 | 275 / 3,988 | 300 / 4,350 | 600 | 4,000 | 2.10 |
| 1PDF-2.0 | 2.00 | 0.122 | 250 / 3,625 | 275 / 3,988 | 300 / 4,350 | 600 | 4,000 | 3.00 |
| 1PDF-2.8 | 2.80 | 0.171 | 250 / 3,625 | 275 / 3,988 | 300 / 4,350 | 600 | 4,000 | 4.20 |
| 1PDF-3.5 | 3.50 | 0.214 | 250 / 3,625 | 275 / 3,988 | 300 / 4,350 | 600 | 4,000 | 5.25 |
| 1PDF-4.1 | 4.10 | 0.250 | 250 / 3,625 | 275 / 3,988 | 300 / 4,350 | 600 | 4,000 | 6.15 |
| 1PDF-5.2 | 5.20 | 0.317 | 240 / 3,480 | 260 / 3,770 | 280 / 4,060 | 600 | 3,800 | 7.80 |
| 1PDF-6.2 | 6.20 | 0.378 | 230 / 3,335 | 250 / 3,625 | 270 / 3,915 | 600 | 3,600 | 9.30 |
| 1PDF-7.6 | 7.60 | 0.464 | 220 / 3,190 | 240 / 3,480 | 260 / 3,770 | 600 | 3,500 | 11.40 |
| 1PDF-9.3 | 9.30 | 0.567 | 200 / 2,900 | 220 / 3,190 | 240 / 3,480 | 600 | 3,500 | 13.95 |
| 1PDF-11.0 | 11.00 | 0.671 | 190 / 2,755 | 210 / 3,045 | 230 / 3,335 | 600 | 3,000 | 16.50 |
| 1PDF-13.8 | 13.80 | 0.842 | 180 / 2,610 | 200 / 2,900 | 220 / 3,190 | 600 | 3,000 | 20.70 |
Operating Conditions & Fluid Compatibility
| Operating Parameter | Specification | Recommendation & Limits |
|---|---|---|
| Hydraulic fluid type | Mineral oil-based hydraulic fluids | HL or HLP hydraulic oils to ISO 6743/4; DIN 51524 Class 1 and 2 |
| Fluid operating viscosity | 12 to 100 mm²/s (cSt) | Optimal operating viscosity range: 20 to 80 mm²/s (cSt) |
| Max. cold starting viscosity | Up to 1,000 mm²/s (cSt) | Short duration cold start at low speed without excessive load |
| Fluid operating temperature | -20 °C to +85 °C (-4 °F to +185 °F) | Standard NBR seals; Viton (FKM) seals required for +85 °C to +110 °C |
| Inlet suction line pressure | 0.7 to 3.0 bar absolute (10 to 44 psia) | Minimum suction line absolute pressure 0.7 bar (avoid cavitation) |
| Fluid cleanliness level | Class 20/18/15 to ISO 4406 | Recommended filtration: β25 ≥ 75 on return/suction circuit |
Advantages — HENGYUHANG Group 1PDF Series
Direct OEM Drop-In Interchangeability
Engineered to identical mechanical dimensions, shaft keyways, European 4-bolt spigots, SAE "AA" flanges, and port locations, providing immediate plug-and-play replacement across 39 leading international brands without machine alterations.
Extended Displacement Range in Group 1 Envelope
Reaching up to 13.8 cm³/rev within a compact Group 1 physical footprint, delivering high fluid flow output without requiring redesign to bulkier Group 2 pump architectures.
Superior Continuous High-Pressure Rigidity
High-tensile aluminum alloy extrusion body reinforced with heavy-duty ductile cast-iron covers guarantees zero barrel dilation under continuous working pressures up to 250 bar (3,625 psi).
High Volumetric Efficiency (>93%)
Hydrostatic floating pressure balance thrust plates automatically compensate for axial wear and thermal expansion, ensuring maximum flow delivery and minimal internal slippage across varying operating temperatures.
Ultra-Low Acoustic Footprint
Micro-machined gear teeth profiles and optimized relief grooves eliminate hydraulic fluid trapping between mating teeth, substantially lowering hydraulic pulsation and operating noise in mobile cabins and indoor factories.
Flexible Mechanical Customization
Available with specialized 1:8 European taper, cylindrical, or splined shafts, side or rear ports, and integrated pressure relief or priority flow valves tailored to bespoke customer requirements.
6. Reference of HENGYUHANG Group 1PDF Series
6.1 Series Architecture Across Group 1PDF
The HENGYUHANG Group 1PDF family encompasses 11 standard micro-to-compact displacements, ensuring exact displacement pairing for every hydraulic circuit requirement:
Ultra-Micro Flow Range (1.4 – 2.8 cm³/rev): 1PDF-1.4, 1PDF-2.0, 1PDF-2.8
Standard Intermediate Range (3.5 – 6.2 cm³/rev): 1PDF-3.5, 1PDF-4.1, 1PDF-5.2, 1PDF-6.2
High-Flow Extended Range (7.6 – 13.8 cm³/rev): 1PDF-7.6, 1PDF-9.3, 1PDF-11.0, 1PDF-13.8
6.2 Comprehensive Interchangeability Matrix Across 39 Brands
The HENGYUHANG Group 1PDF series provides proven mechanical, mounting, and hydraulic drop-in substitution for the following 39 international manufacturers:
ARGO-HYTOS: GP1 Series micro external gear pumps
ASEDA: Group 1 standard and custom tractor auxiliary gear pumps
ATOS: PFG-1 series external gear pumps
B&C Hydraulics: GR1 series compact gear pumps
BLUEASCEND: Group 1 aluminum gear pumps for mobile machinery
Boden: Boden BAP1 / BHP1 hydraulic gear pumps
BONDIOLI & PAVESI: HPLP Series Group 1 gear pumps (HP1, HPLPA)
Brevini Fluid Power (Dana Brevini): OT100 series compact pumps
BUCHER Hydraulics: AP100 series high-pressure gear pumps
Caproni: 10A / 10C / Group 1 hydraulic gear pumps
CASAPPA: POLARIS Group 1 (PLP10,, PL10) gear pumps
CONCENTRIC (Haldex): W300 / W600 / Calzoni Group 1 external pumps
DANFOSS Power Solutions: SNP1NN / Turolla D Series / Group 1 pumps
DUPLOMATIC: IGP1 / GP1 series external gear pumps
Galtech: 1SP series compact gear pumps
GRH Hydraulics: 1PF series aluminum gear pumps
HANSA-TMP: Group 1 gear pumps and micro units
HESPER: Group 1 mobile hydraulic gear pumps
HIDRAULICA: Group 1 external gear pumps
HONOR Gear Pumps: Group 1 series pumps
HPI (Hydraulique Professionnelle Industrielle): Series M1 / P1 micro-pumps
HYDAC: PGE101 series external gear pumps
HYDROMAX: Group 1 external hydraulic gear pumps
HYDRONIT: Group 1 micro power pack central block gear pumps
JIHOSTROJ: P23 / X Series Group 1 hydraulic gear pumps
JOYANG: Group 1 gear pumps for material handling
KOMPASS: Group 1 industrial gear pumps
KRACHT: KF 1 / KP 1 series high-performance gear pumps
MARZOCCHI: 1P / ALP1 / GHP1 series high-pressure gear pumps
MetaHydra: Group 1 custom gear pumps
PARKER Hannifin: PGP505 / PGP502 Series Group 1 gear pumps
REXPOWER: Group 1 external gear pumps
Bosch Rexroth: AZPF / AZPB Series Group 1 gear pumps
REXROTH-SIGMA: Sigma Group 1 gear pumps
RONZIO: 01 / 02 Series Group 1 high-pressure gear pumps
ROQUET: 1L / 1M Series Group 1 external gear pumps
SALAMI: 1.5PB / 1.5PE / 1PE series compact gear pumps
SDH (Shengda Hydraulics): Group 1 gear pumps
VIVOLO (Vivoil): X1P / XV-1P Series Group 1 gear pumps
7. Brand Replacement
Quanzhou Hengyuhang Power Technology Co., Ltd. manufactures the Group 1PDF series to original international OEM dimensional standards. Every pump undergoes comprehensive factory inspection, including volumetric efficiency testing, full-cycle pressure relief calibration, and port thread gauge verification. Customers can directly replace worn or obsolete original pumps from CASAPPA, Rexroth, MARZOCCHI, PARKER, and DANFOSS without altering existing hydraulic plumbing, electrical motor bell-housings, or shaft couplings. Custom batch production with customized shaft lengths, special flange pilots, or integrated internal relief valves is readily supported.
8. Applications of HENGYUHANG Group 1PDF Series
Mobile Construction & Earthmoving Machinery: Mini excavators, compact track loaders, road sweepers, vibratory trench rollers, and hydraulic breaker auxiliary circuits.
Aerial Work & Material Handling Equipment: Electric scissor lifts, articulated boom lifts, forklift power steering boosters, and truck-mounted hydraulic tail lifts.
Agricultural & Specialty Vehicles: Vineyard and orchard utility tractors, crop sprayers, round baler tensioning circuits, and forestry log splitters.
Compact Hydraulic Power Packs (HPUs): AC and DC mini power units for car lifts, scissor lift tables, dock levelers, tipper trailers, and emergency backup power loops.
Industrial Automation & Machine Tools: Hydraulic press brake clamping circuits, CNC fixture locking, machine tool lubrication distribution manifolds, and plastic injection molding auxiliary core-pull loops.
9. Package & Shipping
| Item | Details |
|---|---|
| Packaging | Neutral heavy-duty export carton with internal molded foam suspension; individual moisture-resistant sealed VCI polybags; export standard fumigation-free wooden pallets for batch consignments. |
| Selling Unit | Single item (MOQ: 1 piece for standard models; low MOQ for customized OEM configurations). |
| Single Package Size | 22.0 × 16.0 × 14.0 cm (8.66 × 6.30 × 5.51 in) per pump. |
| Single Gross Weight | 1.80 to 2.80 kg (3.97 to 6.17 lbs) depending on displacement and flange material. |
| Standard Lead Time | 3–7 business days for stock items; 15–20 business days for volume OEM batch customization. |
| Logistics & Express | Air express (DHL, FedEx, UPS, TNT), air freight, sea freight (FCL / LCL), and multimodal door-to-door DDP services worldwide. |
| Customization Services | Custom nameplate laser engraving, private labeling, custom drive shafts, integrated valves, and bespoke flange geometries. |
| Warranty & Support | 12 months comprehensive warranty from dispatch date; full lifetime technical support. |
10. Why Choose Hengyuhang?
Direct Factory Precision Manufacturing: Advanced multi-axis CNC machining centers, automated gear hobbing, and precision honing ensure micron-level clearance control and consistent repeatability.
100% Full-Cycle Factory Testing: Every unit undergoes rigorous 100% end-of-line testing for internal leakage, rated continuous pressure holding, and volumetric displacement accuracy before packaging.
Comprehensive Cross-Brand Interchangeability: Immediate drop-in substitution across 39 international hydraulic brands, dramatically reducing machinery downtime and inventory procurement lead times.
Fast Global Response & Technical Support: Experienced hydraulic engineering team ready to provide instant dimensional drawing verification, cross-reference confirmation, and customized fluid power solutions.
External Gear Pump Group 1PDF (1.4–13.8 cm³/rev) is a high-pressure, versatile external hydraulic gear pump engineered for compact hydraulic systems, mobile machinery, and industrial fluid power applications. Built with a high-strength extruded aluminium alloy body, hardened alloy steel gear pairs, and pressure-balanced DU composite thrust bushings, the Group 1PDF series provides 11 standard displacement sizes ranging from 1.4 cm³/rev to 13.8 cm³/rev, continuous operating pressures up to 250 bar (peak pressure up to 290 bar), and operating speeds up to 6000 r/min. Available with European standard 4-bolt rectangular flanges (T1), SAE 2-bolt oval flanges (R0), and European 4-bolt square flanges (J0/K0), along with 1:8 taper or cylindrical keyed drive shafts and flanged/threaded ports, this series delivers high volumetric efficiency, smooth oil flow, low operating noise, and long-term durability under demanding industrial duty cycles.
| Applications
The Group 1PDF external gear pump series is widely applied in mini and compact excavators, compact wheel loaders, agricultural tractors, combine harvesters, material handling forklifts, aerial work platforms, hydraulic power units (AC/DC hydraulic power packs for scissor lifts, tailgates, dock levelers), municipal sweepers, and industrial automation machines requiring reliable high-pressure fluid delivery within a compact mounting envelope.
| Key Specifications Overview
| Parameter | Specification |
|---|---|
| Series | Group 1PDF Series (Group 1 High-Pressure External Gear Pump) |
| Displacement Range | 1.4 ~ 13.8 cm³/rev (11 standard displacement ratings) |
| Continuous Operating Pressure (P1) | 150 ~ 250 bar (250 bar up to 4.1 cm³/rev) |
| Intermittent Operating Pressure (P2) | 165 ~ 270 bar |
| Max. Peak Pressure (P3) | 180 ~ 290 bar |
| Rotational Speed Range | 600 ~ 6000 r/min (model dependent) |
| Housing Construction | High-tensile extruded aluminium alloy body with cast aluminium front flange and rear cover |
| Mounting Flange Options | European 4-bolt rectangular (56 × 73 mm, Ø30 mm pilot - T1); SAE 2-bolt (82.55 mm pitch, Ø50.8 mm pilot - R0); European 4-bolt square (50.8 × 50.8 mm, Ø45.24 mm pilot - J0/K0) |
| Drive Shaft Options | 1:8 Taper shaft (M10×1 thread, 3 mm key); Ø12.7 mm straight shaft with 3.18 mm woodruff key |
| Port Configurations | 4-bolt flanged ports (4 × M6, Ø13 mm); PT threaded ports (PT 3/8, PT 1/2, PT 3/4); SAE UNF threaded ports (9/16-18UNF, 3/4-16UNF, 7/8-14UNF) |
| Rotation Direction | Clockwise (D) standard / Counter-clockwise optional (Bi-directional hydraulic motor variant 1PDM also available) |
| Hydraulic Fluid | Mineral-based hydraulic oil (ISO VG 32 ~ 46, HLP) |
| Operating Temperature Range | -20°C to +80°C (standard NBR seals) |
| Technical Parameters & Performance Ratings (Group 1PDF)
| Type / Model | Displacement (cm³/rev) | Max. Pressure (bar) | Max. Speed (r/min) | Min. Speed (r/min) | T1 Flange Dim. (mm) | R0 Flange Dim. (mm) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| P1 (Cont.) | P2 (Int.) | P3 (Peak) | M | L | M | L | ||||
| 1PDF-1.4-D* | 1.4 | 250 | 270 | 290 | 6000 | 800 | 80.5 | 40.0 | 82.5 | 42.0 |
| 1PDF-2.1-D* | 2.1 | 250 | 270 | 290 | 6000 | 800 | 82.5 | 41.0 | 84.5 | 43.0 |
| 1PDF-2.8-D* | 2.8 | 250 | 270 | 290 | 5000 | 800 | 84.5 | 42.0 | 86.5 | 44.0 |
| 1PDF-3.5-D* | 3.5 | 250 | 270 | 290 | 5000 | 800 | 86.5 | 43.0 | 88.5 | 45.0 |
| 1PDF-4.1-D* | 4.1 | 250 | 270 | 290 | 4000 | 800 | 88.5 | 44.0 | 90.5 | 46.0 |
| 1PDF-5.2-D* | 5.2 | 230 | 245 | 260 | 4000 | 800 | 91.5 | 45.5 | 93.5 | 47.5 |
| 1PDF-6.2-D* | 6.2 | 230 | 245 | 260 | 3800 | 800 | 94.5 | 47.0 | 96.5 | 49.0 |
| 1PDF-7.6-D* | 7.6 | 200 | 215 | 230 | 3200 | 600 | 98.5 | 49.0 | 100.5 | 51.0 |
| 1PDF-9.3-D* | 9.3 | 180 | 195 | 210 | 2600 | 600 | 103.5 | 51.5 | 105.5 | 53.5 |
| 1PDF-11-D* | 11.0 | 170 | 185 | 200 | 2200 | 600 | 108.5 | 54.0 | 110.5 | 56.0 |
| 1PDF-13.8-D* | 13.8 | 150 | 165 | 180 | 1800 | 600 | 116.5 | 58.0 | 118.5 | 60.0 |
| Mounting Flange, Shaft & Port Configurations

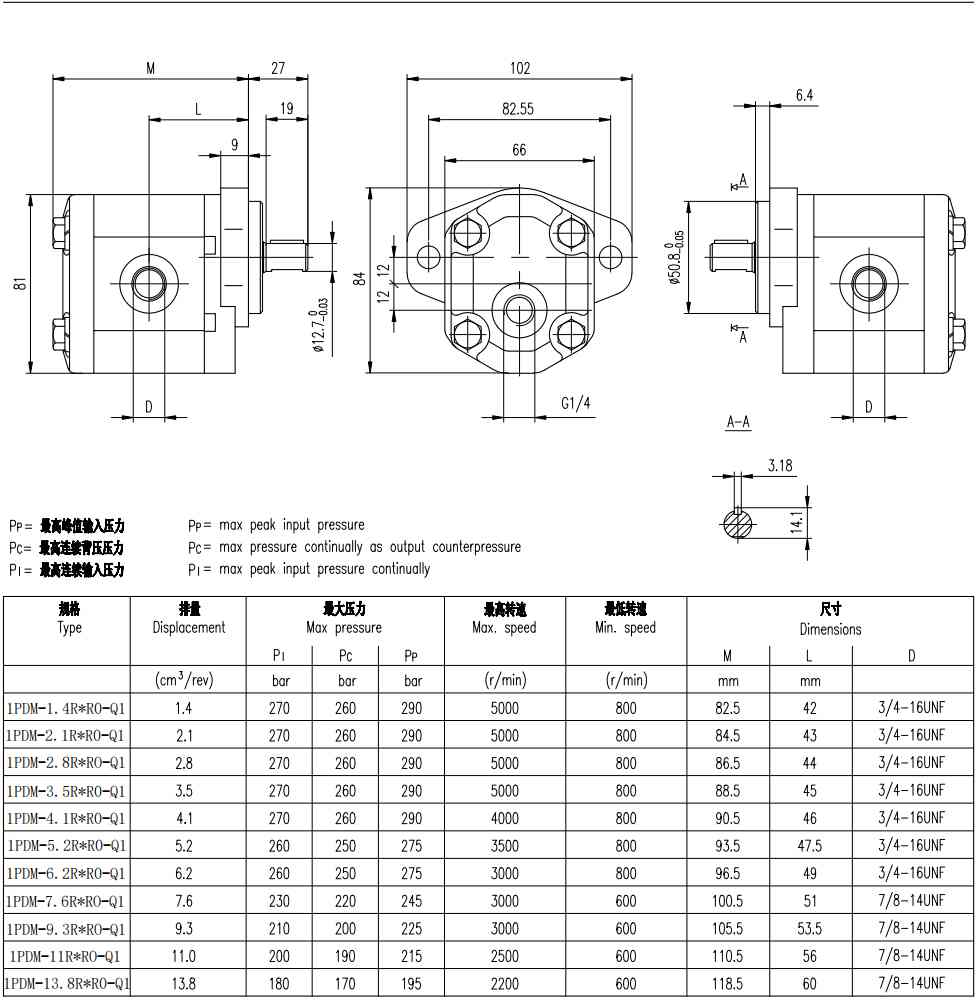

| Configuration Code | Mounting Flange | Drive Shaft | Inlet & Outlet Ports |
|---|---|---|---|
| 1PDF-...-D*T1 | European 4-bolt rectangular (56 × 73 mm, Ø30 mm pilot) | 1:8 Taper shaft (M10×1 thread, 3 mm key) | 4-bolt flanged ports (4 × M6, Ø13 mm, 30 mm pitch) |
| 1PDF-...-D*R0 | SAE 2-bolt oval flange (82.55 mm pitch, Ø50.8 mm pilot) | Ø12.7 mm straight shaft (3.18 mm key) | PT threaded ports (PT 1/2 inlet, PT 3/8 outlet / PT 3/4 inlet, PT 1/2 outlet) |
| 1PDF-...-D*J0 / K0 | European 4-bolt square flange (50.8 × 50.8 mm, Ø45.24 mm pilot) | Ø12.7 mm straight shaft (3.18 mm key) | SAE UNF threaded ports (3/4-16UNF inlet, 9/16-18UNF outlet / 7/8-14UNF inlet, 3/4-16UNF outlet) |
| 1PDM-...-R*R0-Q1 | SAE 2-bolt flange (motor configuration with G1/4 drain) | Ø12.7 mm straight shaft (3.18 mm key) | SAE UNF threaded ports (bi-directional hydraulic gear motor) |
HENGYUHANG 1PDF / 1PDM Series — Complete Model List
1PDF Series — Type D*H0
| Type |
|---|
| 1PDF-1.4-D*H0 |
| 1PDF-2.1-D*H0 |
| 1PDF-2.8-D*H0 |
| 1PDF-3.5-D*H0 |
| 1PDF-4.1-D*H0 |
| 1PDF-5.2-D*H0 |
| 1PDF-6.2-D*H0 |
| 1PDF-7.6-D*H0 |
| 1PDF-9.3-D*H0 |
| 1PDF-11-D*H0 |
| 1PDF-13.8-D*H0 |
1PDF Series — Type D*L0
| Type |
|---|
| 1PDF-1.4-D*L0 |
| 1PDF-2.1-D*L0 |
| 1PDF-2.8-D*L0 |
| 1PDF-3.5-D*L0 |
| 1PDF-4.1-D*L0 |
| 1PDF-5.2-D*L0 |
| 1PDF-6.2-D*L0 |
| 1PDF-7.6-D*L0 |
| 1PDF-9.3-D*L0 |
| 1PDF-11-D*L0 |
| 1PDF-13.8-D*L0 |
1PDF Series — Type D*K0
| Type |
|---|
| 1PDF-1.4-D*K0 |
| 1PDF-2.1-D*K0 |
| 1PDF-2.8-D*K0 |
| 1PDF-3.5-D*K0 |
| 1PDF-4.1-D*K0 |
| 1PDF-5.2-D*K0 |
| 1PDF-6.2-D*K0 |
| 1PDF-7.6-D*K0 |
| 1PDF-9.3-D*K0 |
| 1PDF-11-D*K0 |
| 1PDF-13.8-D*K0 |

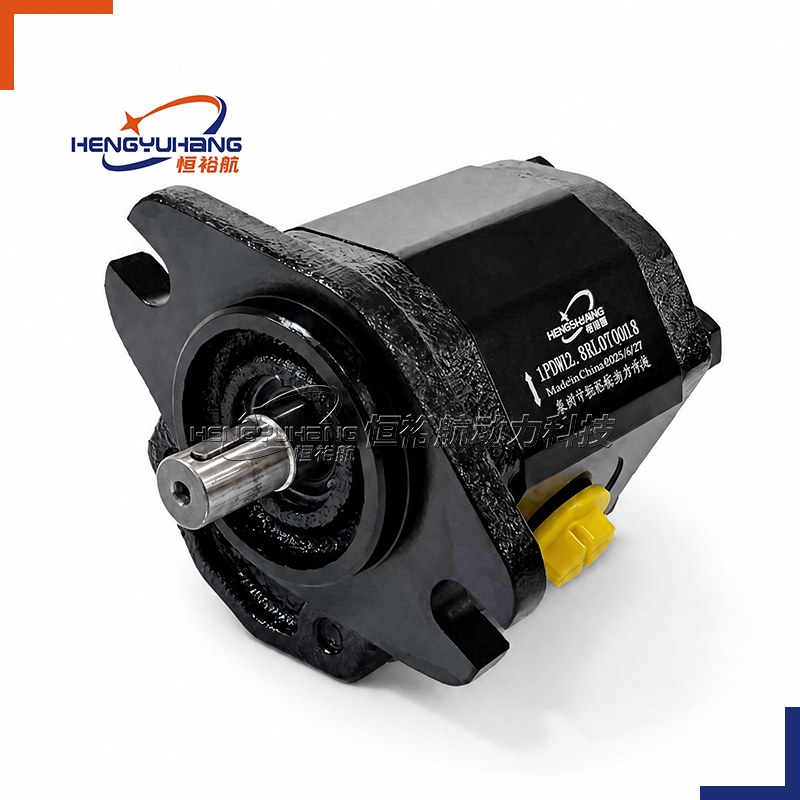

1PDM Series — Type R*L0-Q1
| Type |
|---|
| 1PDM-1.4R*L0-Q1 |
| 1PDM-2.1R*L0-Q1 |
| 1PDM-2.8R*L0-Q1 |
| 1PDM-3.5R*L0-Q1 |
| 1PDM-4.1R*L0-Q1 |
| 1PDM-5.2R*L0-Q1 |
| 1PDM-6.2R*L0-Q1 |
| 1PDM-7.6R*L0-Q1 |
| 1PDM-9.3R*L0-Q1 |
| 1PDM-11R*L0-Q1 |
| 1PDM-13.8R*L0-Q1 |
WhatsApp
Email
+86 19918575358
