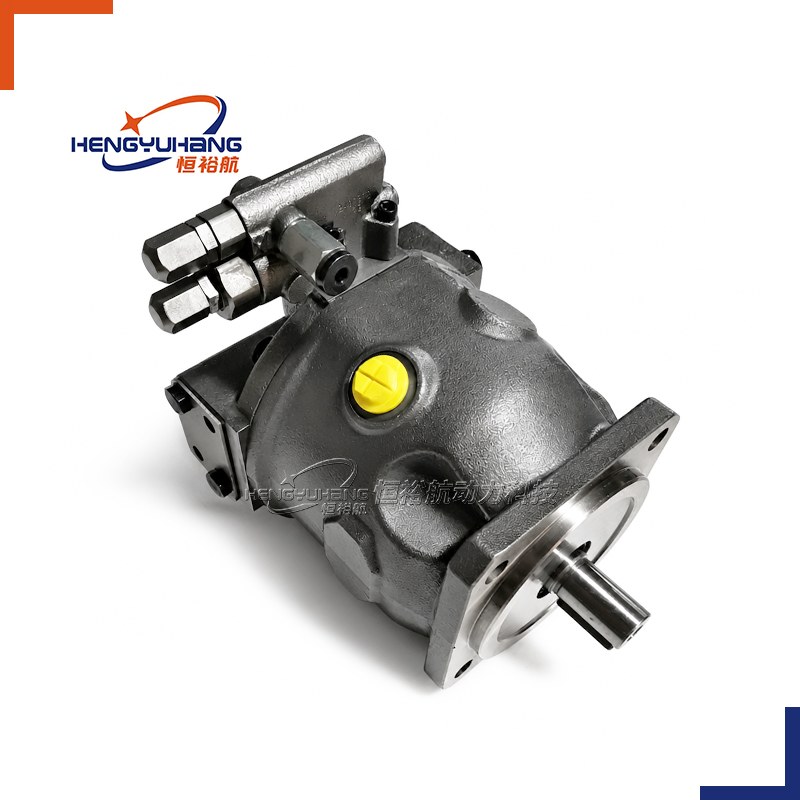

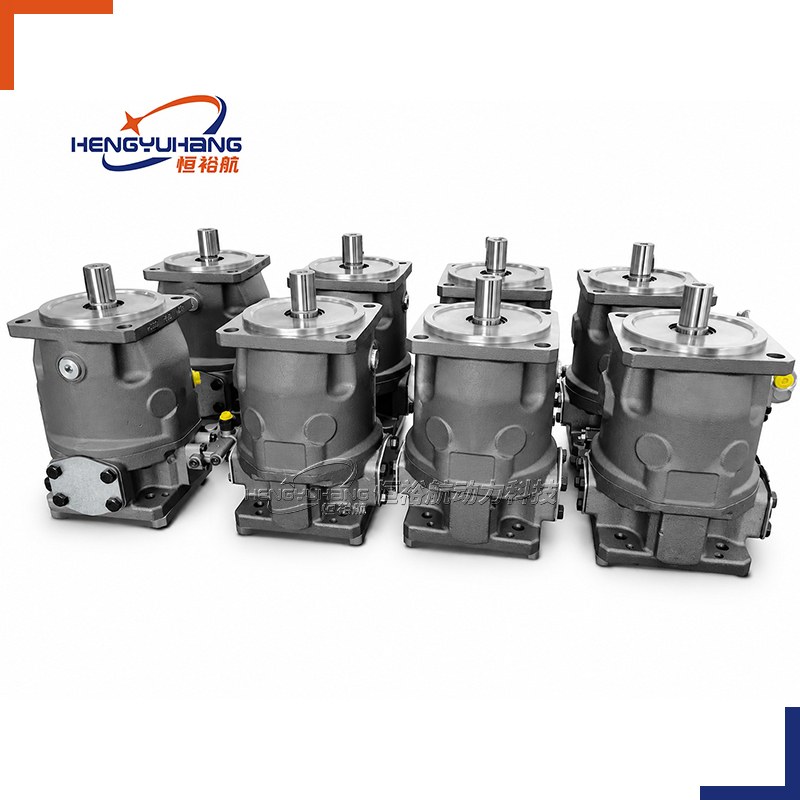

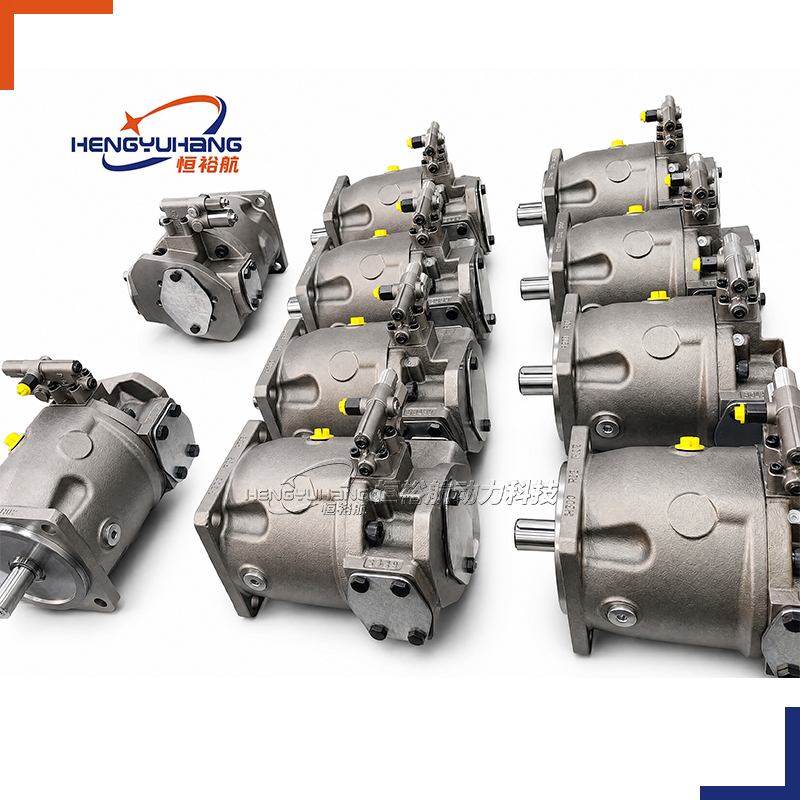

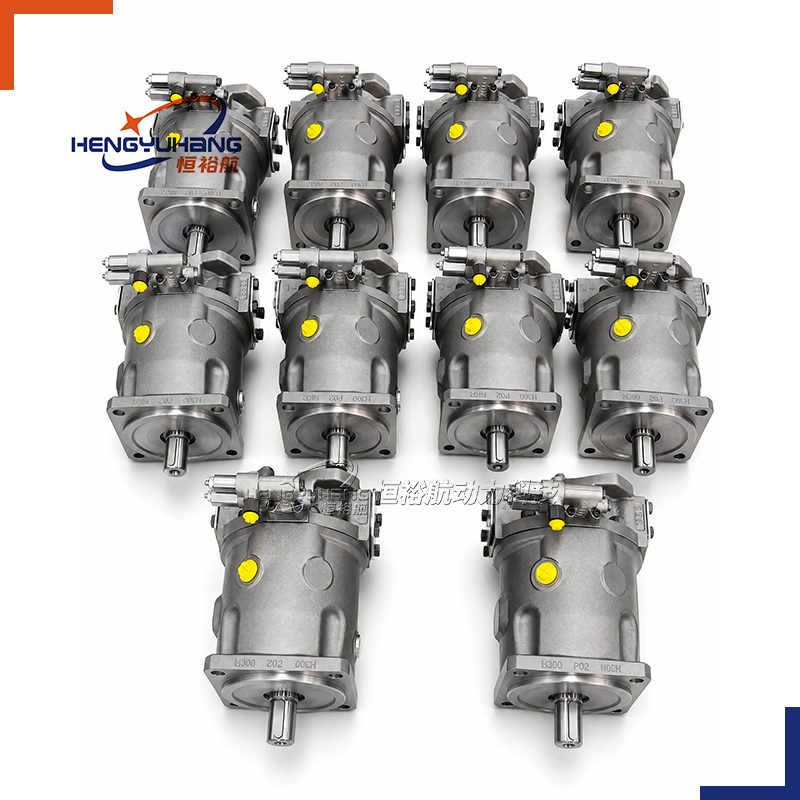

HENGYUHANG Axial Piston Variable Displacement Pump HYH10VSO Series 32
Engineered with an advanced swashplate axial piston rotary group for open-circuit hydrostatic drives, the HENGYUHANG HYH10VSO Series 32 variable displacement pump delivers infinitely adjustable flow with hydrostatically unloaded cradle bearings, integrated pre-compression volume (PCV) pulsation reduction, and a nominal continuous operating pressure of 280 bar with peak pressure reaching 350 bar (5,076 psi / 35 MPa).
| Applications
Optimized for high-performance industrial machinery and heavy hydraulic power units, this variable axial piston pump powers plastic injection molding machines, CNC metal-forming and stamping presses, automated machine tool systems, civil engineering power packs, and specialized industrial drives. Featuring standardized ISO 3019-2 4-bolt mounting flanges, universal through-drive capability for tandem pump mounting, and versatile hydraulic/electrohydraulic control devices (DR, DRF/DRS, ED72, ER72, LA...), it provides seamless 1:1 OEM drop-in interchangeability for Bosch Rexroth A10VSO Series 32 pump installations.
| Key Technical Specifications
Product Model: Hengyuhang Axial Piston Variable Displacement Pump HYH10VSO Series 32
Brand Replacement: Bosch Rexroth A10VSO Series 32 (A10VSO 45, 71, 100, 140, 180) OEM or as requested.
Displacement: 45 to 180 cm³/rev across 5 standardized sizes (HYH10VSO 45, HYH10VSO 71, HYH10VSO 100, HYH10VSO 140, HYH10VSO 180)
Rotation Direction: Clockwise (R), counter-clockwise (L) (viewed from drive shaft end)
Speed Range: Nominal rated speed 1,800 r/min (High-speed option S: up to 2,200 to 3,000 r/min depending on frame size)
Peak Pressure: Nominal continuous working pressure 280 bar (4,060 psi); Maximum peak pressure 350 bar (5,076 psi / 35 MPa)
- Description
- Tecspecs
- Brand & Reference
- Download HENGYUHANG HYH10VSO Axial Piston Variable Displacement Pump
- Send an Inquiry

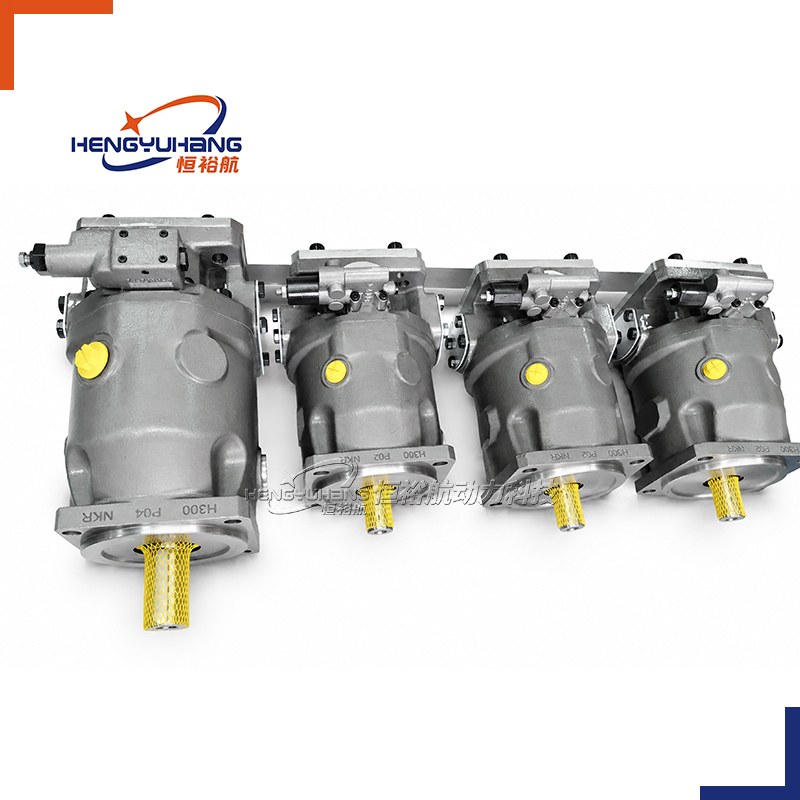

| Overview of HENGYUHANG HYH10VSO Series 32
The HENGYUHANG HYH10VSO Series 32 represents a high-efficiency medium-pressure axial piston variable displacement pump engineered specifically for open-circuit hydrostatic drive systems. Available across five standardized displacement sizes—HYH10VSO 45, HYH10VSO 71, HYH10VSO 100, HYH10VSO 140, and HYH10VSO 180 cm³/rev—flow delivery is directly proportional to drive speed and displacement, regulated steplessly by adjusting the swashplate cradle angle. Built with heavy-duty ductile iron housings, hydrostatically unloaded cradle swashplate bearings, and precision-lapped piston-slipper assemblies, the HYH10VSO Series 32 achieves exceptional power density, rapid dynamic control response, and prolonged operational life even under continuous high-duty industrial cycles.
To meet stringent acoustic and hydraulic ripple requirements in modern manufacturing plants, the series integrates an optimized pre-compression volume (PCV) pulsation damping chamber into Port Plate 32, reducing system pressure pulsations by up to 50% and dramatically cutting airborne machine noise. Standardized with an ISO 3019-2 4-bolt mounting flange (Code B), modular universal through-drive (Code U00 / Uxx), and standardized cylindrical keyed (Code P) or involute splined (Code S / R) drive shafts, the HYH10VSO Series 32 provides complete 1:1 functional and physical interchangeability for Bosch Rexroth A10VSO Series 32 pumps without requiring piping, baseplate, or electrical control modifications.

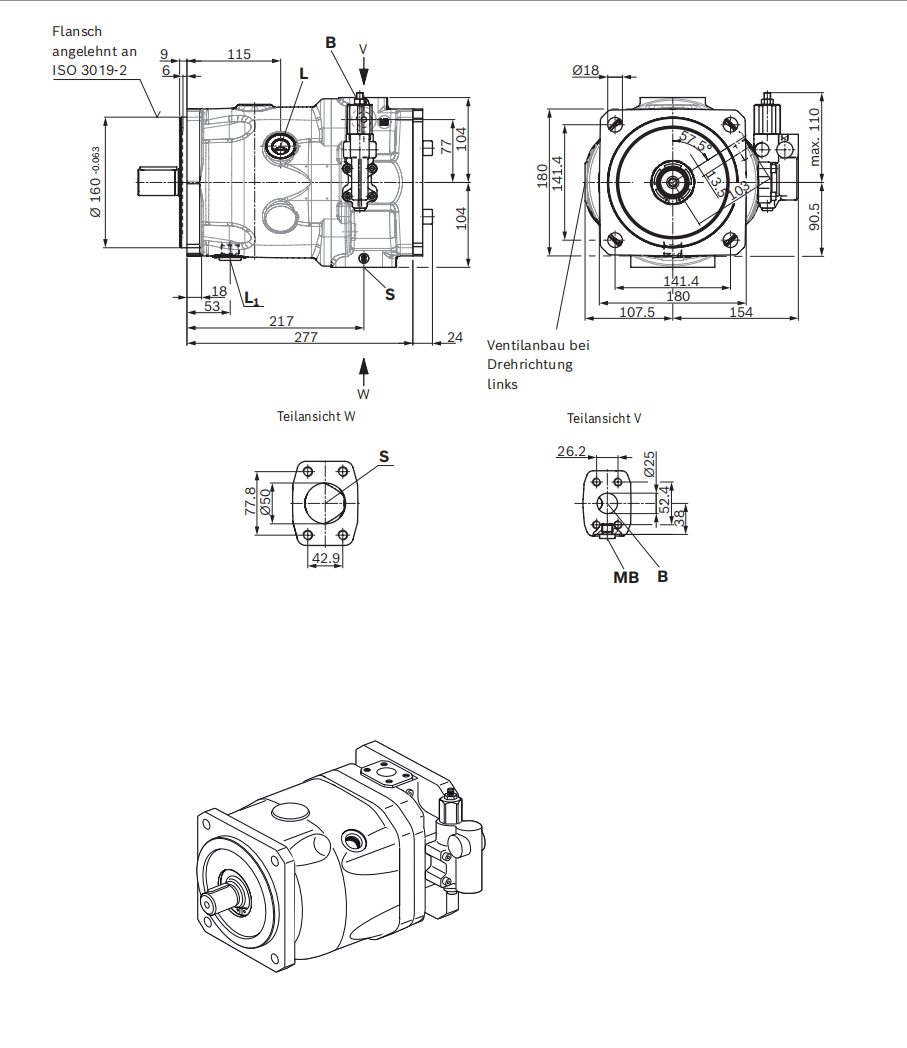

| Dimension of HENGYUHANG HYH10VSO Series 32
| Interface Data Needed with the Drawing Across the 5 Models
| Model / Size (HYH10VSO) | Mounting Flange (ISO 3019-2) | Drive Shaft Options | Working Port B (Outlet) | Suction Port S (Inlet) | Case Drain L, L1 | Control Ports X, MB | Tightening Torques |
|---|---|---|---|---|---|---|---|
| HYH10VSO 45 | 4-bolt flange (pilot Ø 125 -0.063 mm, 6.3 mm depth; 146 mm bolt centers, 4-Ø14 mm holes) | 1. Splined S: 1 in 15T 16/32 DP (ANSI B92.1a); 2. Splined R: 1 in 15T high-torque; 3. Keyed P: Ø 25 mm (DIN 6885 A8×7×36) | SAE 1 in (ISO 6162-1, 350 bar), 4-M10 × 1.5 depth 17 mm | SAE 1-1/2 in (ISO 6162-1, 10 bar), 4-M12 × 1.75 depth 20 mm | M22 × 1.5 (DIN 3852), 14 mm depth | X: M14 × 1.5 / G 1/4; MB: G 1/4 (DIN 3852) | Flange bolt: 140 N·m; Port B bolt: 60 N·m |
| HYH10VSO 71 | 4-bolt flange (pilot Ø 160 -0.063 mm, 6 mm depth; 180 mm bolt centers, 4-Ø18 mm holes) | 1. Splined S: 1-1/4 in 14T 12/24 DP; 2. Splined R: 1-1/4 in 14T high-torque; 3. Keyed P: Ø 32 mm (DIN 6885 A10×8×45) | SAE 1 in (ISO 6162-1, 350 bar), 4-M10 × 1.5 depth 17 mm | SAE 2 in (ISO 6162-1, 10 bar), 4-M12 × 1.75 depth 20 mm | M22 × 1.5 (DIN 3852), 14 mm depth | X: M14 × 1.5 / G 1/4; MB: G 1/4 (DIN 3852) | Flange bolt: 280 N·m; Port B bolt: 60 N·m |
| HYH10VSO 100 | 4-bolt flange (pilot Ø 180 -0.063 mm, 8 mm depth; 200 mm bolt centers, 4-Ø22 mm holes) | 1. Splined S: 1-1/2 in 17T 12/24 DP; 2. Keyed P: Ø 40 mm (DIN 6885 A12×8×68) | SAE 1-1/4 in (ISO 6162-2 High-Pressure, 350 bar), 4-M14 × 2.0 depth 19 mm | SAE 2-1/2 in (ISO 6162-1, 10 bar), 4-M12 × 1.75 depth 17 mm | M33 × 2 (DIN 3852), 16 mm depth | X: M14 × 1.5 / G 1/4; MB: G 1/4 (DIN 3852) | Flange bolt: 450 N·m; Port B bolt: 140 N·m |
| HYH10VSO 140 | 4-bolt flange (pilot Ø 180 -0.063 mm, 8 mm depth; 200 mm bolt centers, 4-Ø22 mm holes) | 1. Splined S: 1-3/4 in 13T 8/16 DP; 2. Keyed P: Ø 45 mm (DIN 6885 A14×9×80) | SAE 1-1/4 in (ISO 6162-2 High-Pressure, 350 bar), 4-M14 × 2.0 depth 19 mm | SAE 2-1/2 in (ISO 6162-1, 10 bar), 4-M12 × 1.75 depth 17 mm | M33 × 2 (DIN 3852), 16 mm depth | X: M14 × 1.5 / G 1/4; MB: G 1/4 (DIN 3852) | Flange bolt: 450 N·m; Port B bolt: 140 N·m |
| HYH10VSO 180 | 4-bolt flange (pilot Ø 180 -0.063 mm, 8 mm depth; 200 mm bolt centers, 4-Ø22 mm holes) | 1. Splined S: 1-3/4 in 13T 8/16 DP; 2. Keyed P: Ø 45 mm (DIN 6885 A14×9×80) | SAE 1-1/4 in (ISO 6162-2 High-Pressure, 350 bar), 4-M14 × 2.0 depth 19 mm | SAE 2-1/2 in (ISO 6162-1, 10 bar), 4-M12 × 1.75 depth 17 mm | M33 × 2 (DIN 3852), 16 mm depth | X: M14 × 1.5 / G 1/4; MB: G 1/4 (DIN 3852) | Flange bolt: 450 N·m; Port B bolt: 140 N·m |
Note: Drive shaft coupling must be equipped with flexible element; radial and axial external shaft loads must remain within catalogue limits.
| Pump Installation Specifications HENGYUHANG HYH10VSO Series 32
| Comprehensive Ordering Code Structure (Aligned with RD 92714 Baureihe 32)
Code structure — reference: HYH10VS−O−Size/32−Rotation−Seals−Shaft−Flange−Port−ThroughDrive−RotaryGroup−Connector
| Position | Code Element | Description & Selection Options |
|---|---|---|
| 01 | Axial Piston Unit | HYH10VS = Swashplate axial piston variable displacement pump, nominal pressure 280 bar, peak pressure 350 bar |
| 02 | Operating Mode | O = Open circuit pump (Pumpe, offener Kreislauf) |
| 03 | Displacement Size (HYH10VSO) | 045, 071, 100, 140, 180 cm³/rev |
| 04 | Control Device | DR = Hydraulic pressure controller; DRF / DRS = Pressure and flow controller (load sensing, X-T open or plugged); DRG = Remote-controlled pressure controller; ED72 = Electrohydraulic pressure control (24 V DC, negative characteristic); ER72 = Electrohydraulic pressure control (24 V DC, positive characteristic); LA... = Power controller with pressure cut-off (LA5D, LA6D, LA7D, LA8D, LA9D, LA.DS, LA.DG, LA.S); DG = Two-point direct hydraulic control |
| 05 | Series | 32 = Series 3, Index 2 (Baureihe 32) |
| 06 | Direction of Rotation | R = Clockwise (rechts); L = Counter-clockwise (links) (viewed from shaft end) |
| 07 | Sealing Material | V = FKM / Viton fluoroelastomer (standard); C = NBR for HFC fire-resistant fluids |
| 08 | Drive Shaft | P = Cylindrical keyed shaft (DIN 6885); S = Involute splined shaft (ISO 3019-1 / ANSI B92.1a); R = Involute splined shaft (reinforced for higher drive torque) |
| 09 | Mounting Flange | B = ISO 3019-2 4-bolt flange |
| 10 | Service Line Ports | 12 = SAE flanged ports top/bottom opposite, metric threads (for through-drive N00/KBx); 22 = SAE flanged ports with universal through-drive without PCV pulsation damping; 32 = SAE flanged ports with universal through-drive with integrated PCV pulsation damping |
| 11 | Through-Drive | N00 / U00 = Without through-drive (sealed rear end cover); U01 = SAE A (82-2) hub 9T 16/32 DP; U52 = SAE A (82-2) hub 11T 16/32 DP; U68 = SAE B (101-2) hub 13T 16/32 DP; U04 = SAE B (101-2) hub 15T 16/32 DP; U07 = SAE C (127-2) hub 14T 12/24 DP; U24 = SAE C (127-2) hub 17T 12/24 DP; UB2 to UB7 = ISO 3019-2 flanged through-drives |
| 12 | Rotary Group Design | E = Standard rotary group (noise-optimized for n = 1500 / 1800 r/min); S = High-Speed rotary group |
| 13 | Connector for Solenoids | H = Hirschmann connector according to DIN EN 175301-803 without quenching diode |
| Reading Your Replacement Code
| Target Bosch Rexroth Part Code | HENGYUHANG HYH Equivalent | Interchange Verification Notes |
|---|---|---|
| A10VSO45DFR1/32R-VPB22U68E | HYH10VSO-045-DRF/32-R-V-P-B-22-U68-E | Direct 1:1 drop-in: HYH10VSO 45, load-sensing DFR/DRF control, Series 32, FKM seals, keyed shaft, SAE B through-drive |
| A10VSO71DR/32R-VSB32U00E | HYH10VSO-071-DR/32-R-V-S-B-32-U00-E | Direct 1:1 drop-in: HYH10VSO 71, DR pressure control, Series 32, splined shaft S, PCV pulsation damping port plate 32 |
| A10VSO100DRF/32R-VSB32U04E | HYH10VSO-100-DRF/32-R-V-S-B-32-U04-E | Direct 1:1 drop-in: HYH10VSO 100, DRF load-sensing, 15T splined shaft, SAE B through-drive with PCV damping |
| A10VSO140ED72/32R-VPB22U07E | HYH10VSO-140-ED72/32-R-V-P-B-22-U07-E | Direct 1:1 drop-in: HYH10VSO 140, electrohydraulic proportional pressure control (24V DC), SAE C through-drive |
| A10VSO180DR/32R-VPB32U00E | HYH10VSO-180-DR/32-R-V-P-B-32-U00-E | Direct 1:1 drop-in: HYH10VSO 180, DR pressure control, keyed shaft P, ISO 3019-2 4-bolt mount, PCV damping |
| Techspecs of HENGYUHANG HYH10VSO Series 32
| 4.1 Standard Rotary Group (Ausführung E) Technical Data Across 5 Models (from RD 92714)
| Parameter / Technical Specification | Symbol | Unit | HYH10VSO 45 | HYH10VSO 71 | HYH10VSO 100 | HYH10VSO 140 | HYH10VSO 180 |
|---|---|---|---|---|---|---|---|
| Geometric Displacement per rev | Vg max | cm³ | 45 | 71 | 100 | 140 | 180 |
| Nominal Drive Speed (at Vg max, p abs ≥ 0.8 bar) | n nom | r/min | 1,800 | 1,800 | 1,800 | 1,800* | 1,800* |
| Max. Flow Delivery (at n nom, Vg max) | qv | l/min | 81 | 128 | 180 | 252 | 324 |
| Flow Delivery at Electric Motor Speed (n = 1500 r/min) | qvE | l/min | 67.5 | 106.7 | 150 | 210 | 270 |
| Nominal Continuous Pressure | p nom | bar | 280 | 280 | 280 | 280 | 280 |
| Maximum Peak Pressure | p max | bar | 350 | 350 | 350 | 350 | 350 |
| Drive Power at n nom and Δp = 280 bar | P | kW | 38.0 | 59.7 | 84.0 | 118.0 | 151.0 |
| Drive Power at n = 1500 r/min and Δp = 280 bar | PE | kW | 31.0 | 50.0 | 70.0 | 98.0 | 125.0 |
| Drive Torque at Δp = 280 bar | M | N·m | 200 | 317 | 446 | 624 | 802 |
| Drive Torque at Δp = 100 bar | M | N·m | 72 | 113 | 159 | 223 | 286 |
| Torsional Shaft Stiffness (Keyed P) | c | N·m/rad | 34,587 | 80,627 | 132,335 | 188,406 | 213,022 |
| Torsional Shaft Stiffness (Splined S) | c | N·m/rad | 29,497 | 71,884 | 121,142 | 169,537 | 227,153 |
| Torsional Shaft Stiffness (Splined R) | c | N·m/rad | 41,025 | 76,545 | — | — | — |
| Rotary Group Moment of Inertia | J TW | kg·m² | 0.0035 | 0.0087 | 0.0185 | 0.0276 | 0.0330 |
| Maximum Angular Acceleration | α | rad/s² | 4,000 | 2,900 | 2,400 | 2,000 | 2,000 |
| Case Fluid Filling Volume | V | l | 1.0 | 1.6 | 2.2 | 3.0 | 2.7 |
| Pump Weight (with Through-Drive 22/32) | m | kg | 32.6 | 51.8 | 76.0 | 90.2 | 89.4 |
*Note: HYH10VSO 140 and HYH10VSO 180 nominal speed specified at absolute inlet pressure p abs ≥ 1.0 bar.
| 4.2 High-Speed Rotary Group (Ausführung S) Speed & Power Limits (from RD 92714)
| Parameter / Model | Unit | HYH10VSO 45 | HYH10VSO 71 | HYH10VSO 100 | HYH10VSO 140 |
|---|---|---|---|---|---|
| Max. High-Speed Limit (n nom at Vg max) | r/min | 3,000 | 2,550 | 2,300 | 2,200 |
| Max. Flow Delivery at High Speed | l/min | 135 | 181 | 230 | 308 |
| Drive Power at High Speed (Δp = 280 bar) | kW | 62.8 | 85.0 | 107.0 | 144.0 |
| 4.3 General Operating Conditions & Fluid Compatibility (Aligned with RD 92714)
| Parameter | Permissible Operating Limits | Optimal Recommended Target |
|---|---|---|
| Operating Hydraulic Fluid | Mineral oil HLP according to DIN 51524 (HF fluids compliant with RD 90225) | Anti-wear premium hydraulic mineral oil |
| Kinematic Viscosity (Continuous) | ν = 10 to 400 mm²/s (cSt) | ν opt = 16 to 36 mm²/s (cSt) |
| Cold Start Viscosity | ν max ≤ 1600 mm²/s (t ≤ 3 min, p ≤ 50 bar, n ≤ 1000 rpm) | System pre-warming recommended |
| Short-Term Viscosity Limit | ν min = 7 to 10 mm²/s (t ≤ 3 min, p ≤ 0.3 × p nom) | Measured at case drain port L, L1 |
| Operating Temperature Range | Standard FKM seals: -25 °C to +110 °C (-13 °F to +230 °F) | +30 °C to +65 °C (+86 °F to +149 °F) |
| Inlet Suction Pressure (Port S) | Standard: p s min ≥ 0.8 bar abs; High-Speed: p s min ≥ 1.0 bar abs; Max p s max = 10 bar | Positive head or vacuum < 0.2 bar |
| Case Drain Pressure (Port L, L1) | Maximum continuous p L max = 2.0 bar absolute (0.5 bar above inlet port S) | Direct unrestricted line to oil reservoir |
| Fluid Cleanliness Requirement | ISO 4406 Class 20/18/15 (NAS 1638 Class 9) | Cleanliness ISO 19/17/14 recommended |
Advantages
Optimized Swashplate Rotary Group Efficiency
Engineered with hydrostatically balanced slipper-pad retention, micro-finished barrel faces, and low-friction cradle bearings, achieving overall total operating efficiency exceeding 91–93%.
Significant Pressure Pulsation Reduction (Integrated PCV)
Built-in pre-compression volume (PCV) in Port Plate 32 dynamically counteracts pressure overshoot and cavitation during cylinder chamber pre-compression, reducing hydraulic line ripple by up to 50% and dramatically cutting machine noise.
Continuous High-Pressure Rating up to 280 bar (Peak 350 bar)
High-integrity ductile cast iron body structure eliminates housing distortion under severe cyclic hydraulic loading.
Comprehensive Modular Control Systems
Supports precision hydraulic pressure cut-off (DR), load-sensing flow regulation (DRF/DRS), remote pilot pressure control (DRG), electrohydraulic proportional control (ED72/ER72), and multi-mode power limiting (LA...).
Universal 100% Through-Drive Architecture
Fully rated through-drive capability allows primary drive power to be transferred 100% to secondary pumps (SAE A, B, C, or ISO auxiliary gear or piston pumps) for compact multi-circuit power packs.
1:1 Direct Drop-In Replacement for Rexroth Series 32
Identical ISO 3019-2 4-bolt mounting flange spigots, drive shaft centerlines, SAE port dimensions, and controller mounting geometry guarantee direct mechanical interchangeability without engineering modifications.
Reference
Displacement & Control Configuration Matrix
Models Available: HYH10VSO 45, HYH10VSO 71, HYH10VSO 100, HYH10VSO 140, HYH10VSO 180 (displacement 45 to 180 cm³/rev).
Controller Architectures:
DR / DRG: Constant pressure regulation / remote proportional pilot control.
DRF / DRS: Dynamic load-sensing flow matching with integrated pressure limiter.
ED72 / ER72: 24V DC proportional solenoid control for automated PLC closed-loop systems.
LA5D to LA9D / LA.DS: Hyperbolic constant power limiting with pressure cut-off and load-sensing override.
Mounting Standards: ISO 3019-2 4-bolt flange with ISO / SAE through-drive auxiliary adapters.
Target Brand Interchangeability Matrix
The HENGYUHANG HYH10VSO Series 32 delivers verified 1:1 drop-in replacement across the complete Bosch Rexroth A10VSO Series 32 portfolio:
Bosch Rexroth A10VSO45 Series 32 → HYH10VSO-045/32 (all control, shaft, and port variants)
Bosch Rexroth A10VSO71 Series 32 → HYH10VSO-071/32 (all control, shaft, and port variants)
Bosch Rexroth A10VSO100 Series 32 → HYH10VSO-100/32 (all control, shaft, and port variants)
Bosch Rexroth A10VSO140 Series 32 → HYH10VSO-140/32 (all control, shaft, and port variants)
Bosch Rexroth A10VSO180 Series 32 → HYH10VSO-180/32 (all control, shaft, and port variants)
Brand Replacement
The HENGYUHANG HYH10VSO Series 32 is specifically manufactured as a high-precision 1:1 drop-in replacement for the Bosch Rexroth A10VSO Series 32 axial piston variable displacement pump family. Every pump is dynamically calibrated on our automated computerized test benches to mirror Rexroth factory performance curves across control hysteresis, pressure response time (<50 ms), flow repeatability, and volumetric efficiency (>92%). Utilizing standardized ISO 3019-2 4-bolt mounting pilots (Ø125, Ø160, Ø180 mm), metric-threaded SAE flange ports, and matching drive shaft splines (ANSI B92.1a / DIN 6885), HYH10VSO Series 32 units mount directly into existing machinery without bell-housing modifications, piping rework, or control re-tuning. Equipment builders, distributors, and maintenance facilities benefit from seamless interchangeability, shorter delivery lead times, and lower total ownership costs.
Applications
Plastic & Rubber Machinery: Servo and proportional hydraulic power units for injection molding machines, extrusion presses, and blow molding systems.
Metal Forming & Stamping Presses: Deep-drawing hydraulic presses, CNC press brakes, shearing machines, and punching lines requiring rapid pressure build-up and stable holding.
Machine Tools & Automation: Centralized hydraulic power packs for CNC machining centers, automated transfer fixtures, and clamping systems.
Mining & Metallurgy: Steel mill auxiliary circuits, continuous casting equipment, furnace tilt drives, and underground mining support systems.
Marine & Offshore Deck Machinery: Mooring winches, anchor windlasses, crane slew drives, and steering gear systems requiring heavy-duty 280/350 bar continuous power.
Package & Shipping
| Packaging Construction | Heavy-duty export fumigation-free wooden case with custom-molded shock-absorbing internal positioning cradles |
|---|---|
| Corrosion Protection | Internal factory testing oil preservation, external anti-rust oil coating, and vapor corrosion inhibitor (VCI) sealed plastic barrier |
| Port & Shaft Protection | Heavy-duty threaded steel/plastic port blanking plugs and precision protective plastic shaft sleeves |
| Package Dimensions | Approx. 450 × 320 × 300 mm (HYH10VSO 45/71) up to 680 × 420 × 400 mm (HYH10VSO 140/180) |
| Gross Weight | Approx. 38 kg (HYH10VSO 45) up to 98 kg (HYH10VSO 140/180) |
| Standard Lead Time | 3 – 5 business days for stocked configurations; 15 – 25 business days for volume OEM production batches |
| Global Shipping Options | Air express (DHL / FedEx / UPS / TNT) for urgent maintenance downtime; Ocean FCL/LCL or Air cargo for commercial orders |
| Custom Documentation | Mill test certificates, factory dynamic performance test graphs, and customized private-label nameplates supported |
Why Choose Hengyuhang?
Direct Factory Precision Manufacturing & CNC Excellence: Manufactured in our state-of-the-art production facility equipped with high-precision 4-axis and 5-axis CNC machining centers, automated gear hobbing, and CNC gear tooth profile grinding (Ra < 0.2 μm) to ensure superior surface finish, ultra-tight internal clearances, and maximum volumetric efficiency.
100% Full-Cycle Multi-Parameter Factory Inspection: Every single pump undergoes computerized testing before packaging, verifying flow rate at rated speed, volumetric efficiency (>91–93%), mechanical efficiency, continuous and peak pressure hold, internal bypass, and noise spectrum. Zero untested units leave the factory.
Seamless 1:1 OEM Drop-In Interchangeability: Dimensionally matched to European, SAE, and DIN standards, providing 1:1 direct mechanical interchangeability across premier global brands (Bosch Rexroth, Parker, Danfoss, etc.) with zero mounting modifications required.
Flexible Engineering Customization & Rapid Prototyping: Supported by a senior fluid power engineering team, offering custom displacement combinations, specialized shaft tapers, splines, integrated priority or relief valves, and non-standard port orientations with rapid sample prototyping and low MOQ requirements.
Robust Supply Chain, Extensive Inventory & Fast Global Dispatch: Extensive raw material stock of high-grade ductile cast iron castings, alloy steel gear sets, and bearing assemblies enables rapid assembly and 48–72 hour dispatch for emergency breakdown replacements, supported by complete export logistics.
12-Month Comprehensive Warranty & Lifetime Technical Support: All pumps are backed by a comprehensive 12-month manufacturer warranty against defects in materials and workmanship, supplemented by 24/7 engineering consultation, CAD drawing verification, and lifecycle technical assistance.
