PV7-1X Adjustable vane pump, pilot-operated|Vane Pump|Products|HENGYUHANG Power Technology Co., LTD

Vane Pump

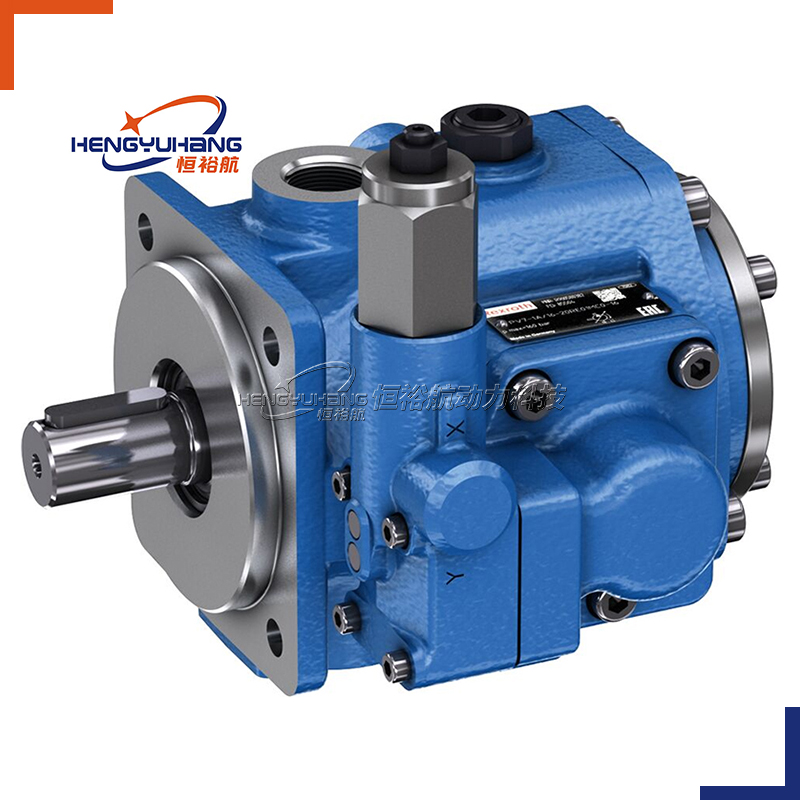

PV7-1X Adjustable vane pump, pilot-operated

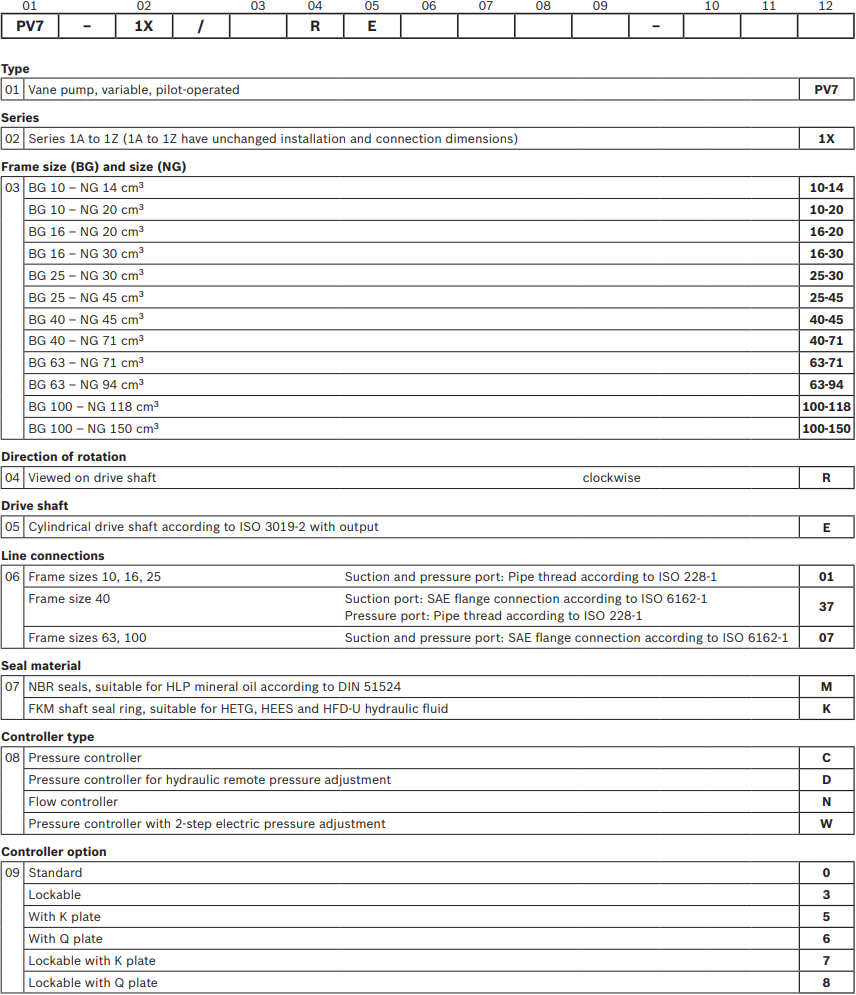

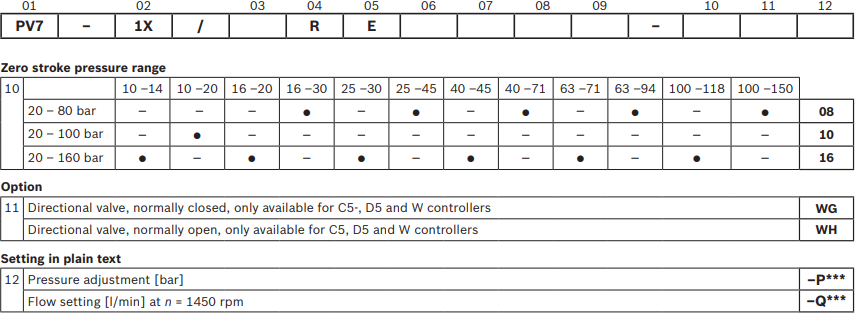

HENGYUHANG High-pressure variable hydraulic vane pumps PV7-1X/10-14 PV7-1X/10-20 PV7-1X/16-20 PV7-1X/16-30 PV7-1X/25-30 PV7-1X/25-45 PV7-1X/40-45 PV7-1X/40-71 PV7-1X/63-71 PV7-1X/63-94 PV7-1X/100-118 PV7-1X/100-150 for Excavators, cranes, machine tools, etc.

Technical Information

▶ Size 14 to 150

▶ Component series 1X

▶ Maximum operating pressure 160 bar

▶ Maximum flow 270 l/min

Features

▶ Variable displacement

▶ Low operating noise

▶ Extended bearing life cycle thanks to hydrodynamically lubricated plain bearings

▶ Pressure and flow can be controlled

▶ Low hysteresis

▶ Very low control up times and down control times

▶ Mounting dimensions according to ISO 3019-2.

▶ Connection dimensions according to ISO 6162-1 and ISO 228-1

▶ Suitable for HLP, HETG, HEES and HFD-U hydraulic fluids

▶ Standard Series PV7 single pumps can be combined with multiple pumps as well as internal gear, external gear, axial piston and radial piston pumps.

▶ Used for drives in continuous operation with variable flow requirement and a high share in the pressure holding function, e.g.: – machine tools – hydrostatic bearings – constant pressure systems

Description

HENGYUHANG Company is a set design, production, sales in one of the hydraulic components production company, the company has advanced hydraulic components manufacturing technology and technology, the use of high-precision equipment CNC machining center, gear hot processing automatic production line, , automatic heat treatment multi-purpose furnace, single-piece flow assembly line, automatic hydraulic pump performance test bench. Intelligent equipment adopts automatic unmanned production, and realizes online measurement to ensure product consistency and reliability, intelligent system uses ERP, MES management software, improve production efficiency, and achieve product traceability.

HENGYUHANG Power Technology produces and sells external Vane pumps, hydraulic synchronous motors, multi-pump units, piston pumps with built-in valves, and custom valve blocks. Meanwhile, according to the specific needs of customers, we provide a variety of products with special specifications. And it can also be used as a substitute for other products (such as Rexroth, Danfoss, Eaton, Vickers，MARZOCCHI, Parker, RONZIO, Atos, Buchet, ECKERLE, CONCENTRIC, HYADC, JIHOSTROJ, Hydraulic, SDH, VIVOLO, ARGO-HYTOS, HESPER, HPLPA, HPI, DUPLOMATIC, ROQUET, BODEN,PERMCOP, Caproni, DUPLOMATIC, HIDRAULICA, SETTIMA, SALAMI, HONOR, SHIMADZU, GRH, Brevini, Galtech, BONDIOLI, REXROTH-SIGMA, BLUEASCEND, RISUNY, SUMITOMO, HYDROMAX, SCENERY, REXPOWER, CML, HOERBIGER, SUNNY, HYTEK, Hydro-pack, )

HENGYUHANG also sells a wide range of other international brands of hydraulic pumps, hydraulic valves, hydraulic motors, hydraulic cylinders, hydraulic oil seals, hydraulic equipment and accessories, and has high-quality overseas ordering channels

HENGYUHANG products are mainly used in the supporting services of industries such as automobiles, construction machinery, agricultural machinery, aerial work platforms, hydraulic systems, logistics handling vehicles, new energy vehicles, metallurgical machinery, petroleum machinery, machine tools, and wind powe
