Vane Pump

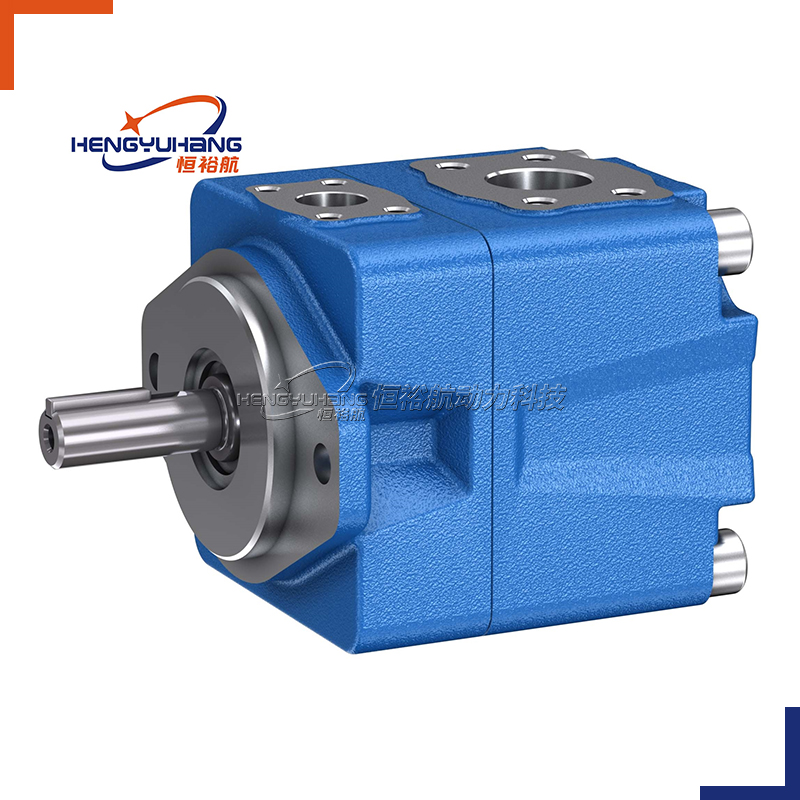

PVH Fixed displacement vane pump

HENGYUHANG PVH1-1X/016 PVH1-1X/020 PVH1-1X/023 PVH1-1X/025 PVH1-1X/028 PVH1-1X/032 PVH1-1X/035 PVH2-1X/016 PVH2-1X/020P VH2-1X/023 PVH2-1X/025 PVH2-1X/028 PVH2-1X/032 PVH2-1X/035 PVH2-1X/041 PVH2-1X/045 PVH2-1X/050 PVH2-1X/058 PVH2-1X/064 PVH2-1X/070 PVH2-1X079 hydraulic vane pump Applied to industrial equipment, construction machinery, ships and energy


▶ Fixed displacement

▶ Frame sizes 1 and 2

▶ Sizes 16 to 79

▶ Nominal pressure 290 bar

▶ Peak pressure 320 bar

▶ Displacement volume 16 to 79 cm3


Features

▶ High bearing life due to hydraulically-balanced drive shaft

▶ Low wear due to hydraulically-balanced vanes

▶ Low operating noise

▶ Easy to service thanks to exchangeable pump cartridges

▶ Good efficiency level

▶ Position of the suction port selectable

▶ Clockwise and counter-clockwise drive rotation

▶ Drive shaft either cylindrical or splined

▶ Use: For drives with high working pressure, for example, press brakes

Description

HENGYUHANG Company  is a set design, production, sales in one of the hydraulic components production company, the company has advanced hydraulic components manufacturing technology and technology, the use of high-precision equipment CNC machining center, gear hot processing automatic production line, , automatic heat treatment multi-purpose furnace, single-piece flow assembly line, automatic hydraulic pump performance test bench.          Intelligent equipment adopts automatic unmanned production, and realizes online measurement to ensure product consistency and reliability, intelligent system uses ERP, MES management software, improve production efficiency, and achieve product traceability.

HENGYUHANG Power Technology produces and sells external Vane pumps, hydraulic synchronous motors, multi-pump units, piston pumps with built-in valves, and custom valve blocks.       Meanwhile, according to the specific needs of customers, we provide a variety of products with special specifications.       And it can also be used as a substitute for other products (such as Rexroth, Danfoss, Eaton, Vickers,MARZOCCHI, Parker, RONZIO, Atos, Buchet, ECKERLE, CONCENTRIC, HYADC, JIHOSTROJ, Hydraulic, SDH, VIVOLO, ARGO-HYTOS, HESPER,   HPLPA, HPI, DUPLOMATIC, ROQUET, BODEN,PERMCOP, Caproni, DUPLOMATIC, HIDRAULICA, SETTIMA, SALAMI, HONOR, SHIMADZU, GRH, Brevini, Galtech, BONDIOLI, REXROTH-SIGMA, BLUEASCEND, RISUNY, SUMITOMO, HYDROMAX, SCENERY, REXPOWER, CML, HOERBIGER, SUNNY, HYTEK, Hydro-pack, )

HENGYUHANG also sells a wide range of other international brands of hydraulic pumps, hydraulic valves, hydraulic motors, hydraulic cylinders, hydraulic oil seals, hydraulic equipment and accessories, and has high-quality overseas ordering channels

HENGYUHANG products are mainly used in the supporting services of industries such as automobiles, construction machinery, agricultural machinery, aerial work platforms, hydraulic systems, logistics handling vehicles, new energy vehicles, metallurgical machinery, petroleum machinery, machine tools, and wind powe

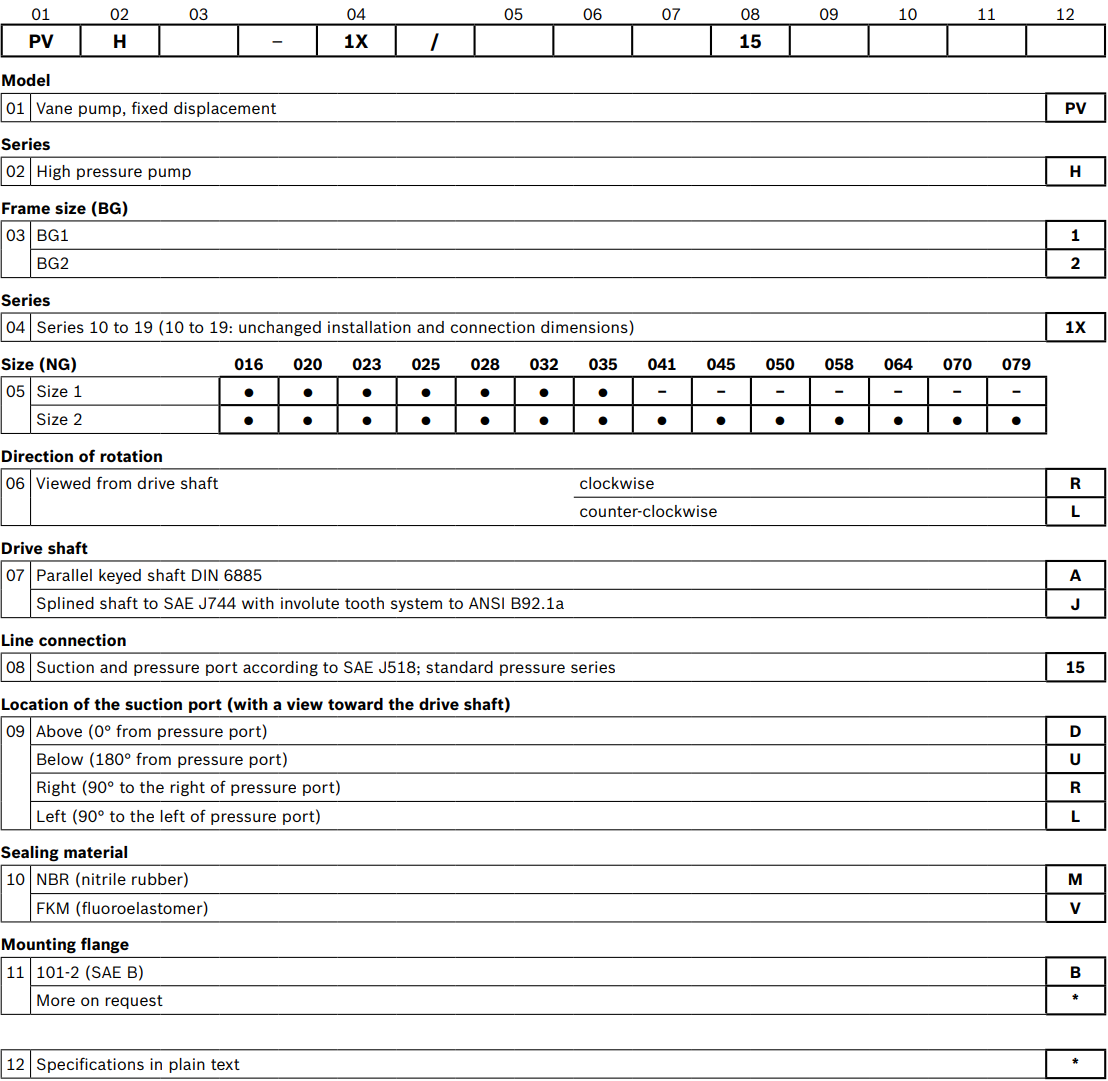

Model                                    Material number

PVH1-1X/028RA15UMB        R901416797

PVH2-1X/035RA15UMB        R901416798

PVH2-1X/045RA15UMB        R901416799

PVH2-1X/058RA15UMB        R901416800

PVH2-1X/070RA15UMB        R901416801
