Vane Pump

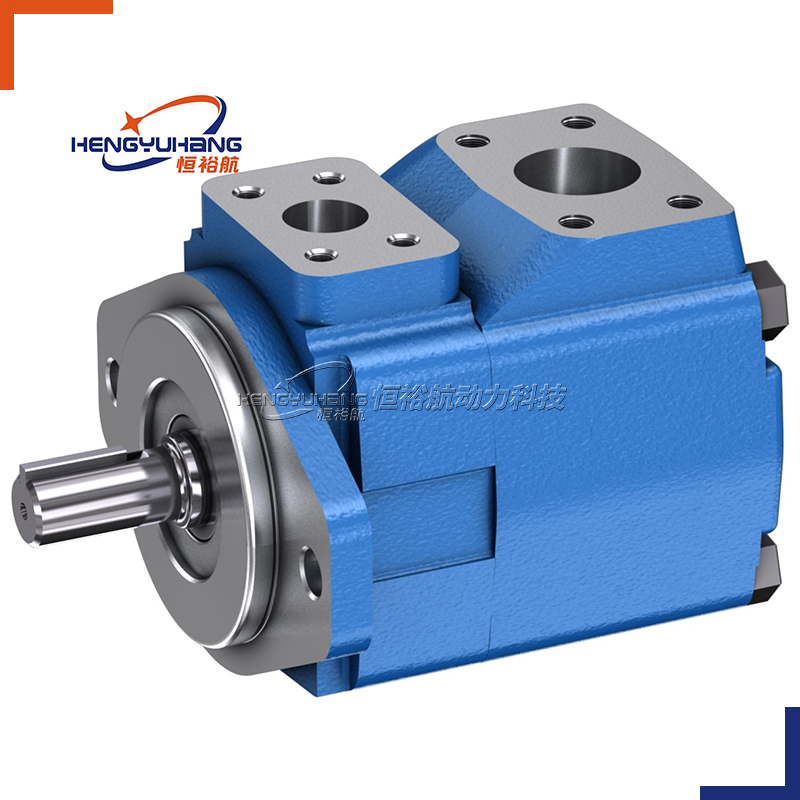

PVV Fixed displacement vane pumps

HENGYUHANG High pressure and low noise Hydraulic Vane pumps PVV1-1X PVV2-1X PVV4-1X PVV5-1X for Injection molding machines, press machines, excavators, machine tools and other mechanical equipment.

Technical Information

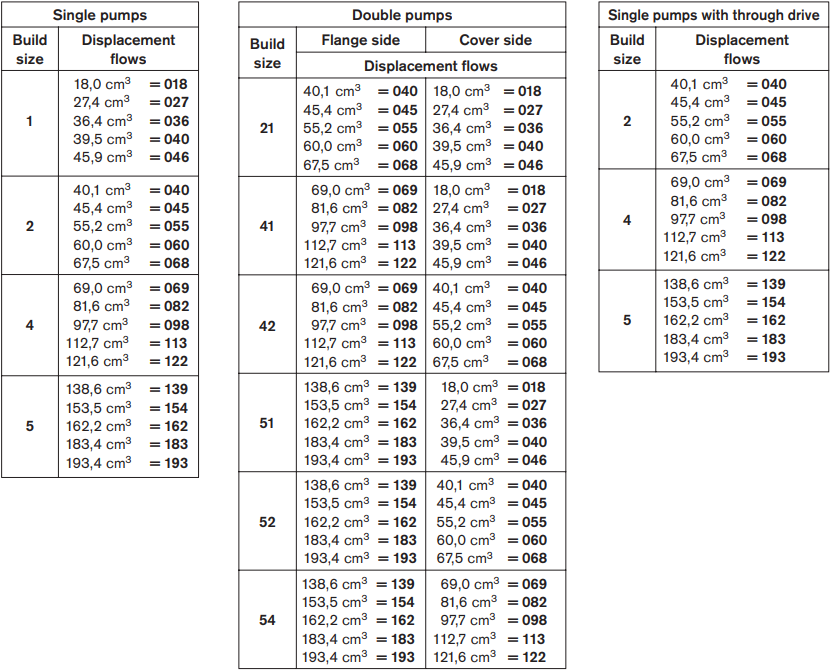

Nominal sizes 18 to 193

Series 1X

Maximum operating pressure 210 bar

Maximum displacement 18 to 193 cm3

Features

– Fixed displacement

– Long bearing life due to hydraulically unloaded shaft

– Low wear due hydraulically unloaded vanes

– Low operating noise

– Easy to service due to exchangable pump cartridges

– Good efficiency

– Optional positioning of the pressure connection

– Clockwise or anti-clockwise direction of rotation

– Drive shaft optionally; cylinderical or splined

Double pump:

– Very compact design

– The position of the pressure connections can be individually selected

Description

HENGYUHANG Company is a set design, production, sales in one of the hydraulic components production company, the company has advanced hydraulic components manufacturing technology and technology, the use of high-precision equipment CNC machining center, gear hot processing automatic production line, , automatic heat treatment multi-purpose furnace, single-piece flow assembly line, automatic hydraulic pump performance test bench. Intelligent equipment adopts automatic unmanned production, and realizes online measurement to ensure product consistency and reliability, intelligent system uses ERP, MES management software, improve production efficiency, and achieve product traceability.

HENGYUHANG Power Technology produces and sells external Vane pumps, hydraulic synchronous motors, multi-pump units, piston pumps with built-in valves, and custom valve blocks. Meanwhile, according to the specific needs of customers, we provide a variety of products with special specifications. And it can also be used as a substitute for other products (such as Rexroth, Danfoss, Eaton, Vickers，MARZOCCHI, Parker, RONZIO, Atos, Buchet, ECKERLE, CONCENTRIC, HYADC, JIHOSTROJ, Hydraulic, SDH, VIVOLO, ARGO-HYTOS, HESPER, HPLPA, HPI, DUPLOMATIC, ROQUET, BODEN,PERMCOP, Caproni, DUPLOMATIC, HIDRAULICA, SETTIMA, SALAMI, HONOR, SHIMADZU, GRH, Brevini, Galtech, BONDIOLI, REXROTH-SIGMA, BLUEASCEND, RISUNY, SUMITOMO, HYDROMAX, SCENERY, REXPOWER, CML, HOERBIGER, SUNNY, HYTEK, Hydro-pack, )

HENGYUHANG also sells a wide range of other international brands of hydraulic pumps, hydraulic valves, hydraulic motors, hydraulic cylinders, hydraulic oil seals, hydraulic equipment and accessories, and has high-quality overseas ordering channels

HENGYUHANG products are mainly used in the supporting services of industries such as automobiles, construction machinery, agricultural machinery, aerial work platforms, hydraulic systems, logistics handling vehicles, new energy vehicles, metallurgical machinery, petroleum machinery, machine tools, and wind powe

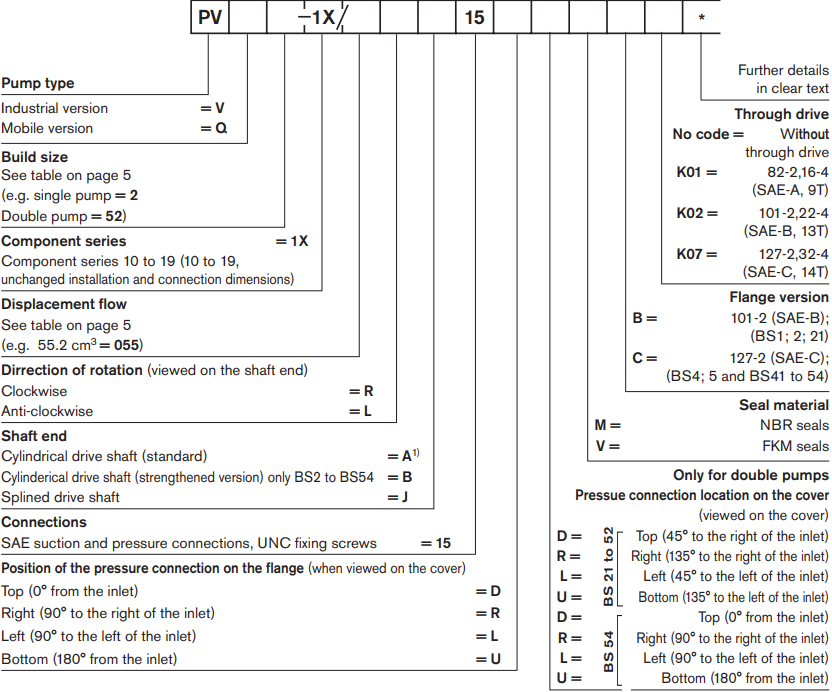

Single pump：

PVV 2-1X/055RA15DMB

Doble pump:

PVV 52-1X/154-068RB15DDMC
