Gear pump
External Gear Pump . Group 2PDF 4CC-30CC SAE A 2-bolt oval flange series
Hengyuhang External Gear Pump Group 2PDF is a robust positive displacement gear pump designed to deliver high volumetric efficiency and stable fluid power under demanding industrial and mobile operating pressures.
| Applications of Hengyuhang External Gear Pump Group 2PDF
This external gear pump is engineered for heavy-duty fluid transfer and hydraulic circuit pressurization across industrial manufacturing, agricultural machinery, and mobile hydraulic systems. It powers auxiliary functions, steering circuits, and drive mechanisms in equipment operating under continuous high loads and severe environmental conditions.
| Key Technical Specifications
Product Model: Hengyuhang External Gear Pump Group 2PDF
Brand Replacement: CASAPPA, Rexroth, Marzocchi, Parker OEM or as requested.
Displacement: 4 to 30 cm³/rev
Rotation Direction: Clockwise (D), counter-clockwise (S), reversible (R)
Speed Range: Min. speed 500 to 700 r/min; Max. speed 3000 to 4000 r/min
Peak Pressure: 250 to 300 bar
| Overview of HENGYUHANG Group 2PDF External Gear Pumps
The HENGYUHANG Group 2PDF series represents heavy-duty industrial external gear pump engineering, delivering outstanding pressure handling, high volumetric efficiency, and prolonged service longevity across a versatile displacement envelope from 4.0 up to 30.0 cm³/rev. Specifically developed for universal replacement and custom OEM integration, the 2PDF platform conforms to standard Group 2 dimensional envelopes while providing enhanced pressure margins and structural robustness suitable for demanding continuous-duty hydraulic circuits.
Constructed using a high-density extruded aircraft-grade aluminum alloy gear casing paired with high-tensile spheroidal ductile cast-iron or aluminum front mounting flanges and rear end-covers, the pump resists housing barrel dilation and mechanical fatigue under severe cyclic shock pressures. The internal pumping core features hardened and micro-finished alloy steel gear sets supported by high-load hydrodynamic composite DU/PTFE sleeve bushings continuously bathed in hydraulic fluid. Floating hydrostatic thrust balance plates automatically compensate for axial wear and thermal clearance shifts, sustaining volumetric efficiencies above 94% and minimizing operating noise across mobile machinery cab environments and industrial manufacturing facilities.

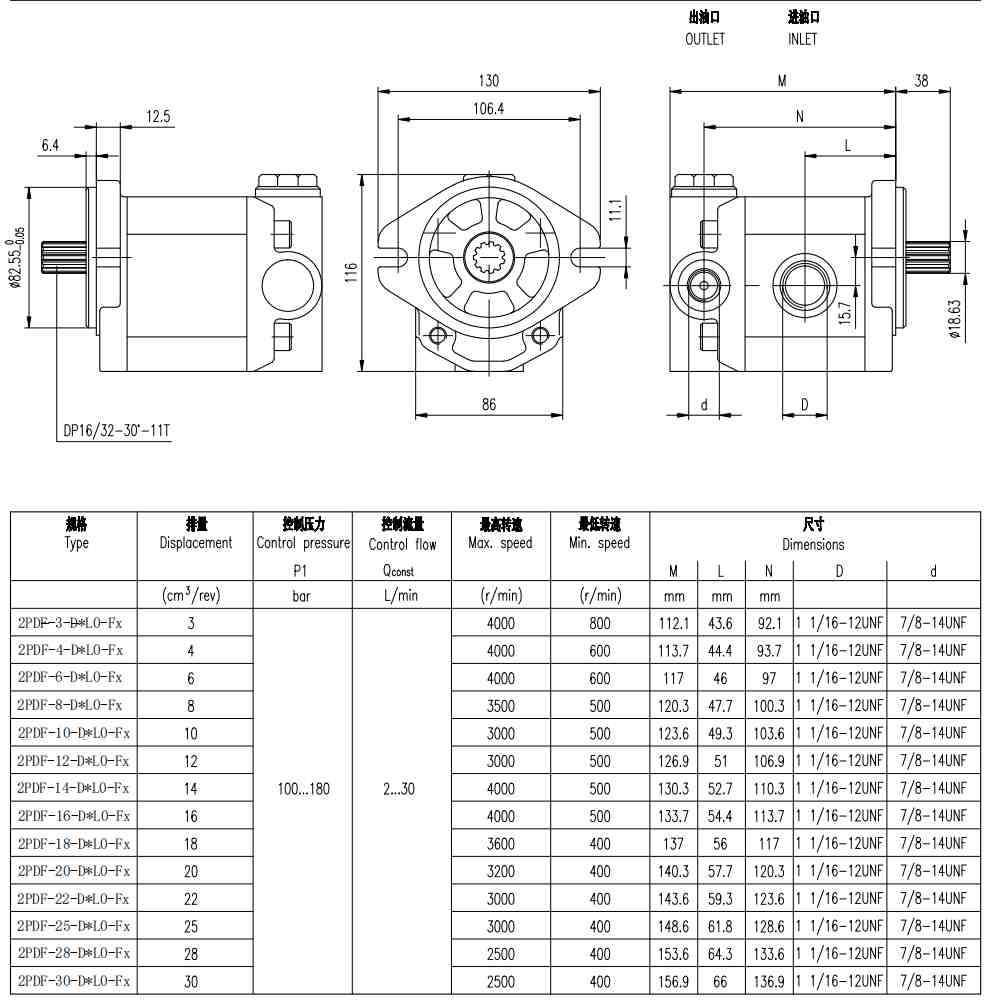

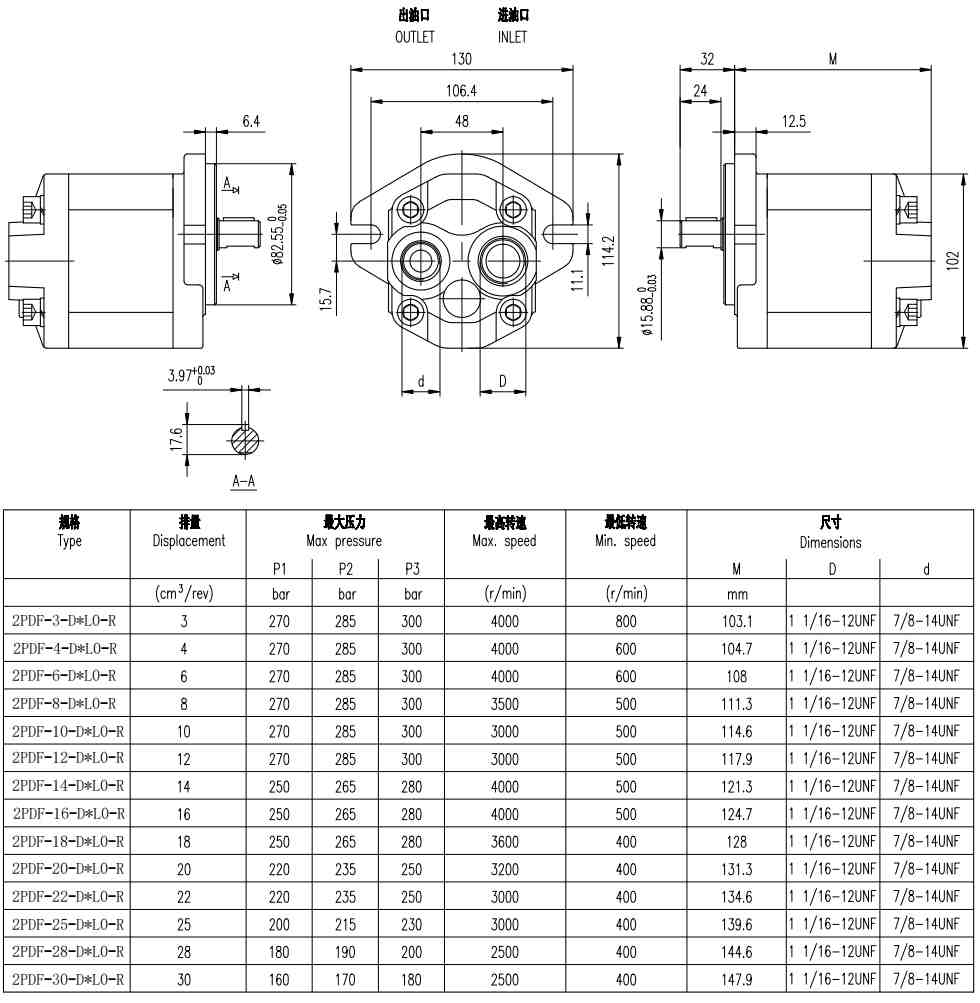

| Dimension of HENGYUHANG Group 2PDF External Gear Pumps
Interface data needed with the drawing:
| Item | Value |
|---|---|
| Mounting flange | Standard European 4-bolt rectangular flange (pilot Ø 36.5 mm or Ø 50.8 mm) / SAE "A" 2-bolt flange (pilot Ø 82.55 mm / 3.25 in) / German 4-bolt flange / Italian 4-bolt flange |
| Drive shaft | 1:8 European taper shaft with woodruff key / Cylindrical keyed shaft (Ø 15.87 mm, Ø 19.05 mm, or Ø 20.0 mm) / Involute splined shaft (DIN 5482 B17x14 or SAE 9T / 11T spline) |
| Outboard bearing | Standard without outboard bearing (direct bell-housing coupling engagement) / Heavy-duty front radial/axial bearing support available for belt/pulley drives |
| Rotation | Clockwise (D) or Anti-clockwise (S), looking at the drive shaft end (Bi-directional reversible rotation available upon request) |
| Ports position | Side-positioned ports (L) on body / Rear-cover ports (P) for compact manifold blocks |
| Inlet Port | European standard 4-bolt diamond flange (M8 bolts, Ø 20.0 mm or Ø 27.0 mm) / G 3/4" or G 1" BSPP thread / 1-1/16-12 UN SAE O-ring boss |
| Outlet Port | European standard 4-bolt diamond flange (M6/M8 bolts, Ø 15.0 mm or Ø 20.0 mm) / G 1/2" or G 3/4" BSPP thread / 7/8-14 UNF SAE O-ring boss |
| Seals | N — Buna-N (NBR) elastomeric seals (-20 °C to +85 °C) standard; Viton (FKM) available for high-temperature hydraulic fluids (-15 °C to +110 °C) |
| Body construction | High-tensile extruded aluminum alloy body with ductile cast-iron or aluminum front mounting flange and rear cover |
| Flange bolt tightening torque | 45 ±3 Nm (398 ÷ 425 lbf in) |
| Body tie-rod clamp bolt torque | 60 ±4 Nm (496 ÷ 566 lbf in) |
| Pump Installation Specifications HENGYUHANG Group 2PDF Series
The HENGYUHANG Group 2PDF pump utilizes a structured modular ordering and specification code to ensure precise mechanical, hydraulic, and mounting interchangeability:
Code structure — reference: 2PDF — Group 2 High-Pressure External Gear Pump Series
| Segment | Meaning | Standard Options & Features |
|---|---|---|
| Series | 2PDF | Group 2 high-pressure external gear pump architecture (4.0 to 30.0 cm³/rev) |
| Displacement | 4.0 to 30.0 | Geometric displacement in cm³/rev (4.0, 6.0, 8.5, 11.0, 14.0, 16.5, 19.5, 22.5, 26.0, 30.0) |
| Rotation | D / S / R | D: Clockwise; S: Anti-clockwise; R: Reversible / Bi-directional |
| Outboard Bearing | 0 / 1 | 0: Standard without front bearing; 1: With heavy-duty front radial/axial support bearing |
| Drive Shaft | T1 / C1 / S1 | T1: 1:8 European taper shaft with woodruff key; C1: Ø 19.05 mm cylindrical keyed shaft; S1: DIN 5482 B17x14 spline |
| Mounting Flange | E2 / A2 / G2 | E2: European 4-bolt rectangular flange (pilot Ø 36.5 mm); A2: SAE "A" 2-bolt flange; G2: German 4-bolt flange |
| Ports Code | L / P | L: Side flanged/threaded body ports; P: Rear cover threaded ports |
| Inlet / Outlet | F2 / G2 / U2 | F2: European 4-bolt diamond flange; G2: BSPP cylindrical thread; U2: SAE straight thread O-ring boss |
| Seals | N / V | N: Buna-N (NBR) standard; V: Viton (FKM) high-temperature seals |
| Special Features | RV / ST | RV: Integrated internal pressure relief valve; ST: Customized OEM body configuration |
| Reading your replacement code
| Your Target Brand & Model | HENGYUHANG 2PDF Drop-In Equivalent | Interchange Verification Notes |
|---|---|---|
| CASAPPA POLARIS PLP20 / 2PDF | HENGYUHANG 2PDF Series (4.0 to 30.0) | Identical European 4-bolt flange, shaft taper, and port centerline dimensions |
| Bosch Rexroth AZPF Group 2 | HENGYUHANG 2PDF Series | 100% mounting pilot, shaft woodruff key, and continuous pressure rating match |
| MARZOCCHI 2P / ALP2 / GHP2 Series | HENGYUHANG 2PDF Series | Direct mechanical envelope match; identical inlet/outlet flange drillings |
| PARKER PGP511 / PGP517 Series | HENGYUHANG 2PDF Series | Full hydraulic flow compatibility, SAE "A" and European spigot interchange |
| DANFOSS / Turolla Group 2 (SNP2) | HENGYUHANG 2PDF Series | Seamless drop-in fit for tractor implement circuits and industrial HPUs |
| VIVOLO (Vivoil) X2P / XV-2P Series | HENGYUHANG 2PDF Series | Direct interchange on shaft, flange, and side European diamond flanged ports |
| SALAMI 2PB / 2PE Series | HENGYUHANG 2PDF Series | Identical bolt hole pattern and gear journal high-pressure ratings |
| BUCHER Hydraulics AP212 Series | HENGYUHANG 2PDF Series | Direct mounting fit for industrial machine tool clamping and lifting loops |
Techspecs — HENGYUHANG Group 2PDF Series
Performance Data Across Displacements
| Model Code | Displacement (cm³/rev) | Displacement (in³/rev) | Continuous Pressure p1 (bar / psi) | Intermittent Pressure p2 (bar / psi) | Peak Pressure p3 (bar / psi) | Min. Speed (r/min) | Max. Speed (r/min) | Flow at 1500 r/min (l/min) |
|---|---|---|---|---|---|---|---|---|
| 2PDF-04 | 4.00 | 0.244 | 250 / 3,625 | 275 / 3,988 | 300 / 4,350 | 700 | 4,000 | 6.00 |
| 2PDF-06 | 6.00 | 0.366 | 250 / 3,625 | 275 / 3,988 | 300 / 4,350 | 700 | 4,000 | 9.00 |
| 2PDF-08 | 8.50 | 0.518 | 250 / 3,625 | 275 / 3,988 | 300 / 4,350 | 700 | 3,800 | 12.75 |
| 2PDF-11 | 11.00 | 0.671 | 250 / 3,625 | 275 / 3,988 | 300 / 4,350 | 600 | 3,800 | 16.50 |
| 2PDF-14 | 14.00 | 0.854 | 250 / 3,625 | 275 / 3,988 | 300 / 4,350 | 600 | 3,500 | 21.00 |
| 2PDF-16 | 16.50 | 1.006 | 230 / 3,335 | 255 / 3,698 | 280 / 4,060 | 600 | 3,500 | 24.75 |
| 2PDF-19 | 19.50 | 1.189 | 210 / 3,045 | 235 / 3,408 | 260 / 3,770 | 500 | 3,200 | 29.25 |
| 2PDF-22 | 22.50 | 1.372 | 200 / 2,900 | 225 / 3,263 | 250 / 3,625 | 500 | 3,000 | 33.75 |
| 2PDF-26 | 26.00 | 1.586 | 180 / 2,610 | 205 / 2,973 | 230 / 3,335 | 500 | 3,000 | 39.00 |
| 2PDF-30 | 30.00 | 1.830 | 170 / 2,465 | 190 / 2,755 | 210 / 3,045 | 500 | 2,800 | 45.00 |
Operating Conditions & Fluid Compatibility
| Operating Parameter | Specification | Recommendation & Limits |
|---|---|---|
| Hydraulic fluid type | Mineral oil-based hydraulic fluids | HL or HLP hydraulic oils to ISO 6743/4; DIN 51524 Class 1 and 2 |
| Fluid operating viscosity | 12 to 100 mm²/s (cSt) | Optimal operating viscosity range: 20 to 80 mm²/s (cSt) |
| Max. cold starting viscosity | Up to 1,000 mm²/s (cSt) | Short duration cold start at low speed without excessive load |
| Fluid operating temperature | -20 °C to +85 °C (-4 °F to +185 °F) | Standard NBR seals; Viton (FKM) seals required for +85 °C to +110 °C |
| Inlet suction line pressure | 0.7 to 3.0 bar absolute (10 to 44 psia) | Minimum suction line absolute pressure 0.7 bar (avoid cavitation) |
| Fluid cleanliness level | Class 20/18/15 to ISO 4406 | Recommended filtration: β25 ≥ 75 on return/suction circuit |
Advantages — HENGYUHANG Group 2PDF Series
Direct OEM Drop-In Interchangeability
Manufactured to exact international dimensional standards, shaft tapers, European 4-bolt rectangular patterns, SAE "A" flanges, and port centerlines, enabling seamless 1:1 drop-in replacement across 39 leading global manufacturers.
High Continuous Pressure Resilience
Engineered with an extruded high-strength aluminum alloy casing and heavy-duty ductile cast-iron mounting flanges, preventing casing barrel distortion under continuous pressures up to 250 bar (3,625 psi).
Outstanding Volumetric Efficiency (>94%)
Hydrostatic floating pressure balance thrust plates automatically compensate for wear and thermal clearance changes, sustaining peak flow output and minimizing internal slip over thousands of operating hours.
Low Acoustic Emission & Pulsation
Precision-shaved, case-hardened alloy steel gear profiles minimize fluid trapping and pressure pulsation, ensuring ultra-quiet operation in mobile machinery cabins and indoor industrial plants.
Extensive Mounting & Drive Versatility
Readily configured with European 1:8 tapered, cylindrical keyed, or splined drive shafts, side or rear ports, and optional integrated pressure relief valves tailored to bespoke customer requirements.
6. Reference of HENGYUHANG Group 2PDF Series
6.1 Series Architecture Across Group 2PDF
The HENGYUHANG Group 2PDF family covers 10 standardized displacements, ensuring optimal hydraulic matching:
Low-Displacement High-Pressure Range (4.0 – 8.5 cm³/rev): 2PDF-04, 2PDF-06, 2PDF-08
Intermediate Work-Horse Range (11.0 – 19.5 cm³/rev): 2PDF-11, 2PDF-14, 2PDF-16, 2PDF-19
High-Flow Output Range (22.5 – 30.0 cm³/rev): 2PDF-22, 2PDF-26, 2PDF-30
6.2 Comprehensive Interchangeability Matrix Across 39 Brands
The HENGYUHANG Group 2PDF series provides proven mechanical, mounting, and hydraulic drop-in substitution for the following 39 international manufacturers:
ARGO-HYTOS: GP2 Series external gear pumps
ASEDA: Group 2 tractor and construction implement gear pumps
ATOS: PFG-2 series external gear pumps
B&C Hydraulics: BG20 series compact gear pumps
BLUEASCEND: Group 2 aluminum gear pumps for mobile machinery
Boden: Boden BAP2 / BHP2 hydraulic gear pumps
BONDIOLI & PAVESI: HPLP Series Group 2 gear pumps (HP2, HPLP2)
Brevini Fluid Power (Dana Brevini): OT200 series compact pumps
BUCHER Hydraulics: AP212 series high-pressure gear pumps
Caproni: 20A / 20C / Group 2 hydraulic gear pumps
CASAPPA: POLARIS Group 2 (PLP20, PL20) gear pumps
CONCENTRIC (Haldex): W900 / Calzoni Group 2 external pumps
DANFOSS Power Solutions: SNP2NN / Turolla D Series / Group 2 pumps
DUPLOMATIC: IGP2 / GP2 series external gear pumps
Galtech: 2SP series compact gear pumps
GRH Hydraulics: 2PF series aluminum gear pumps
HANSA-TMP: Group 2 gear pumps and power pack units
HESPER: Group 2 mobile hydraulic gear pumps
HIDRAULICA: Group 2 external gear pumps
HONOR Gear Pumps: Group 2 series pumps
HPI (Hydraulique Professionnelle Industrielle): Series M2 / P2 gear pumps
HYDAC: PGE102 series external gear pumps
HYDROMAX: Group 2 external hydraulic gear pumps
HYDRONIT: Group 2 compact power pack central block gear pumps
JIHOSTROJ: P23 / Q2 Series Group 2 hydraulic gear pumps
JOYANG: Group 2 gear pumps for material handling
KOMPASS: Group 2 industrial gear pumps
KRACHT: KF 2 / KP 2 series high-performance gear pumps
MARZOCCHI: ALP2 / GHP2 series high-pressure gear pumps
MetaHydra: Group 2 custom gear pumps
PARKER Hannifin: PGP511 / PGP517 Series Group 2 gear pumps
REXPOWER: Group 2 external gear pumps
Bosch Rexroth: AZPF Series Group 2 gear pumps
REXROTH-SIGMA: Sigma Group 2 gear pumps
RONZIO: 02ZCG 02ZAG Series Group 2 high-pressure gear pumps
ROQUET: 2L / 2M Series Group 2 external gear pumps
SALAMI: 2PB / 2PE series compact gear pumps
SDH (Shengda Hydraulics): Group 2 gear pumps
VIVOLO (Vivoil): X2P / XV-2P Series Group 2 gear pumps
7. Brand Replacement
Quanzhou Hengyuhang Power Technology Co., Ltd. produces the Group 2PDF series conforming to international OEM mounting standards. Every manufactured pump undergoes 100% end-of-line verification, including volumetric efficiency benchmarking, continuous rated pressure testing, and port thread gauge inspection. Equipment operators and hydraulic distributors can replace worn or discontinued original pumps from CASAPPA, Rexroth, MARZOCCHI, PARKER, and DANFOSS with zero alterations to existing bell housings, electric motor couplings, or hydraulic plumbing. Custom batch manufacturing with specialized drive shafts, special flange spigots, or integrated relief valves is fully supported.
8. Applications of HENGYUHANG Group 2PDF Series
Mobile Construction Machinery: Mini excavators, compact wheel loaders, backhoe loaders, skid steers, vibratory rollers, and hydraulic trenchers.
Agricultural Equipment: Medium-to-high horsepower agricultural tractors, combine harvesters, round balers, front-end loaders, and forestry forwarders.
Material Handling & Aerial Lifts: Forklift main lifting and steering circuits, rough-terrain telehandlers, electric boom lifts, and truck-mounted tail lifts.
Stationary Industrial Hydraulic Power Units (HPUs): Machine tool lubrication manifolds, hydraulic press brake clamping systems, injection molding auxiliary loops, and hydraulic elevator power units.
Municipal & Specialty Vehicles: Waste compactor trucks, automated street sweepers, snow plows, and marine steering/winch systems.
9. Package & Shipping
| Item | Details |
|---|---|
| Packaging | Neutral heavy-duty export carton with internal molded foam suspension; individual moisture-resistant sealed VCI polybags; export standard fumigation-free wooden pallets for batch consignments. |
| Selling Unit | Single item (MOQ: 1 piece for standard models; low MOQ for customized OEM configurations). |
| Single Package Size | 25.0 × 18.0 × 16.0 cm (9.84 × 7.09 × 6.30 in) per pump. |
| Single Gross Weight | 2.90 to 4.50 kg (6.39 to 9.92 lbs) depending on displacement and flange material. |
| Standard Lead Time | 3–7 business days for stock items; 15–20 business days for volume OEM batch customization. |
| Logistics & Express | Air express (DHL, FedEx, UPS, TNT), air freight, sea freight (FCL / LCL), and multimodal door-to-door DDP services worldwide. |
| Customization Services | Custom nameplate laser engraving, private labeling, custom drive shafts, integrated valves, and bespoke flange geometries. |
| Warranty & Support | 12 months comprehensive warranty from dispatch date; full lifetime technical support. |
10. Why Choose Hengyuhang?
Direct Factory Precision Manufacturing & CNC Excellence: Equipped with multi-axis CNC machining centers, high-precision gear hobbing machines, and automated micro-honing lines, Hengyuhang maintains sub-micron dimensional tolerances (Ra < 0.2 μm) on all internal gear teeth, journals, and housing cavities. This guarantees minimal internal friction, ultra-low hydraulic pulsation, and repeatable performance across high-volume production batches.
100% Full-Cycle Multi-Parameter Factory Inspection: Every single hydraulic pump undergoes rigorous end-of-line digital testing before dispatch. Quality checks cover full continuous rated and peak pressure hold, internal bypass leakage verification, high/low temperature volumetric efficiency testing (>94%), and acoustic noise spectrum profiling, ensuring zero-defect delivery to global OEM assembly lines.
Seamless 1:1 OEM Drop-In Interchangeability: Conforming precisely to international European standard, SAE ("AA", "A", "B", "C"), and DIN/ISO mounting configurations, our pumps deliver genuine plug-and-play replacement for over 39 leading global manufacturers. Machine operators and distributors can replace original units without modifying bell housings, drive couplings, or hydraulic line geometry, drastically reducing costly machine downtime.
Flexible Engineering Customization & Rapid Prototyping: Backed by an experienced in-house hydraulic engineering team, Hengyuhang offers comprehensive bespoke customization, including non-standard 4PTF/6PTF mounting flanges, special shaft tapers or splines, dual port configurations, and integrated relief or priority flow control valves. We support low-MOQ trial orders and agile custom prototyping to resolve obsolescence issues for out-of-production machinery.
Robust Supply Chain, Extensive Inventory & Fast Global Dispatch: With dedicated raw material casting facilities, high-strength extruded aluminum alloy reserves, and extensive finished inventory across Group 0, Group 1, Group 2, and Group 3 platforms, standard orders ship within 48 to 72 hours. We partner strategically with major international logistics carriers (DHL, FedEx, UPS, air/ocean freight) to provide seamless door-to-door DDP global delivery.
12-Month Comprehensive Warranty & Lifetime Technical Support: All Hengyuhang hydraulic pumps are backed by a complete 12-month factory warranty and dedicated lifetime technical assistance. Our specialized fluid power engineers provide free 24-hour CAD drawing verification, OEM cross-reference confirmation, hydraulic displacement calculations, and system troubleshooting to ensure total operational peace of mind.
External Gear Pump Group 2PDF (4CC–30CC) is a high-pressure, versatile external hydraulic gear pump engineered for heavy-duty mobile machinery, agricultural equipment, and industrial hydraulic power units. Manufactured with an extruded high-strength aluminium alloy body, hardened alloy steel precision gear pairs, and pressure-balanced DU composite thrust bushings, the Group 2PDF series delivers 14 displacement options from 3 to 30 cm³/rev (covering the 4CC to 30CC series range), continuous working pressures up to 270 bar (peak up to 300 bar), and rotational speeds up to 4000 r/min. Available with European rectangular flanges (H0), German flanges (H1), European round flanges (H2), heavy-duty bearing flanges (H3), SAE A 2-bolt flanges (L0), and compact diamond flanges (K0/K1), along with 1:8 taper, 1:5 taper, straight keyed, or splined shafts, this series offers high volumetric efficiency, quiet operation, and long service life under demanding continuous-duty applications.
| Applications
The Group 2PDF external hydraulic gear pump series is widely applied in construction machinery (wheel loaders, mini/medium excavators, backhoe loaders, skid steers), agricultural equipment (tractors, combine harvesters, balers), material handling equipment (counterbalance forklifts, reach trucks, aerial scissor lifts), commercial vehicle hydraulics (tipper trucks, hook loaders, waste compactors), hydraulic power packs, and industrial machinery (hydraulic presses, injection molding systems, factory automated production lines).
| Key Specifications Overview
| Parameter | Specification |
|---|---|
| Series | Group 2PDF Series (Group 2 High-Pressure External Gear Pump) |
| Displacement Range | 3 ~ 30 cm³/rev (14 standard sizes, covering 4CC–30CC range) |
| Continuous Operating Pressure (P1) | 160 ~ 270 bar (270 bar up to 12 cc; 250 bar up to 18 cc) |
| Intermittent Operating Pressure (P2) | 170 ~ 285 bar |
| Max. Peak Pressure (P3) | 180 ~ 300 bar |
| Rotational Speed Range | 400 ~ 4000 r/min (model dependent) |
| Housing Material | High-tensile extruded aluminium alloy body with cast aluminium / iron covers |
| Mounting Flange Options | European rectangular 71.5 × 96 mm (H0); German 70 × 100 mm (H1); European round Ø80 mm (H2); SAE A 2-bolt (L0); European diamond Ø50 mm (K0/K1); Outboard bearing flange (H3) |
| Drive Shaft Options | 1:8 Taper shaft (M12×1.25); 1:5 Taper shaft (M12×1.5); Ø18 mm straight keyed; Ø15.88 mm (5/8") SAE straight keyed; DP16/32-30°-11T splined shaft |
| Port Configurations | European 4-bolt flanged ports (side / cross pattern); BSPP threaded ports; SAE UNF threaded ports (side / rear) |
| Valve Integration Options | Integrated priority flow control & relief valves (FAx / Fx, Qconst 2~30 L/min, 100~180 bar) |
| Rotation Direction | Clockwise (D) standard / Counter-clockwise (S) optional; 2PDM bi-directional motor available |
| Hydraulic Fluid | Mineral-based hydraulic oil (ISO VG 46 / HLP) |
| Operating Temperature Range | -20°C to +80°C (standard NBR seals) |

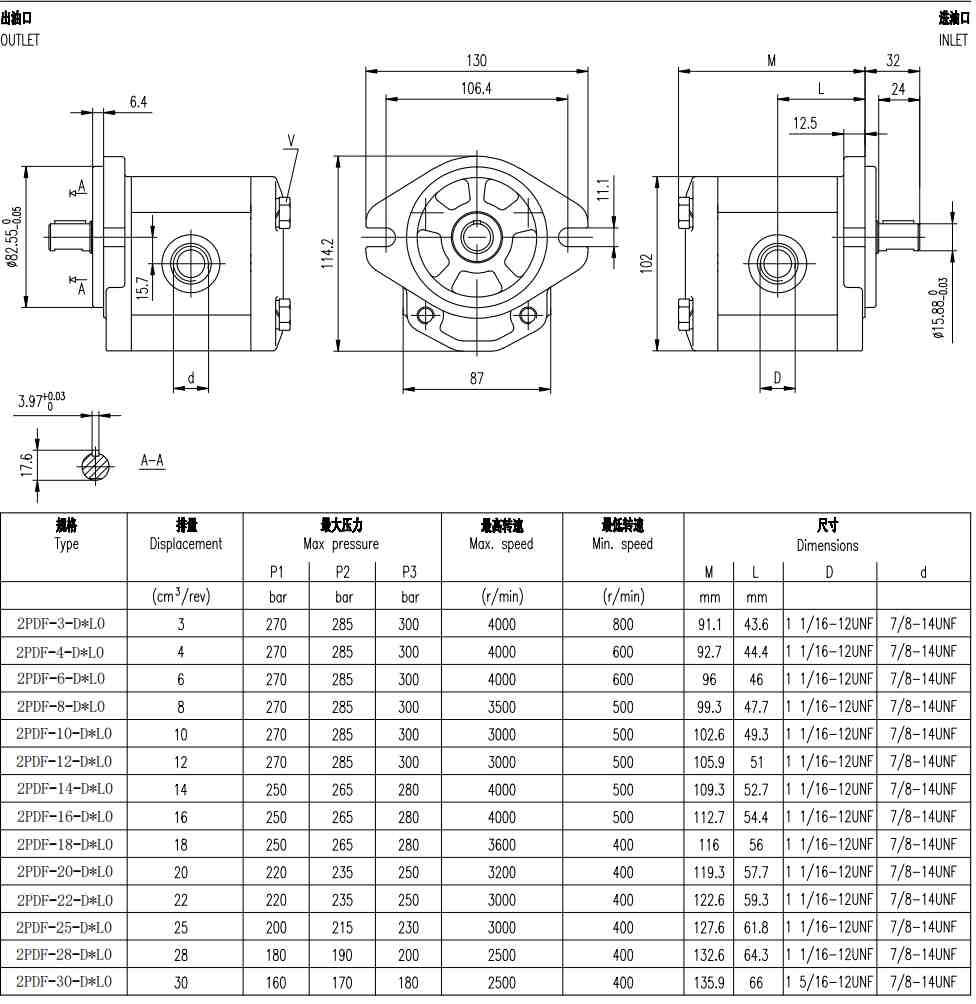

| Technical Specifications & Performance Ratings (Group 2PDF)
| Type / Model | Displacement (cm³/rev) | Max. Pressure (bar) | Max. Speed (r/min) | Min. Speed (r/min) | Dimensions H0 (mm) | |||
|---|---|---|---|---|---|---|---|---|
| P1 (Cont.) | P2 (Int.) | P3 (Peak) | M | L | ||||
| 2PDF-3-D*L0 | 3.0 | 270 | 285 | 300 | 4000 | 800 | 91.1 | 43.6 |
| 2PDF-4-D*L0 | 4.0 | 270 | 285 | 300 | 4000 | 600 | 92.7 | 44.4 |
| 2PDF-6-D*L0 | 6.0 | 270 | 285 | 300 | 4000 | 600 | 96.0 | 46.0 |
| 2PDF-8-D*L0 | 8.0 | 270 | 285 | 300 | 3500 | 500 | 99.3 | 47.7 |
| 2PDF-10-D*L0 | 10.0 | 270 | 285 | 300 | 3000 | 500 | 102.6 | 49.3 |
| 2PDF-12-D*L0 | 12.0 | 270 | 285 | 300 | 3000 | 500 | 105.9 | 51.0 |
| 2PDF-14-D*L0 | 14.0 | 250 | 265 | 280 | 4000 | 500 | 109.3 | 52.7 |
| 2PDF-16-D*L0 | 16.0 | 250 | 265 | 280 | 4000 | 500 | 112.7 | 54.4 |
| 2PDF-18-D*L0 | 18.0 | 250 | 265 | 280 | 3600 | 400 | 116.0 | 56.0 |
| 2PDF-20-D*L0 | 20.0 | 220 | 235 | 250 | 3200 | 400 | 119.3 | 57.7 |
| 2PDF-22-D*L0 | 22.0 | 220 | 235 | 250 | 3000 | 400 | 122.6 | 59.3 |
| 2PDF-25-D*L0 | 25.0 | 200 | 215 | 230 | 3000 | 400 | 127.6 | 61.8 |
| 2PDF-28-D*L0 | 28.0 | 180 | 190 | 200 | 2500 | 400 | 132.6 | 64.3 |
| 2PDF-30-D*L0 | 30.0 | 160 | 170 | 180 | 2500 | 400 | 135.9 | 66.0 |
| Mounting Flange, Shaft & Port Configurations
| Code | Mounting Flange | Drive Shaft | Inlet & Outlet Ports |
|---|---|---|---|
| 2PDF-...-H0 | European rectangular (71.5 × 96 mm, Ø36.5 mm pilot) | 1:8 Taper shaft (M12×1.25, 3.165 mm key) | European 4-bolt flanged ports (4×M6 / 4×M8) |
| 2PDF-...-H1 | German rectangular (70 × 100 mm, Ø38 mm pilot) | Ø18 mm straight keyed shaft (6 mm key) | 4-bolt flanged or threaded ports (M8) |
| 2PDF-...-H2 | European round flange (72 × 100 mm, Ø80 mm pilot) | 1:5 Taper shaft (M12×1.5, 3 mm key) | Cross-pattern 4-bolt flanged ports (M6) |
| 2PDF-...-H3 | Heavy-duty outboard bearing flange (Ø80 mm pilot) | 1:5 Taper shaft Ø20 mm (M12×1.5) | Cross-pattern 4-bolt flanged ports (M6) |
| 2PDF-...-L0 | SAE A 2-bolt oval flange (106.4 mm, Ø82.55 mm pilot) | Ø15.88 mm (5/8") SAE straight keyed shaft | SAE UNF threaded ports (1 1/16-12UNF / 7/8-14UNF) |
| 2PDF-...-L0-R | SAE A 2-bolt oval flange (106.4 mm, Ø82.55 mm pilot) | Ø15.88 mm (5/8") SAE straight keyed shaft | Rear SAE UNF threaded ports (1 1/16-12UNF / 7/8-14UNF) |
| 2PDF-...-K0 / K1 | European diamond flange (60 × 86 mm, Ø50 mm pilot) | 1:5 Taper shaft (M12×1.5, 3 mm key) | European 4-bolt flanged ports (M6) |
| 2PDF-...-FAx / Fx | European H0 or SAE A L0 mounting flange | 1:8 Taper, straight keyed, or splined shaft (11T) | Integrated priority flow valve & relief valve (Qconst 2~30 L/min) |
| 2PDM-...-H0-Q1 | European rectangular flange (motor configuration) | 1:8 Taper shaft (M12×1.25) | Bi-directional hydraulic motor with G1/4 case drain |
HENGYUHANG 2PDF / 2PDM Series — Complete Model List
2PDF Series — Type D*L0-R
| Type |
|---|
| 2PDF-3-D*L0-R |
| 2PDF-4-D*L0-R |
| 2PDF-6-D*L0-R |
| 2PDF-8-D*L0-R |
| 2PDF-10-D*L0-R |
| 2PDF-12-D*L0-R |
| 2PDF-14-D*L0-R |
| 2PDF-16-D*L0-R |
| 2PDF-18-D*L0-R |
| 2PDF-20-D*L0-R |
| 2PDF-22-D*L0-R |
| 2PDF-25-D*L0-R |
| 2PDF-28-D*L0-R |
| 2PDF-30-D*L0-R |
2PDF Series — Type D*H0-FAx
| Type |
|---|
| 2PDF-3-D*H0-FAx |
| 2PDF-4-D*H0-FAx |
| 2PDF-6-D*H0-FAx |
| 2PDF-8-D*H0-FAx |
| 2PDF-10-D*H0-FAx |
| 2PDF-12-D*H0-FAx |
| 2PDF-14-D*H0-FAx |
| 2PDF-16-D*H0-FAx |
| 2PDF-18-D*H0-FAx |
| 2PDF-20-D*H0-FAx |
| 2PDF-22-D*H0-FAx |
| 2PDF-25-D*H0-FAx |
| 2PDF-28-D*H0-FAx |
| 2PDF-30-D*H0-FAx |
2PDF Series — Type D*L0-Fx
| Type |
|---|
| 2PDF-3-D*L0-Fx |
| 2PDF-4-D*L0-Fx |
| 2PDF-6-D*L0-Fx |
| 2PDF-8-D*L0-Fx |
| 2PDF-10-D*L0-Fx |
| 2PDF-12-D*L0-Fx |
| 2PDF-14-D*L0-Fx |
| 2PDF-16-D*L0-Fx |
| 2PDF-18-D*L0-Fx |
| 2PDF-20-D*L0-Fx |
| 2PDF-22-D*L0-Fx |
| 2PDF-25-D*L0-Fx |
| 2PDF-28-D*L0-Fx |
| 2PDF-30-D*L0-Fx |
2PDF Series — Type D*H3
| Type |
|---|
| 2PDF-3-D*H3 |
| 2PDF-4-D*H3 |
| 2PDF-6-D*H3 |
| 2PDF-8-D*H3 |
| 2PDF-10-D*H3 |
| 2PDF-12-D*H3 |
| 2PDF-14-D*H3 |
| 2PDF-16-D*H3 |
| 2PDF-18-D*H3 |
| 2PDF-20-D*H3 |
| 2PDF-22-D*H3 |
| 2PDF-25-D*H3 |
| 2PDF-28-D*H3 |
| 2PDF-30-D*H3 |
2PDM Series — Type R*H0-Q1
| Type |
|---|
| 2PDM-3-R*H0-Q1 |
| 2PDM-4-R*H0-Q1 |
| 2PDM-6-R*H0-Q1 |
| 2PDM-8-R*H0-Q1 |
| 2PDM-10-R*H0-Q1 |
| 2PDM-12-R*H0-Q1 |
| 2PDM-14-R*H0-Q1 |
| 2PDM-16-R*H0-Q1 |
| 2PDM-18-R*H0-Q1 |
| 2PDM-20-R*H0-Q1 |
| 2PDM-22-R*H0-Q1 |
| 2PDM-25-R*H0-Q1 |
| 2PDM-28-R*H0-Q1 |
| 2PDM-30-R*H0-Q1 |
2PDF Series — Type D*H0
| Type |
|---|
| 2PDF-3-D*H0 |
| 2PDF-4-D*H0 |
| 2PDF-6-D*H0 |
| 2PDF-8-D*H0 |
| 2PDF-10-D*H0 |
| 2PDF-12-D*H0 |
| 2PDF-14-D*H0 |
| 2PDF-16-D*H0 |
| 2PDF-18-D*H0 |
| 2PDF-20-D*H0 |
| 2PDF-22-D*H0 |
| 2PDF-25-D*H0 |
| 2PDF-28-D*H0 |
| 2PDF-30-D*H0 |
2PDF Series — Type D*H1
| Type |
|---|
| 2PDF-3-D*H1 |
| 2PDF-4-D*H1 |
| 2PDF-6-D*H1 |
| 2PDF-8-D*H1 |
| 2PDF-10-D*H1 |
| 2PDF-12-D*H1 |
| 2PDF-14-D*H1 |
| 2PDF-16-D*H1 |
| 2PDF-18-D*H1 |
| 2PDF-20-D*H1 |
| 2PDF-22-D*H1 |
| 2PDF-25-D*H1 |
| 2PDF-28-D*H1 |
| 2PDF-30-D*H1 |
2PDF Series — Type D*H2
| Type |
|---|
| 2PDF-3-D*H2 |
| 2PDF-4-D*H2 |
| 2PDF-6-D*H2 |
| 2PDF-8-D*H2 |
| 2PDF-10-D*H2 |
| 2PDF-12-D*H2 |
| 2PDF-14-D*H2 |
| 2PDF-16-D*H2 |
| 2PDF-18-D*H2 |
| 2PDF-20-D*H2 |
| 2PDF-22-D*H2 |
| 2PDF-25-D*H2 |
| 2PDF-28-D*H2 |
| 2PDF-30-D*H2 |
2PDF Series — Type D*L0
| Type |
|---|
| 2PDF-3-D*L0 |
| 2PDF-4-D*L0 |
| 2PDF-6-D*L0 |
| 2PDF-8-D*L0 |
| 2PDF-10-D*L0 |
| 2PDF-12-D*L0 |
| 2PDF-14-D*L0 |
| 2PDF-16-D*L0 |
| 2PDF-18-D*L0 |
| 2PDF-20-D*L0 |
| 2PDF-22-D*L0 |
| 2PDF-25-D*L0 |
| 2PDF-28-D*L0 |
| 2PDF-30-D*L0 |
2PDF Series — Type D*K0
| Type |
|---|
| 2PDF-3-D*K0 |
| 2PDF-4-D*K0 |
| 2PDF-6-D*K0 |
| 2PDF-8-D*K0 |
| 2PDF-10-D*K0 |
| 2PDF-12-D*K0 |
| 2PDF-14-D*K0 |
| 2PDF-16-D*K0 |
| 2PDF-18-D*K0 |
| 2PDF-20-D*K0 |
| 2PDF-22-D*K0 |
| 2PDF-25-D*K0 |
| 2PDF-28-D*K0 |
| 2PDF-30-D*K0 |
2PDF Series — Type D*K1
| Type |
|---|
| 2PDF-3-D*K1 |
| 2PDF-4-D*K1 |
| 2PDF-6-D*K1 |
| 2PDF-8-D*K1 |
| 2PDF-10-D*K1 |
| 2PDF-12-D*K1 |
| 2PDF-14-D*K1 |
| 2PDF-16-D*K1 |
| 2PDF-18-D*K1 |
| 2PDF-20-D*K1 |
| 2PDF-22-D*K1 |
| 2PDF-25-D*K1 |
| 2PDF-28-D*K1 |
| 2PDF-30-D*K1 |
2PDF Series — Type D*K2
| Type |
|---|
| 2PDF-3-D*K2 |
| 2PDF-4-D*K2 |
| 2PDF-6-D*K2 |
| 2PDF-8-D*K2 |
| 2PDF-10-D*K2 |
| 2PDF-12-D*K2 |
| 2PDF-14-D*K2 |
| 2PDF-16-D*K2 |
| 2PDF-18-D*K2 |
| 2PDF-20-D*K2 |
| 2PDF-22-D*K2 |
| 2PDF-25-D*K2 |
| 2PDF-28-D*K2 |
| 2PDF-30-D*K2 |
WhatsApp
Email
+86 19918575358
