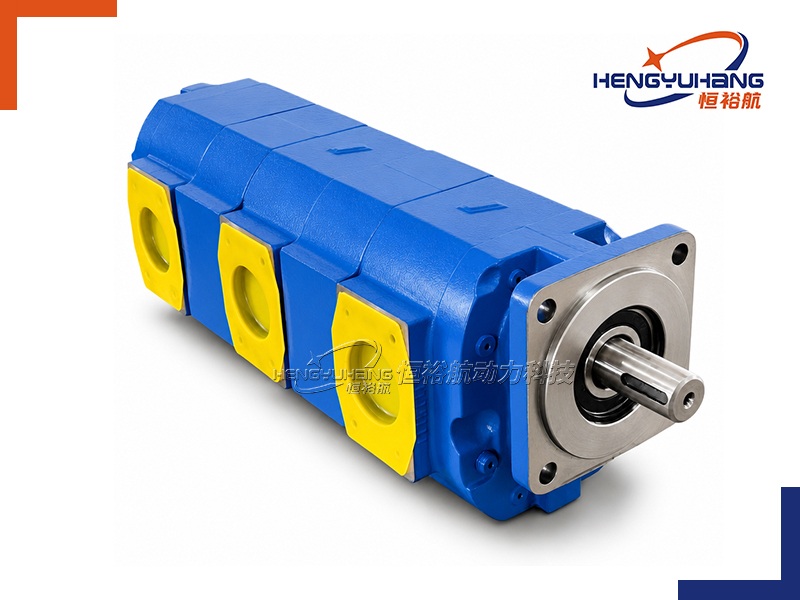

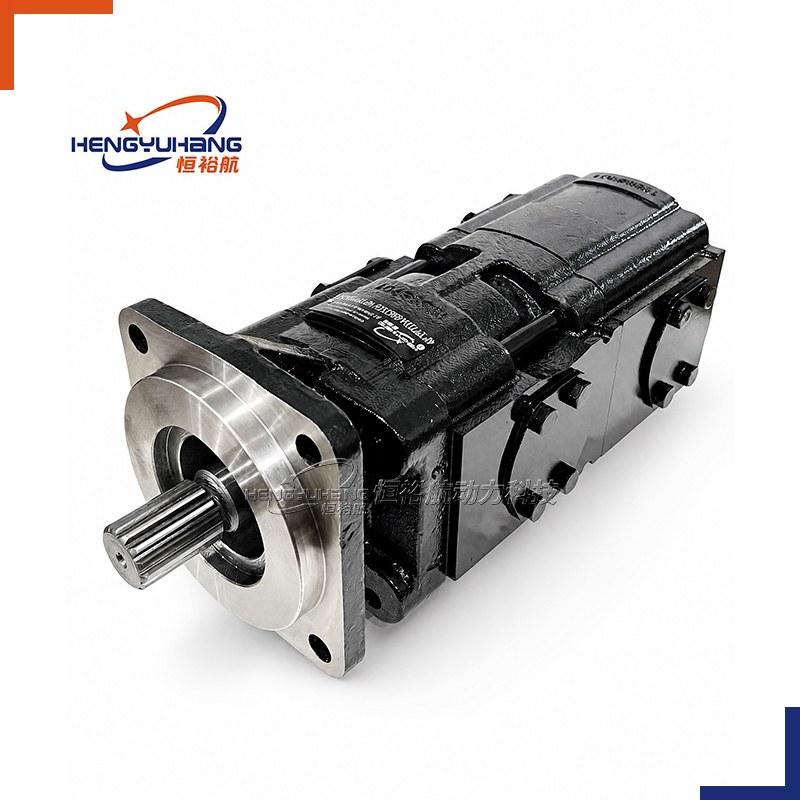

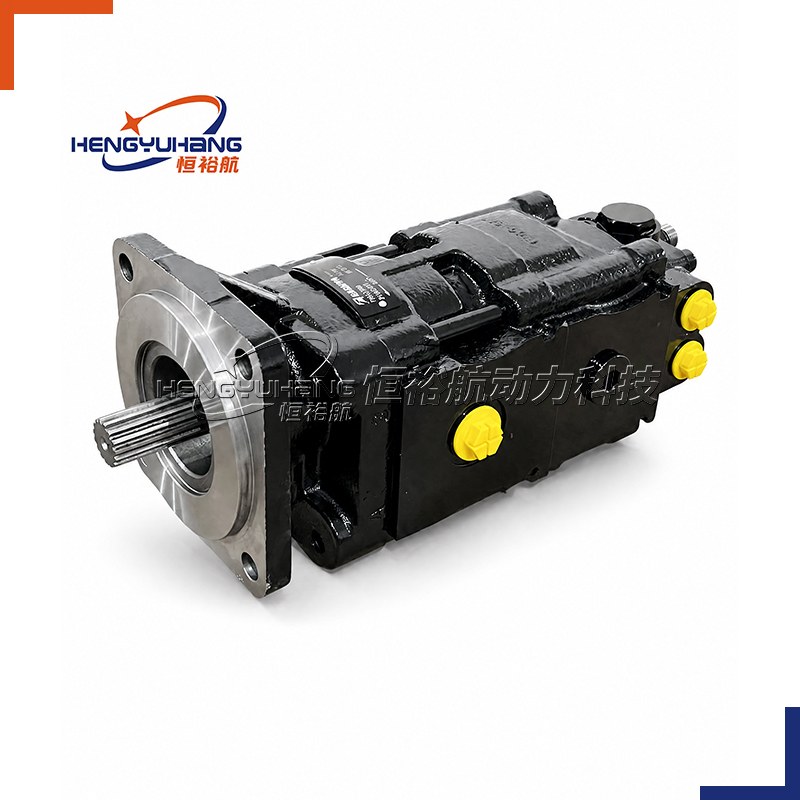

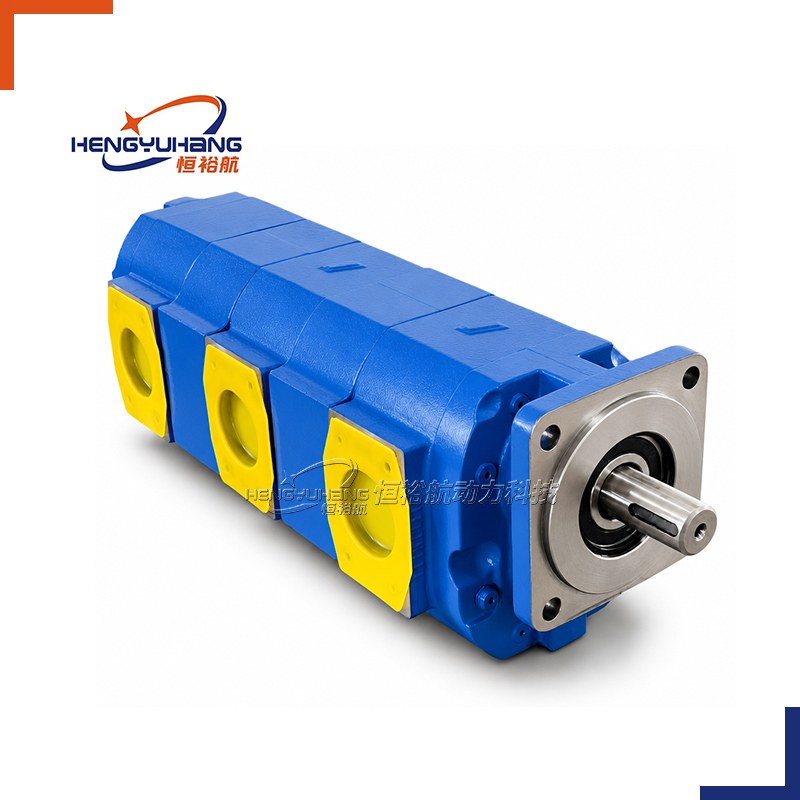

Tandem Cast Iron Hydraulic Gear Pump 6PT6F+6PTF SAE C 4-Bolt Series

| Overview of HENGYUHANG 6PT6F+6PTF SAE C 4-Bolt Series

The HENGYUHANG 6PT6F+6PTF SAE C 4-Bolt Series represents the pinnacle of high-pressure, high-flow dual-circuit fluid power engineering. Built with full spheroidal graphite ductile cast iron front covers, central bodies, intermediate brackets, and rear covers across both stages, this dual Group 6 tandem pump provides superior fatigue endurance, cavitation resistance, and zero casing barrel dilation under continuous operating pressures up to 280 bar and peak impulse pressures reaching 350 bar (5,076 psi). The front 6PT6F stage incorporates a massive heavy-duty through-drive shaft with an internal involute splined coupling, transmitting maximum mechanical drive torque to the rear 6PTF pump without parasitic journal deflection or torsional vibration. Featuring a precision-machined SAE C 4-bolt square mounting flange (Centring pilot Ø 127.0 mm / 5.00" h8 with 114.5 mm × 114.5 mm bolt pattern) and standardized SAE 14T splined or 1-1/4" keyed drive shafts, this series offers 1:1 OEM drop-in interchangeability across premier global manufacturers including Casappa, Parker Commercial, Permco, and Jihostroj.

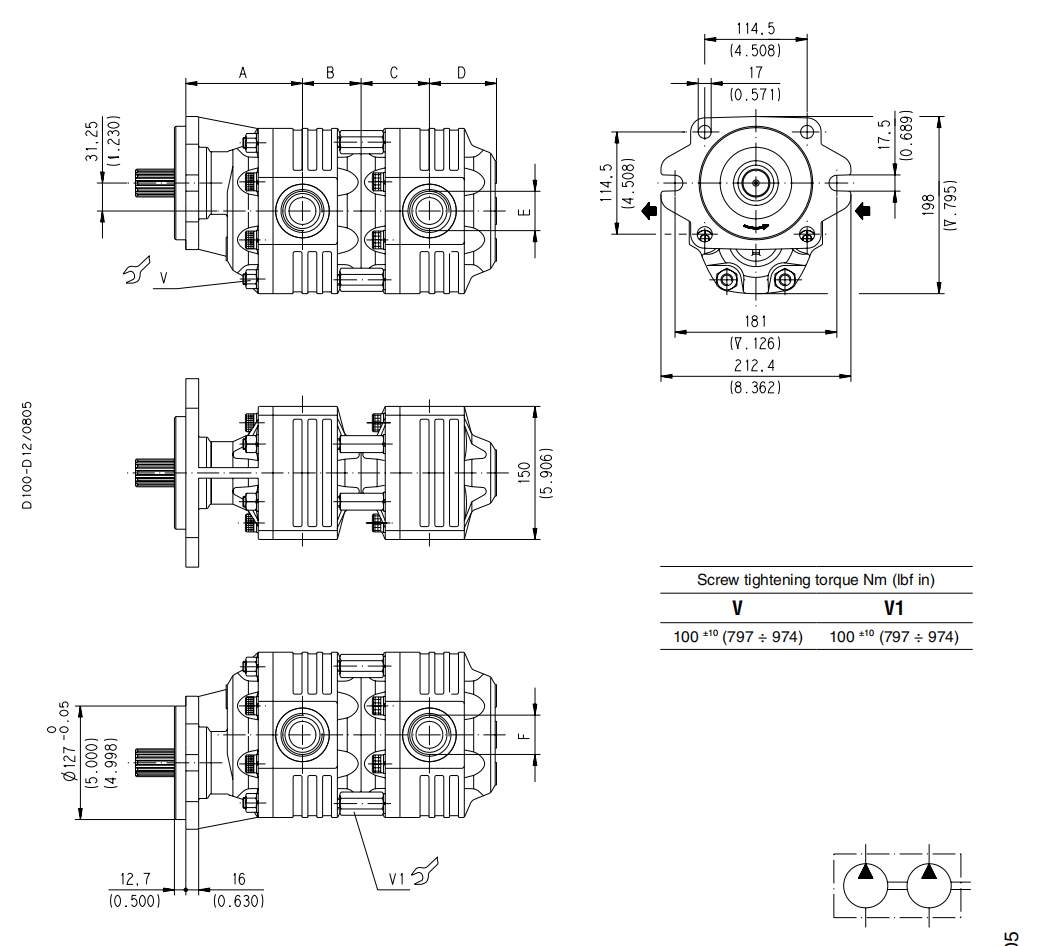

| Dimension of HENGYUHANG 6PT6F+6PTF SAE C 4-Bolt Series

| Interface Data Needed with the Drawing (Dimensional Reference Table)

| Pump Installation Specifications HENGYUHANG 6PT6F+6PTF SAE C 4-Bolt Series

| Comprehensive Ordering Code Breakdown (Hengyuhang 6PTF Tandem Series Structure)

Code structure — reference: 6PT6F+6PTF−D1/D2−R−C−S−P1/P2−M−B

| Reading Your Replacement Code

| Techspecs of HENGYUHANG 6PT6F+6PTF SAE C 4-Bolt Series

| Performance Data Across Displacements

Note: Reference catalogue performance ratings based on ISO VG 46 mineral oil, T = 50 °C, ν = 30 mm²/s.

Dual Group 6 Stages (6PT6F / 6PTF)

Note: Technical values represent nominal catalogue reference ratings applicable to both the front 6PT6F and rear 6PTF pump stages. Combined dual-stage output flow can reach up to 400 l/min. Maximum continuous operating parameters are governed by cumulative input drive shaft torque ratings and operating temperature.

| Operating Conditions & Fluid Compatibility

Advantages

Extreme Duty Cast Iron Construction

Ductile cast iron bodies across both stages withstand severe pressure shocks, thermal expansion, and mechanical vibration under continuous pressures up to 280 bar and peak pressures reaching 350 bar (5,076 psi).

High-Rigidity SAE C 4-Bolt Square Mounting Flange

Precision-machined 4-bolt square pattern (114.5 × 114.5 mm) provides maximum structural stiffness, eliminating flange deflection under severe cyclic impulse loads and continuous high-torque operations.

Massive Dual Independent High-Flow Delivery

Combines two heavy-duty Group 6 gear sets into a single compact footprint driven by one prime mover, providing combined flows up to 400 l/min without cross-circuit interaction.

Heavy-Duty Internal Splined Through-Drive

High-strength through-shaft and induction-hardened internal splined coupling transmit full downstream drive torque with zero shaft binding or parasitic journal deflection.

Superior Volumetric Efficiency (>94%)

Hydrostatically balanced floating thrust plates automatically compensate for thermal expansion and face wear, sustaining peak volumetric efficiency across thousands of harsh duty hours.

Low Noise & Hydraulic Pulsation

Precision-ground, case-hardened alloy steel gear profiles minimize trapped fluid pressure pulsation, ensuring smooth, quiet, and reliable operation.

Reference

Series Architecture & Displacements

• Series Nomenclature: HENGYUHANG Tandem Cast Iron Hydraulic Gear Pump 6PT6F+6PTF SAE C 4-Bolt Series

• Front Stage (Group 6PT6F): Displacements from 20.0 to 135.0 cm³/rev (14 standard displacement steps).

• Rear Stage (Group 6PTF): Displacements from 20.0 to 135.0 cm³/rev (14 standard displacement steps).

• Flange Standard: SAE C 4-Bolt Square Flange (Pilot Ø127.0 mm / 5.00" h8, 114.5 mm × 114.5 mm bolt pattern).

• Drive Shaft: SAE 14T spline (Code 07.00, Ø31.2 mm / 1-1/4"), SAE 1-1/4" straight keyed shaft (Code 04), or SAE 13T spline.

• Intermediate Coupling: Dedicated Group 6 to Group 6 internal involute splined through-drive coupling.

Comprehensive Interchangeability & Replacement Matrix

The HENGYUHANG 6PT6F+6PTF SAE C 4-Bolt series provides 1:1 drop-in replacement compatibility across the following premier global hydraulic pump manufacturers and designated series:

• CASAPPA: KP30, KP35, KP40, FDP30, HDP30, HDP35, FP30, FP40 cast iron series

• PARKER (Commercial Hydraulics): PGP330, PGP350, PGP315, PGP365, PGP620, PGP640, P20 series

• JIHOSTROJ: QHD0, QHD1, QHD2, GHD0, GHD1, GHD2 heavy-duty series

• DAVID BROWN: Heavy-duty cast iron hydraulic pump series

• METARIS: MH series commercial replacement cast iron pumps

• PERMCO (PERMCOP): P76, P75 series cast iron tandem pumps

• KOMATSU: OEM construction equipment tandem gear pump replacements

• CATERPILLAR: Heavy earthmoving machinery hydraulic implement and steering tandem pumps

• KAYABA (KYB): KFP series cast iron gear pumps

Brand Replacement

The HENGYUHANG 6PT6F+6PTF SAE C 4-Bolt series is precision-engineered as a direct 1:1 drop-in replacement for premier heavy-duty cast iron tandem gear pump lines, notably CASAPPA KP/FP/HDP series, PARKER Commercial PGP330/PGP350/PGP365/PGP620 series, and PERMCO P75/P76 series. Every tandem pump undergoes 100% factory dynamic testing across its full speed and pressure curve to guarantee volumetric efficiency, mechanical output, and dual-circuit pressure isolation up to 350 bar. Utilizing standard SAE C 4-bolt square flange dimensions (Ø127.0 mm pilot, 114.5 × 114.5 mm spacing) and standardized SAE drive shafts, Hengyuhang pumps allow equipment manufacturers and service engineers to perform direct drop-in field replacements without piping rework, bracket redesign, or system modifications. Custom displacement pairings, shared or separate suction ports, and specialized shaft extensions are fully supported with rapid turnaround.

Applications

• Heavy Mining & Earthmoving Equipment: High-tonnage rigid dump trucks, large mining excavators, heavy wheel loaders, and track dozers.

• Large Mobile Cranes & Port Machinery: Reach stackers, mobile harbor cranes, straddle carriers, and heavy cargo handling equipment.

• Heavy Agricultural Harvesters & Tractors: Combined hydraulic implement lift and hydrostatic auxiliary motor drive circuits for extra-high-horsepower agricultural machinery.

• Oilfield & Marine Equipment: Offshore drilling hydraulic winches, wireline units, top-drive auxiliary power packs, and offshore deck cranes.

• Industrial Heavy Hydraulic Power Units (HPUs): High-pressure continuous extrusion presses, heavy scrap metal shears, forging presses, and steel mill roll handling systems.
