Product Overview

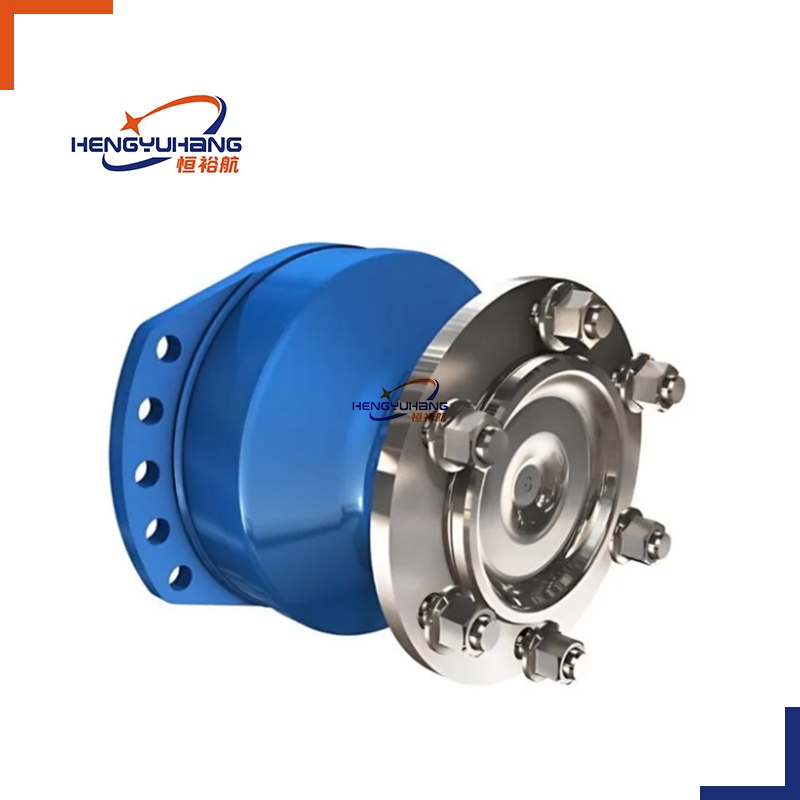

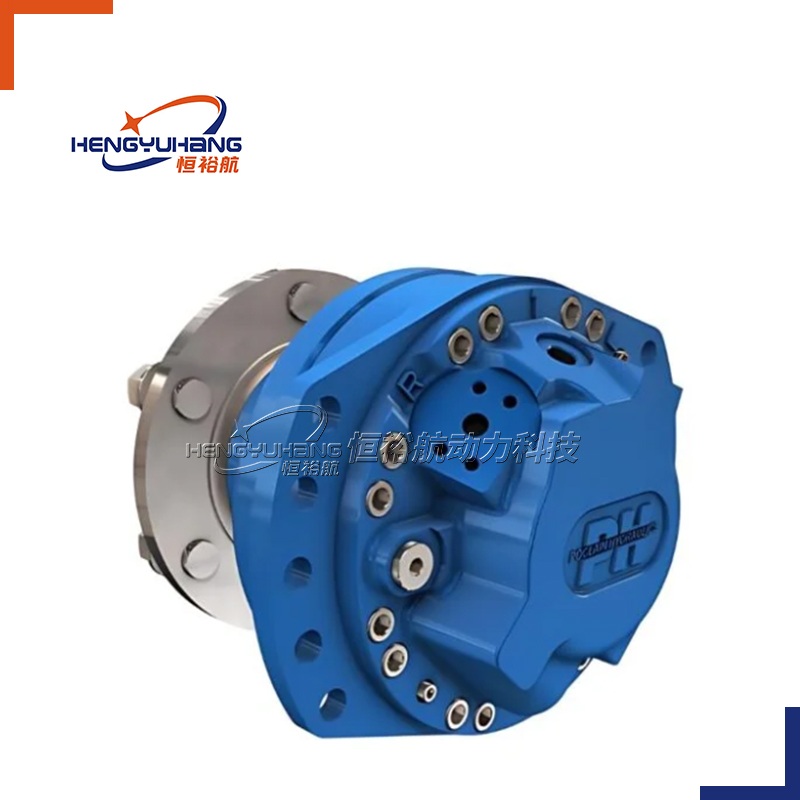

The Poclain MS02-8-172-133-F03 compact radial piston hydraulic motor belongs to the versatile MS02/MSE02 series, with a 133cc small displacement designed for light-duty wheel drive mobile machinery.It adopts proven inner curve radial piston drive technology to deliver smooth, stable high torque output at low rotation speeds. This hydraulic motor enables direct wheel hub driving without matching external reduction gearboxes, simplifying the whole transmission layout and cutting hydraulic power loss effectively.

Key Features

• Adopts advanced cam lobe radial piston structure, delivering stable and powerful low-speed high torque to meet driving demands of light & medium load compact machinery.

• 133cc small displacement with compact lightweight body, occupying less installation space for narrow-frame equipment like mini excavators and road rollers.

• Direct wheel hub mounting design removes external gear reducers, simplifying hydraulic transmission system and reducing assembly & maintenance costs.

• Fully OEM interchangeable mounting dimensions, supporting plug-and-play replacement without secondary mechanical cutting or reaming during repair.

• Core moving parts are carburized forged alloy steel, with outstanding wear resistance and impact resistance for long-term outdoor operation.

• Multi-layer PTFE-nitrile composite sealing assembly, effectively preventing internal volumetric loss and external oil leakage under fluctuating pressure and oil temperature.

• Thickened integrated alloy steel housing with high structural rigidity, shielding internal components from dust, muddy splashes and minor mechanical vibration.

• Bidirectional rotation design, flexible to adapt forward and backward operation scenarios of construction and agricultural machinery.

• Wide applicable working temperature range (-20℃ ~ +85℃), compatible with various harsh outdoor working environments.

• Each finished motor passes strict bench tests of pressure endurance, volumetric efficiency and sealing tightness to reach international export quality standards.

Applications

• Mining: Roof bolter rotation and feed, shuttle car travel drives, tracked carriers, crusher roller drives

• Construction: Skid steer loader travel, mini excavator swing, telehandler drives, cold planer rotor drives

• Material Handling: Screw conveyors, bucket elevators, mixer drums, feeders

• Forestry: Mulcher feed rollers, feller buncher travel, brush cutter head drives

• Agriculture: Feed mixer wagons, manure spreaders, self-propelled sprayers

• Marine / Offshore: Deck winches, anchor windlasses, tugger winches, hatch cover actuation

• Rail: Track maintenance equipment travel, ballast conveyors, tie replacement machines

• Stationary Industrial: Rotary kilns, ball mills, shredders, filter presses

• Municipal: Sweeper brush drives, refuse compactor push plates, snow blower augers

• Specialty Vehicles: All-terrain carriers, tracked firefighting vehicles, emergency dewatering pump vehicles

Other model specifications

Technical Specifications：

Specifications：
