Product Overview

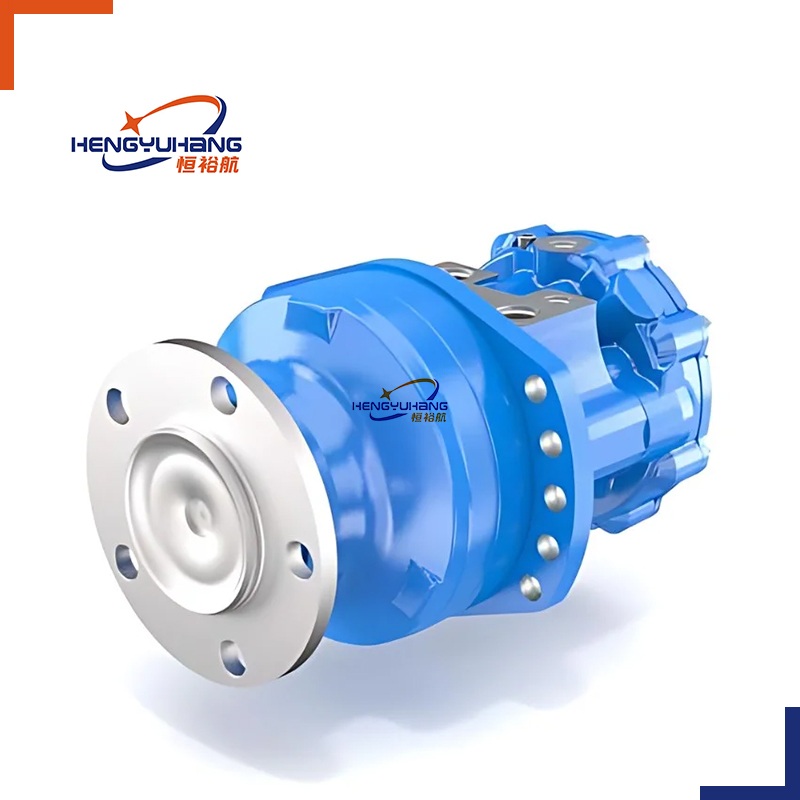

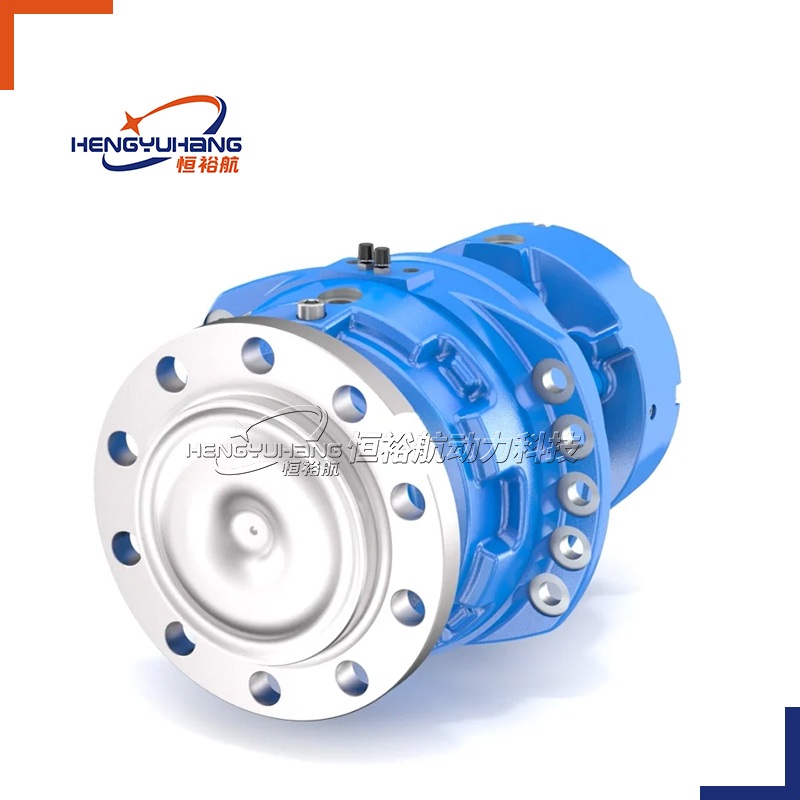

The Poclain MS11-MSE11 heavy-duty radial piston hydraulic motor, specific model MS11-2-1687-L11-2A60-F05, features an ultra-large 1687cc displacement to deliver exceptional torque output for extreme heavy-load working scenarios. Adopting mature cam radial piston direct drive architecture, the unit can drive wheels or rollers without external reduction gearboxes, simplifying transmission layout and cutting mechanical power loss. It supports rich modular configurations including integrated parking brake, rotational speed sensor and flushing valve, and can operate stably within both open-loop and closed-loop hydraulic systems. The extra-thick cast iron housing together with carburized, precision-ground internal components offers outstanding shock resistance, vibration tolerance and wear performance, adapting to long-duration operation inside mines, quarries and large road construction sites. Its mounting dimensions strictly follow original Poclain specifications to achieve seamless drop-in replacement; this hydraulic motor is widely installed on heavy compactors, underground mining haulers, large trenchers, quarry transport vehicles and other super-heavy mobile machinery to supply robust hydraulic wheel drive power.

Key Features

• Ultra-large 1687cc displacement for extreme heavy loads Enormous displacement produces abundant startup, climbing and traction torque, meeting the strict power demand of super-heavy mobile engineering equipment.

• Radial piston direct drive structure Eliminates external reducer assemblies, shortens power transmission paths, reduces mechanical energy consumption and saves installation space.

• Superior high-pressure endurance Designed for high-pressure hydraulic circuits, it maintains stable torque output under sustained heavy-load operation in mining and quarrying environments.

• Versatile modular optional assemblies Can be equipped with built-in parking brake, speed monitoring sensor, flushing valve to fulfill various hydraulic control scheme requirements.

• Dual hydraulic circuit compatibility Works reliably for open-loop and closed-loop hydraulic systems, matching mainstream hydraulic system designs of heavy host machinery.

• High-hardness wear-resistant internal parts Precision machined alloy steel pistons and cam rings withstand long-term cyclic friction, significantly extending the whole motor service life.

• Reinforced cast iron outer housing Resists severe mechanical impact, continuous vibration, dust and moisture, perfectly suited for harsh underground, quarry and open construction working conditions.

• Fully interchangeable mounting dimensions Flange, drive shaft and oil port dimensions are consistent with original Poclain standards, no mechanical modification required during retrofit replacement.

• Optimized flow distribution design Reduces internal oil leakage and heat accumulation, elevates overall hydraulic system efficiency and lowers long-term operating expenditure.

• Wide ultra-heavy application coverage Applied for heavy road compactors, mining haulage trucks, large trenchers, quarry carriers and other heavy construction & mining machinery.

Applications

• Mining: Roof bolter rotation and feed, shuttle car travel drives, tracked carriers, crusher roller drives

• Construction: Skid steer loader travel, mini excavator swing, telehandler drives, cold planer rotor drives

• Material Handling: Screw conveyors, bucket elevators, mixer drums, feeders

• Forestry: Mulcher feed rollers, feller buncher travel, brush cutter head drives

• Agriculture: Feed mixer wagons, manure spreaders, self-propelled sprayers

• Marine / Offshore: Deck winches, anchor windlasses, tugger winches, hatch cover actuation

• Rail: Track maintenance equipment travel, ballast conveyors, tie replacement machines

• Stationary Industrial: Rotary kilns, ball mills, shredders, filter presses

• Municipal: Sweeper brush drives, refuse compactor push plates, snow blower augers

• Specialty Vehicles: All-terrain carriers, tracked firefighting vehicles, emergency dewatering pump vehicles

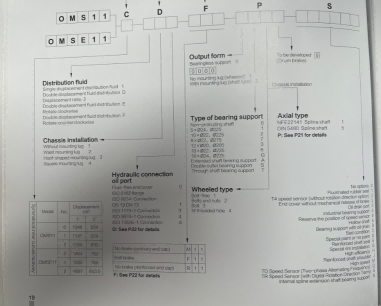

Other model specifications

Technical Specifications：

Specifications：
