Product Overview

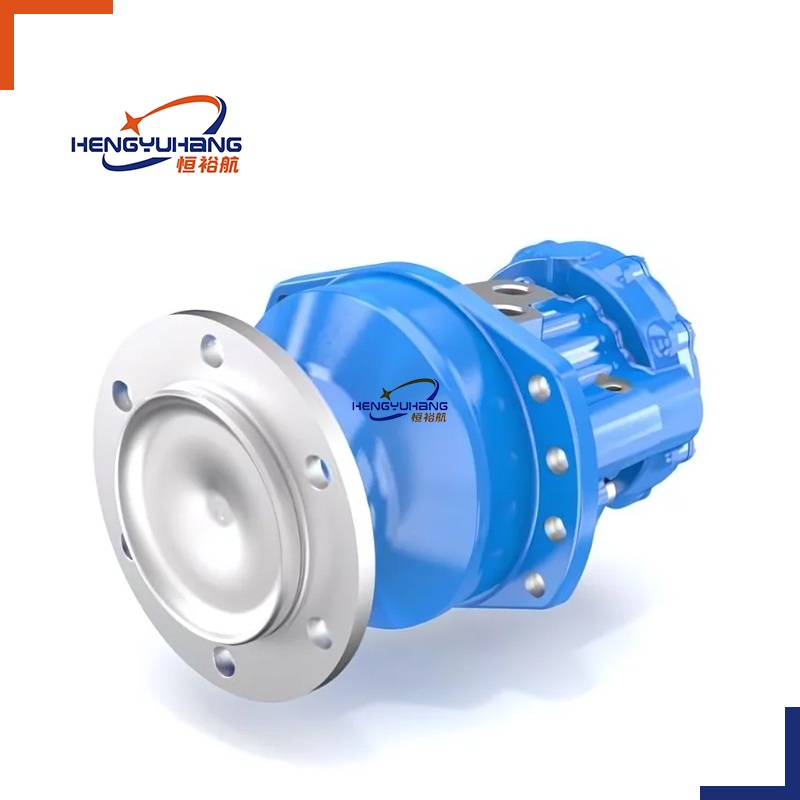

This is original Poclain MSE05-2-750 radial piston hydraulic motor from MS/MSE05 multipurpose series, displacement 750cc/rev, max working pressure 400 bar, maximum output power up to 50kW.Adopts inner curve radial piston structure, features low speed large torque, stable startup under heavy load, low pressure loss, optional single/dual displacement design. Widely used for wheel drive, drum drive of excavators, road rollers, tunneling machines, mining equipment, sanitation vehicles and other heavy machinery.Modular structure supports multiple shaft, flange and brake configurations, easy installation, maintenance and replacement, long service life under harsh working conditions. Customized specification inquiry is welcome.

Key Features

• Mature cam lobe radial piston structure Adopts Poclain proven cam lobe radial piston technical architecture, outputs ultra-high torque at low rotational speed, perfectly meets heavy-duty direct drive requirements of large engineering equipment.

• 750cc large displacement design Larger displacement generates stronger driving torque, suitable for long-term continuous operation under ultra-heavy load, adapting to high-load working conditions that medium/small displacement motors cannot handle.

• 1:1 OEM interchangeable mounting dimension Flange, drive shaft and oil port layout are fully consistent with original MSE05 specifications, no mechanical modification is required for on-site replacement, greatly shortening equipment maintenance downtime.

• Forged alloy steel core internal components Cam rings and pistons adopt carburized forged alloy steel processing, outstanding wear and impact resistance, effectively extend service life under frequent load shock.

• Heavy-duty composite sealing assembly Combined PTFE and nitrile rubber seals adapt to high pressure and wide oil temperature variation, greatly reduce internal and external oil leakage, keep stable volumetric efficiency in long-term operation.

• Direct wheel hub mounting capability Can be directly installed on wheel hubs or drive rollers, external reduction gearbox is no longer needed, saves installation space and reduces overall hydraulic system procurement cost.

• Bidirectional stable rotation Supports clockwise and counter-clockwise operation, well matched with reversible equipment including tracked vehicle wheel drives, heavy hydraulic winches and conveyor rollers.

• Superb harsh environment adaptability Thick alloy steel housing resists dust, moisture and mechanical vibration, runs reliably in mines, quarry sites, large construction sites and open farmland environments.

• Complete factory bench testing Each finished motor undergoes pressure endurance, efficiency testing and leakage inspection before delivery, strictly control quality to satisfy bulk export order standards.

• Wide industrial application range Applicable for large tracked construction machinery, underground mining haulers, heavy agricultural harvesters, port bulk handling equipment, marine hydraulic winches and other heavy rotary drive systems.

Applications

• Mining: Roof bolter rotation and feed, shuttle car travel drives, tracked carriers, crusher roller drives

• Construction: Skid steer loader travel, mini excavator swing, telehandler drives, cold planer rotor drives

• Material Handling: Screw conveyors, bucket elevators, mixer drums, feeders

• Forestry: Mulcher feed rollers, feller buncher travel, brush cutter head drives

• Agriculture: Feed mixer wagons, manure spreaders, self-propelled sprayers

• Marine / Offshore: Deck winches, anchor windlasses, tugger winches, hatch cover actuation

• Rail: Track maintenance equipment travel, ballast conveyors, tie replacement machines

• Stationary Industrial: Rotary kilns, ball mills, shredders, filter presses

• Municipal: Sweeper brush drives, refuse compactor push plates, snow blower augers

• Specialty Vehicles: All-terrain carriers, tracked firefighting vehicles, emergency dewatering pump vehicles
