Vickers

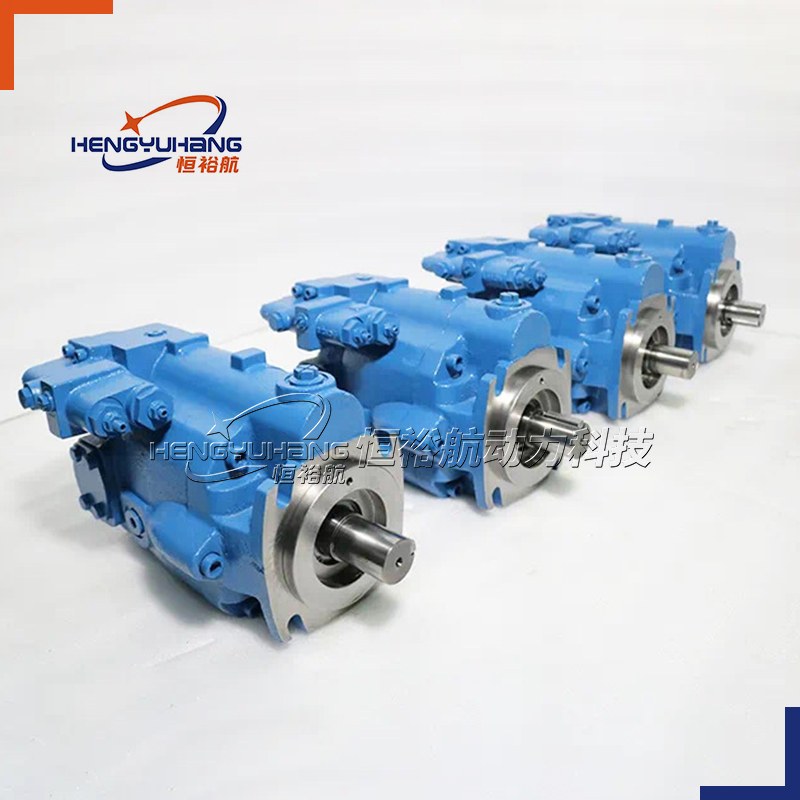

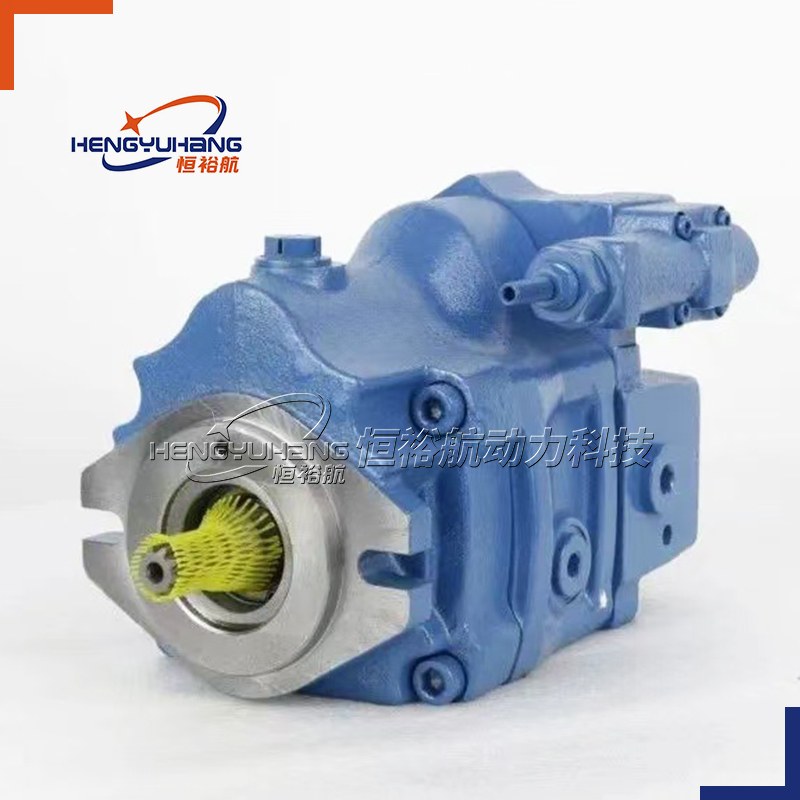

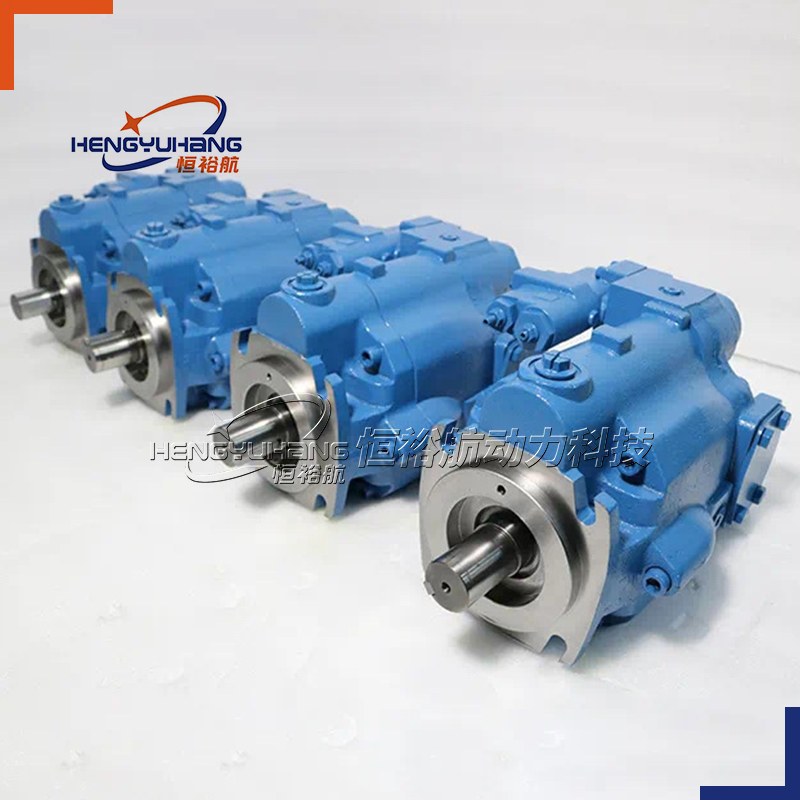

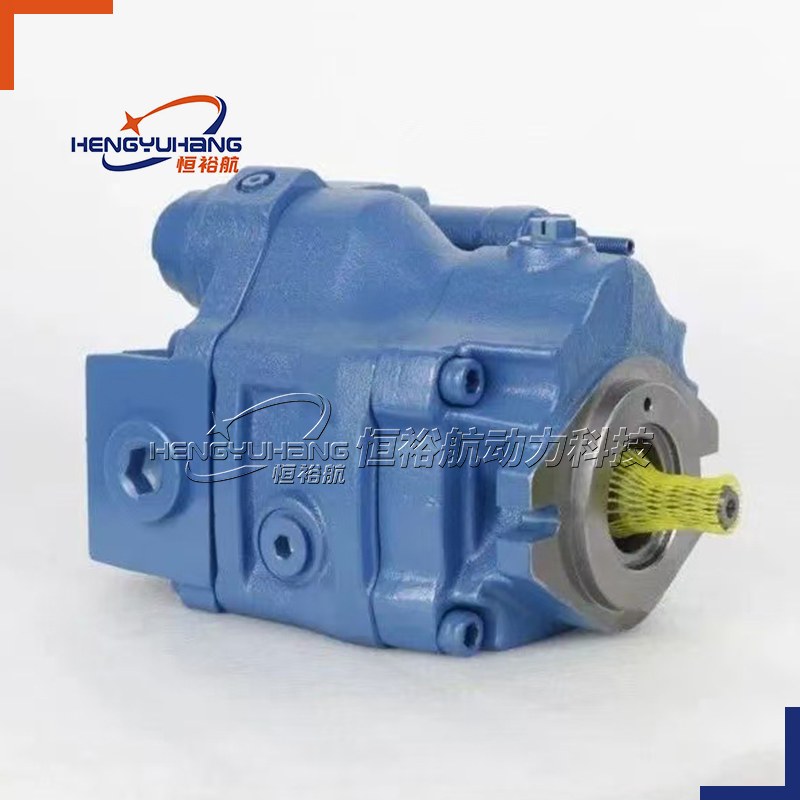

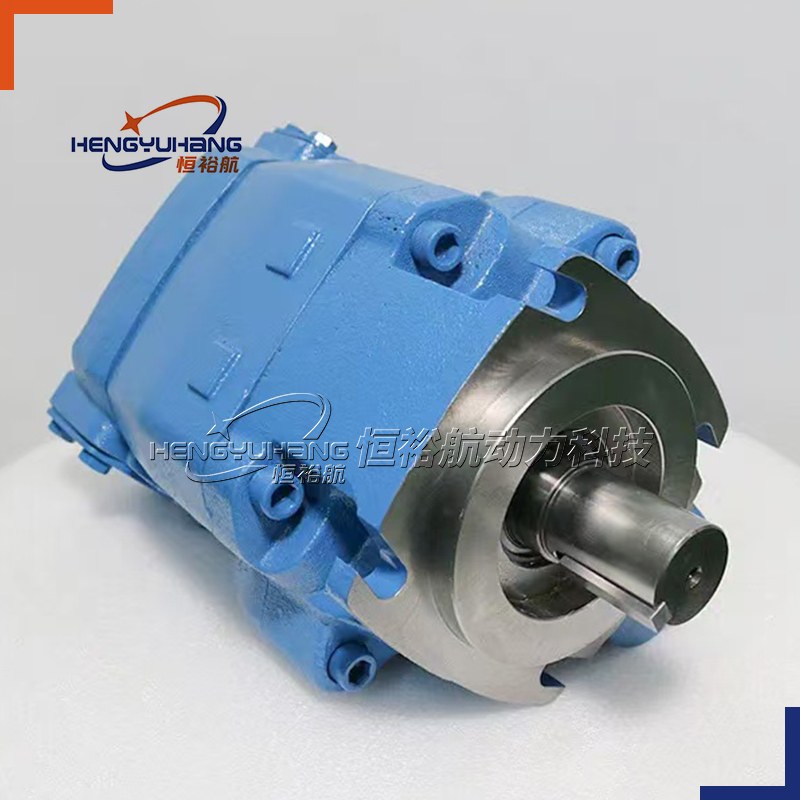

Eaton Mobile Variable Displacement Piston Pumps PVM PVQ

PVM018 PVM020 PVM045 PVM050 PVM057 PVM063 PVM074 PVM098 PVM106 PVM131 PVM141 PVM series mobile pumps are open circuit, axial piston designs. A variety of controls provides the ability to match the pumps to each application. Efficiency of the pump controls allows down-sizing of system cooling needs, allowing a smaller and less expensive design to be used. Alternatively, cooling capacity could be kept the same and the flow capability of the system increased, thus improving performance and customer satisfaction.Fourteen displacements available 230 bar and 280 bar continuous ratings.


Description

PVQ10 PVQ13 PVQ20 PVQ25 PVQ32 PVQ40 PVQ45 PVQ Series Piston Pumps Variable Displacement, Quiet Series for Industrial Application, are in-line, variable displacement units and are available in nine sizes. Displacement is varied by means of pressure and/or flow compensator controls. An impressive assortment of control options offers maximum operating flexibility.

ModelDescription
PVM – 18 cc18 cc/rev, SAE A two bolt mount, 5/8” parallel shaft, side ports, press./ flow compensated
PVM – 45 cc45 cc/rev, SAE B two bolt mount, 7/8” parallel shaft, side ports, press./ flow compensated
PVM – 57 cc57 cc/rev, SAE C four bolt mount, through drive with SAE A pad 1 1/4” parallel shaft, side ports, press./ flow compensated
PVM – 74 cc74 cc/rev, SAE CC four bolt mount, through drive with SAE A pad 1 1/2” parallel shaft, side ports, press./ flow compensated
PVM – 98 cc98 cc/rev, SAE CC four bolt mount, through drive with SAE A pad 1 1/2” parallel shaft, side ports, press./ flow compensated
PVM – 131 cc131 cc/rev, SAE CC four bolt mount, through drive with SAE A pad 1 1/2” parallel shaft, side ports, press./ flow compensated

02-335174EATON PUMP PVM131ER-10GS02AAC-28110000A0A
02-345283EATON PUMP PVM131ER-10GS02AAB-28110000A0A
123AL00054AEATON PUMP PVM045ML-07CE01AAC-28110000A0A
123AL00089AEATON PUMP PVM045ML-07CS01AAC-28110000A0A
123AL00090AEATON PUMP PVM045MR-07CS01AAC-28110000A0A
123AL00098AEATON PUMP PVM018ML-04AS01AAC-28110000A0A
123AL00099AEATON PUMP PVM018MR-04AS01AAC-28110000A0A
123AL00100AEATON PUMP PVM057MR-11GS02AAC-28200000A0A
123AL00101AEATON PUMP PVM141MR-13JS02AAC-23110000A0A
123AL00176AEATON PUMP PVM045MR-07CS01AAC-2811000AA0A
123AL00177AEATON PUMP PVM057MR-11GS02AAC-2811000CA0A
123AL00201AEATON PUMP PVM045MR-08CE02AAC-28240000A0A
123AL00231AEATON PUMP PVM045ER-05CS01AAA-2800000AA0A
123AL00271AEATON PUMP PVM074MR-11GS02AAC-2820000AA0A
123AL00272AEATON PUMP PVM018MR-03AS01AAC-28110000A0A
123AL00273AEATON PUMP PVM131MR-11GS02AAC-2820000AA0A
123AL00274AEATON PUMP PVM098MR-11GS02AAC-2820000AA0A
123AL00285AEATON PUMP PVM057ER-09GS02AAB-2811000AA0A
123AL00286AEATON PUMP PVM098ER-10GS02AAB-2811000AA0A
123AL00358AEATON PUMP PVM018ER-02AS01AAC-28110000A0A
123AL00628AEATON PUMP PVM074ER-10GS02AAB-2811000AA0A
123AL00641AEATON PUMP PVM045ER-05CS01AAC-2811000AA0A
123AL00671AEATON PUMP PVM098ER-10GS02AAB-28110000A0A
123AL00819AEATON PUMP PVM057ER-09GS02AAC-2811000AA0A
123AL00978AEATON PUMP PVM018ER-01AS01AAB-23110000A0A
123AL00994AEATON PUMP PVM045ER-08CS02AAC-28110000A0A
123AL01054AEATON PUMP PVM074ER-11GS02AAC-28240000A0A
123AL01331AEATON PUMP PVM074ER-09GS02AAC-2811000AA0A
123AL01656AEATON PUMP PVM098ER-10GS02AAC-2811000CA0A
123AL02011AEATON PUMP PVM018ER02AS01AAC28110001A0A
123AL02345AEATON PUMP PVM131ER-10GS02AAB-28110000A0A


HENGYUHANG Company  is a set design, production, sales in one of the hydraulic components production company, the company has advanced hydraulic components manufacturing technology and technology, the use of high-precision equipment CNC machining center, gear hot processing automatic production line, , automatic heat treatment multi-purpose furnace, single-piece flow assembly line, automatic hydraulic pump performance test bench. Intelligent equipment adopts automatic unmanned production, and realizes online measurement to ensure product consistency and reliability, intelligent system uses ERP, MES management software, improve production efficiency, and achieve product traceability.

Hengyuhang Power Technology produces and sells external gear pumps, hydraulic synchronous motors, multi-pump units, gear pumps with built-in valves, and custom valve blocks. Meanwhile, according to the specific needs of customers, we provide a variety of products with special specifications.And it can also be used as a substitute for other products (such as Rexlex, Danfoss, MARZOCCHI, Parker, RONZIO, Atos, Buchet, ECKERLE, CONCENTRIC, HYADC, JIHOSTROJ, Hydraulic, SDH, VIVOLO, ARGO-HYTOS, HESPER,   HPLPA, HPI, DUPLOMATIC, ROQUET, BODEN,PERMCOP, Caproni, DUPLOMATIC, HIDRAULICA, SETTIMA, SALAMI, HONOR, SHIMADZU, GRH, Brevini, Galtech, BONDIOLI, REXROTH-SIGMA, BLUEASCEND, RISUNY, SUMITOMO, HYDROMAX, SCENERY, REXPOWER, CML, HOERBIGER, SUNNY, HYTEK, Hydro-pack, )

HENGYUHANG also sells a wide range of other international brands of hydraulic pumps, hydraulic valves, hydraulic motors, hydraulic cylinders, hydraulic oil seals, hydraulic equipment and accessories, and has high-quality overseas ordering channels

HENGYUHANG products are mainly used in the supporting services of industries such as automobiles, construction machinery, agricultural machinery, aerial work platforms, hydraulic systems, logistics handling vehicles, new energy vehicles, metallurgical machinery, petroleum machinery, machine tools, and wind powe
