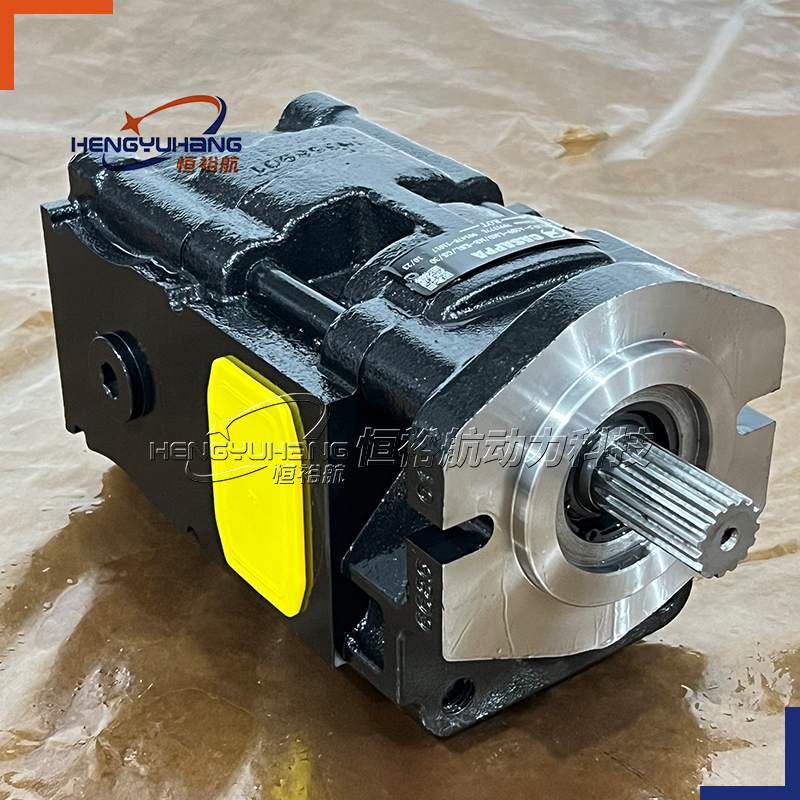

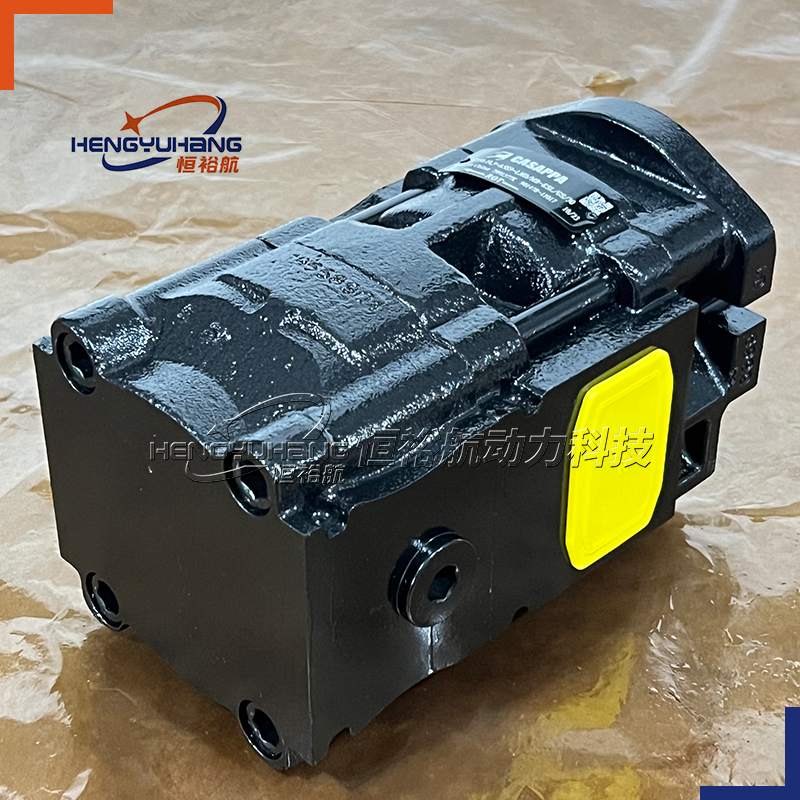

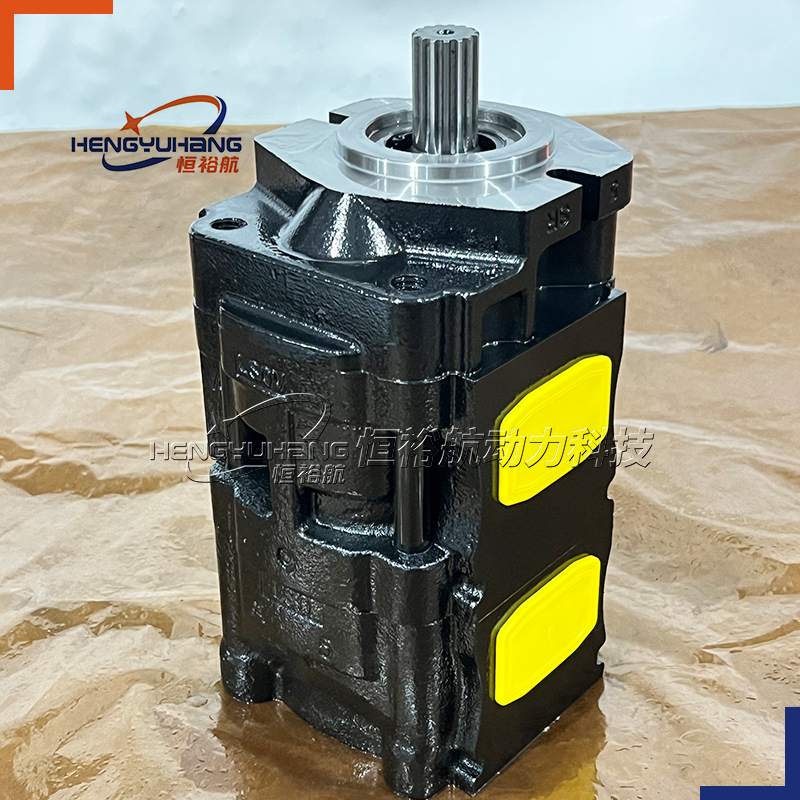

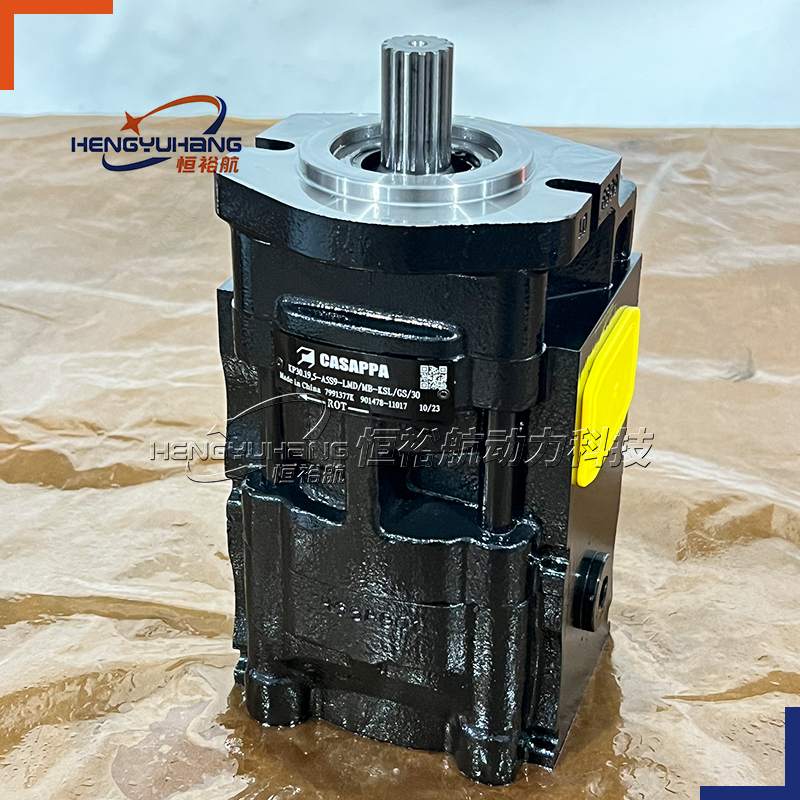

CASAPPA Cast Iron Hydraulic Pump KP30.19,5-A5S9-LMD/MB-KSL/GS/30 High-pressure Oil Pump KP30 KP20 KP35 KP40 Hydraulic Gear Pump
HENGYUHANG cast iron gear pumps, non-standard customized alternatives, CASAPPA hydraulic pumps KP30, KP20, KP35, KP40 oil pumps
● Mobile Machinery: Agricultural equipment (tractors, balers, sprayers), construction machinery (small excavators, loaders, rollers), and material handling equipment.
● Industrial Machinery: Machine tools, presses, conveyor systems, and plastic injection molding machines.
● Special Vehicles: Municipal vehicles, aerial work platforms (AWPs), and cleaning vehicles.
Summary Table of Features
Feature | Description | Benefit |
---|---|---|
Design | Compact, cast iron construction | Durable, space-saving, high power density |
Pressure | High operating (up to 250 bar) and peak pressure | Powers demanding hydraulic functions |
Efficiency | High volumetric and overall efficiency | Saves energy, reduces heat generation |
Noise | Low noise operation | Improves operator comfort and meets regulations |
Shaft/Seals | Multiple shaft and seal options (e.g., Viton®) | Compatibility with various drives and fluid types |
Flexibility | SAE mounting and porting, multiple displacements | Easy to integrate and tailor to specific flow needs |
Configuration | Tandem pump capability | Powers multiple circuits from a single drive source |
Applications | Mobile and industrial hydraulics | Versatile and reliable for many sectors |
Key Features of the CASAPPA KP30 Gear Pump
High Power Density: The pump is designed to deliver significant flow and pressure relative to its small size and weight. This makes it ideal for applications where space is limited, such as in compact machinery.
Durable Construction: Typically built with a cast iron body, which provides excellent resistance to wear and tear and ensures a long operational life, even in demanding environments.
The KP30 is designed to operate continuously at high pressures. A common specification for this series is:
Maximum Operating Pressure: Up to 250 bar (≈ 3625 psi)
Peak Pressure: Up to 280 bar (≈ 4060 psi) for short durations.
This high-pressure capability allows it to drive powerful actuators like hydraulic cylinders and motors.
The pump can operate efficiently across a broad range of rotational speeds.
Minimum Speed: Can run at very low speeds (e.g., 600 rpm) for precise control.
Maximum Speed: Can handle high speeds (e.g., 3000 rpm and beyond, depending on the model variant), making it versatile for different prime movers like electric motors or internal combustion engines.
Precision Machined Gears: The gears and internal components are manufactured to very tight tolerances. This minimizes internal leakage (slip) and maximizes volumetric efficiency, meaning it delivers a high percentage of its theoretical flow output.
Optimized Bearing and Gear Design: Reduces mechanical friction, leading to high overall (hydromechanical) efficiency. This translates to less power lost as heat and lower fuel or energy consumption for the driving engine/motor.
CASAPPA places a strong emphasis on noise reduction. The KP30 features:
Precision Ground Gears: Results in smooth and quiet meshing of the gear teeth.
Optimized Porting: The design of the inlet and outlet ports helps to minimize flow ripples and pressure pulsations, which are major contributors to hydraulic noise.
Shaft Options: Available with various shaft types (e.g., parallel key, splined) to suit different coupling and connection requirements.
Shaft Seal Options: Offered with standard lip seals or highly durable Viton® seals for applications involving extreme temperatures or compatibility with certain hydraulic fluids.
Rotation: Available in both clockwise and counter-clockwise rotation versions.
Standard Porting: Typically comes with SAE flanged ports (e.g., 2-bolt SAE A or 4-bolt SAE B), which are industry standards for easy integration into hydraulic systems.
Mounting: Features a standard SAE mounting flange (e.g., SAE A or B 2-bolt), allowing for easy and direct mounting to reservoirs, valves, or other pumps in a circuit.
The "KP30" designation often refers to a frame size. Within this frame, the pump is available in a range of displacements (volume of fluid delivered per revolution). Common displacements for this size are around 30 cm³/rev (1.83 in³/rev), but other sizes may be available (e.g., 28, 32, 36 cm³/rev). This allows users to select the exact flow rate needed for their application.
One of the most powerful features is the ability to create a tandem pump configuration. The KP30 can be coupled with additional gear pumps (e.g., another KP30, a smaller KP10, or a larger KP50) or even a CASAPPA gear motor to form a single, compact unit.
Benefit: This allows a single engine or motor to power multiple independent hydraulic circuits (e.g., for steering, lifting, and tool functions), simplifying design and saving space.
Designed to work effectively with a wide range of hydraulic fluids, including:
Mineral-based hydraulic oils
Biodegradable fluids (like HETG/HEES)
Synthetic fluids
Water-glycol fluids (specific seal kits may be required for non-mineral oils)
