Rexroth

REXROTH A11VO Axial Piston Variable Pump A11VO40 A11VO60 A11VO75 A11VO95 A11VO130

Verstellpumpe A11VO/A11VLO Variable Hydraulic piston Pump

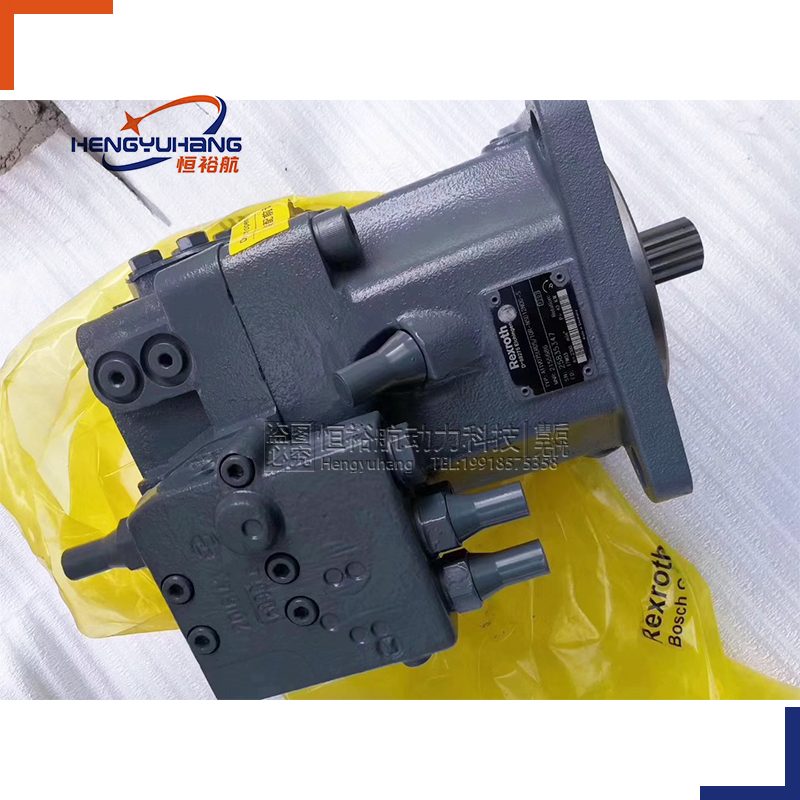

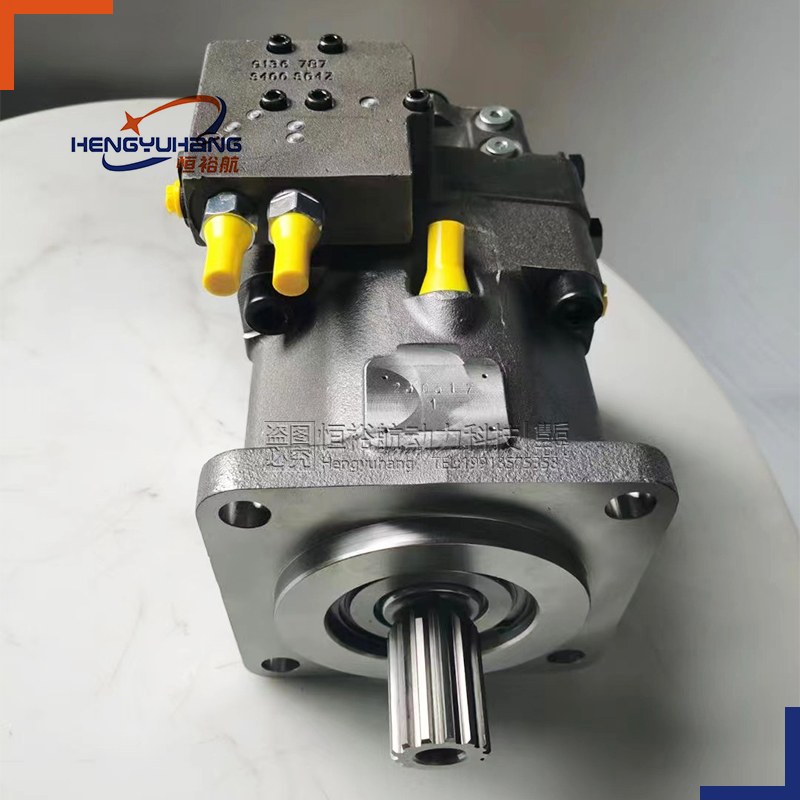

The Bosch Rexroth A11VO pump is a variable displacement axial piston pump. It has a swashplate design for open circuit hydrostatic drives and is designed primarily for use in mobile applications.The pump is available in the following sizes: 40 | 60 | 75 | 95 | 130 | 145 | 190 | 260 cc/rev and has a nominal pressure of 350 bar and a peak pressure of 400 bar.Flow is proportional to the drive speed and displacement. By adjusting the swash plate, the flow can be changed seamlessly.Other features of the Bosch Rexroth A11VO pump include:All-purpose high pressure pump with through-driveThrough-drive for mounting of further pumps up to same nominal sizeOptional charge pump for sizes 130cc/rev to 260 cc/revPump operates under self-priming conditions, with tank pressurisation, or with an optional built-in charge pump (impeller, A11VLO)Comprehensive range of control options is available matching any application requirementPower control option is externally adjustable, even when the pump is running

● All-purpose high pressure pump with through-drive
● Through-drive for mounting of further pumps up to same nominal size
● Optional charge pump for sizes 130cc/rev to 260 cc/rev
● Pump operates under self-priming conditions, with tank pressurisation, or with an optional built-in charge pump (impeller, A11VLO)
● Comprehensive range of control options is available matching any application requirement
● Power control option is externally adjustable, even when the pump is running
● Variable axial piston pump of swashplate design for hydrostatic drives in open circuit hydraulic system.
● Designed primarily for use in mobile applications.
● The pump operates under self-priming conditions, with tank pressurization, or with an optional built-in charge pump (impeller).
A comprehensive range of control options is available matching any application requirement.
Power control option is externally adjustable, even when the pump is running.
The through drive is suitable for adding gear pumps and axial piston pumps up to the same, i.e. 100% through drive.
The output flow is proportional to the drive speed and infinitely variable between qV max and qV min = 0.



Description

Size

40

60

75

95

130

145

190

260

130

145

190

260

Version

Standard

With charge pump

Displacement geometric, per revolution
Vg maxcm³

42

58.5

74

93.5

130

145

193

260

130

145

193

260

Nominal pressure
pnombar

350

350

350

350

350

350

350

350

350

350

350

350

Maximum pressure
pmaxbar

400

400

400

400

400

400

400

400

400

400

400

400

Maximum speedat Vg maxnnomrpm

3000 1)

2700 1)

2550 1)

2350 1)

2100 1)

2200 1)

2100 1)

2000 1)

2500 2)

2500 2)

2500 2)

2300 2)

Flowat Vg max and nnomqV noml/min

126

158

189

220

273

319

405

468

325

363

483

598

Powerat qV nom and pnomPkW

74

92

110

128

159

186

236

273

190

211

281

349

Torqueat Vg max and pnomMNm

234

326

412

521

724

808

1075

1448

724

808

1075

1448

Weight (approx.)
mkg

32

40

45

53

66

76

95

125

72

73

104

138

A11VO40DRS/10R-NSC12N00 A11VO40DR/10R-NSC12N00
A11VO40DRG/10R-NSC12N00 A11VO40DRL/10R-NSC12N00
A11VO40HD1/10R-NSC12N00 A11VO40HD2/10R-NSC12N00
A11VO40EP1/10R-NSC12N00 A11VO40EP2/10R-NSC12N00
A11VO60DRS/10R-NZC12K01 A11VO60LR/10L-NZC12K61
A11VO60LG1DS/10R-NSC12K07 A11VO60DR/10L-NSC12K07
A11VO60LRD/10R-NSC12N00 A11VO60EP2/10R-NSC12K07H
A11VO60LRDS/10R-NZC12K02 A11VO60HD1D/10L-NZC12K61
A11VO75HD2D/10R-NZD12N00 A11VO75LRDU2/10R-NSD12K01P
A11VO75LR/10R-NSD12K01 A11VO75DRG/10L-NSD12K02
A11VO75DRL/10L-NSD12K07 A11VO75EP2G/10R-NZD12K81P
A11VO75LR/10R-NSD12N00 A11VO75DRG/10L-NZD12K04
A11VO95DRS/10R-NSD12K82 A11VO95LRDS/10L-NSD12N00
A11VO95LG1DS/10L-NZD12N00 A11VO95LRDS/10L-NSD12K04
A11VO95HD1D/10L-NZD12K82 A11VO95DRS/10L-NSD12K07
A11VO95LRG/10R-NPD12N00 A11VO95DRS/10L-NSD12K02
A11VO130LRDS/10R-NZD12K07 A11VO130LRDS/10R-NZD12K04
A11VO130LRDS/10L-NSD12N00 A11VO130LRDH6/10R-NZD12K81
A11VO130LRD/10R-NSD12K07 A11VO130LRDS/10L-NZD12K02
A11VO130LRDS/10R-NSD12K02 A11VO130LRDS/10R-NSD12K01
A11VO145LRDH1/11R-NZD12K01 A11VO145LRDS/11R-NZD12K07
A11VO145LRDH1/11R-NSD12K52 A11VO145LRDS/11R-NZD12K01
A11VO145LR3DS/11R-NZD12K01 A11VO145DRS/11R-NPD12N00
A11VO145LRDS/11L-NZD12K83 A11VO145DRS/11L-NZD12N00
A11VO190DRG/11R-NPD12K02 A11VO190LRDH1/11R-NSD12K02
A11VO190DRS/11R-NZD12N00R A11VO190DRS/11L-NSD12K02
A11VO190EP2G/11R-NZD12K84P A11VO190DRS/11R-NPD12K84
A11VO190DRS/11L-NZD12K84 A11VO190EP2G/11R-NZD12N00P
A11VO260LRCS/11R-NZD12K07 A11VO260DRS/11R-NZD12K84R
A11VO260DRL/11R-NZD12K84 A11VO260DRS/11L-NZD12N00
A11VO260LRDS/11R-NSD12K04 A11VO260LRDH2/11R-NZD12K81
A11VO260DR/11R-NZD12N00 A11VO260LRH2/11R-NPD12N00

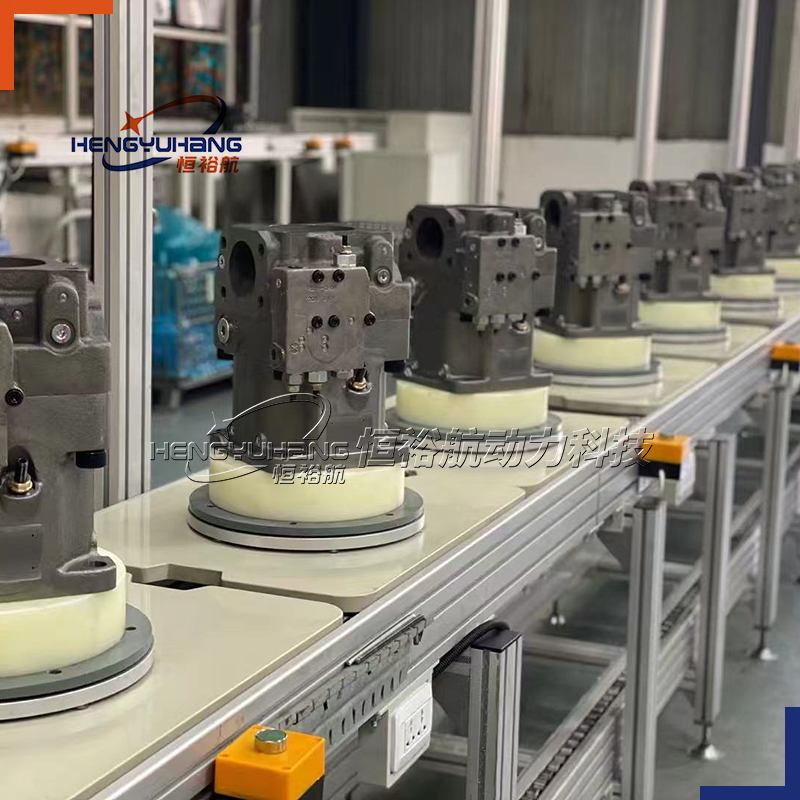

HENGYUHANG Company  is a set design, production, sales in one of the hydraulic components production company, the company has advanced hydraulic components manufacturing technology and technology, the use of high-precision equipment CNC machining center, gear hot processing automatic production line, , automatic heat treatment multi-purpose furnace, single-piece flow assembly line, automatic hydraulic pump performance test bench. Intelligent equipment adopts automatic unmanned production, and realizes online measurement to ensure product consistency and reliability, intelligent system uses ERP, MES management software, improve production efficiency, and achieve product traceability.

Hengyuhang Power Technology produces and sells external gear pumps, hydraulic synchronous motors, multi-pump units, gear pumps with built-in valves, and custom valve blocks. Meanwhile, according to the specific needs of customers, we provide a variety of products with special specifications.And it can also be used as a substitute for other products (such as Rexlex, Danfoss, MARZOCCHI, Parker, RONZIO, Atos, Buchet, ECKERLE, CONCENTRIC, HYADC, JIHOSTROJ, Hydraulic, SDH, VIVOLO, ARGO-HYTOS, HESPER,   HPLPA, HPI, DUPLOMATIC, ROQUET, BODEN,PERMCOP, Caproni, DUPLOMATIC, HIDRAULICA, SETTIMA, SALAMI, HONOR, SHIMADZU, GRH, Brevini, Galtech, BONDIOLI, REXROTH-SIGMA, BLUEASCEND, RISUNY, SUMITOMO, HYDROMAX, SCENERY, REXPOWER, CML, HOERBIGER, SUNNY, HYTEK, Hydro-pack, )

HENGYUHANG also sells a wide range of other international brands of hydraulic pumps, hydraulic valves, hydraulic motors, hydraulic cylinders, hydraulic oil seals, hydraulic equipment and accessories, and has high-quality overseas ordering channels

HENGYUHANG products are mainly used in the supporting services of industries such as automobiles, construction machinery, agricultural machinery, aerial work platforms, hydraulic systems, logistics handling vehicles, new energy vehicles, metallurgical machinery, petroleum machinery, machine tools, and wind powe
